2" x 2" x 1/4" Rogers #Presshear-No.-10, Power Ironworker, 18 Ton Punch capacity, 2" Stroke, 6.5" Shut height, 1 HP, 115 V

Description

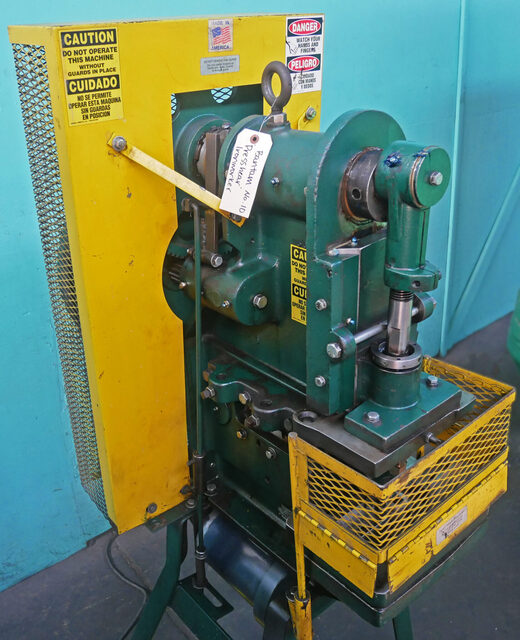

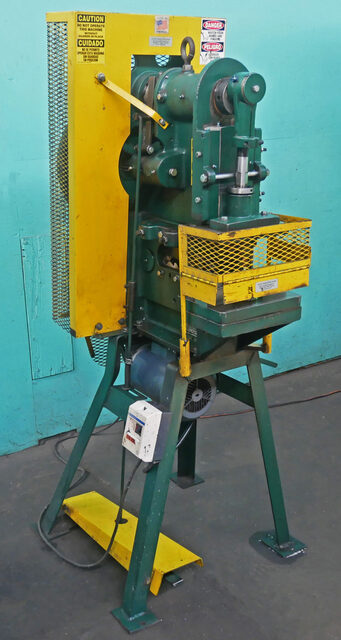

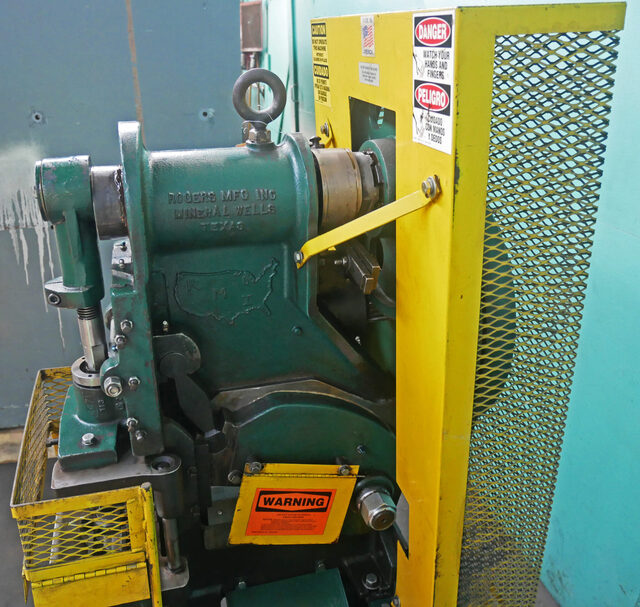

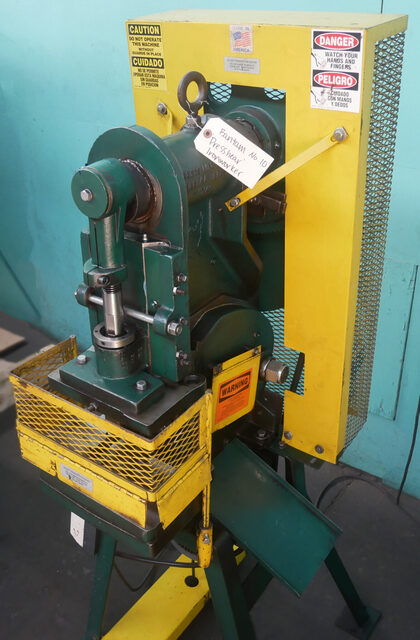

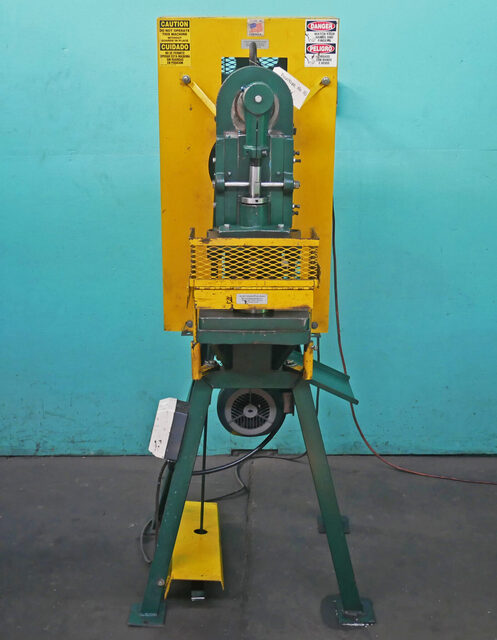

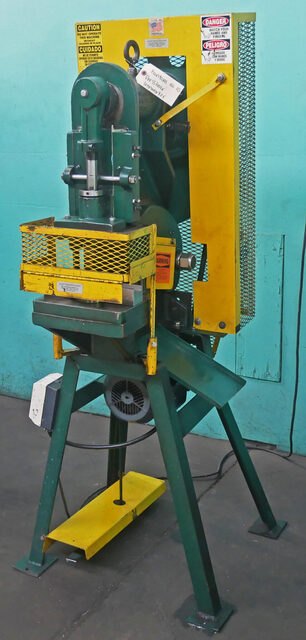

Rogers 18 Ton Power Ironworker, Presshear No. 10

Inventory # 9724

Model: Presshear No. 10

S/N: R10445

Made in USA

Specifications:

Punch Capacity: 18 US Tons

Stroke: 2″

Shut Height: 6 1/2″

Floor to Shear Blade: 39″

Angles: 2″ x 2″ x 1/4″

Rounds: 3/4″

Squares: 3/4″

Flats: 1/4″ x 4″

Channel: 2″ x 1/2″ x 1/8″

Punch: 7/8″, Round Hole Thru 1/4″ Material

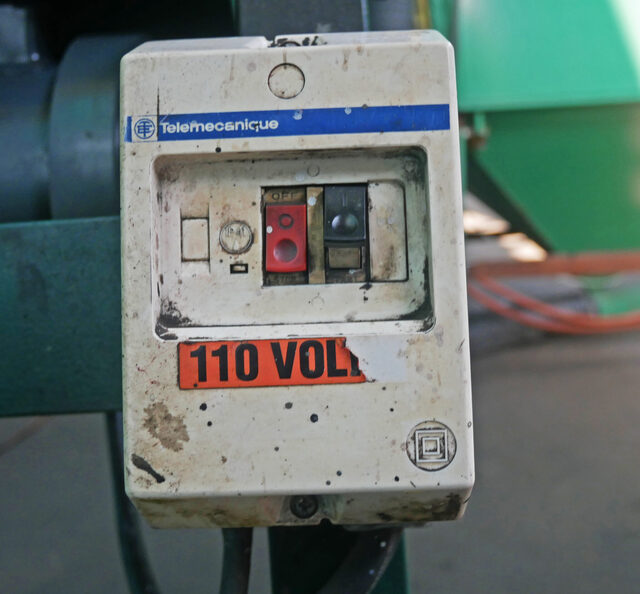

Motor: 1 HP / 115v / 1ph

Standard Features & Equipment Included:

Shear station includes blade set G:

9/16″ Square Punch and Die

This machine is both a punch and a shear

Cast-frame – High tensile ductile iron

Foot-operated, one-stroke safety clutch

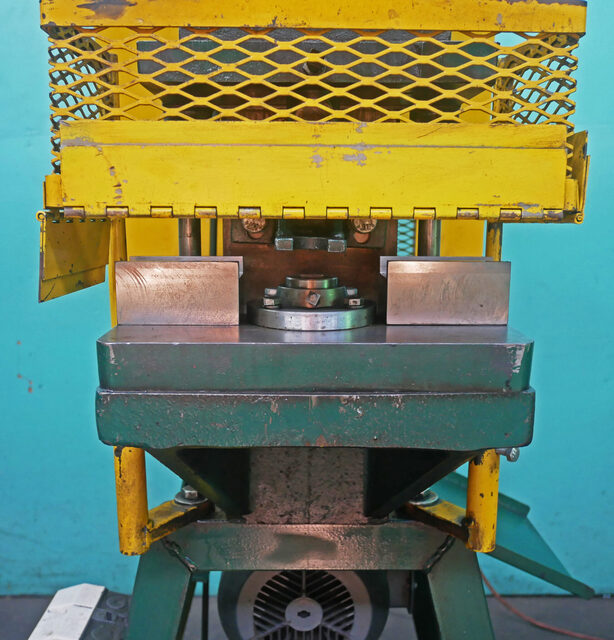

Front is a conventional press and can be used for punching or forming

Regular die sets will fit this machine

Adjustable ram

Hold-down easily adjustable

Punch can be lowered to material for center punching and will remain until clutch is engaged

Blades are tool steel and can be re-sharpened and adjusted

Punch to back of throat – 3″

Bar hole for lowering punch by hand

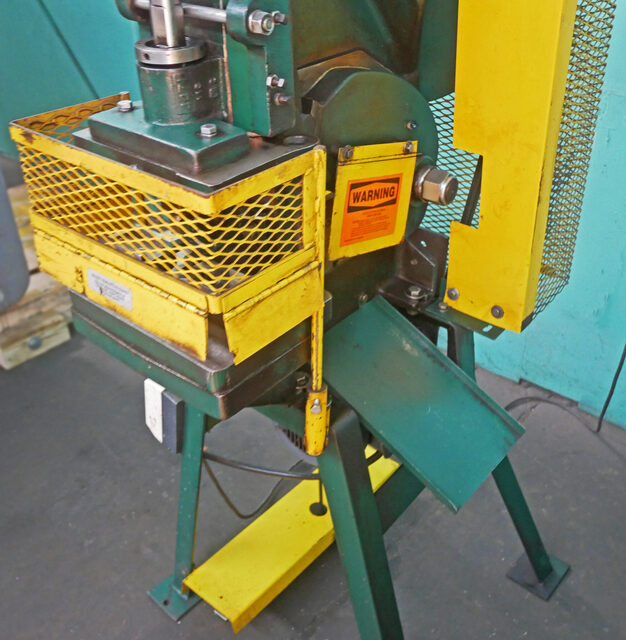

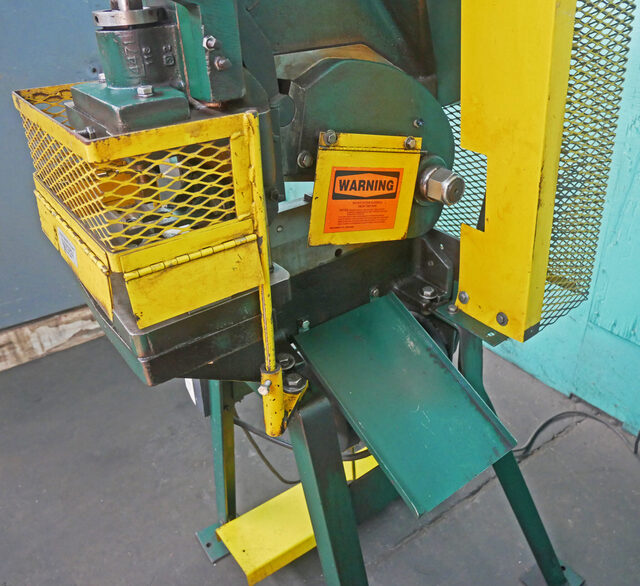

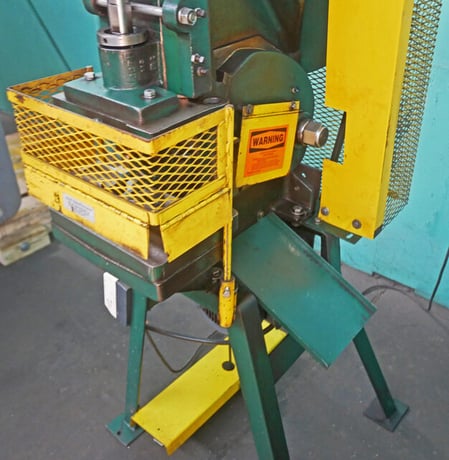

Blade guard, foot lever guard, and gear guard for operator’s protection

Approximately 48 strokes per minute

Misc. Manuals

Mechanical Specifications:

Dimensions: 34″ x 20″ x 66″ H

Shipping Weight: approx. 900 lbs.

New Replacement Cost: $8,000.00 + cost of blades

FOB Our Baltimore, MD Warehouse
