2" x 2.5" x 2" GMC #PRB-55, Angle Bending Roll, 3 HP

$7,950 USD

Request Formal Quote

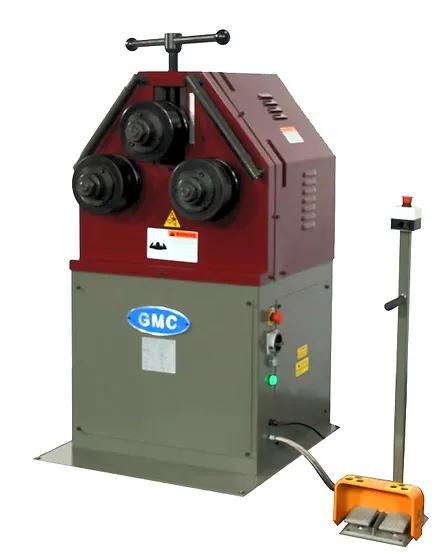

New GMC Angle Roll Bender with Manual Positioning PRB-55
ISO 9001 certified
2 schedule 40 pipe is the maximum bending capacity, 2.5 round tube 14 Ga. and 2 square tube
Heavy Duty 3HP AC main motor

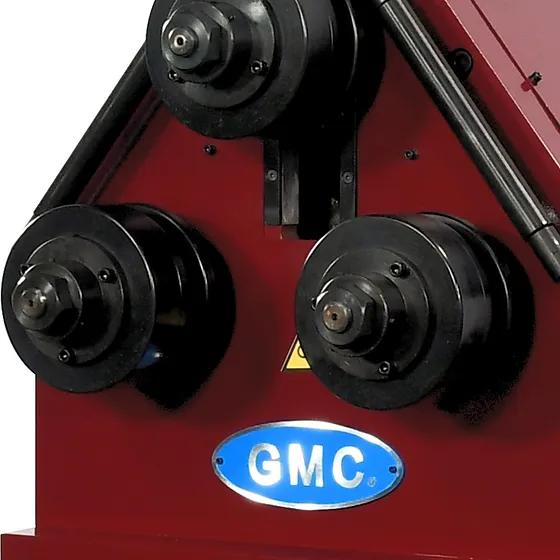

1 top forming roll (manually driven)
2 driven bottom rolls
Robust, all steel and welded framework
1-year parts only warranty and lifetime tech support by video and phone
One set of universal combination rollers can do most works except pipes & round tubes (will need special dies)
Left and right guide rollers (easily adjustable)
Foot pedal (controls forward and reverse
- Optional roller sets for pipe & round tubing, any size, one set (3 rolls) -call for pricing
- Optional anti-twisting attachment -call for pricing

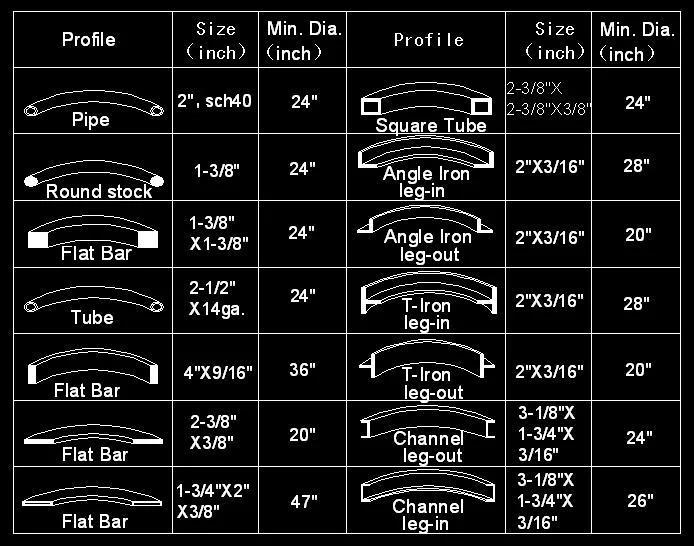

Model
PRB-55
Pipe Capacity
2 schedule 40 / Min. Dia.24
Tube Capacity
2-1/2x14 Ga. (wall) / Min. Dia. 24
Solid Round Tube
1-3/8 / Min. Dia. 24
Square Tube
2x2x3/16 (wall) / Min. Dia. 24
Solid Square Tube
1-3/8x1-3/8 / Min. Dia. 24
Solid Flat Bar
4x9/16 (wall) / Min. Dia. 36
Solid Flat Bar
2-3/8x3/8 (wall) / Min. Dia. 20
Angle Flat Bar
2-3/4x2x3/8 (wall) / Min. Dia. 47
Angle Iron Leg-In
2x3/16(wall) / Min. Dia. 28
Angle Iron Let-Out
2x3/16(wall) / Min. Dia. 20
T-Iron Leg-In
2x3/16 (wall) / Min. Dia. 28
T-Iron Leg-Out
2x3/16 (wall) / Min. Dia. 20
Channel Leg-In
3-1/8x1-3/4x3/16 / Min. Dia. 26
Channel Leg-Out
3-1/8x1-3/4x3/16 / Min. Dia. 24
Dia. of Roller
7 1/2"
Dia. of Roller Shaft
2"
Roller Speed
16 RPM
Motor
3 HP, 220VAC 3-Phase
(Optional 440VAC)
Dimensions
40" x 35" x 65"
Weight
1,050 lbs.
