Description
Description

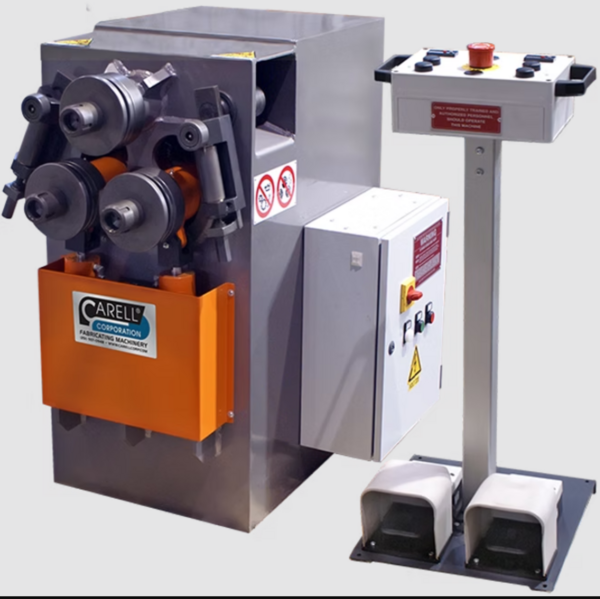

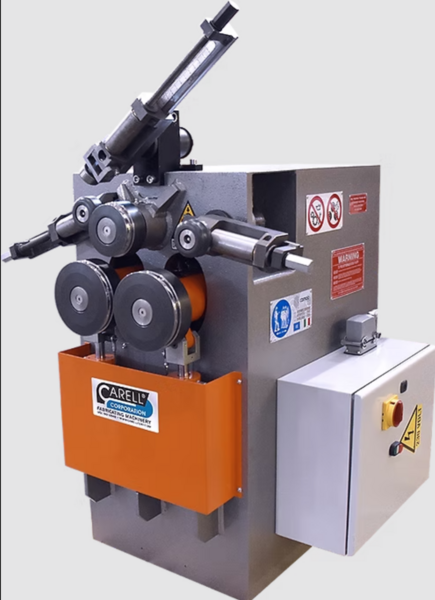

CARELL's 302HV double initial pinch universal bending machines are available with independent hydraulic adjustment of both lateral bending rolls and powered rotation of all three bending rolls. This versatile unit is ideal for rolling standard/special sections as well as tube and pipe in mild-structural-stainless steels, aluminum, brass, copper and other materials. Machines are furnished with a set of standard universal rolls

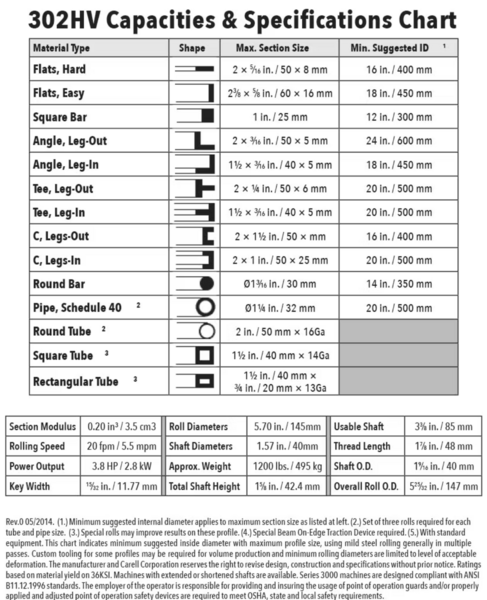

Specifications
| Angle (L1) | 2" | 50.8 mm |
| Angle (L2) | 1.5" | 38.1 mm |
| Pipe Capacity | 2" | 50.8 mm |
| (Init/Dbl Pinch or Pyramid) | DBL PINCH | DBL PINCH |
| Hyd/Mech | HYD | HYD |
| Operation (Horz, Vert, Horz/Vert) | HORZ/VERT | HORZ/VERT |
| Power | 3.8 hp | 2.8 kW |
Equipped With
Standard Features
Dual LED Digital Displays monitor bending roll positions
Double Pinch Geometry permits pre-bending of leading & trailing ends of the profile without removal from the machine
Telescoping modular multi-component roll set specifically designed to bend standard sections including angle leg-in/out and square/rectangular tube, as well as other shapes in a variety of material types
Tri-Directional Lateral Guides with cam rollers for correcting inherent twist when rolling angle leg-in
Operates in both horizontal and vertical orientations
Options
Rolls for tubes pipes, and special profiles
Tooling for production of half tubes
Overhead Supports for coil production
Compression and Tension tooling for C, & I hard way
NC and CNC Controls with various automation levels for repetitive jobs and production of variable radius bends and parts with multiple bends
Powered Movements on lateral material guides on models 302HV through 307HV
LED digital displays for movements on lateral material guides
