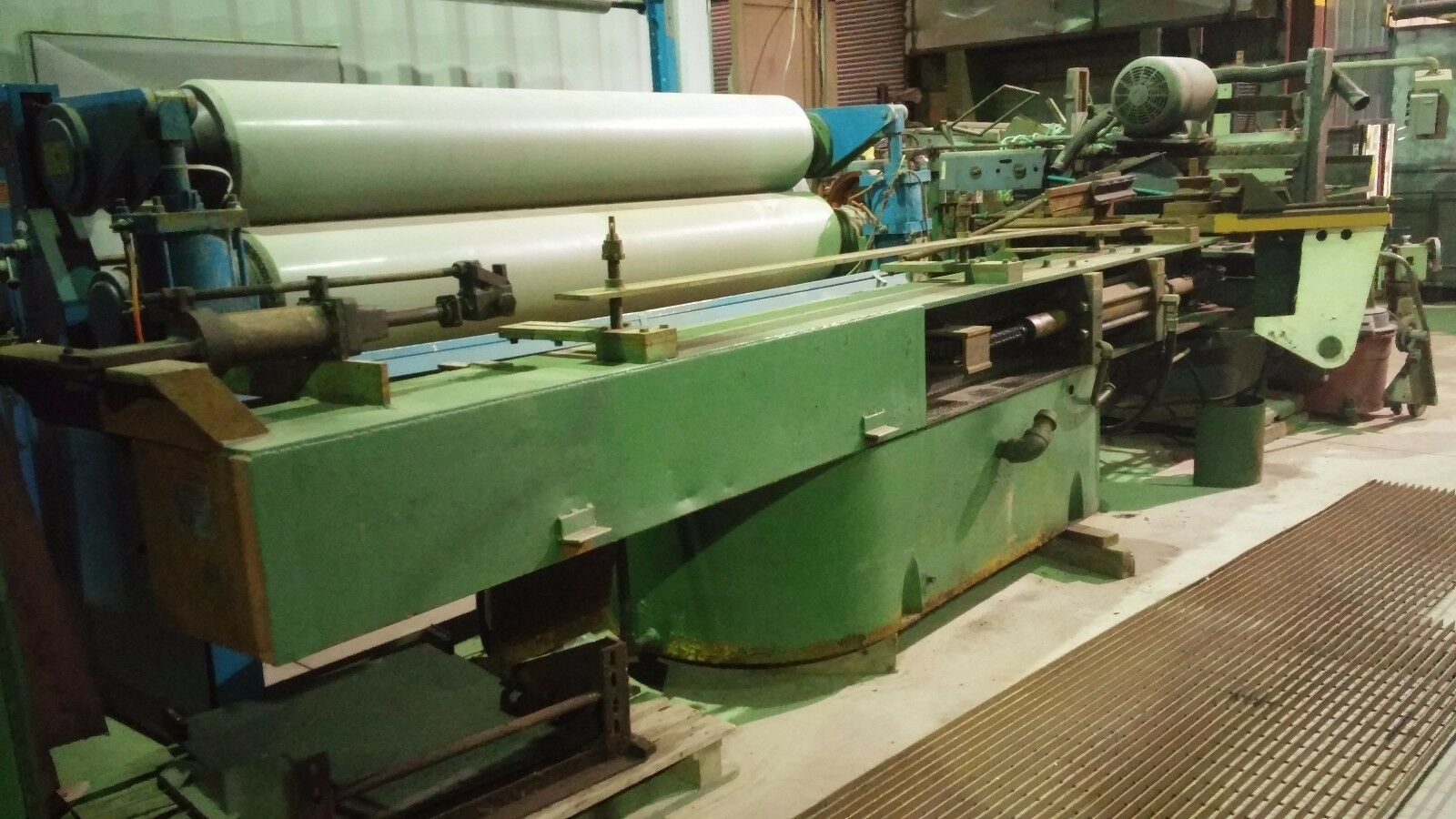

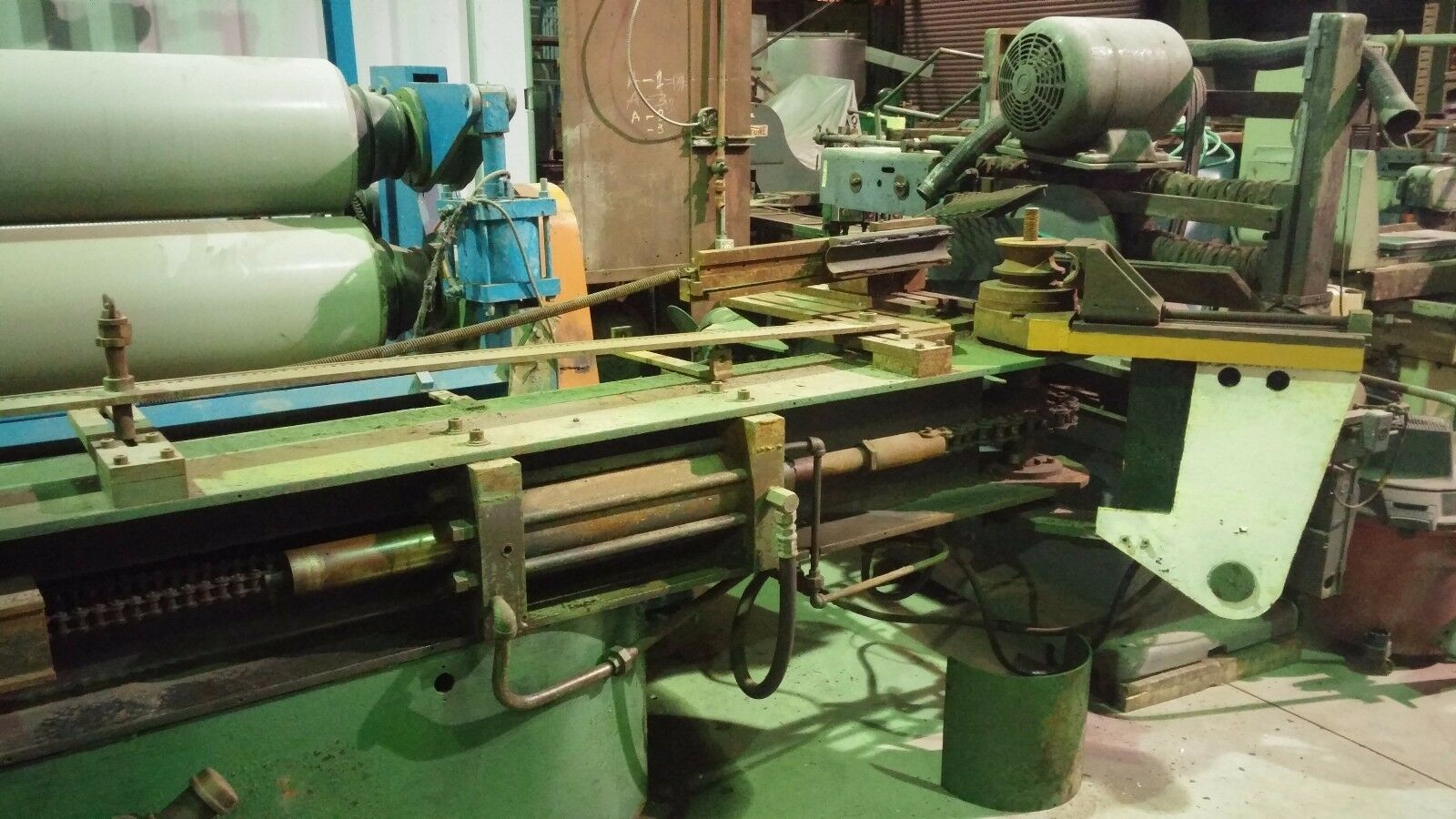

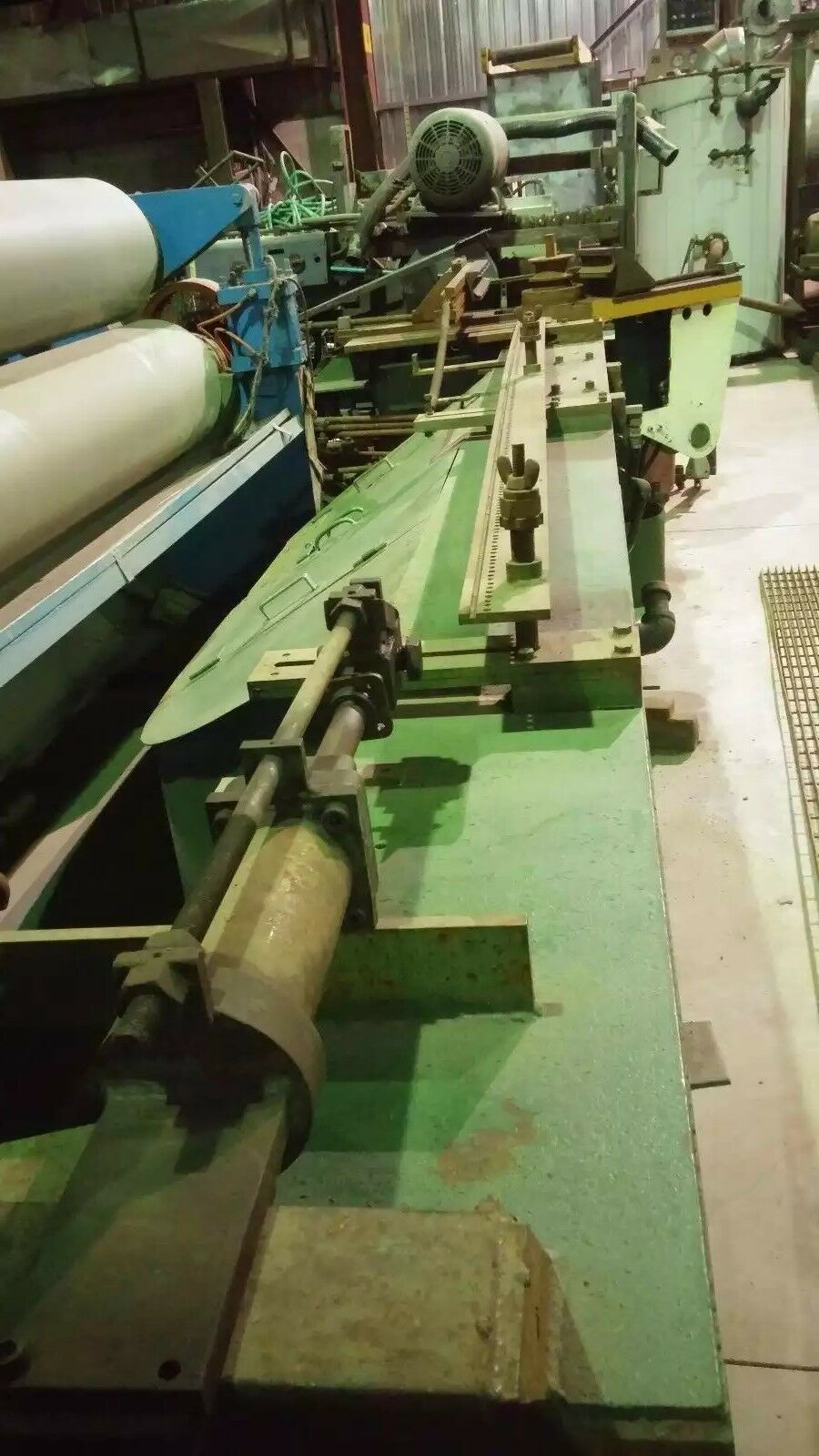

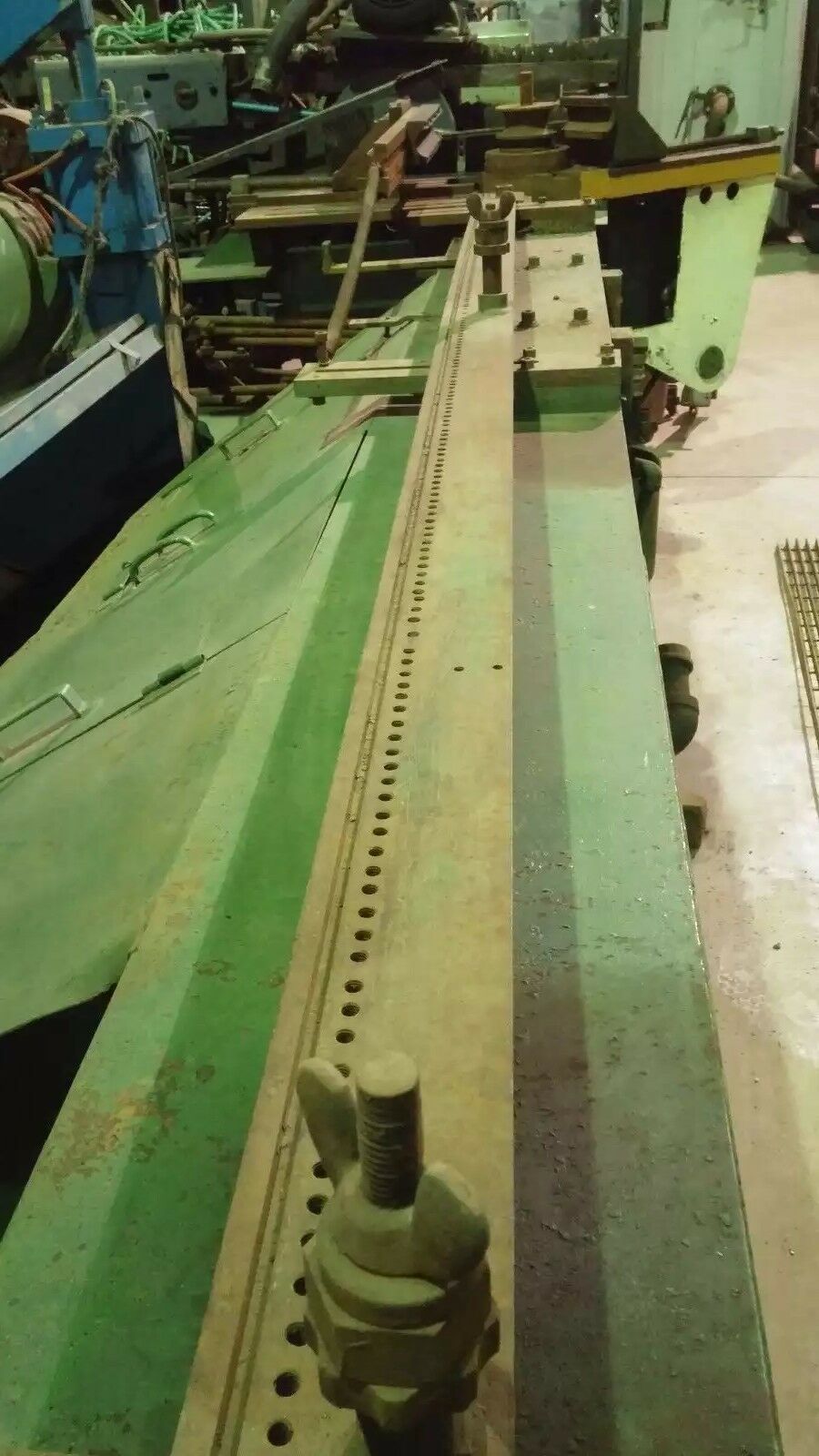

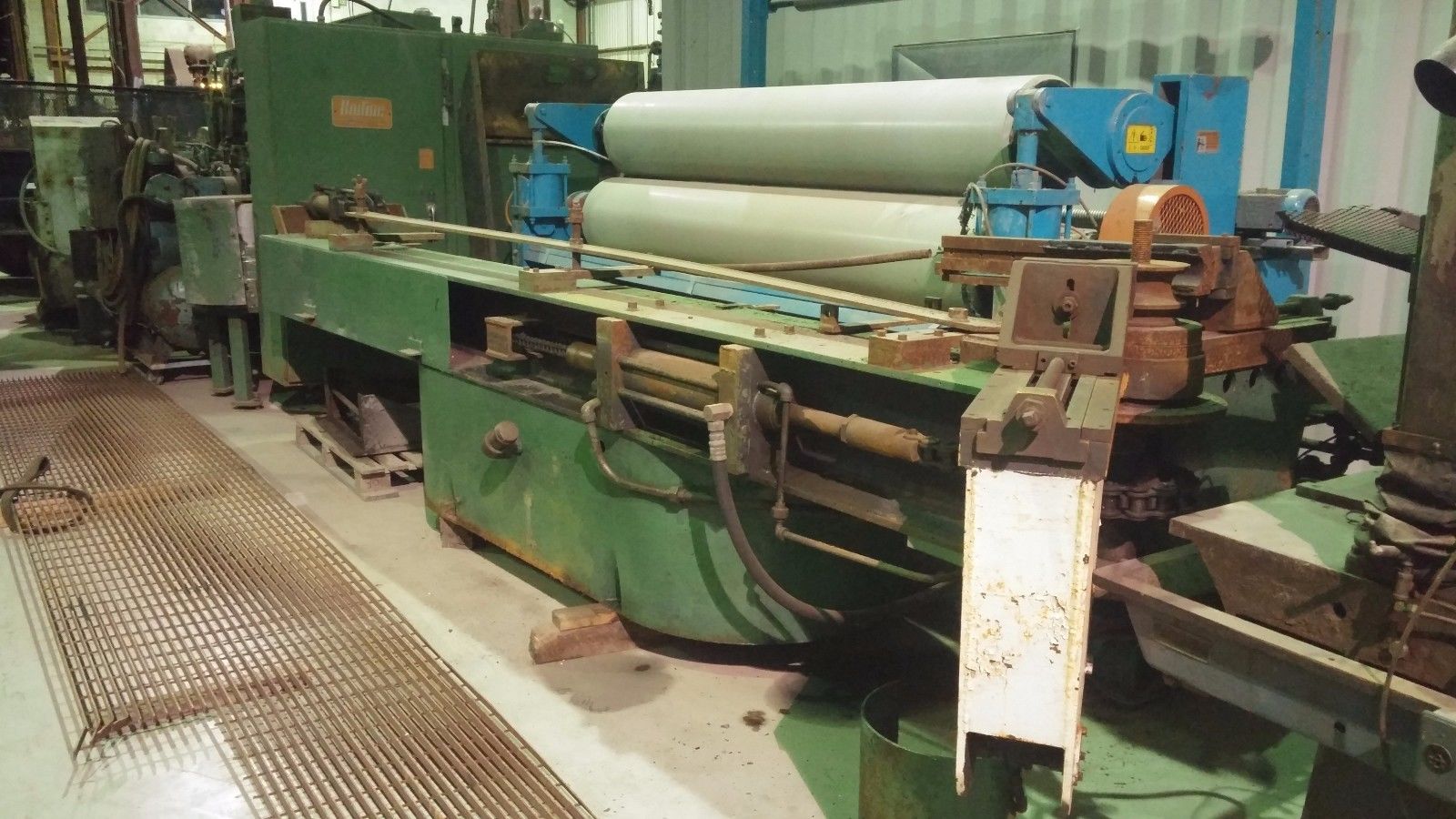

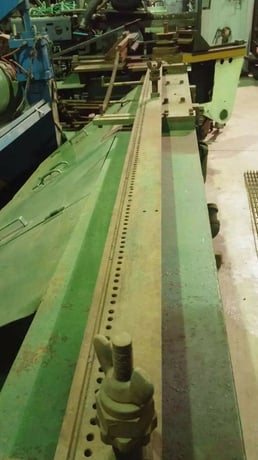

2" Wallace #500-2-1/2, Hydraulic Bender, Rotary, mandrel pipe and tube, 18" max Radius, 10 HP

Normal wear from use. Will need some work to make it A1again

Great opportunity to get a great machine for UNDER 10k!

Sold as is, FREE LOADING on your vehicle. Best logistics to get it to you but warranted against all latent defects.

Full specifications below.

(Discount: Call for a discount, of the day, depends on YOU.
AND our expertise and free advice on bending)
It’s toll free: 888-459-4025 or mobile, 514-867-3131

2″ Hydraulic Bender, Rotary , pipe and tube, Wallace Model 500 2½ quantity

• Type: Horizontal, rotary, mandrel

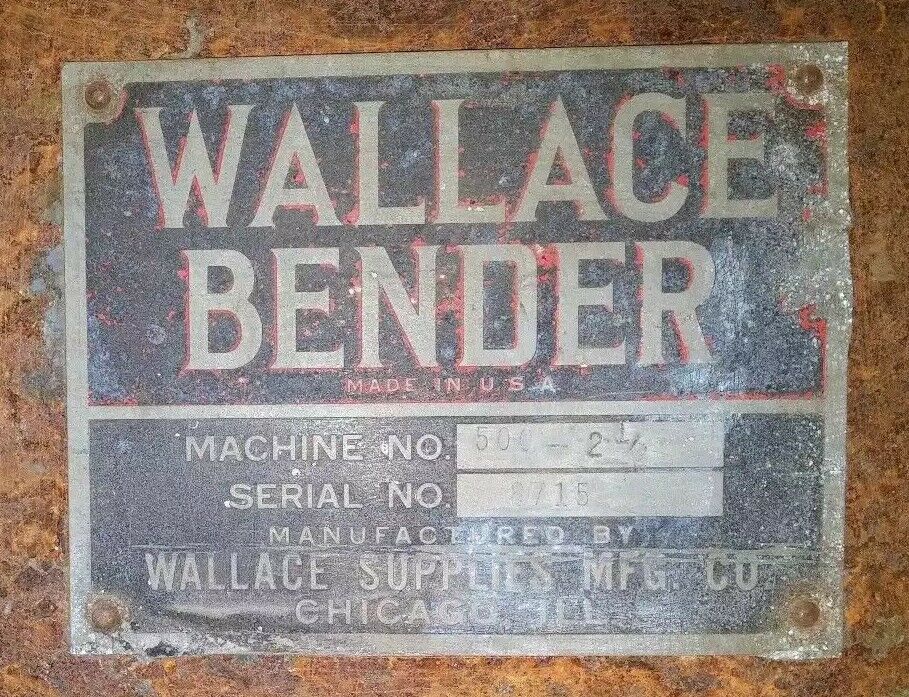

  Model & Sn: 500 – 2½, S/N: 8715
• Drive: Hyd. cylinder chain drive to rotary head.
• Clamping: Hydraulic clamping
• Mandrel: Hydraulic extraction, up to about 12½ ft.
• Motor: 10 Hp. 3 ph. motor @ ~1750 rpm
• Tooling: includes one die (about 3″ Ø, 2½-3″ radius, installed on riotary head )

Capacity

• Heavy steel pipe . . . . . . . . . . . . 2.375″ X .218″, 2″ x .300 MS>
• SS tubing . . . . . . . . . . . . . . . . . 2-1/2″ X .122″
• Al and Cu. to 25,000 LBS . . . . . . 4″ X .083″
• Ductile metal . . . . . . . . . . . . . . 25 – 40,000 Lbs. 3″ X .072″
• Max. Radius. . . . . . . . . . . . . . . 18″

Machine dimensions:

• Length: 17’ 4- 5/8” (5.30 m)
• Width: 5’ 6-7/8” (1.70 m)
• Height: 4’ 7” (1.40 m)
• Weight: 5250 lb. (2299 kg

Normal wear from use. but could use some paint

Great opportunity to get a great American well known brand bender!

(Discount up to ? ! Depends on your pitch to us.
Call for our expertise and free advice on bending)
It’s toll free: 888-459-4025 or mobile, 514-867-3131

Sold, warranted against latent defects AND free LOADING on the least expensive transport on truck at your door
We’ll also do SHIPPING logistics for free to get you a great freight rate.
