2" Tube Mill, 15.9mm - 63.5mm diameter, 3mm t, 120 MPM, 2003

General Specifications:
Year Manufactured: 2003
Capacity: 63.5 X 3.0tm/m
Pipe Diameter: 15.9- 63.5m/m
Wall Thickness:0.5t ~3.0tm/m
Pipe Length 4-14M
Line Speed: 20M ~ 120m/min

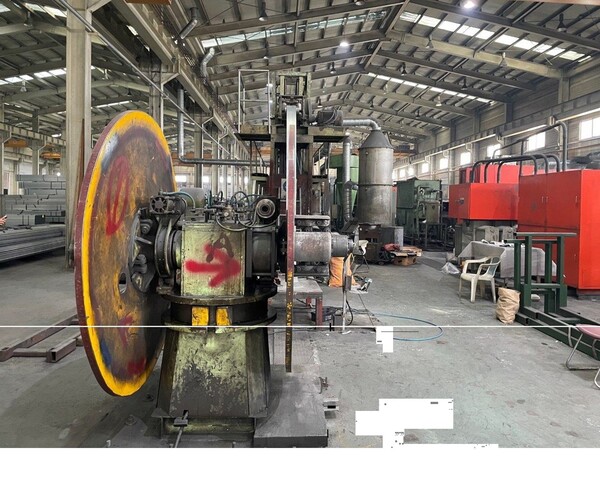

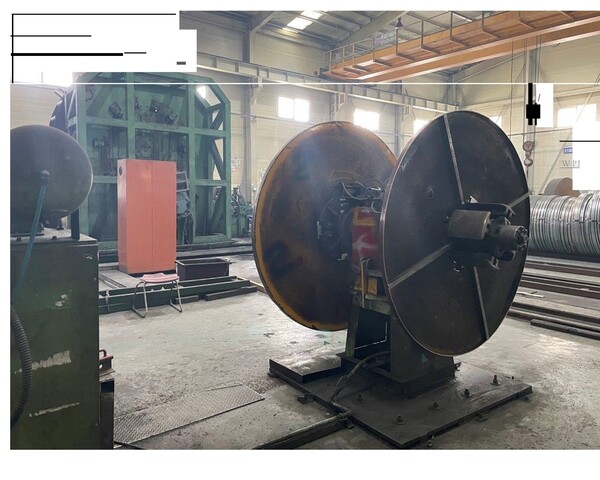

l) Uncoiler
Type: Double Swivel Type
Cap.: Hoop Width Max: 190m/m
Coil Out Dia. Max: 1,800m/m
Coil In Dia. Max: 508m/m
Coil Weight Max: 2.5ton X 2 ea

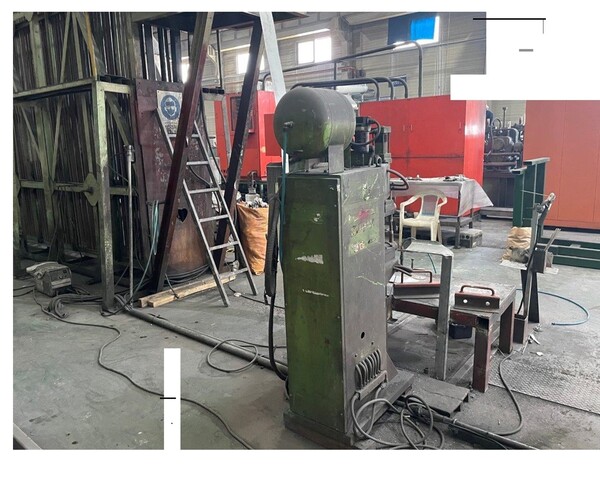

2) Strip Jointing Equipment
Strip Thickness Max.: 3.0 m/m
Strip Width Max.: 190 m/m
Welding Type: Co2 Welder

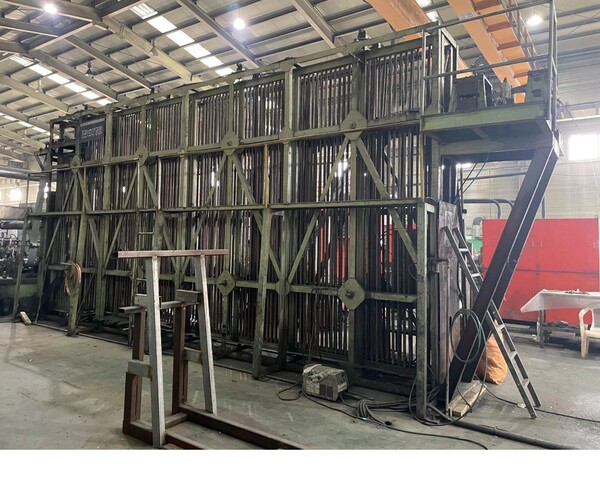

3) Hoop Cage
Skelp Feeding Speed: 200m/Min.
Dimension: 1,500W x 6,500L x 4,000 H
4) Entry Part
Guide Roll Stand
Type: Idle Roll Type
Leveler
Type: Idle Roll Type
Side Guide Stand
Type: Idle Roll Type
Common Bed For Entry Part

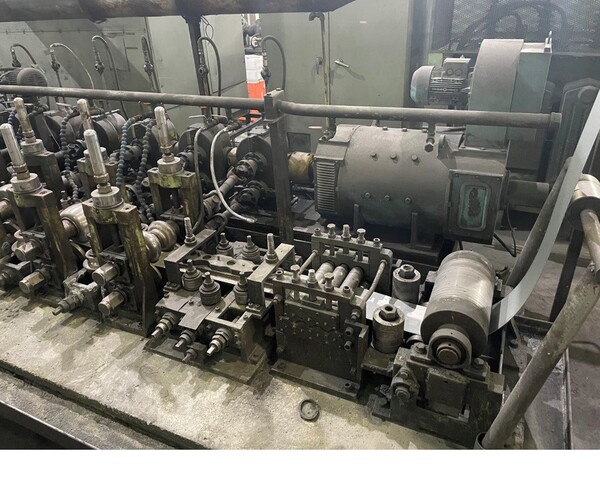

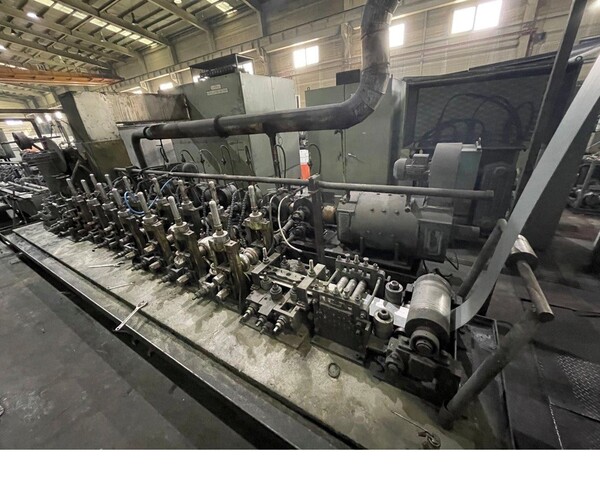

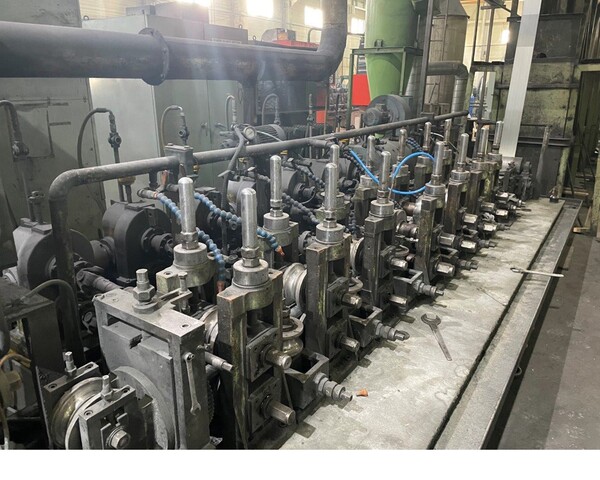

5) Forming Mill
Drive Roll Stand --- 7 Sets
Type: Universal Joint Drive Type
Side Roll Stand – 6 Sets
Type: Idle Roll Type
Drive Gear Box – 7 Sets
Type: Worm & Spur Gear Type
Pump Unit
2.2kw
Universal Joint – 14 Sets
Common Bed for Roll Gear Stand
Common Bed for Drive Gear Box

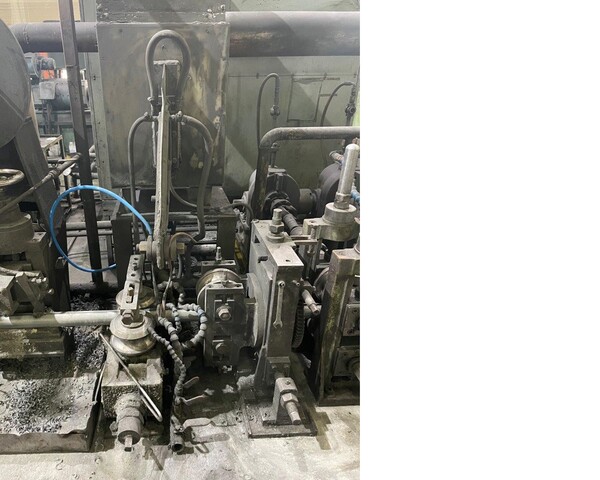

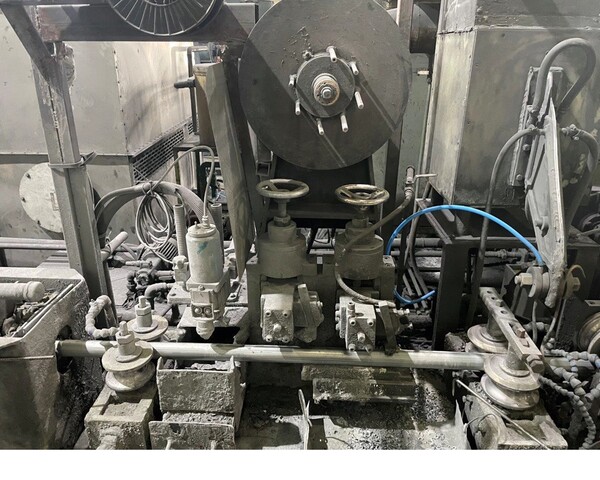

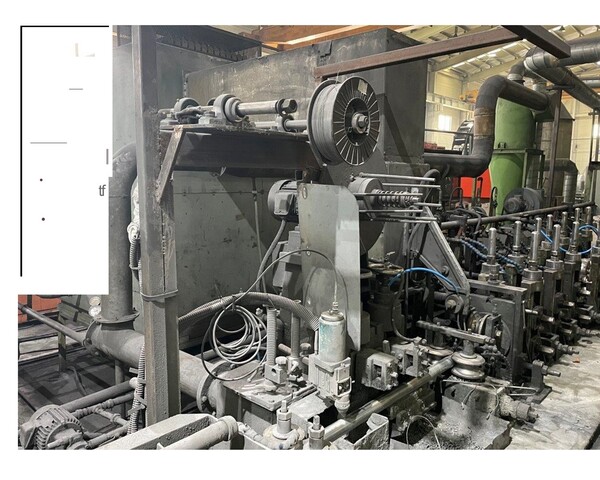

6) Welding Equipment
Rotary Seam Guide Stand
Squeeze Guide Roll Stand
Out Side Bead Cutter
Bead Winder
Mandrel For Impeder Core
C.T. Stand For H.F. Welder
Ironing Stand
Common Bed
Cooling Tank
Roll Cooling Device
7) Sizing Mill
Side Roll Stand – 4 Sets
Drive Roll Stand – 4 Sets
Measuring Roll Stand
Pull Out Roll Stand
Drive Gear Box – 4 Sets
Universal Joint
Common Bed for Roll Stand
Common Bed for Drive Gear Box
8) Flying Cut Off M/C
Type: Circular Metal Saw Tyoe
Power: 15kw
Cutting Length: 5-10M
9) Run Out Table
Type: Roll Drive Type
Length of Table: 13M
10) Mill Drive Motor
DC Motor 75 kw – 2 ea.
Control Panel for DC Motor
Main Operator Desk
11) H.F. Welder
Power: 700 KVA
High Frequency: 300Khz, 300kw
Cooling System: Water Cooling System
Power control
Cooling Tower: Evacon – 2 ea.
12) Changing Roll
Roll for Round Pipe
Roll Gauge
Roll Spacer
Clamp for Cut Off M/C
13) Cap.: 60.5 x 3.2T
L 13,000m/m
For Carbon Steel Pipe
Tube Facing & Chamfer M/C
Transfer Table
Control Desk & Local Desk
Hydraulic Unit
