2 kW Mitsubishi Servo Motor HA-200CS - 3000 RPM

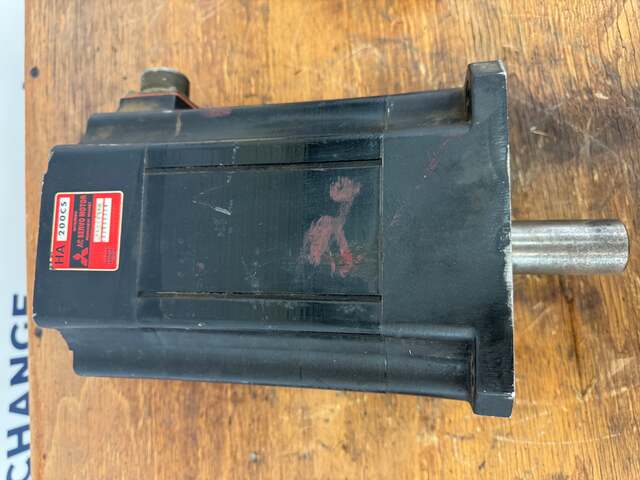

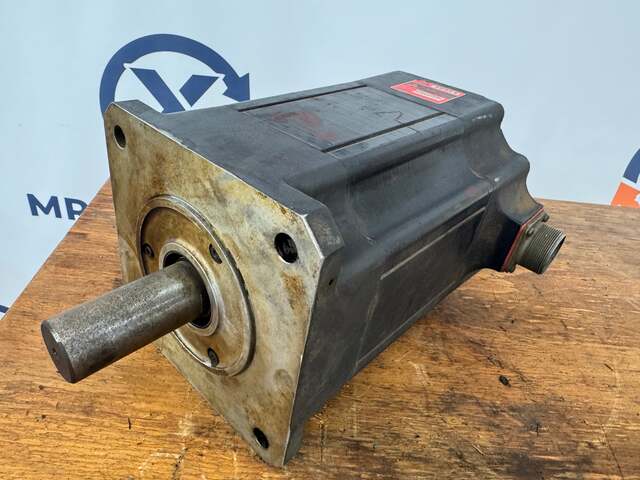

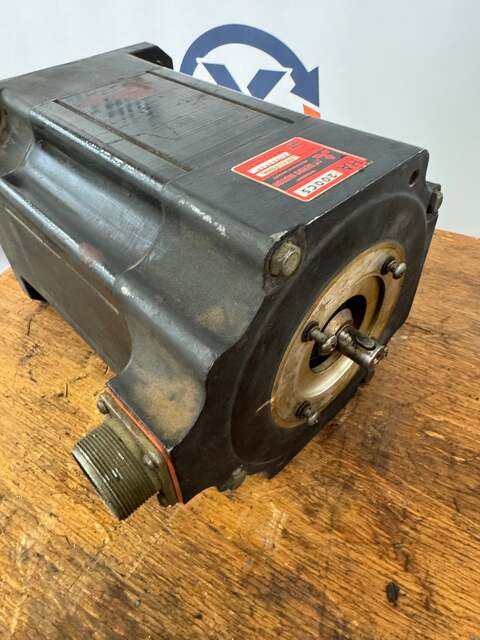

The Mitsubishi HA200CS is a permanent magnet AC servo motor from the HA series, designed for use as a feed axis motor in CNC machine tools and industrial automation systems. Manufacturer specifications list the HA200CS at 3.5 kW rated output with a nominal rotation speed of 2,000 RPM. The motor uses a three phase AC power input and features a cylindrical straight shaft with a 35 mm diameter and a 114 mm centering diameter. Construction is non ventilated, with the power connector mounted at the front of the housing and a secondary shaft provided for mounting a separate position feedback device.

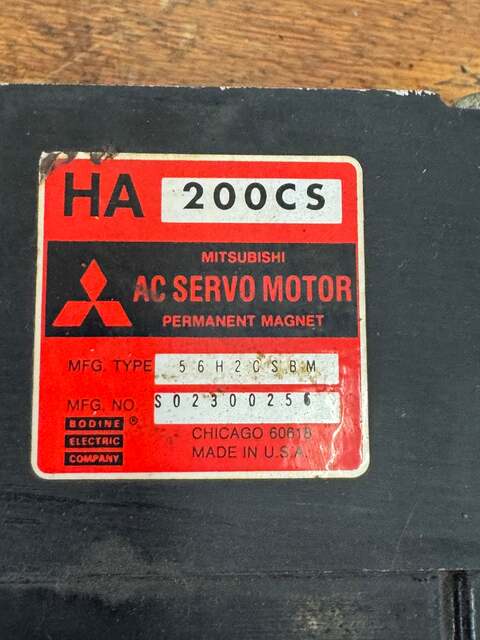

The nameplate identifies this unit as MFG Type 56H2CSBM and MFG No. S02300256. The unit was manufactured in the USA by Bodine Electric Company under license, with markings indicating Chicago 60618 origin. The HA200CS is originally compatible with the Tamagawa OSE 5KN 6 12 108 FA Coder encoder, which is sold separately and mounts to the secondary shaft.

This model is part of the Mitsubishi Meldas servo platform and is commonly found as a replacement on legacy CNC machining centers, lathes, and OEM equipment built with Mitsubishi MDS series drives. It is suitable as a direct OEM replacement for installations originally specified with the HA200CS reference. Encoder is not included with this unit. Buyers should confirm compatibility with their existing drive amplifier, cable assembly, and feedback device before installation.

Stock # 0226-137
