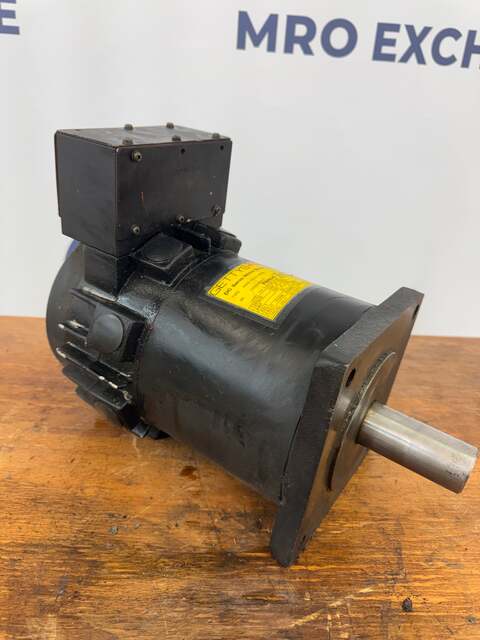

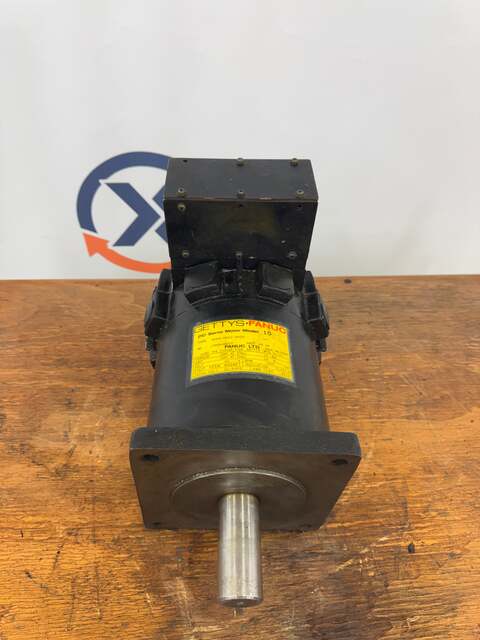

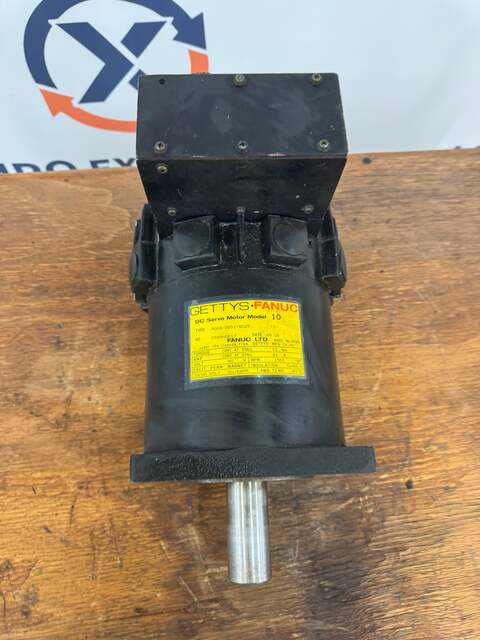

2 HP 1500 RPM FANUC DC Motor A06B-0601-B025

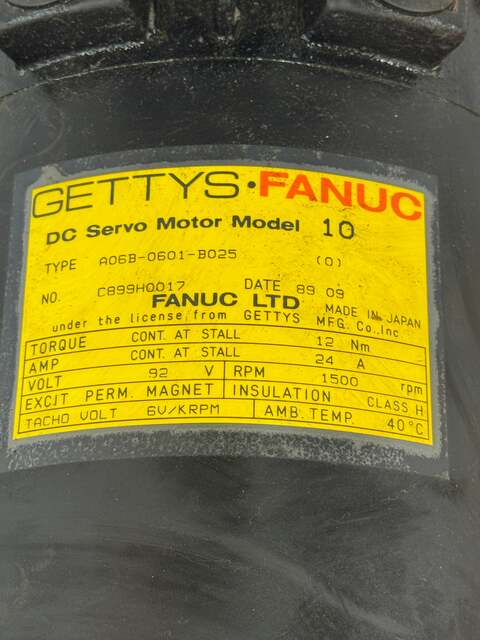

The Gettys Fanuc A06B-0601-B025 is a DC Servo Motor Model 10 manufactured by Fanuc Ltd. under license from Gettys Mfg. Co., Inc. Built in Japan and dated 09/1989, this motor carries serial number C899H0017 and is identified on the nameplate as a permanent magnet excitation DC servo motor designed for CNC machine tool feed axis applications. Nameplate ratings list a continuous stall torque of 12 Nm, continuous stall current of 24 A, rated armature voltage of 92 V, and rated speed of 1500 RPM. Insulation is rated Class H with an ambient temperature rating of 40 degrees C. The integrated tachogenerator is rated at 6 V/krpm for closed loop velocity feedback. Excitation is permanent magnet type, eliminating the need for a separate field supply. The A06B-0601-B025 was widely used as a feed axis drive on legacy Fanuc System 3, System 6, and System 10/11/12 controlled CNC lathes, mills, and machining centers, and is compatible with Fanuc DC servo velocity control units such as the A06B-6047 and A06B-6050 series amplifiers. Mounting follows the standard Fanuc Model 10 frame footprint. This motor is suitable for retrofit and legacy machine repair applications where an original Gettys Fanuc Model 10 DC servo is required. Cross reference designation A06B-0601-B025#7000 is also commonly used in the secondary market for this assembly.

Stock # 0226-134
