For Sale by Smith Machinery Co
Surplus Record Dealer Since 2001
Location: Ames, IA
Contact Jim Smith
Phone Number: 515...> Show Phone Number 515-233-6330
Let the seller know you found their listing on Surplus Record!
Description
Specifications
Equipped With
Equipped With
| Tube (Min.) | .25 inches |
| Tube (Max.) | 2 inches |
| Pipe (Max.) | 1.5" - Sch. 40 |
| Centerline Radius (Min.) | 2 x |
| Centerline Radius (Max.) | 8.875 inches |
| Degree of Bend | 0-210 |
| Bending Speed | 2 RPM |
| Programming | NC with Touchpad (30) programs (9) bends per program |
| Voltage | 120V 1ph (3ph available) |
| Dimensions (L x W x H) | 22.5" x 16.25" x 39.5" |
| Weight | 300 pounds |
Equipped With
Equipped With
FEATURES:
SB48 Bending Capacities
OPTIONAL FEATURES:
* Center Former 67MM ( 2.6" ) CLR 1" Pipe: $660.00
Center Former 90MM ( 3.5" ) CLR 1-1/2" Tube: $880.00
* Counterbend Die Bronze, 1" Pipe: $310.00
* Center Former 100MM ( 3.9" ) CLR 1-1/2" Pipe: $930.00
* Counterbend Die Bronze, 1-1/2" Pipe: $320.00
* Ercolina Grease - 1 Can: $39.00
DELIVERY:
50% DOWN, PAYMENT IN FULL PRIOR TO SHIPMENT
SB48 Bending Capacities
Material Type | Maximum Diameter | Maximum Wall Thickness
Pipe | 1.500 pipe | SCH 40
Mild steel tube | 2.000 | 0.140
Soft brass | 1.875 | 0.120
Stainless steel | 1.875 | 0.065
Hydraulic tube | 2.000 | 0.120
Hard copper & aluminum - 2.000 | 0.065
Round solids | 1.250 | NA
Rectangular solids - 0.312 x 1.875 | NA
Rectangular tube - 0.750 x 1.625 | 0.120
Square tube | 1.5 x 1.5 | 0.120
Solid square | 1.250 x 1.250 | NA
* Mild steel tube capacity 2″
* Pipe capacity 1-1/2″ Sch. 40
* Square tube capacity 1-1/2″ .083 wall
* Maximum CLR 8-7/8″
* Bend to CLR as small as 2D

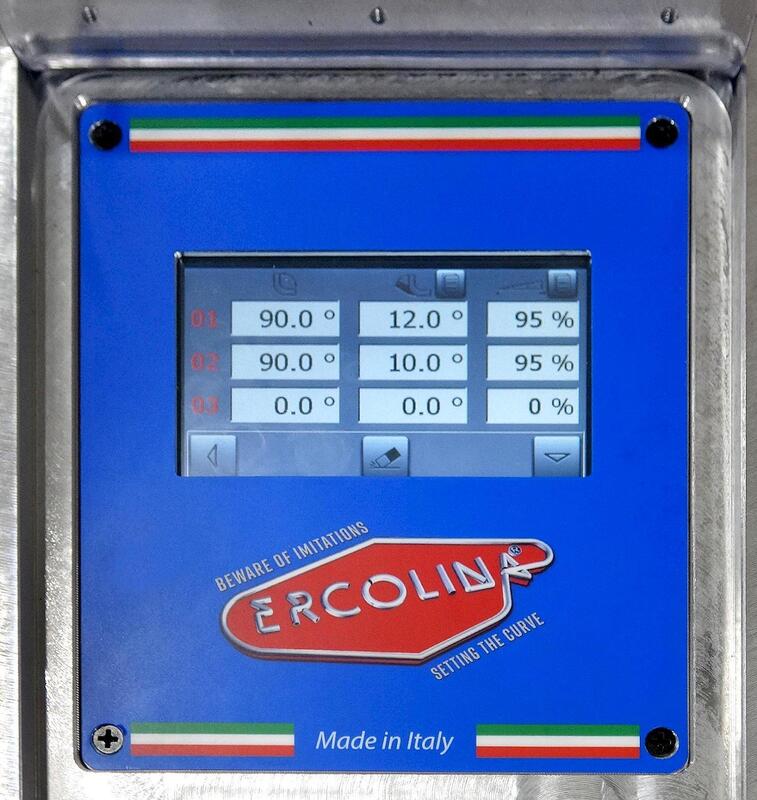

* Easy-to-read windows-based touchscreen control displays machine position, current status and alarm functions on one screen for greater convenience
* Touch screen indicates bend angle, springback and bend speed for each angle within the program

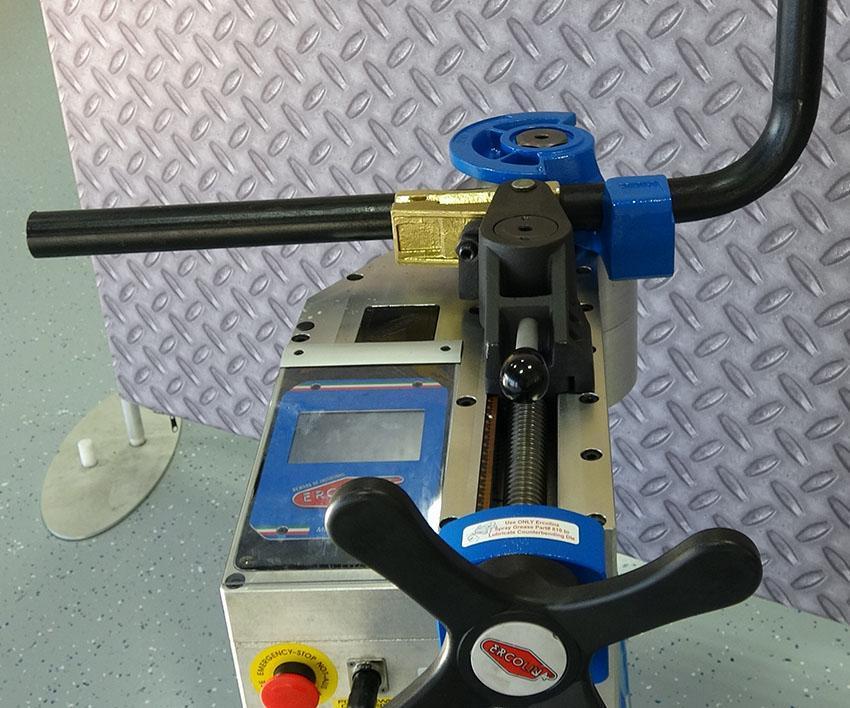

* Patented swing away counter bend die vise offers easy loading and unloading of work piece, monitored electronically for greater accuracy
* Automatically monitors and adjusts bending speed throughout bend cycle providing maximum torque and protecting machine components
* Quick-change tooling system with multiple radii available
* Right or left hand bending available with vise accessory
* Automatically stops at desired bend angle to end cycle
* Unlimited program storage for quick recall
* Use control panel or foot pedal to initiate bend and return functions
* Counterbending die position monitored electronically for accuracy and repeatability
* Accepts Ercolina’s A40-P two axis positioning table for multiple and sequential bends
* No hydraulic components
* Classic Ercolina Top Bender design reduces floor space requirement and stores easily to save shop floor space
NOTES:
SPECIFICATIONS SUBJECT TO VERFICATION* Mild steel tube capacity 2″
* Pipe capacity 1-1/2″ Sch. 40
* Square tube capacity 1-1/2″ .083 wall
* Maximum CLR 8-7/8″
* Bend to CLR as small as 2D
* Easy-to-read windows-based touchscreen control displays machine position, current status and alarm functions on one screen for greater convenience
* Touch screen indicates bend angle, springback and bend speed for each angle within the program
* Patented swing away counter bend die vise offers easy loading and unloading of work piece, monitored electronically for greater accuracy
* Automatically monitors and adjusts bending speed throughout bend cycle providing maximum torque and protecting machine components
* Quick-change tooling system with multiple radii available
* Right or left hand bending available with vise accessory
* Automatically stops at desired bend angle to end cycle
* Unlimited program storage for quick recall
* Use control panel or foot pedal to initiate bend and return functions
* Counterbending die position monitored electronically for accuracy and repeatability
* Accepts Ercolina’s A40-P two axis positioning table for multiple and sequential bends
* No hydraulic components
* Classic Ercolina Top Bender design reduces floor space requirement and stores easily to save shop floor space
NOTES:
OPTIONAL FEATURES:
* Center Former 67MM ( 2.6" ) CLR 1" Pipe: $660.00
Center Former 90MM ( 3.5" ) CLR 1-1/2" Tube: $880.00
* Counterbend Die Bronze, 1" Pipe: $310.00
* Center Former 100MM ( 3.9" ) CLR 1-1/2" Pipe: $930.00
* Counterbend Die Bronze, 1-1/2" Pipe: $320.00
* Ercolina Grease - 1 Can: $39.00
DELIVERY:
50% DOWN, PAYMENT IN FULL PRIOR TO SHIPMENT
