2.99" x .157" Aogang #76/4, HF Tube Mill, 76mm x 4mm

Make: Aogang
Condition: Brand New (Never Used)
Mill Diameter: 21mm - 76mm
Material Thickness: 0.8mm - 4mm
Square Tube: 20 x 20 - 60 x 60
Material: HR, CR, Galv,.
Tensile Strength: 520 Mpa / Yeild: 240Mpa
Mill Speed: 100 meters per minute

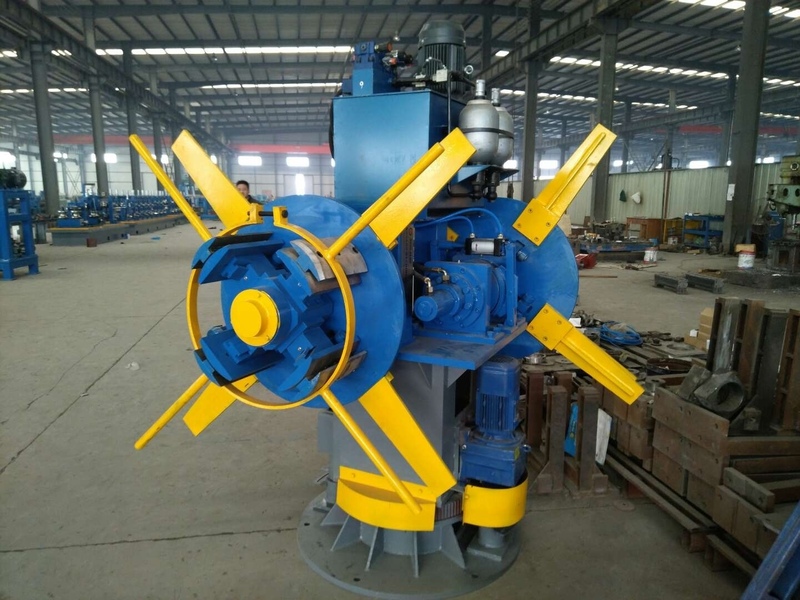

Double Mandrel Uncoiler
Powered Rotation
Coil ID: 480mm - 520mm
Coil OD: 1000mm - 1800mm
Coil Weight: 5,000kg
Shear & End Welder
Hydraulic Shearing
Automatic TIG Welding Unit
Coil Accumulator
Floor Standing Horizontal Type
Capacity: 700 meters
Speed: 200 meters per minute
Entry & Exit Pinch Rolls
AC Motor Drive

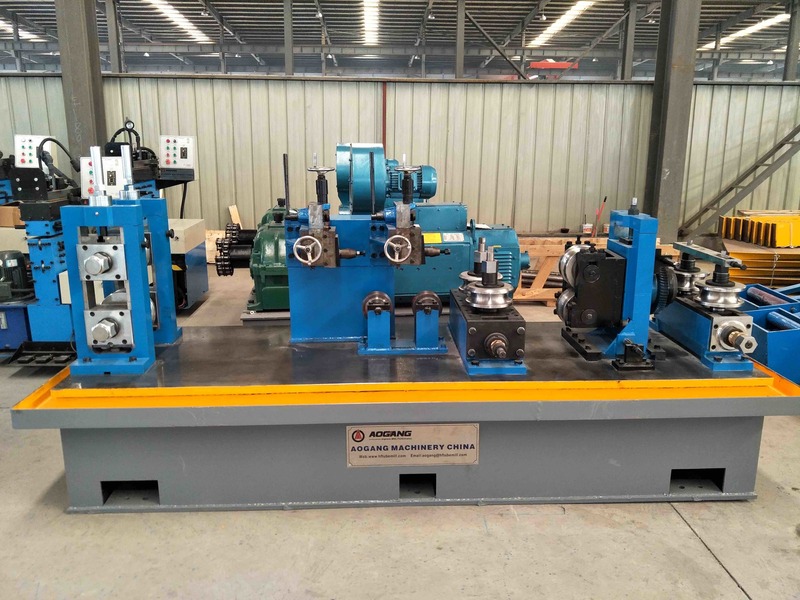

Strip Straightener
Number of Work Rolls: 7
Entry Guiding Rolls
Entry Pinch Rolls

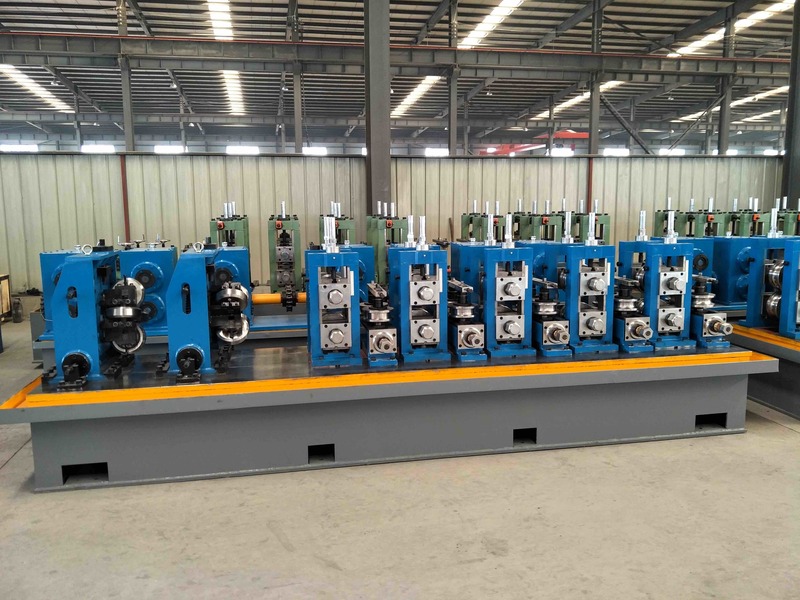

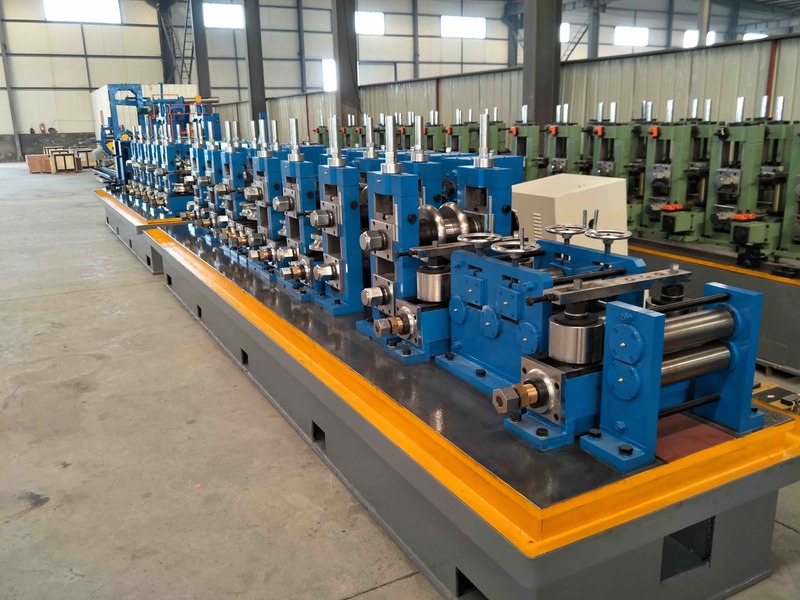

Forming Mill
Quick Change Design
Number of Forming Stands: 7
Number of Vertical Stands: 8
Shaft Diameter: 45mm
Individual Gear Boxes
Universal Drive
Adjustable Upper and Lower Shafts

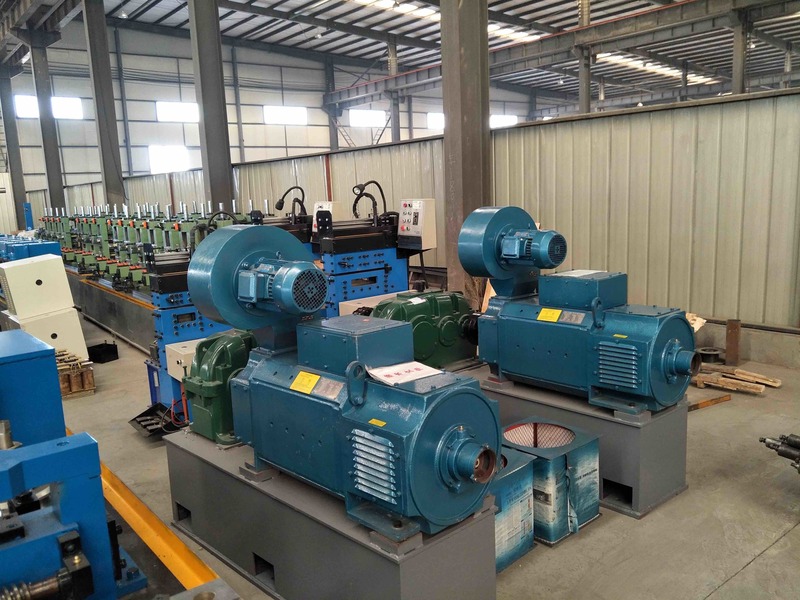

110Kw DC Motor Drive
Welding Section
3-Roll Squeeze Box
Top Roll Diameter: 40mm
Bottom Rolls Diameter: 60mm
External Scarfing Head with Rewinder
300 Kw HF Welder
Rectifier Cabinet
Modular Inverter Cabinet
Extended Cooling Section
Sizing Mill
Number of Sizing Stands: 6
Number of Vertical Sizing Stands: 6
Individual Gear Boxes
Universal Drive
110Kw DC Motor Drive
Two Double Sided Turk-Heads
Horizontal & Vertical Adjustment
Flying Cut-Off Saw
Single Blade Cold Saw
Mechanical Traverse
Length Control System
18.5Kw Cut-Off Drive
Feeding Servo Motor: 4.4Kw
Driven Run-Out Table
Driven End Table
Electrics, Hydraulics, Controls, New Tube Mill, Ready for Loading
