For Sale by Smith Machinery Co
Surplus Record Dealer Since 2001
Location: Ames, IA
Contact Jim Smith
Phone Number: 515...> Show Phone Number 515-233-6330
Let the seller know you found their listing on Surplus Record!
Description
Specifications
Equipped With
Equipped With
Equipped With
Equipped With

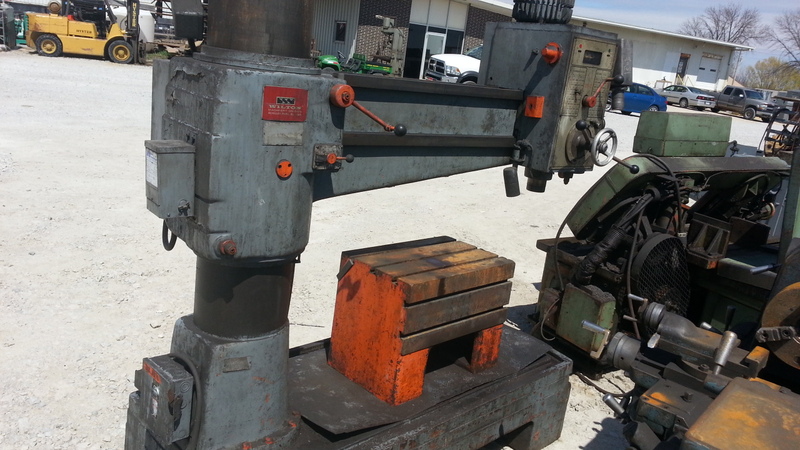

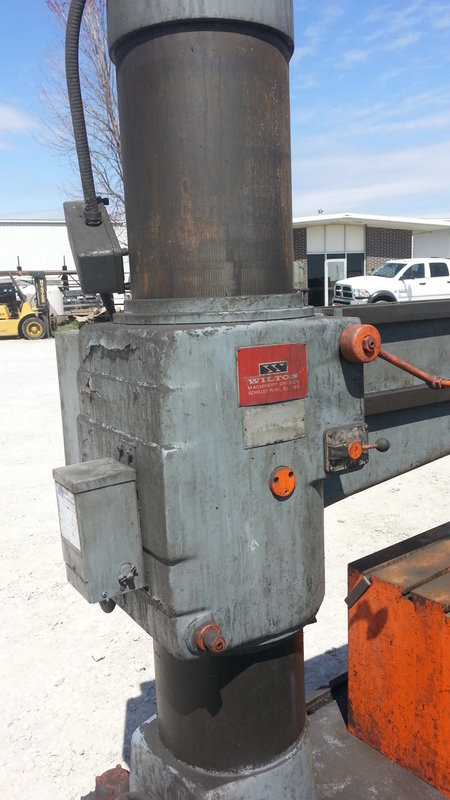

SPECIFICATIONS: COLUMN DIAMETER --------------- 12 in
SPINDLE TO COLUMN MAX --------- 40 in
SPINDLE TO COLUMN MIN --------- 7 in
SPINDLE TRAVEL ALONG ARM (TOTAL)33 in
BASE SURFACE TO SPINDLE MAX --- 48 in
BASE SURFACE TO SPINDLE MIN --- 14 in
ARM MOVEMENT UP AND DOWN COLUMN 20 in

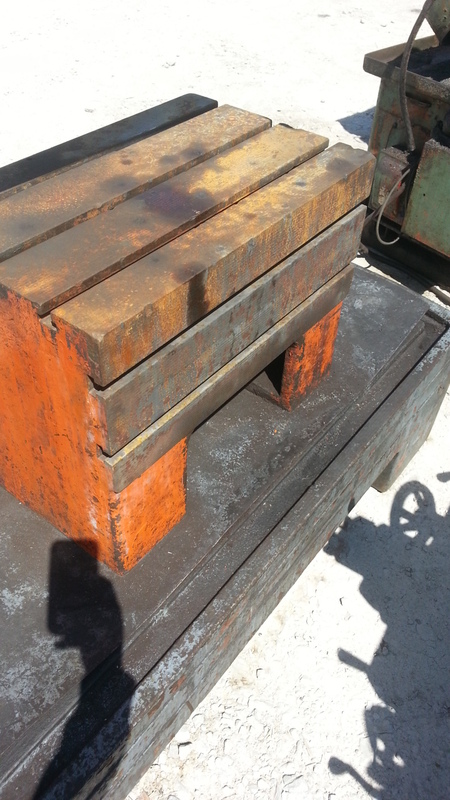

BOX TABLE DIMENSIONS ---------- 25-1/2 in X 16-3/8 in X 19-1/2 in
BASE DIMENSIONS --------------- 32 in X 74 in X 16 in
SPINDLE TAPER ----------------- #4
SPINDLE TRAVEL ---------------- 10 in
SPINDLE SPEEDS ---------------- (12) 42-1750 RPM
SPINDLE FEEDS ----------------- 0.002 in - 0.0138 in
MOTOR ------------------------- 3 HP
ARM RAISING MOTOR ------------- 3/4 HP
COOLANT PUMP MOTOR ------------ .12 HP
CAPACITIES -------------------- 1-3/8 in (STEEL)
MACHINE HEIGHT ---------------- 90 in
MACHINE WEIGHT ---------------- 5,500 LBS
SPECIFICATIONS SUBJECT TO VERIFICATION
DELIVERY: IMMEDIATE, SUBJECT TO PRIOR SALE
SPINDLE TO COLUMN MAX --------- 40 in
SPINDLE TO COLUMN MIN --------- 7 in
SPINDLE TRAVEL ALONG ARM (TOTAL)33 in
BASE SURFACE TO SPINDLE MAX --- 48 in
BASE SURFACE TO SPINDLE MIN --- 14 in
ARM MOVEMENT UP AND DOWN COLUMN 20 in
BOX TABLE DIMENSIONS ---------- 25-1/2 in X 16-3/8 in X 19-1/2 in
BASE DIMENSIONS --------------- 32 in X 74 in X 16 in
SPINDLE TAPER ----------------- #4
SPINDLE TRAVEL ---------------- 10 in
SPINDLE SPEEDS ---------------- (12) 42-1750 RPM
SPINDLE FEEDS ----------------- 0.002 in - 0.0138 in
MOTOR ------------------------- 3 HP
ARM RAISING MOTOR ------------- 3/4 HP
COOLANT PUMP MOTOR ------------ .12 HP
CAPACITIES -------------------- 1-3/8 in (STEEL)
MACHINE HEIGHT ---------------- 90 in
MACHINE WEIGHT ---------------- 5,500 LBS
SPECIFICATIONS SUBJECT TO VERIFICATION
DELIVERY: IMMEDIATE, SUBJECT TO PRIOR SALE
Get Your Price from Smith Machinery Co!
Buyers Who Viewed This Listing Also Viewed:
2.7'-10" South Bend / Foradia #GF500-800, radial drill, #4MT, 9" stroke, 40-1750 RPM
Category: Radial Drills
Seller: Kevins Equipment Co. KEC
Location: Houston, TX
Mfr: Southbend
Model: GF 500 800
2' 7" x 10" SOUTH BEND / FORADIA GF-50-800 RADIAL DRILL, MANUFACTURER - SOUTH BEND / FORADIA, ARM LENGTH - 2' 7", DRILLING CAPACITY, MILD STEEL - 2", DRILLING CAPACITY, CAST IRON - 2 3/8", TAPPING CAPACITY, MILD STEEL - 1 9/16", TAPPING CAPACITY, CAST IRON - 2", COLUMN DIAMETER - 10", MIN / MAX DISTANCE ...more
JUST ADDED!

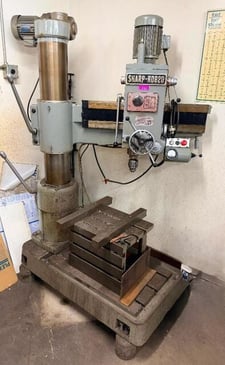

2.8'-8.2" Sharp #RD-820, radial arm drill, 1.968" capacity cast iron, MT-4, 73-1500 RPM, 3 HP, 8.27" spindle travel, 220 V., 1989
