For Sale by Frank Bacon Machinery Sales
Surplus Record Dealer Since 1956
Sales Team
586-75...> Show Seller's Phone Number 586-756-4280 Let the seller know you found their listing on Surplus Record!
Description
2.2 KIP (10 kN) Frank Bacon Vibration System ITS-1000-ST With Slip Table
(1) New Frank Bacon, Model ITS-1000-ST, 2,200 lbf (9.8 kN) Electrodynamic Vibration Test System with Power Amplifier and Slip Table

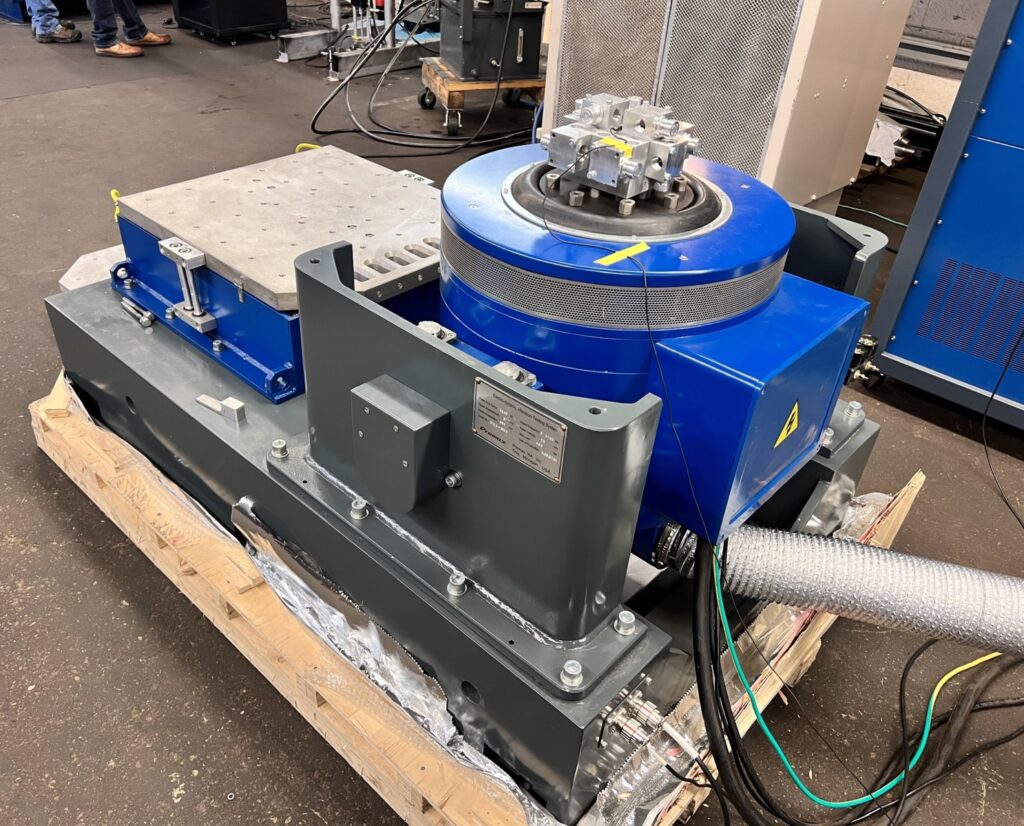

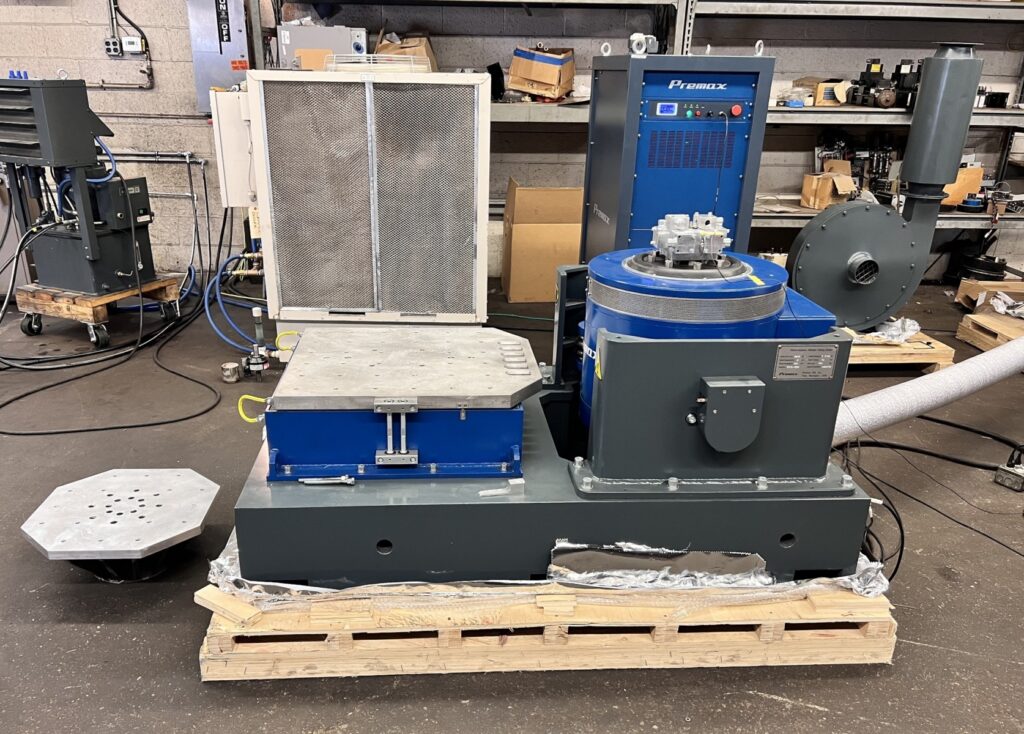

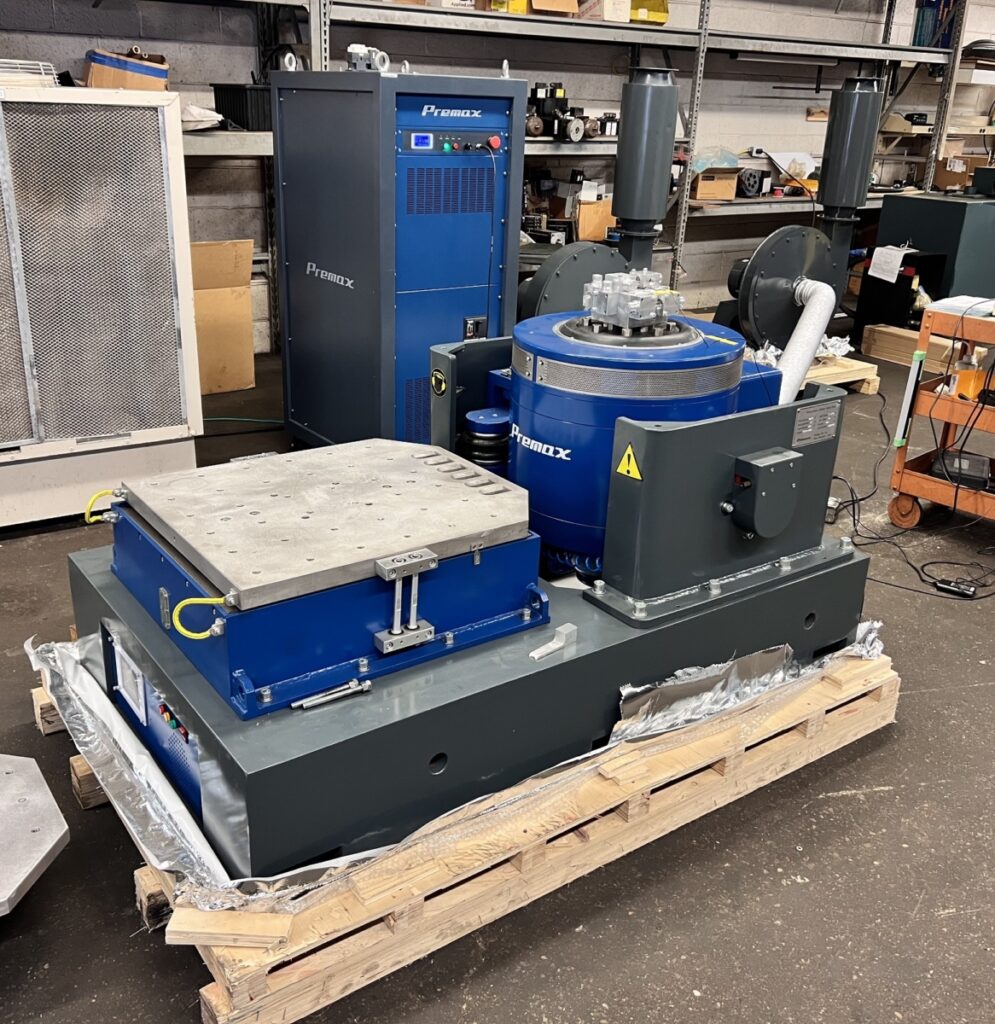

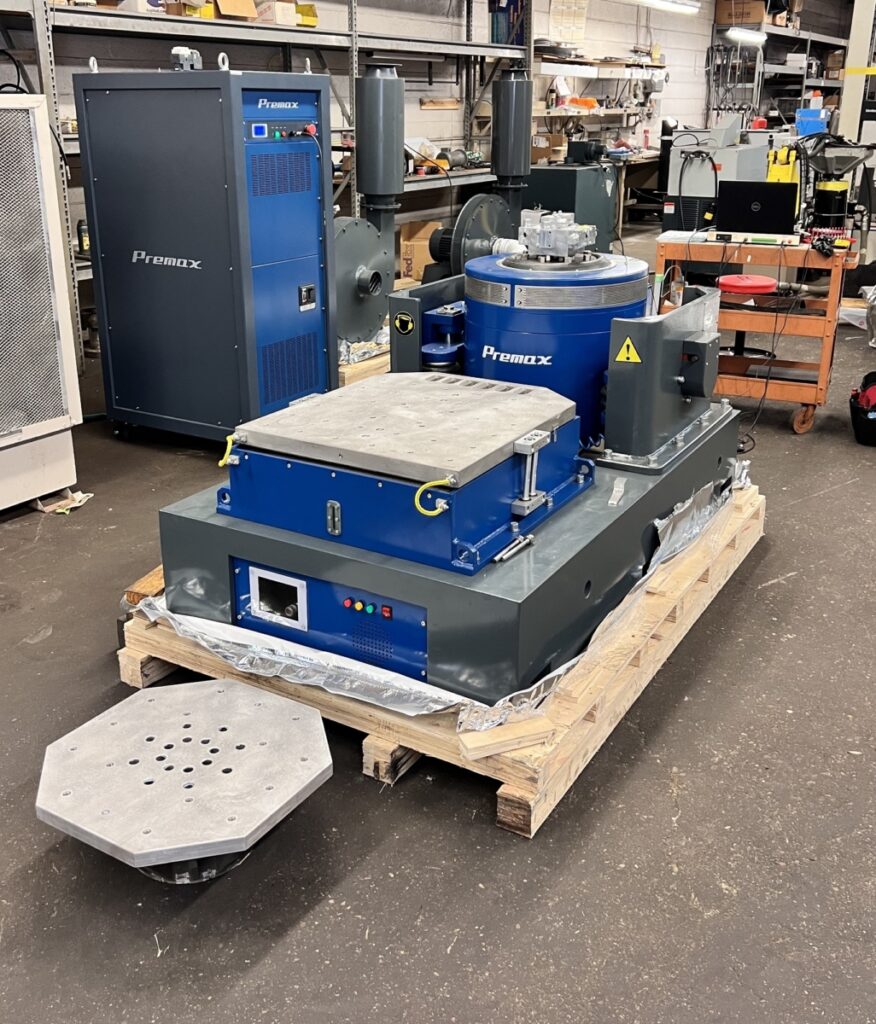

Frank Bacon Model ITS-1000-ST Vibration System
SPECIFICATIONS:
(Sine) Force Rating: 9.8 kN (2,200 lbf.)
(Random) Force Rating: 7 kN (1,574 lbf.)
(Shock Peak) Force Rating: 19.6 kN (4,406 lbf.)
Peak to Peak Displacement: 51 mm (2.00”)
Frequency Range (Hz): 2 – 3,000 Max.
Armature Diameter: 240 mm (9.45”)
Armature Mass (lbs.): 10 kg (22.0 lbs.)
Sine Peak Acceleration (Bare Table): 981 m/s^2 (100 g)
Max Payload: 300 kg (661 lbs.)
Voltage Requirements(V, Hz, Ph): 480, 60, 3, 26kVA
Utility Requirements: 87 PSI Compressed Air
EQUIPPED WITH:
- 600mm W x 600mm L Magnesium Slip Table System with Base (Weight: 77 lbs.)
- 500mm W x 500mm L Aluminum Head Expander (Weight: 55 lbs.)

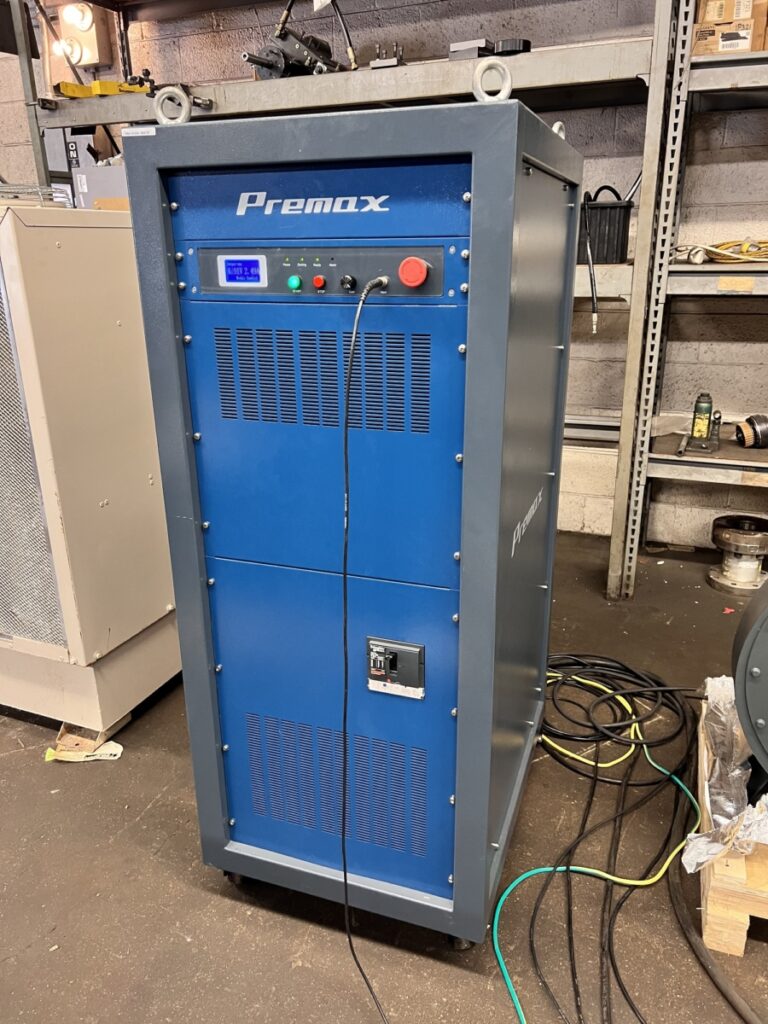

- ITS-M2 16 kVA Air Cooled Power Amplifier
- ITS-W1-M1 4 kW Blower
- Signal Input for Closed-Loop Control (Vibration Controller Required)
FOB Warren, MI
1 Year Parts and Labor Warranty
| ITS-1000-ST
DOWNLOAD SPEC SHEET
