Description

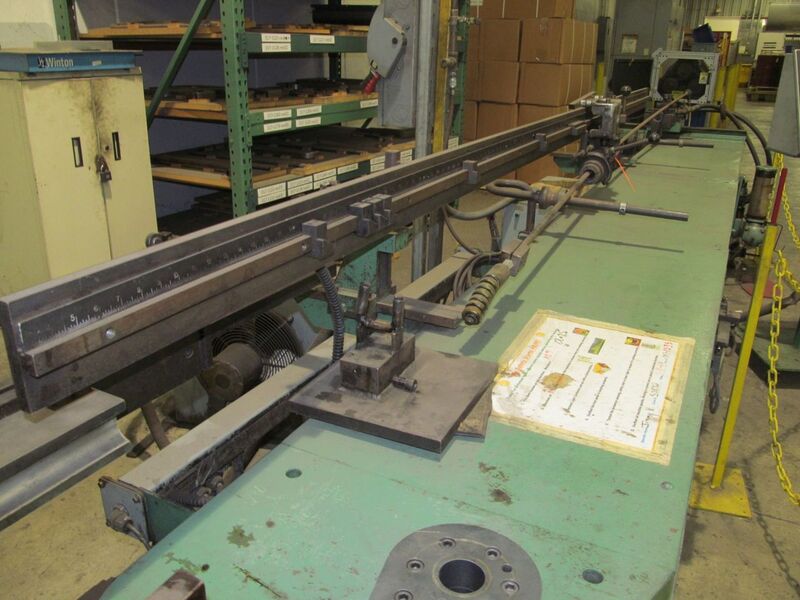

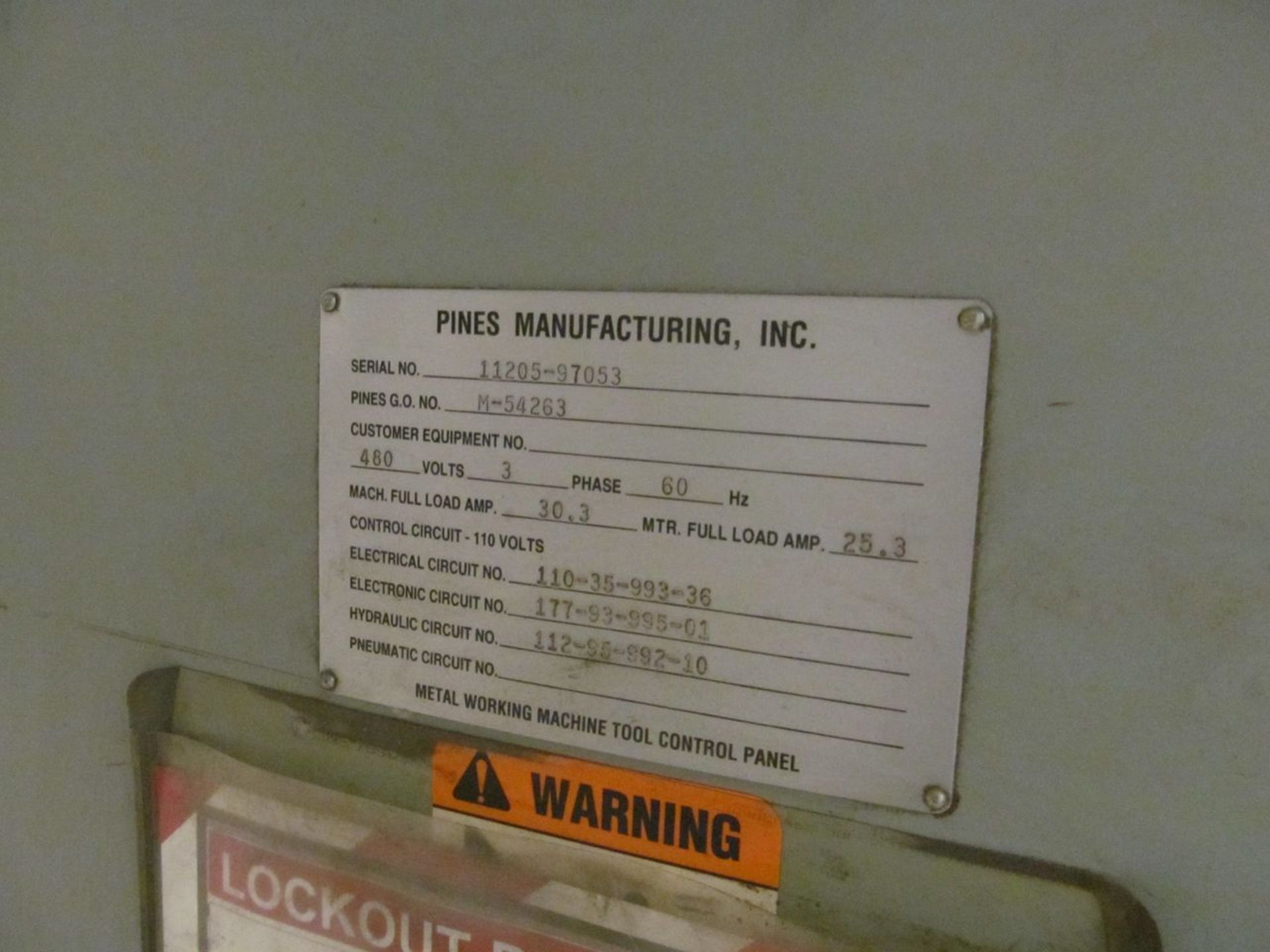

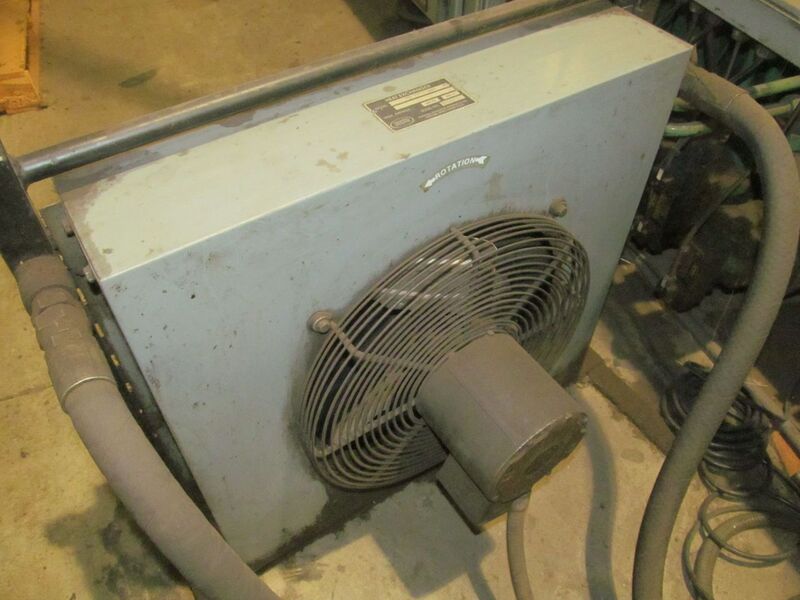

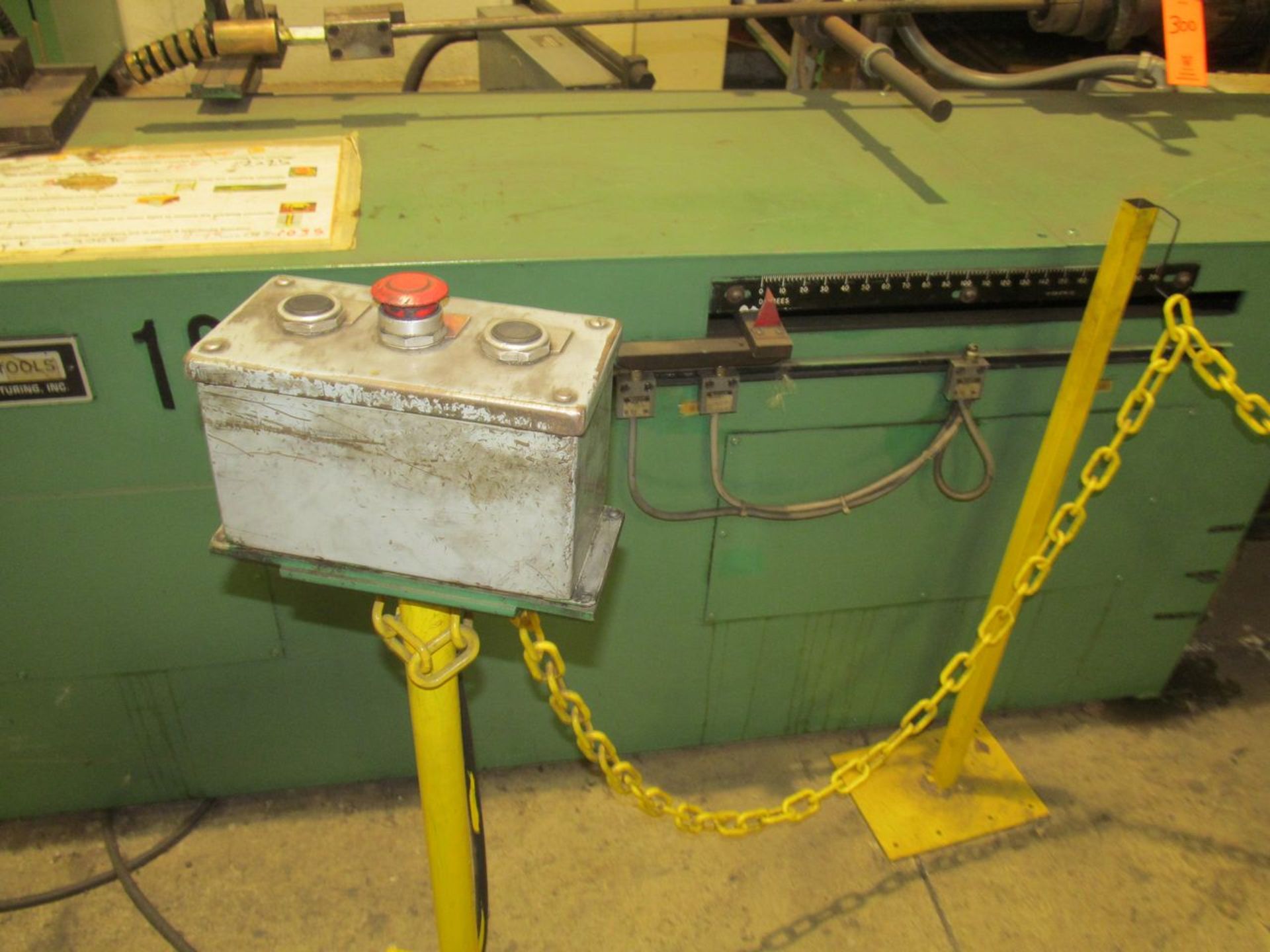

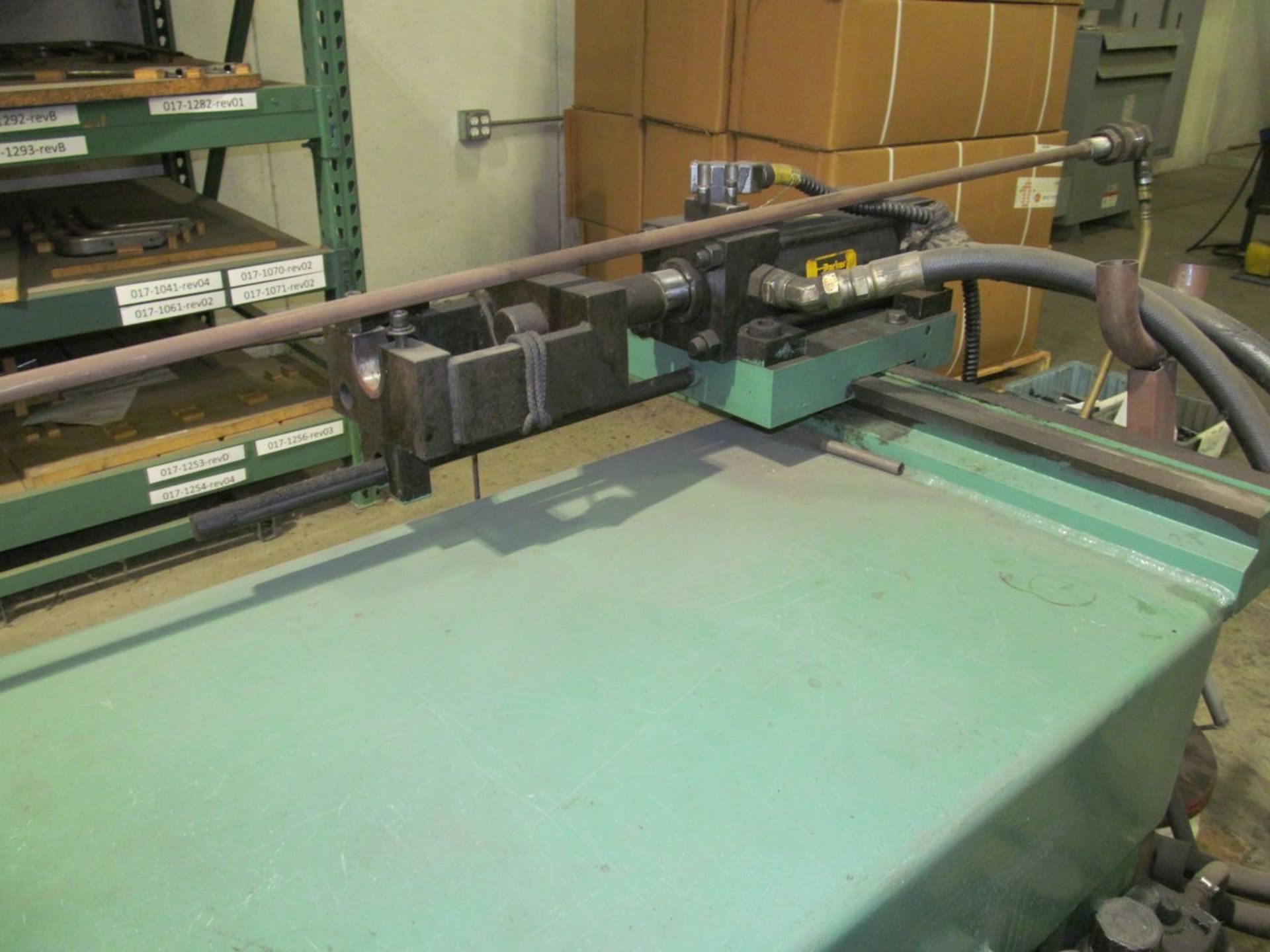

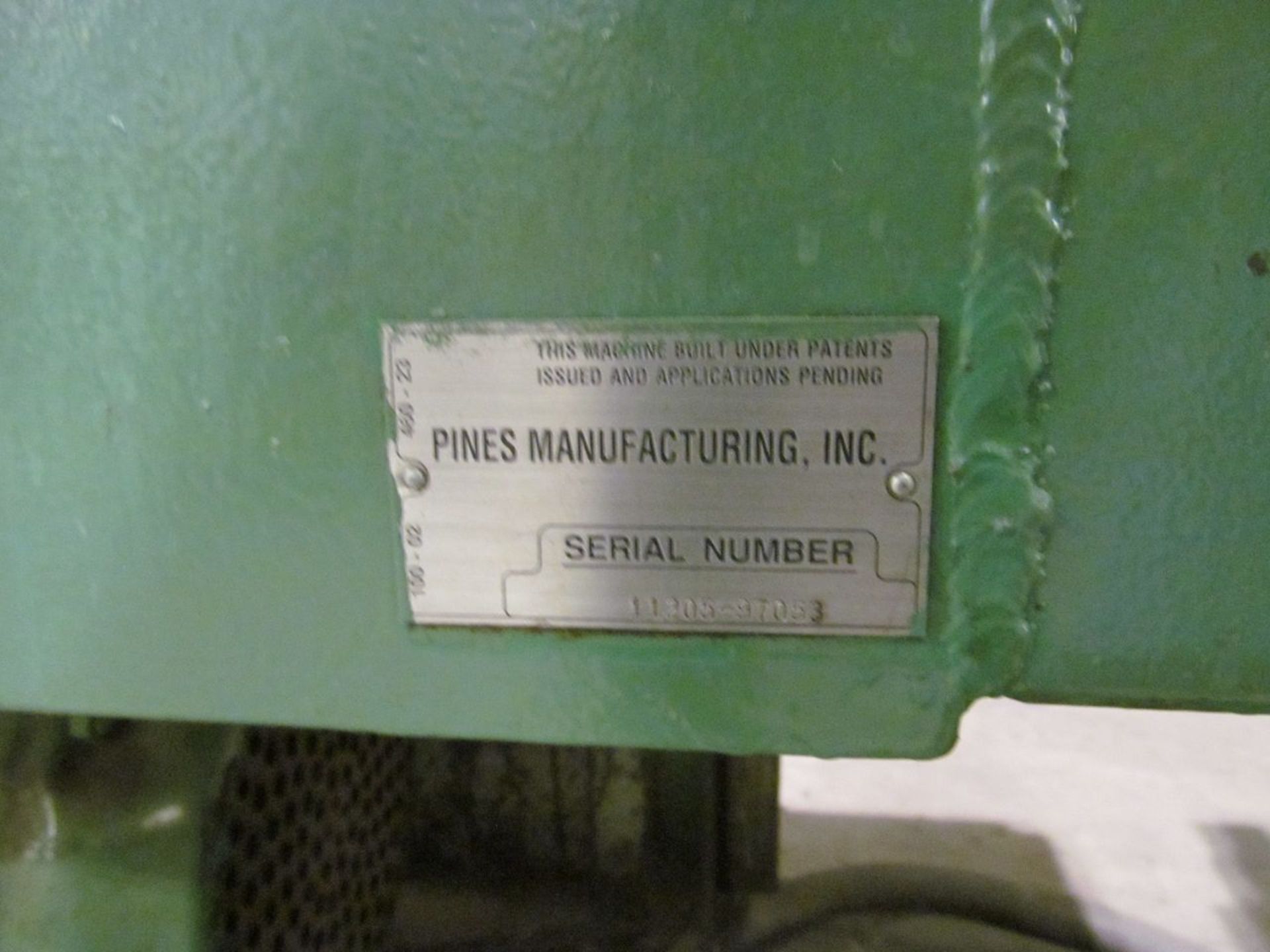

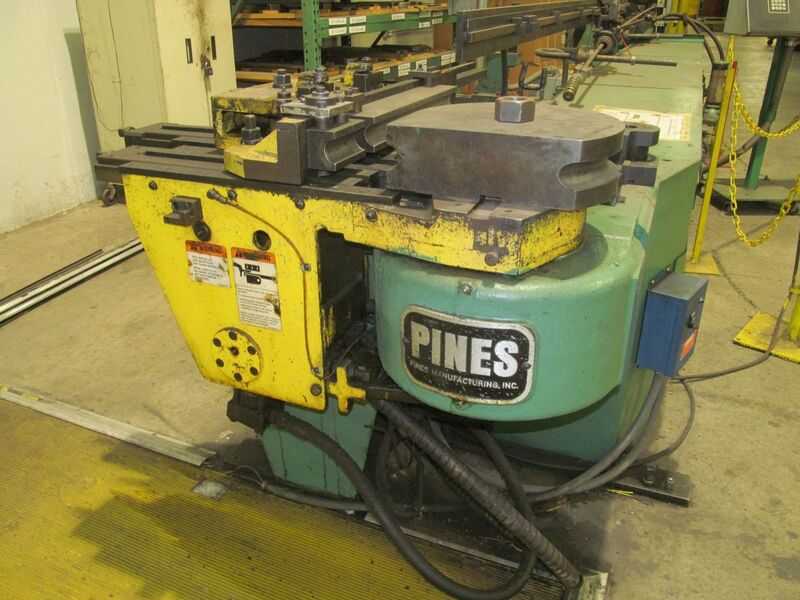

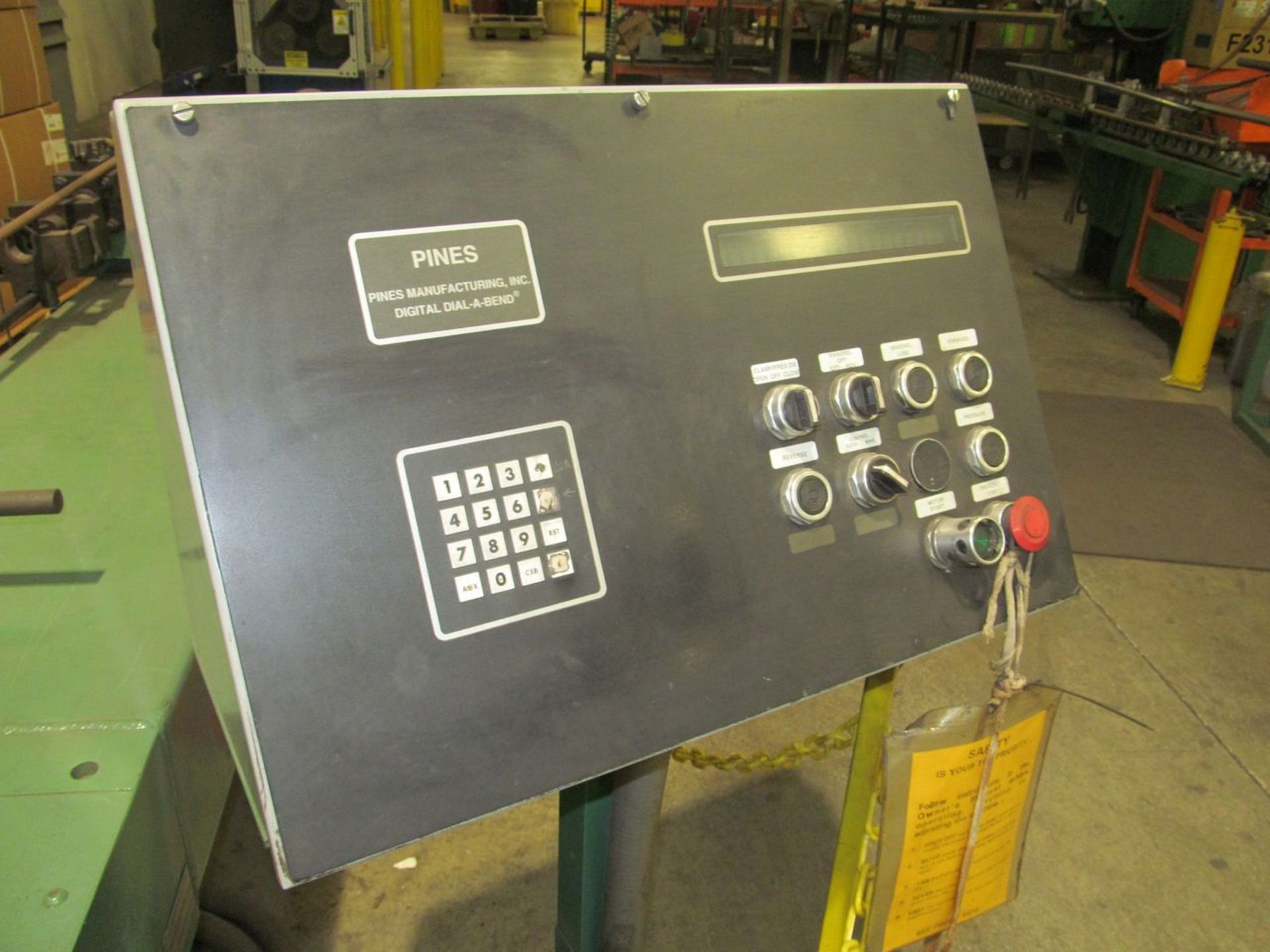

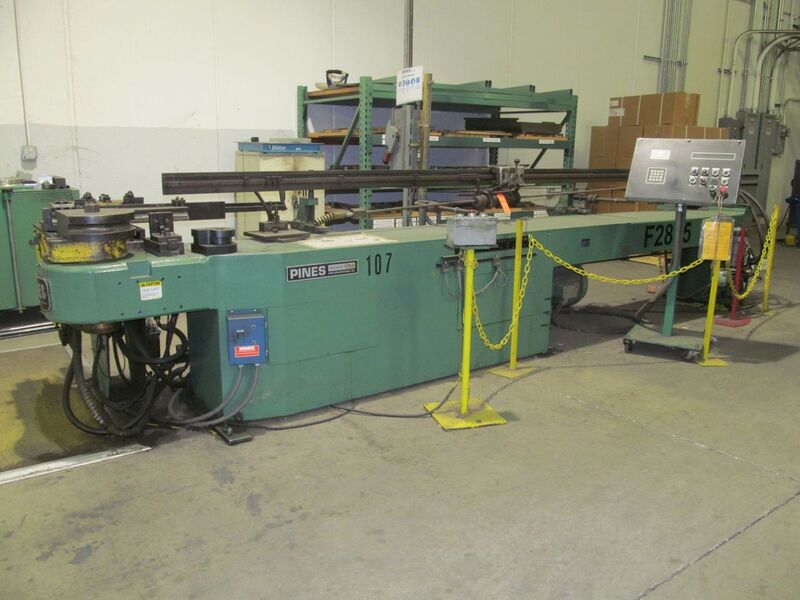

2-1/2" PINES "1-1/4" HORIZONTAL EXTENDED-BASE HYDRAULIC ROTARY TUBE/PIPE BENDER Serial No 11205-97053, Model 1-1/4, Series 112 2-1/2" PINES "1-1/4" HORIZONTAL EXTENDED-BASE HYDRAULIC ROTARY TUBE/PIPE BENDER Serial No 11205-97053, Model 1-1/4, Series 112 EQUIPPED WITH: Pines Digital Dial-A-Bend Control w/Remote Stand Automatic Mandrel Extractor (Hydraulic) 6' Extended Base M21 Manual Carriage (Option) Adjustable Wiper Die Holder Fan Cooled Heat Exchanger Automatic Wiper Die And Mandrel Lubricator CATALOG SPECIFICATIONS: Pipe/Tube Diameter x Wall Capacities: Round Tubing Mild Steel Y.P. to 40000 PSI .......... 2-1/2" x .065" Schedule 80 Steel Pipe .......... 1-1/4" Non-Ferrous Tube Y.P. to 12000 PSI .......... 3" x 0.12" Non-Ferrous Tube Y.P. to 25000 PSI .......... 3" x .065" Stainless Steel Tube Y.P. to 60000 .......... 1.75" x .065" Steel Bar, Round Y.P. 40000 PSI .......... 1.375" Steel Bar, Square Y.P. 4000 PSI .......... 1.25" Angle Iron Y.P. to 40000 PSI .......... 2.5"x2.5"x0.19" Tube Length Over Mander, Maximum 13'5" Tube Bending Radius, Maximum .......... 12" Tube Bending Angle, Maximum .......... 180-DEGREES Bending Arm Speed, Average Maximum .......... 13.5 RPM Operating Pressure, Standard .......... 2000 PSI Main Motor, Horsepower .......... 10 HP Overall Dimensions, L x D .......... 13'4" x 4' Overall Height .......... 4' Weight, Approximately .......... 5000 LBS NOTE: This Is A Very Well Equipped Machine. The M21 Manual Carriage Manually Controls The Distance Between Bends And The Plane Of Bend For Various Part Configurations. The Carriage Position And Rotation Is Controlled Through Manually Adjusted Gauge Stops. Factory Advises This Is A $35,000.00 Option. F.O.B. OUR WAREHOUSE Schedule 80 Steel Pipe: 1-1/4" Tube Bending Radius, Maximum: 12" Tube Bending Angle, Maximum: 180-DEGREES Operating Pressure, Standard: 2000 PSI Main Motor, Horsepower: 10 HP Overall Height: 4' Weight, Approximately: 5000 LBS
