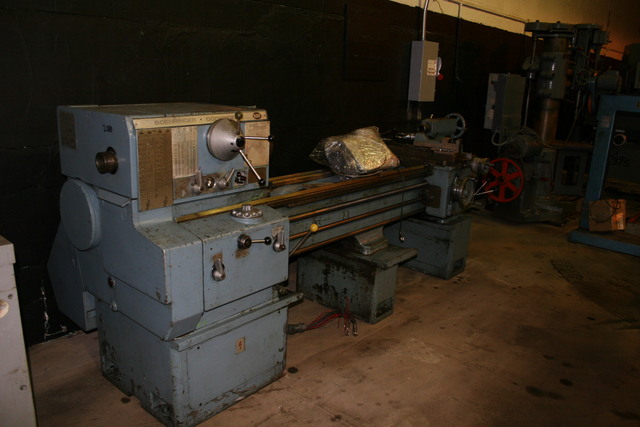

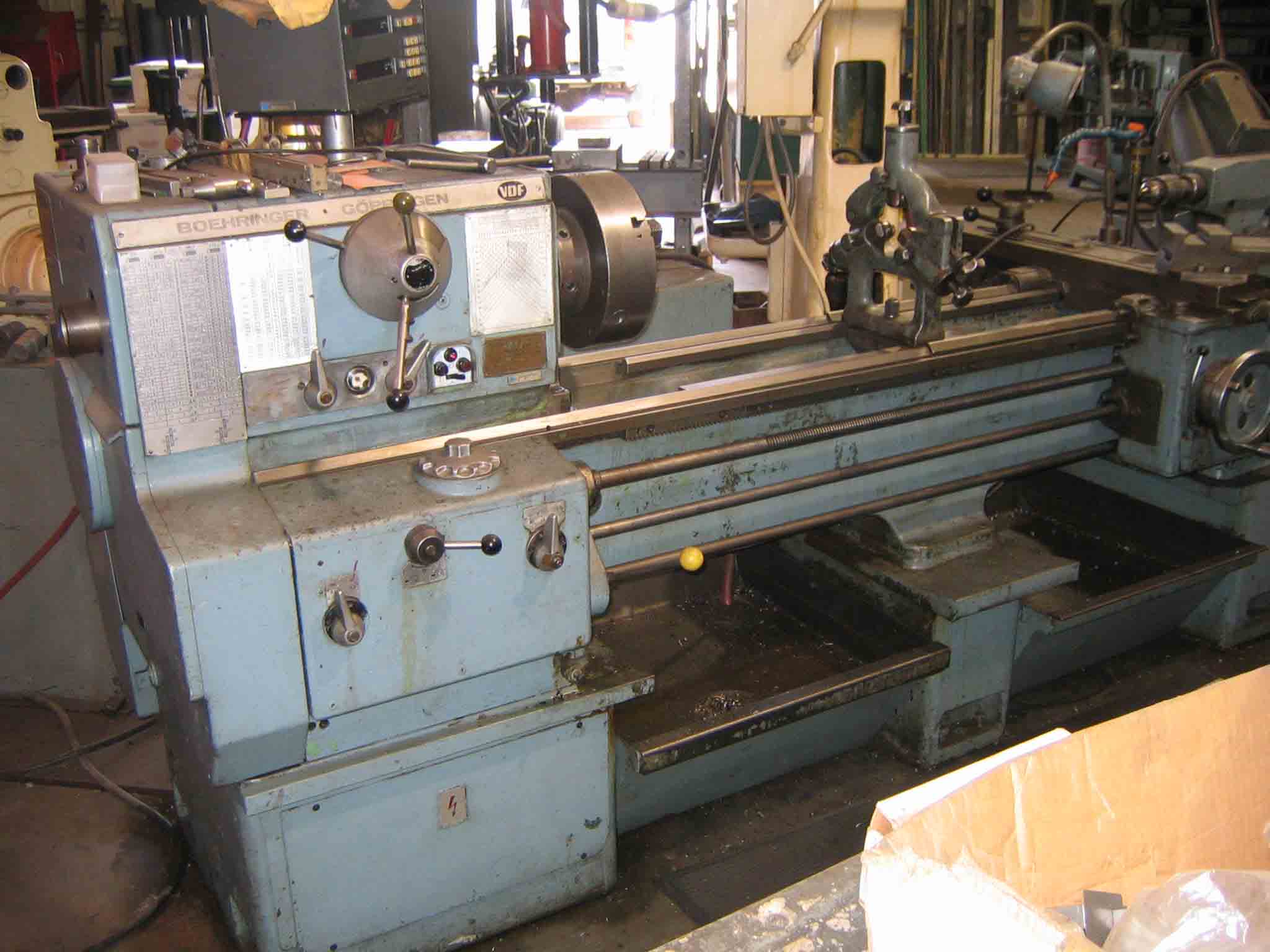

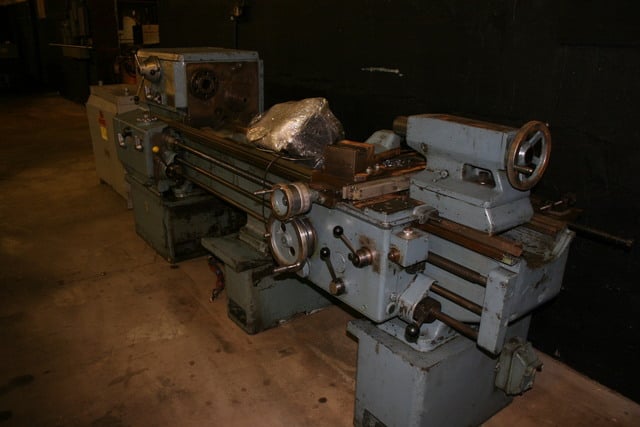

19" x 59" Boeringer Mag #VDF48L, engine lathe, 2.08" spindle bore, 4-jaw 12" chuck, inch/metric, Sony 2-Axis digital read out

Manufacturer: Boeringer
Model: VDF48L
Swing: 19.0
Centers: 59.0
Stock # 815

For Sale by Aleco Machinery Sales

Platinum Level Dealer
Surplus Record Dealer Since 2002
  Alex Hawley
  414-26...> Show Seller's Phone Number 414-264-5848 Let the seller know you found their listing on Surplus Record!

Description

(1) Pre Owned Boeringer (MAG) VDF 48L Engine Lathe
Type 48S Serial Number: 70.1025.0025654

General Specifications
Swing Over Bed 19"
Distance Between Centers 59"
Spindle Bore 2.08"
Spindle Nose (Camlock Type) D1-8
Spindle Speeds 11.2 to 2240 RPM
Main Drive Motor 15 HP AC

Equipped With
Taper Attachment
12" 4 Jaw Chuck
Inch / Metric Threading
Hardened & Ground Bed
Electric Brake
Sony 2 Axis DRO


Approximate Machine Weight 6200 Lbs
Approximate Machine Dimensions

Submit Inquiry to Aleco Machinery Sales
