$9,450 USD
Description
Spec Sheet:

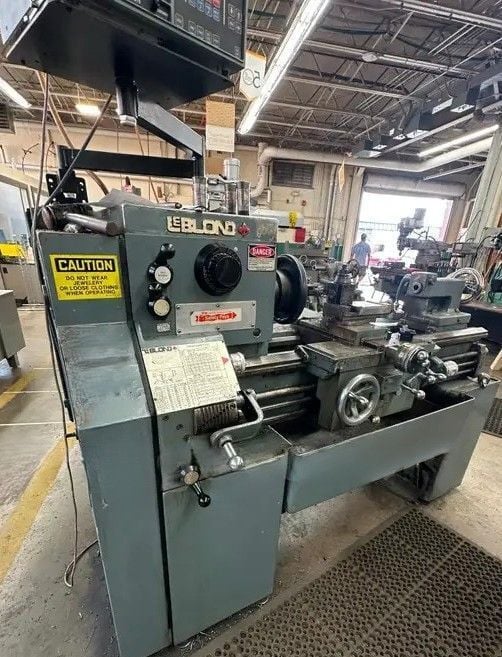

The LeBlond Regal 19" x 30" Servo Shift Engine Lathe featuring inch/metric threading
15-inch swing over the bed,
30 inches of distance between centers,
a hydraulic servo-shift dial for changing speeds.
It cuts standard inch threads from 2 to 112 TPI and metric thread pitches through a quick-change gear box.
Key Machine Specifications
Swing Over Bed: 15" (actual approx. 16-1/4")
Swing Over Cross-Slide: 10-1/4"
Distance Between Centers: 30"
Hole Through Spindle: 3-1/16"
Spindle Nose: L2
Spindle Speeds: 45 to 1800 RPM
Tailstock Taper: #4 Morse Taper (MT)
Threading and Feed Capabilities
Inch Threads (TPI): 2 to 112 TPI (48 changes)
Metric Threads: Range of 0.5 to 2.8 mm pitch (or variant gear setup depending on the specific metric transposing box)
Longitudinal Feeds: 0.0018 to 0.104 IPR (Inches Per Revolution)
The LeBlond Regal 19" x 30" Servo Shift Engine Lathe featuring inch/metric threading
15-inch swing over the bed,
30 inches of distance between centers,
a hydraulic servo-shift dial for changing speeds.
It cuts standard inch threads from 2 to 112 TPI and metric thread pitches through a quick-change gear box.
Key Machine Specifications
Swing Over Bed: 15" (actual approx. 16-1/4")
Swing Over Cross-Slide: 10-1/4"
Distance Between Centers: 30"
Hole Through Spindle: 3-1/16"
Spindle Nose: L2
Spindle Speeds: 45 to 1800 RPM
Tailstock Taper: #4 Morse Taper (MT)
Threading and Feed Capabilities
Inch Threads (TPI): 2 to 112 TPI (48 changes)
Metric Threads: Range of 0.5 to 2.8 mm pitch (or variant gear setup depending on the specific metric transposing box)
Longitudinal Feeds: 0.0018 to 0.104 IPR (Inches Per Revolution)
Inquire Further with Machinery Central!
