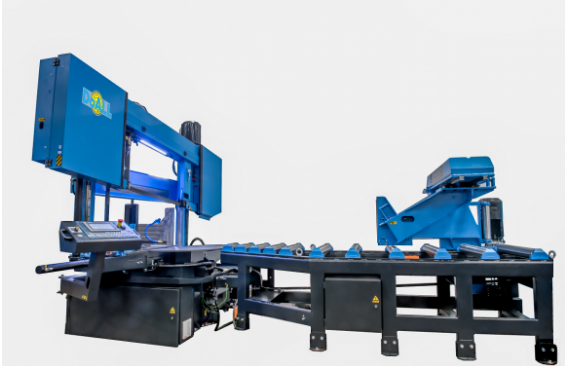

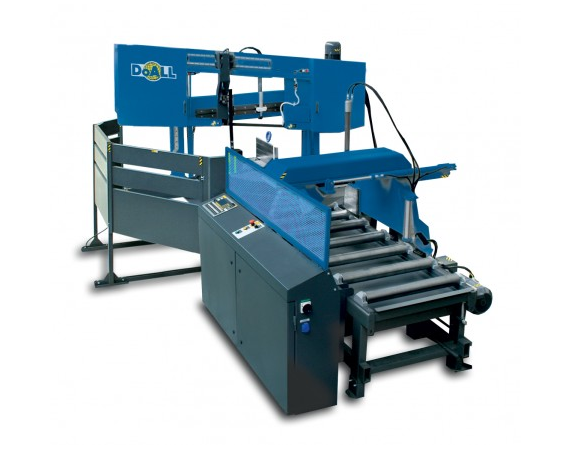

19" x 30" DoAll #DCDS-750NC, dual column dual miter, 256" blade, 65-328 FPM, new

19” x 30" Band Saw with Siemens Saw Control with Touch Display Variable Frequency Drive Digital Read Out of Cutting Angle Work Light Hydraulic Band Tension Feed Rate Indicator Automatic Feed Control Automatic Guide Arm Setting Pulley-Driven Band Brush Variable Vise Pressure Control - Set of 2 Dual Acting Index Vice Jaws for Crooked Stock Hydraulic Angular Position and Lock Support Cylinders on Input Conveyor Front Safety Covers Flood Coolant Tool Kit Complimentary DoALL Cutting Fluids Package One DoALL Bi-Metal Saw Blade Instruction and Parts Manuals on CD or USB Data Stick.

GENERAL SPECIFICATIONS

• Cutting Capacity Round Tube: 20"
• Cutting Capacity Round Solid: 15-3/4″
• Cutting Capacity Rectangle: 19 x 30"
• Index Single Stroke Min-Max: 0.12-78.7″
• Auto Index Multiple Stroke Max: 394″
• Nesting Capacity (Min to Max): 3.3" up to 29.5 x 10.2″
• Miter Cutting: 60° left and right
• Capacity Round at 45°: 19.7″
• Capacity Rectangle at 45°: 19.7 x 18.9″
• Capacity Round at 60°: 13”
• Capacity Rectangle at 60°: 13 x 18.9″
• Remnant Length Drop: 4.7”
• Band Saw Blade Width: 1-1/2 x 0.05″
• Maximum Blade Length: 256″
• Band Speed: 65-328 fpm
• Band Drive Motor: 7.5 hp
• Hydraulic Pump: 3 hp
• Hydraulic Tank Capacity: 3.4 gal
• Coolant Pump: 0.16 hp
• Coolant Pump Capacity: 10-1/2 gal
• Material Pass Line Height: 32″
• Machine Weight: 9149lbs
• Dimensions W x L x H: 130" x 232" x 85"

INCLUDES: 2-Speed Gear Box, Flood Coolant, Blade-Driven Band Brush,Manual Set Work Stop, Tool Kit, Complimentary DoALL Cutting Fluids Package, One (1) DoALL Bi-Metal Saw Blade, Instruction and Parts Manuals on CD or USB Data Stick.
