19.7" x 71" Toyoda #GUP-40-180, universal cylindrical grinder, 20" x 3" x 8" grinding wheel, 6560 SFPM, 7.5 HP, 1980

Toyoda 40x180 GUP1490-2 Universal Cylindrical Grinder, ID Spindle, Table Dresser, Attached Electrical
40” x 180” TOYODA GUP 1490-2 UNIVERSAL GRINDER

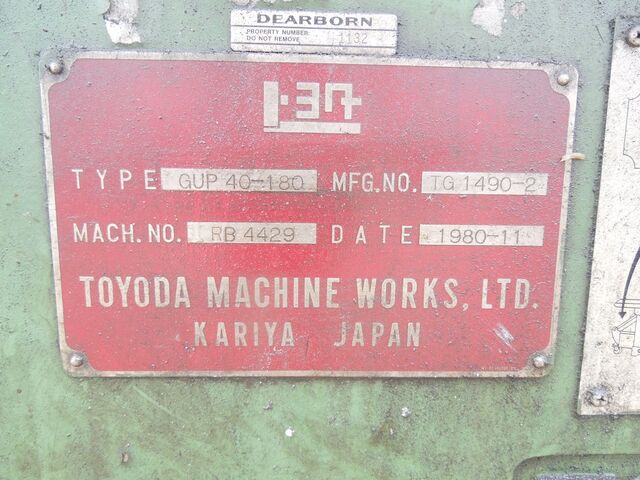

S/N RB4429 Year: 1980
STANDARDSPECIFICATIONS
Max. Swing Over Table………………………………….......500mm (19.685”)
Distance Between Centers…………………………………...1803mm (71”)
Max Load Between Centers………………………………....499 KG(1,100 LBS)
TABLE
Table Swivels,CCW/CW…………………………………...8' CCW / 3'
Longitudinal Table TraverseSpeed…………………………51mm (2”) x 3988mm (157”)
Movement Per Turn Of Handwheel(2-Step)………………..0.65 / 0.65”
WHEELHEAD
Wheelhead Swivels Left Right…………………………… /- 30'
Total FeedStroke…………………………………………….295mm (11.6”)
Handwheel InfeedStroke…………………………………….165mm (6.5”)
Sub SlideBase………………………………………………..89mm (3.5”)
Auto Rapid Feed InfeedStroke……………………………....41mm (1.6”)
Auto Infeed At TableReversals…….………………………...0.0001” – 0.0016”
Auto PlungeInfeed…………………………………………...Yes
Auto Plunge Infeed W/ PositiveStop………………………....0 – 0.0315”
Movement Per Grad. OfHandwheel…………………………..0.0001”
Movement Per Turn OfHandwheel…………………………...0.040”
GRINDING WHEEL
Wheel Size……………………………………..508mm(20”) x 76mm (3”) x 203mm (8”)
Minimum WheelDiameter……………………………………305mm (12”)
Max WheelWidth……………………………………………..112mm (4.4”)
WheelSpeeds………………………………………………….1120 / 1300 / 1525 RPM
Max WheelSpeed……………………………………………..6560 SFPM
WORKHEAD
Swivels………………………………………………………...90'CCW / 10' CCW
SpindleTaper………………………………………………….#5 MT
Spindle BoreDiameter………………………………………...40mm (1.57”)
Infinitely Variable SpindleSpeeds…………………………….1 – 150 RPM
TAILSTOCK
SpindleCenter…………………………………………………#5 MT
Quill Travel……………………………………………………30mm(1.18”)
MachineWeight………………………………………………..5987 KG (13200 LBS)
Machine Dimensions…………4801mm(189”) L x 1930mm (76”) W x 1473mm (58”) H
EQUIPPED WITH
Toyoda hydrostatic wheelheadbearings.
Fully automatic grinding cycle.
Sparkout timer.
Adjustable table tarry.
External hydraulic system. (2 HPMotor)
Infinitely variable workheadspindle speeds.
Dual live / dead workheadspindle.
Pushbutton for “inching / jog”.(Workhead)
Attached Electrical.
7.5 HP / 3 / 60 / 230 – 460 voltsgrinding wheel motor.
15 KVA service.
Specificationsare deemed accurate, however, subject to verification or prior sale.
