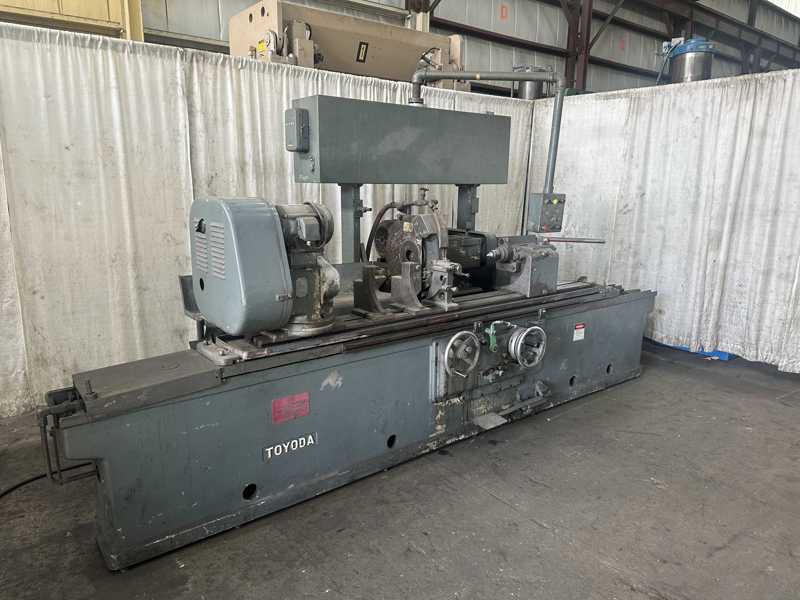

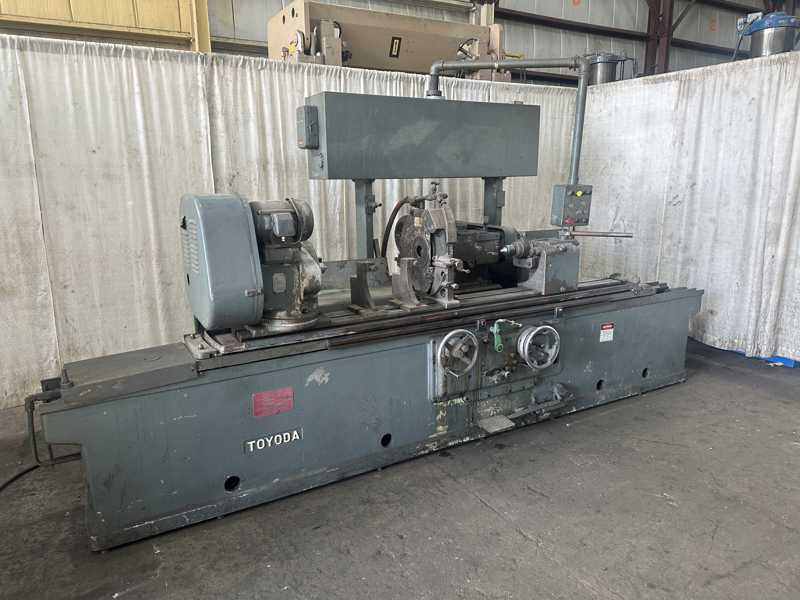

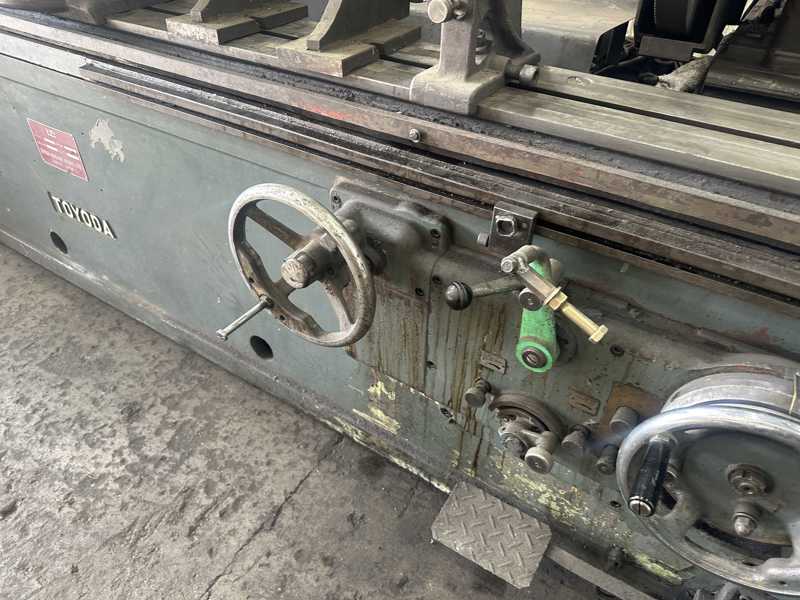

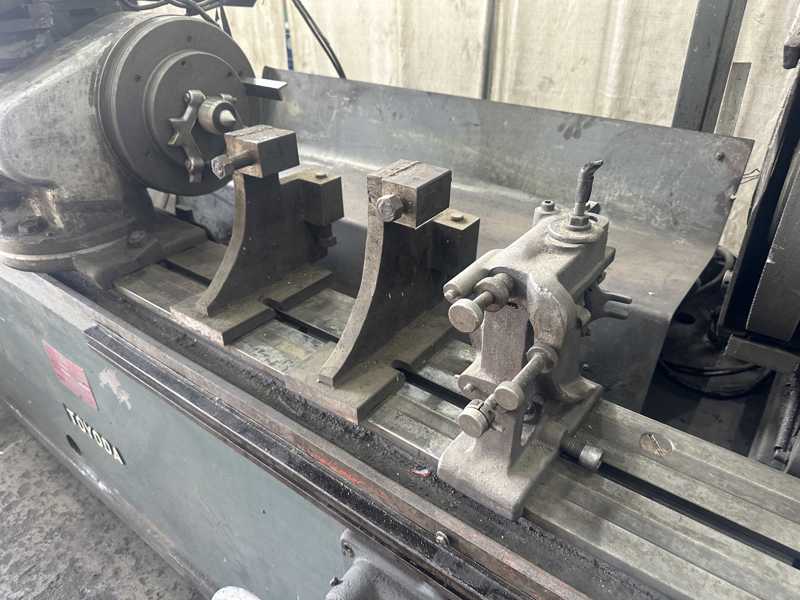

19-5/8" x 71" Toyoda #RUP40-180, universal cylindrical grinder, 20" grinding wheel diameter

SERIAL ......................... R2922

TYPE .......................... RUP40-180

MFG # ..... TG106-B2

MAXIMUM SWING .................. 19.685"

DISTANCE BETWEEN CENTERS ....... 71"

WORK HEAD SPEEDS ............... 26 TO 160 RPM

TABLE SPEED .................... 2 TO 157 IPM

MAXIMUM WEIGHT CAPACITY ........ 1100 LBS

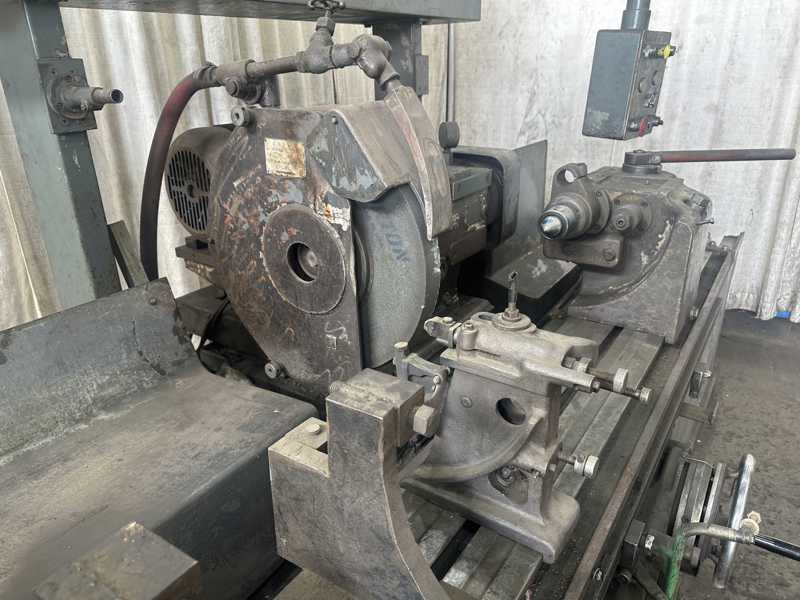

GRINDING WHEEL DIAMETER ........ 20"

GRINDING WHEEL WIDTH ........... 3" MAXIMUM

MAXIMUM WHEEL WIDTH .... 4.4"

TABLE SWIVELS AT CENTER ........ 8 DEGREES

WHEEL HEAD SWIVELS ..... +- ... 30 DEGREES

WORHHEAD TAPER ... #5 MT

HEAD FEED STROKE .... 11.6"

ANGLE OF SWIVELING WORK HEAD ... 90 DEGREESCCW/10 CW

STEADY REST .................... 1/2" TO 6-1/4"

FAST STROKE OF SLIDE ........... 1.6"

AUTOMATIC INFEED & TABLE REVERSE ... 0.0001" TO .0016"..

PLUNG FEED .. 0 TO 0315 IPM

COOLANT ............ YES

GRINDING HEAD MOTOR ... 7.5 HORSEPOWER

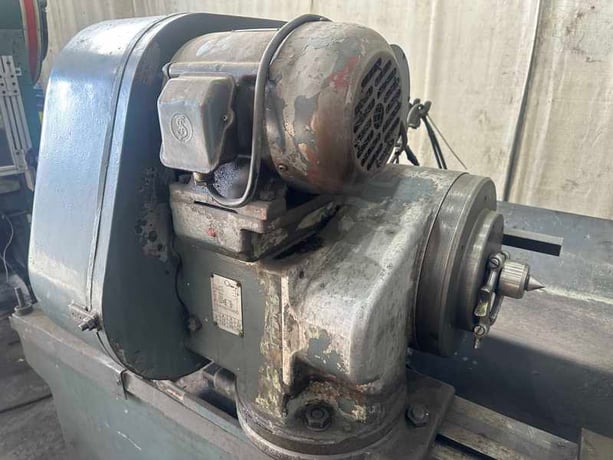

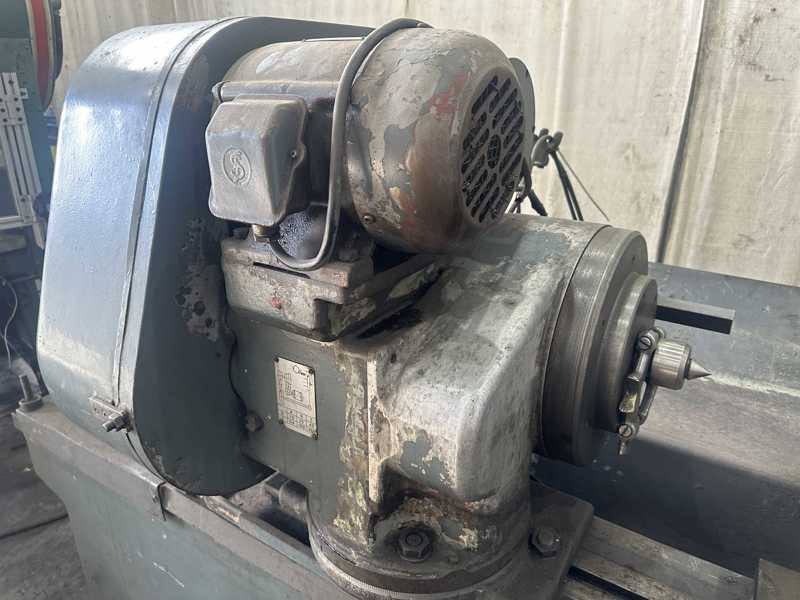

WORKHEAD MOTOR ................. 1 HORSEPOWER

HYDRAULIC MOTOR ................ 1 HORSEPOWER

GRINDING HEAD MOTOR ............ 15 HORSEPOWER
