1800 KVAR, SHALLBETTER, 13200/7620 V, 9 X 200 KVAR CANS, INDOOR, 3 PHASE, FUSED

B-13474:

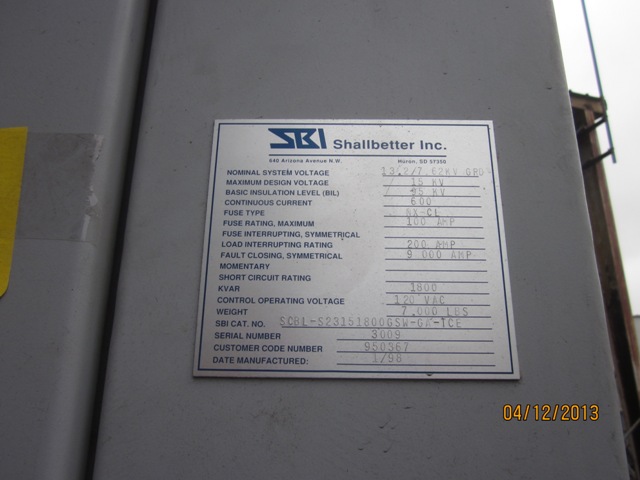

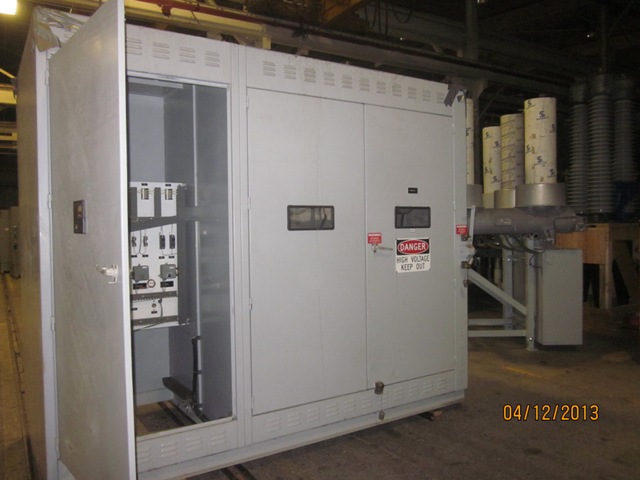

ONE (1) INDOOR HOUSED SHALLBETTER CAPACITOR BANK
13200/7620 VOLT
9 X 200 KVAR CANS DIVIDED INTO 2 STEPS -
STEP 1 - 600 KVAR
STEP 2 - 1200 KVAR
FUSED
2 BUSHING
3 X REACTORS (ON EACH STAGE)
3 X SURGE ARRESTERS (ON EACH STAGE)
3 X OIL SWITCHES (ON EACH STAGE)
KIRK KEY INTERLOCKS ON SECTIONS CONTAINING CAPACITORS AND
DISCONNECT SWITCH

STAGE 1:

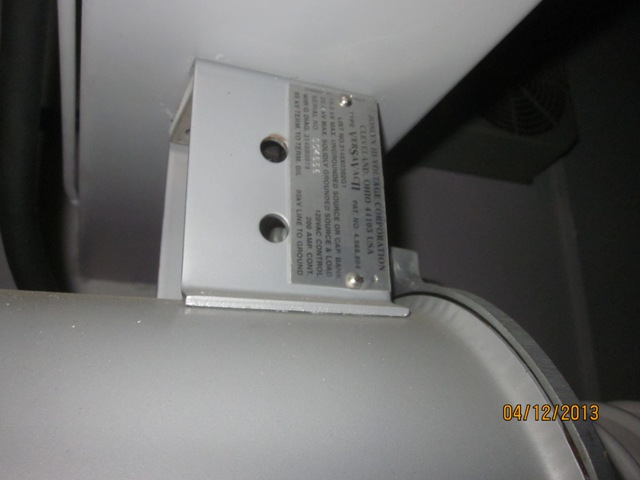

JOSLYN VERSAVAC 2 CAPACITOR BANK
600 KVAR
15 KV UNGROUNDED
25 KV SOLIDLY GROUNDED
200 AMP, 120 VAC
LIST #3148X0302G1
WIRING DIAGRAM 3148B0819
95 KV BIL

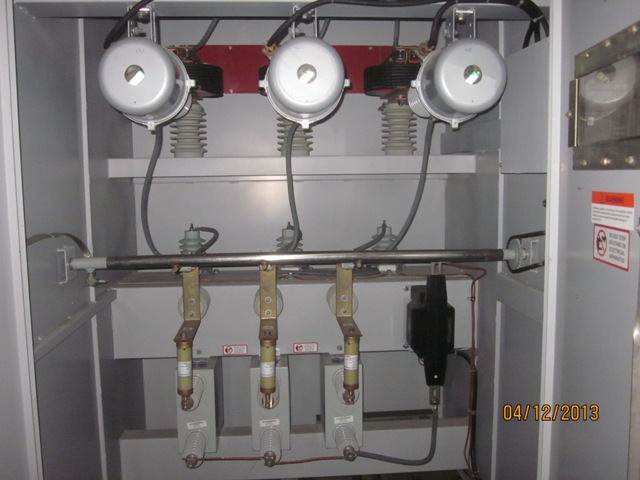

3 X FUSED GE CAPACITORS, 7960, 200 KVAR, 2 BUSHING, SINGLE PHASE, 95 KV
BIL, 60 HERTZ, MFG. 12/99, FUSING RATING 8.3 KV, 40 AMP, 50 KA
3 X SHALLBETTER REACTORS RATED 200 AMP, 20 MOCROHENRIES,
CAT. #SB1-CLR-20-200
3 X ABB INTERMEDIATE CLASS SURGE ARRESTERS RATED 10 KV, 8.4 MCOV,
STYLE #ER010AA008A
1 X ABB BAR TYPE CT RATED 13.8 KV, 25:5 RATIO, 11 KV BIL, 0.3 ACC,
STYLE 7524A03G05

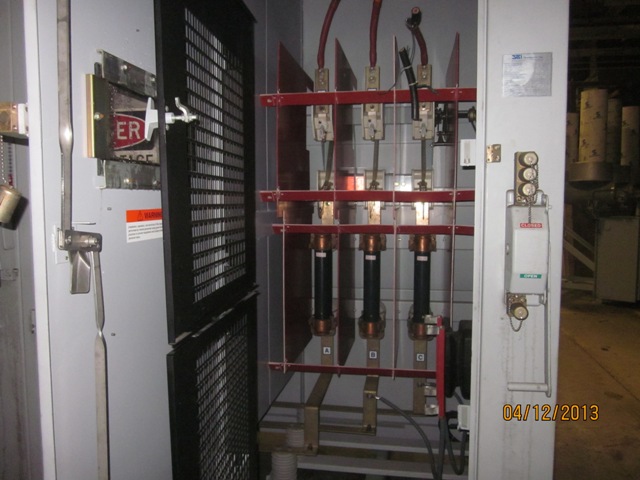

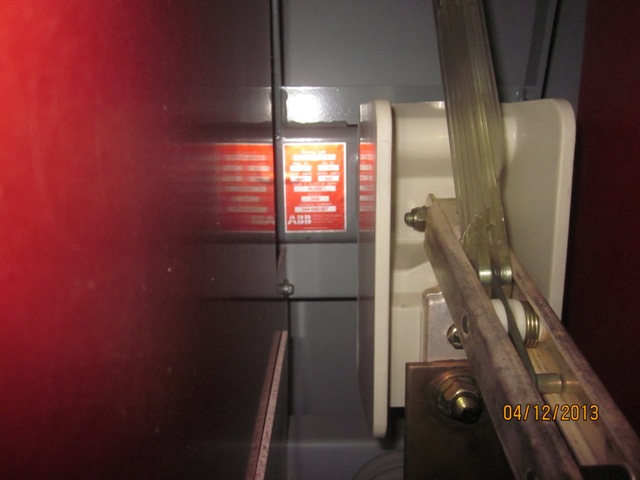

600 AMP ABB VERSA-RUPTER FUSED DISCONNECT SWITCH
13.8 KV CONTINUOUS, 17 KV MAX., 40 KA, CAT. #244-042-507 WITH
3 X GE EJO-1DD FUSES, 15.5 KV/125 AMP/60 HERTZ
1 X DOUBLE FUSED ABB PT RATED 13.2/13.2Y - 120, 60 HERTZ

STAGE 2:

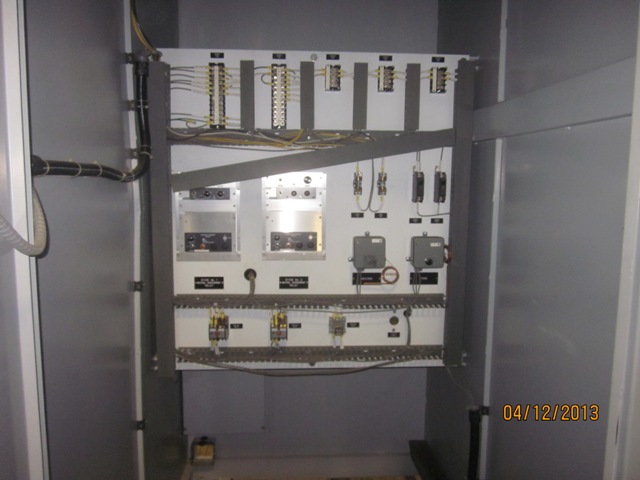

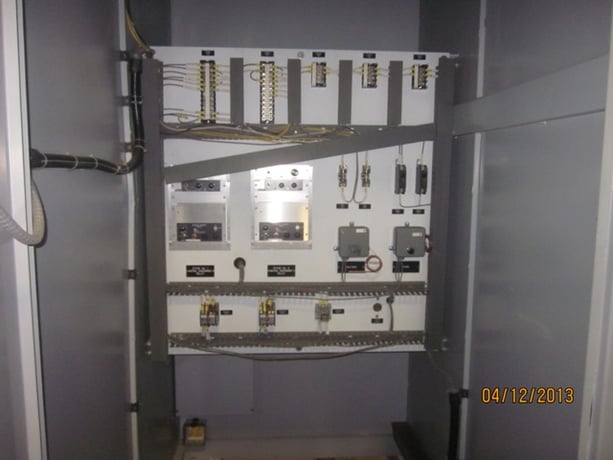

RELAY & CONTROL SECTION
2 X CURRENT SENSING RELAYS, 2 X NEUTRAL CURRENT RELAYS 7 CONTROLS FOR
ALL HEATERS

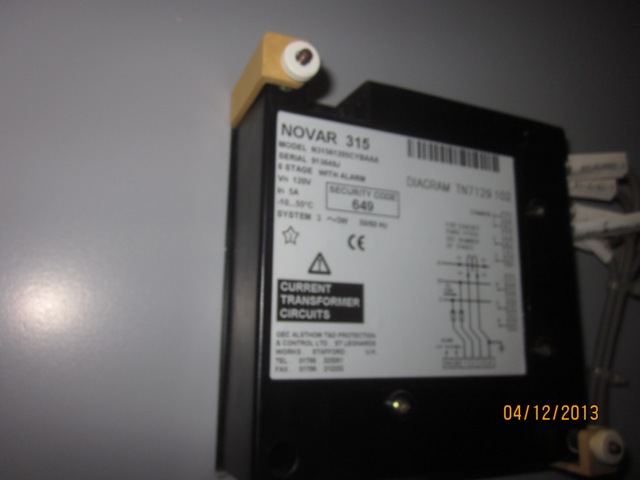

1 X GEC ALSTHOM (NOVAR 315 CONTROL) MODEL #N31561205CYBAAA
JOSLYN VERSAVAC 2 CAP BANK
RATED 1200 KVAR
15 KV (UNGROUNDED)
25 KV (SOLIDLY GROUNDED)
200 AMP
120 VAC CONTINUOUS
LIST #3148X0302G1
WIRING DIAGRAM 3148B0819
95 KV BIL
6 X FUSED GE CAPACITORS, 7960 VOLT, 200 KVAR, 2 BUSHING, SINGLE PHASE,
95 KV BIL, 60 HERTZ, MFG. 1999, FUSE RATING 8.3 KV, 40 AMP, 50 KA
3 X SHALLBETTER REACTORS RATED 200 AMPS, 20 MOCROHENRIES,
CAT. #SBI-CLR-20-200
3 X ABB INTERMEDIATE CLASS SURGE ARRESTERS RATED 10 KV, 8.4 MCOV,
STYLE ER010AA008A
1 X ABB BAR TYPE CT RATED 13.8 KV, 25:5 RATIO, 11 KV BIL, 0.3 ACC
STYLE 7524A03G05
