Description

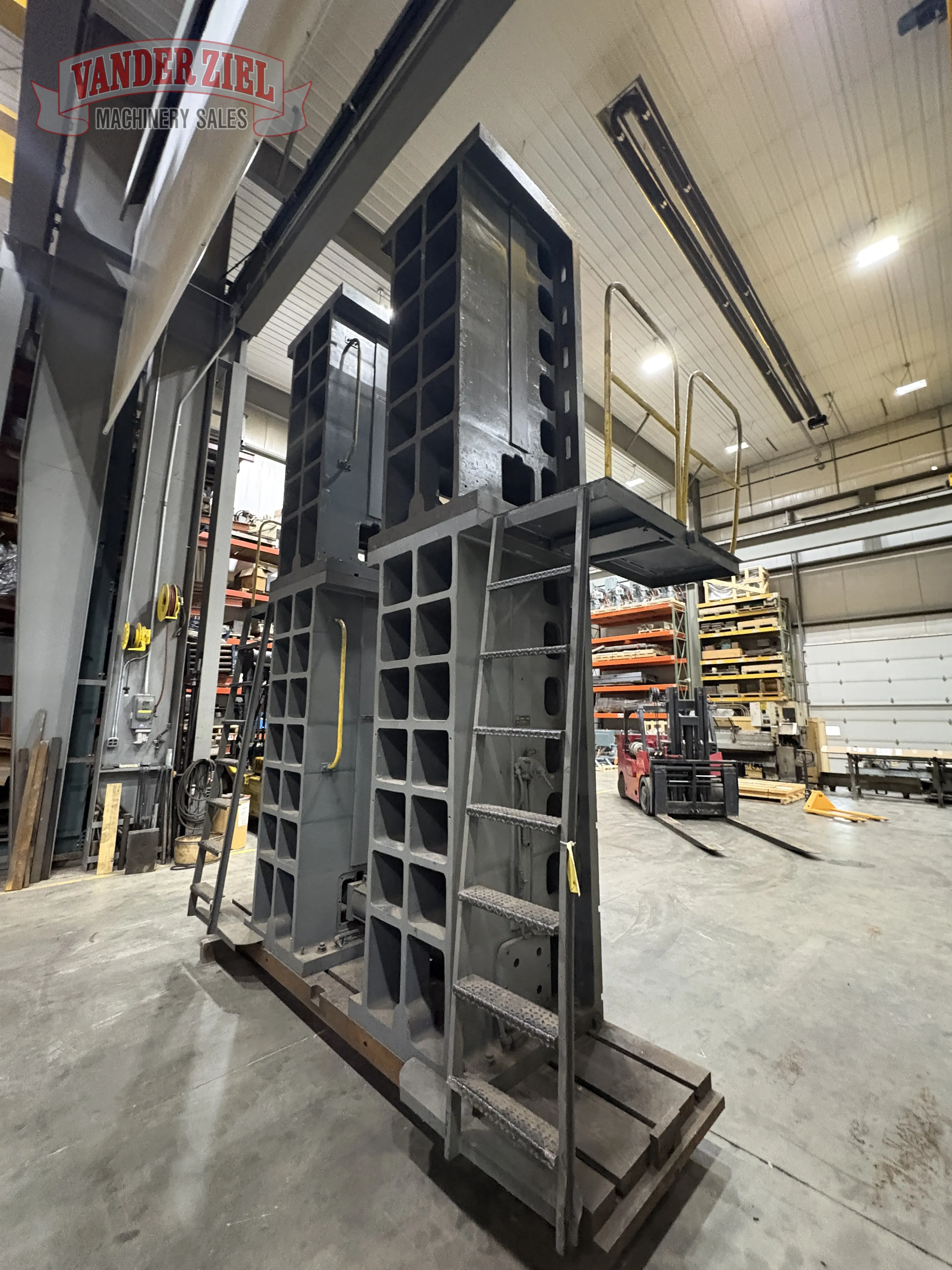

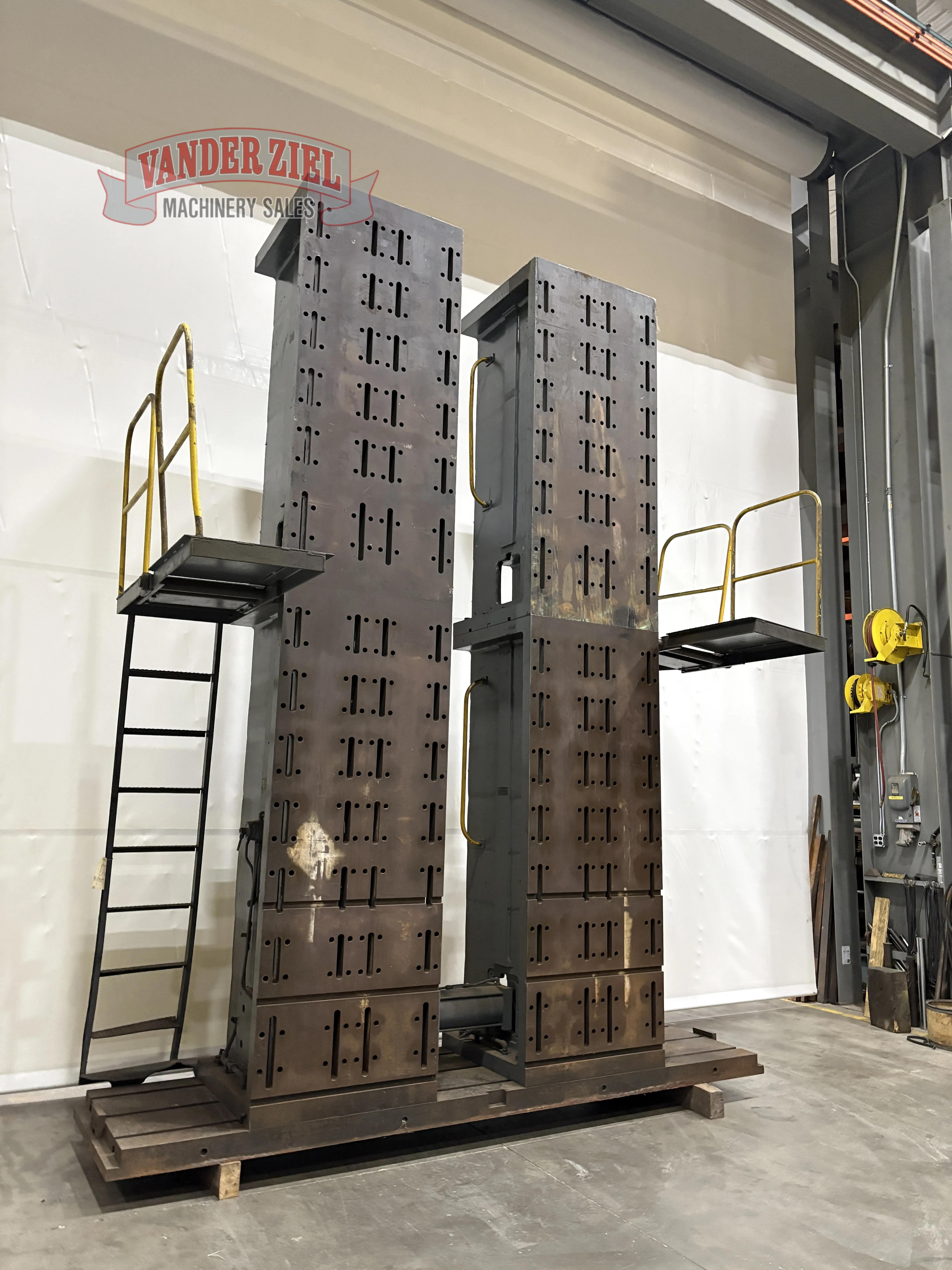

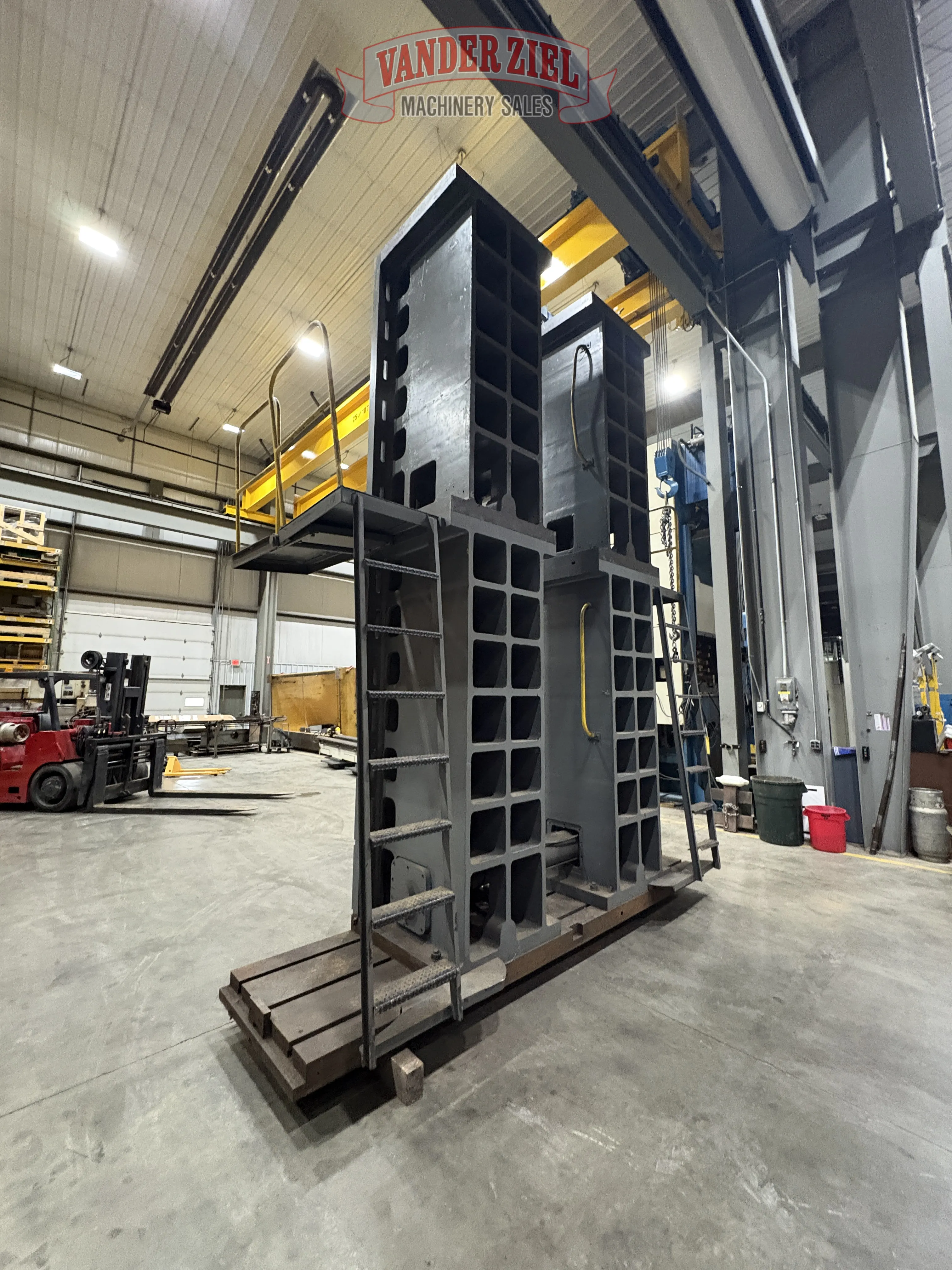

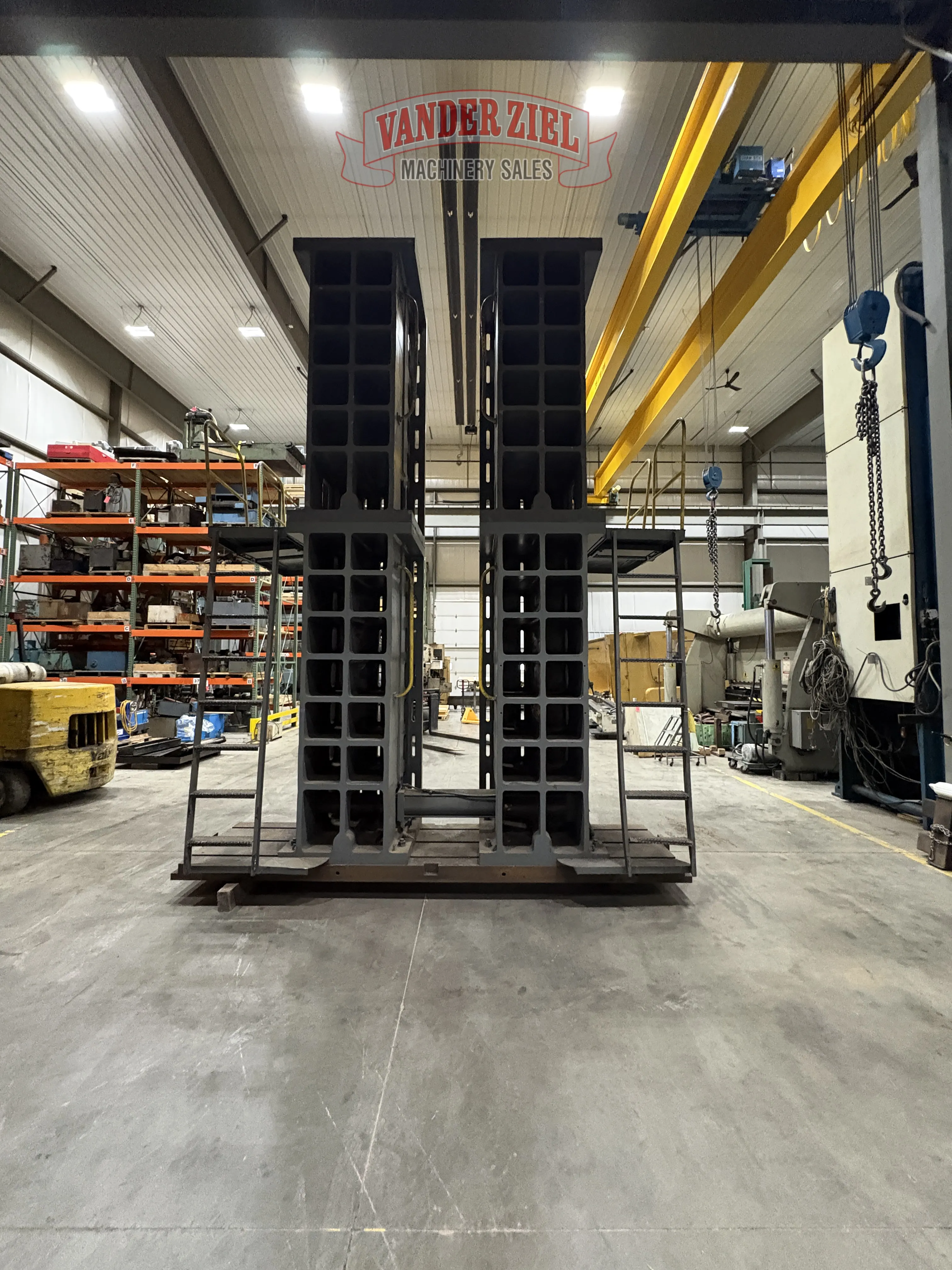

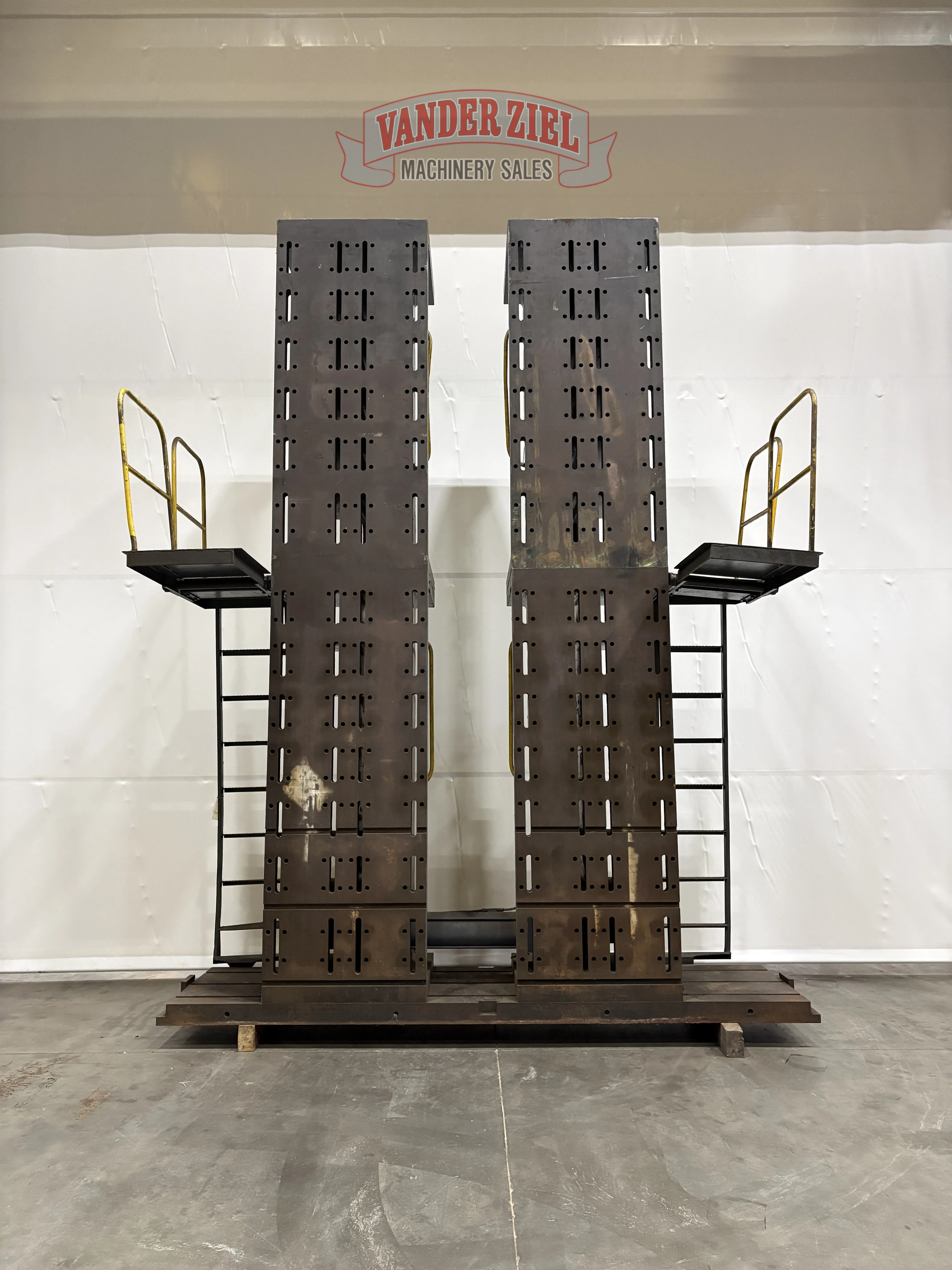

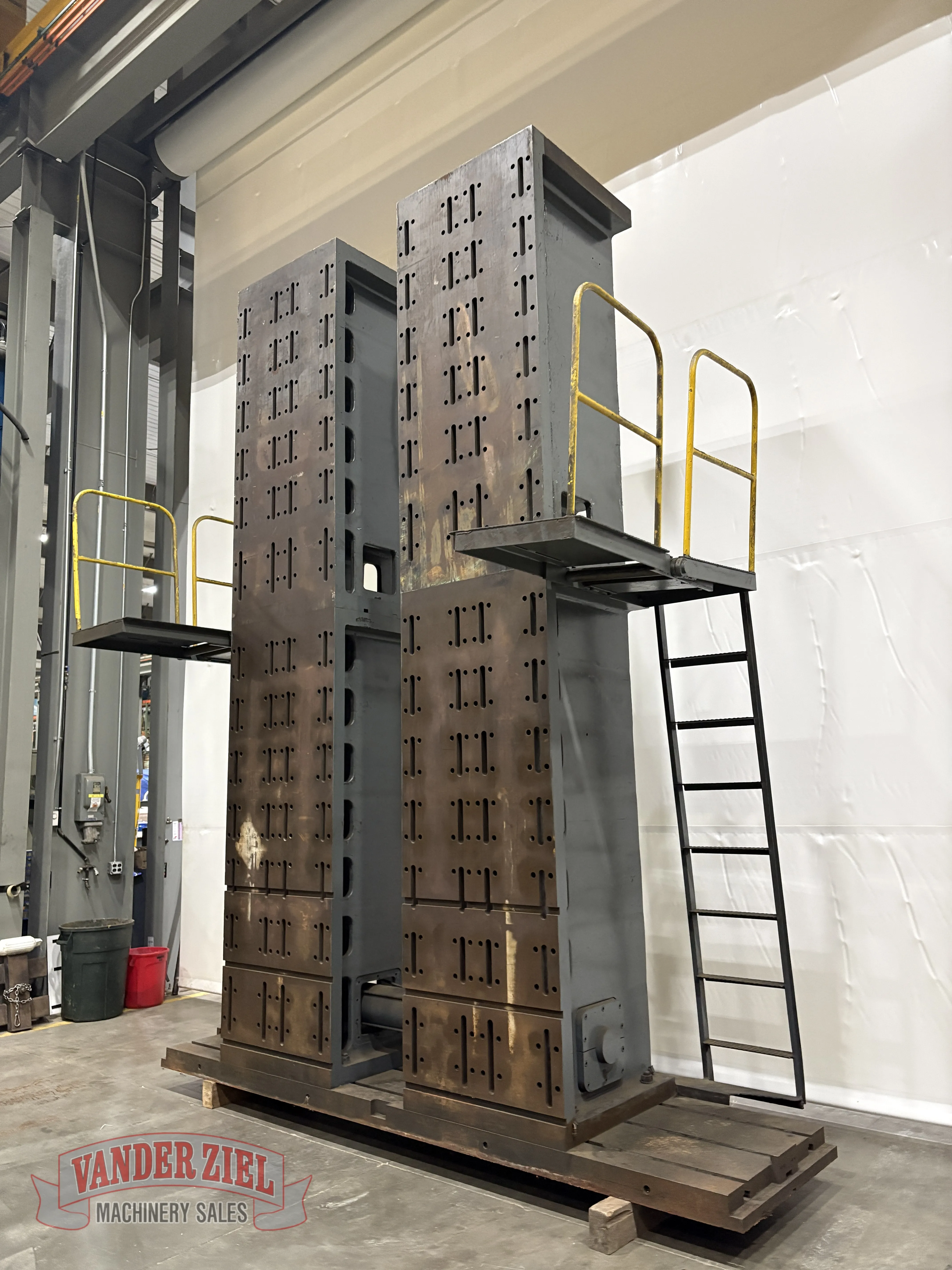

Giddings & Lewis 15' (180") x 36" x 36" Angle Plate, Pair
Specifications on Lower Set: 2-G&L: 36" Wide x 96" Tall x 36" Deep Mounted to a T-Slotted Floor Plate: 12' Long x 36" Wide x 5" Thick 1.5" T-Slots @ 6", 18", 30" on Floor Plates Total Weight: Approx. 25,000 Lbs
Air Cylinder mounted on the 2 Vertical Plates can be moved Side to Side

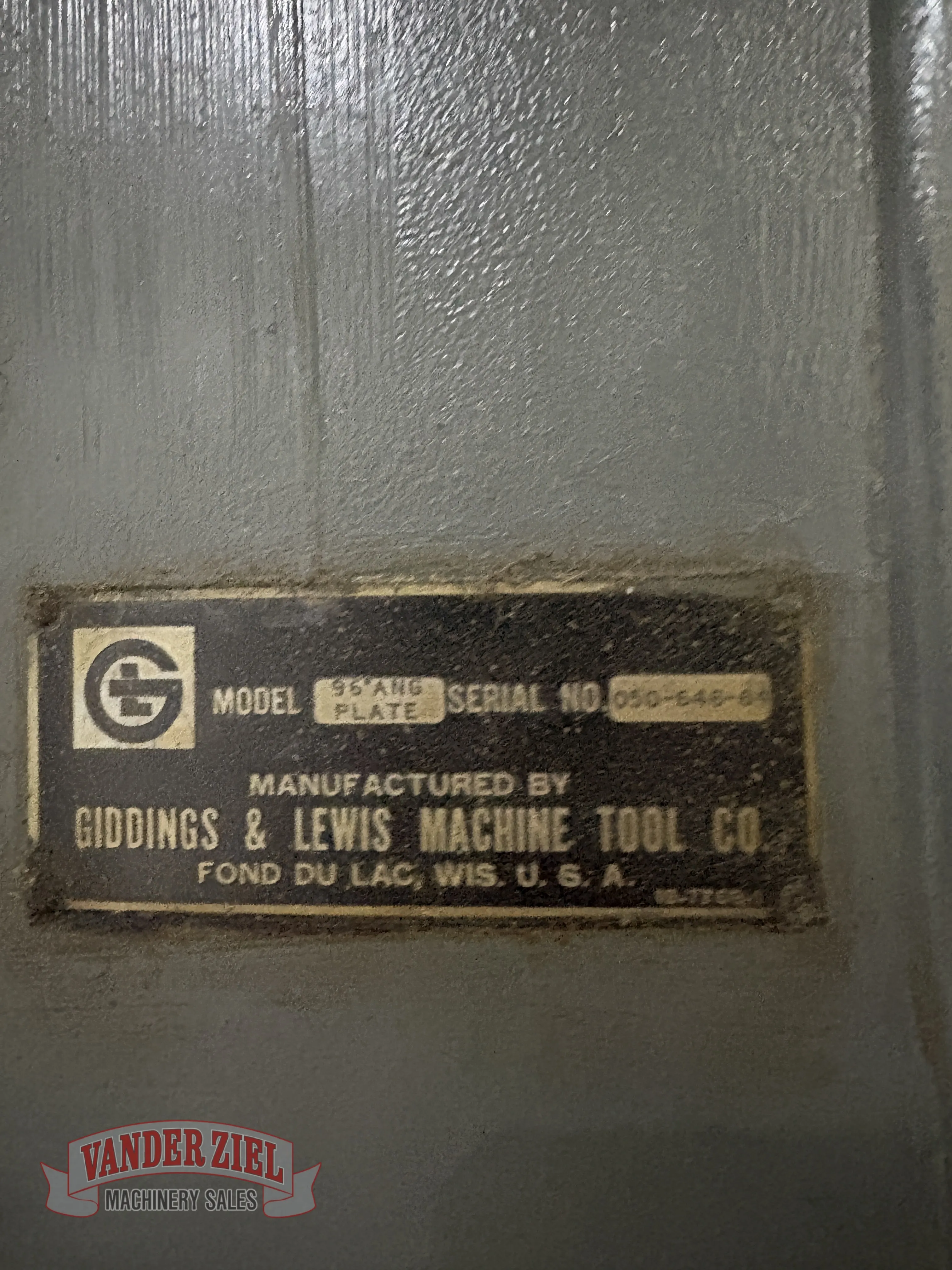

Specifications on Upper Set: Serial # 050-649-64 Serial # 050-648-64 Plate Dimensions 84" x 36" x 36" Slot Spacing 3", 15", 21", 33" Slot Dimensions 1 1/4" x 9" Hole Size 1"
Preliminary Specifications - Subject to Verification
, Giddings & Lewis 15′ (180″) x 36″ x 36″ Angle Plate, Pair, on Lower Set:, 2-G&L: 36″ Wide x 96″ Tall x 36″ Deep (Bottom), 2-G&L 36" Wide x 94" Tall x 36" Deep (Top Blocks), Mounted to a T-Slotted Floor Plate: 12′ Long x 36″ Wide x 5″ Thick ...more
1.- These Cast Iron angle plates are used as a work-holding devices to clamp and hold workpieces in the vertical position and as a vertical reference for inspection and tooling purposes in machining processes such as shaping, planing, boring, milling, grinding and drilling, etc., 2.- The types of angle plates are ...more
