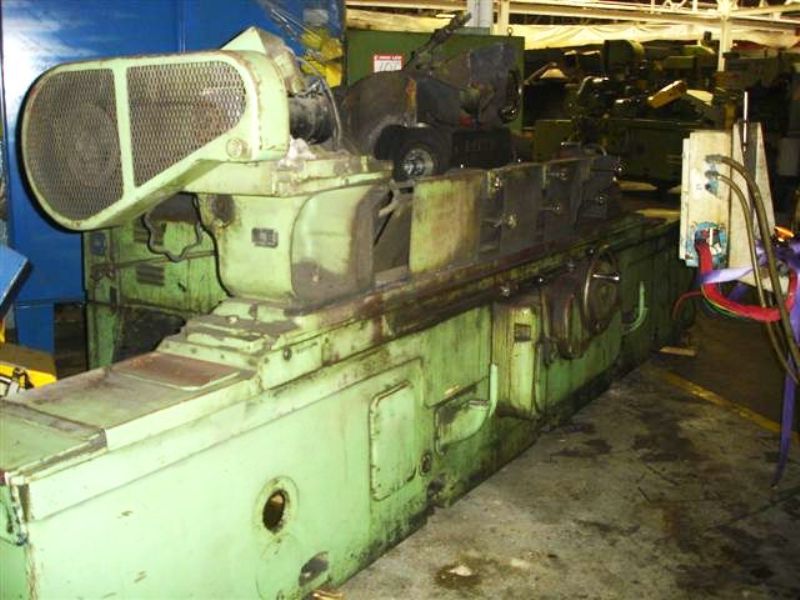

18" x 72" Landis #CH, plain cylindrical grinder, 30" diameter x 20" bore x 3" width wheel, 8.5 deg. table Swivel, 15 HP, 1750 RPM, 1952

18 x 72 LANDIS TYPE CH PLAIN CYLINDRICAL GRINDER
S/N 472-48 Year: 1952
STANDARD SPECIFICATIONS
Maximum swing………………………………………………… 18
Maximum center distance……………………………………….. 72
Wheel size (dia x bore x wide)………………………………….. 30 x 20x 3
Table swivel……………………………………………………... 8 1/2 Degrees
EQUIPPED WITH
Live center head stock with variable speed.
Shoulder grinding attachment with sensitive longitudinal adjustment.
Automatic wheel feed that functions at points of carriage reversal.
Hand operated wheel feed mechanism.
Hydraulic and hand operated traverse for carriage and table.
ELECTRICS
15 HP 220/440/3/60 Spindle Motor 1750 R.P.M.
3 HP 220/440/3/60 Hydraulic Motor
1 HP 220/440/3/60 Work Head Motor 1155 R.P.M.
Specifications are deemed accurate, however, subject to verification or prior sale.
