$24,500 USD
Finance for as low as $497/mth
Description

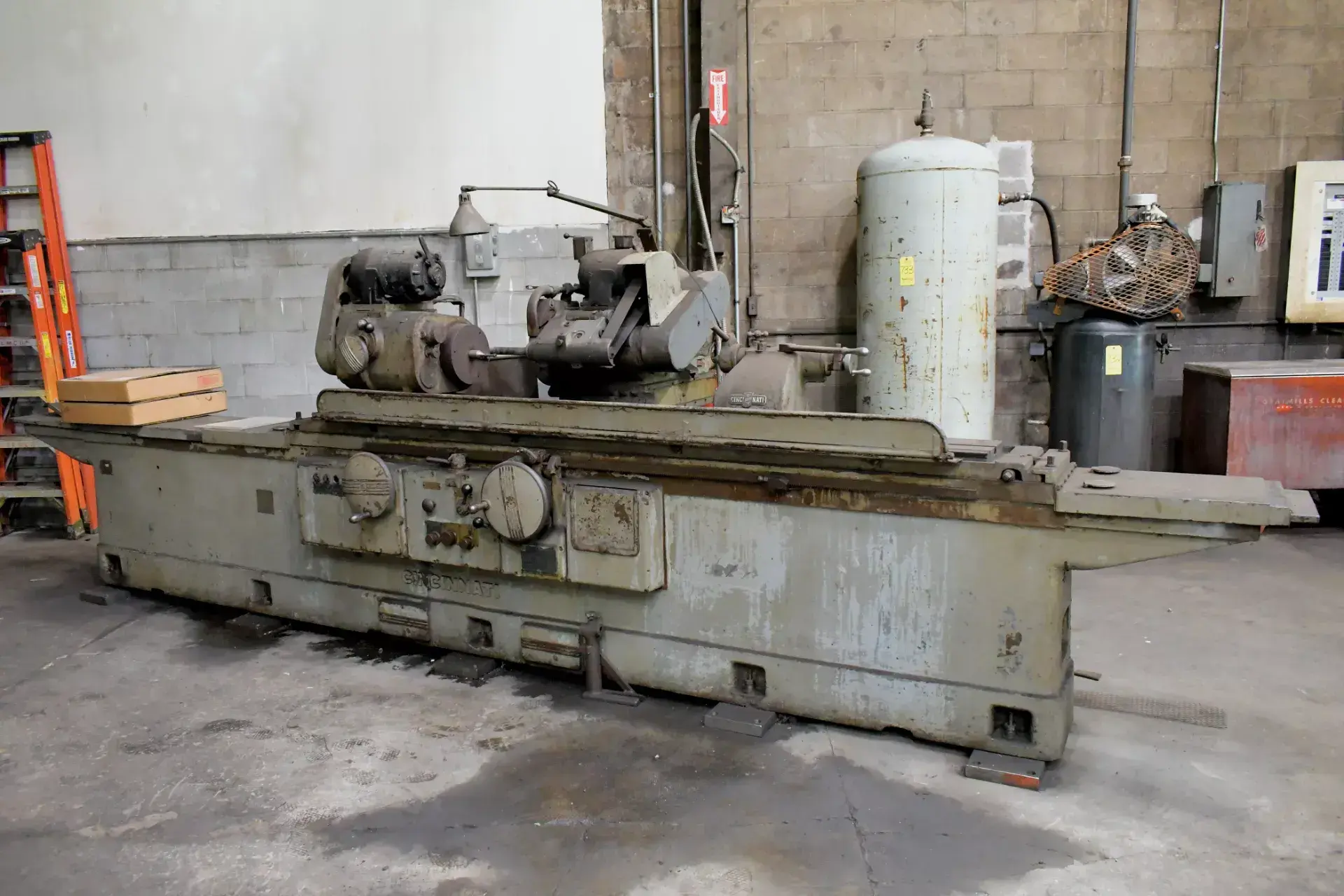

18" X 72" CINCINNATI ER UNIVERSAL HYDRAULIC CYLINDRICAL GRINDER - Swing-Down Internal Grinding Attachment - A/C Workhead
18 x 72 CINCINNATI UNIVERSAL HYDRAULIC CYLINDRICAL GRINDER

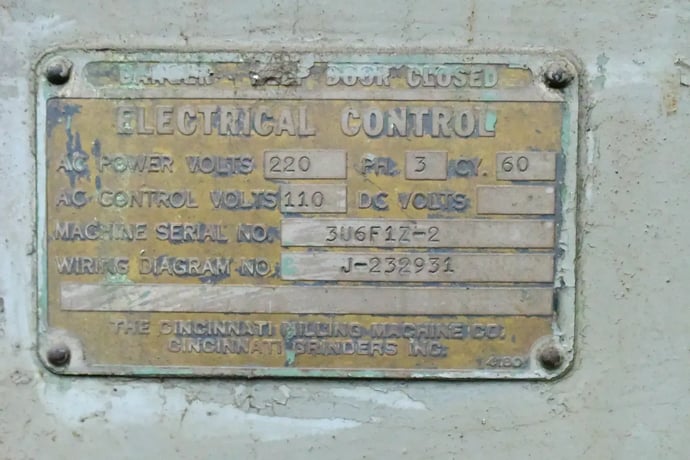

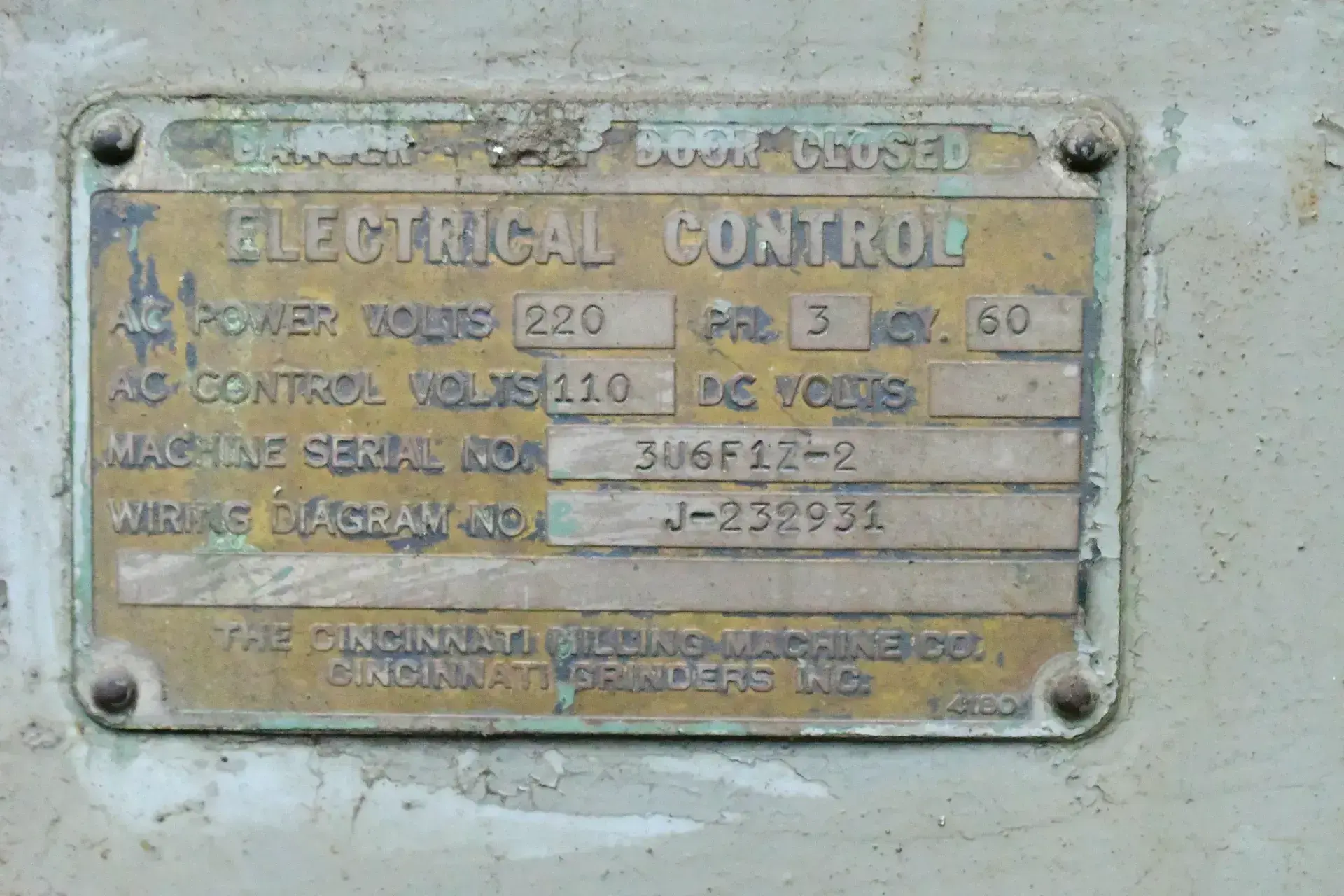

Serial No 3U6F1Z-2, Model ER
EQUIPPED WITH:

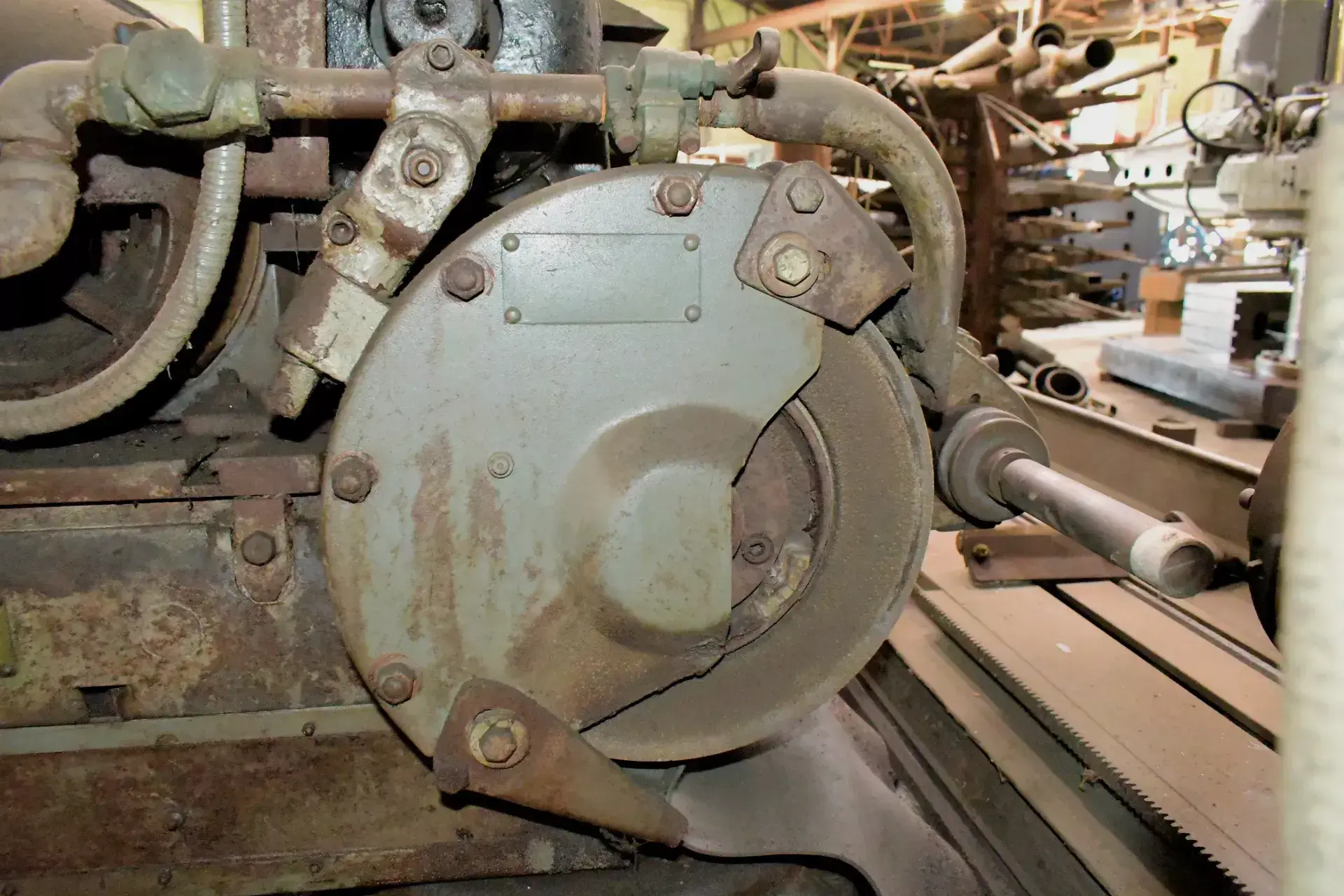

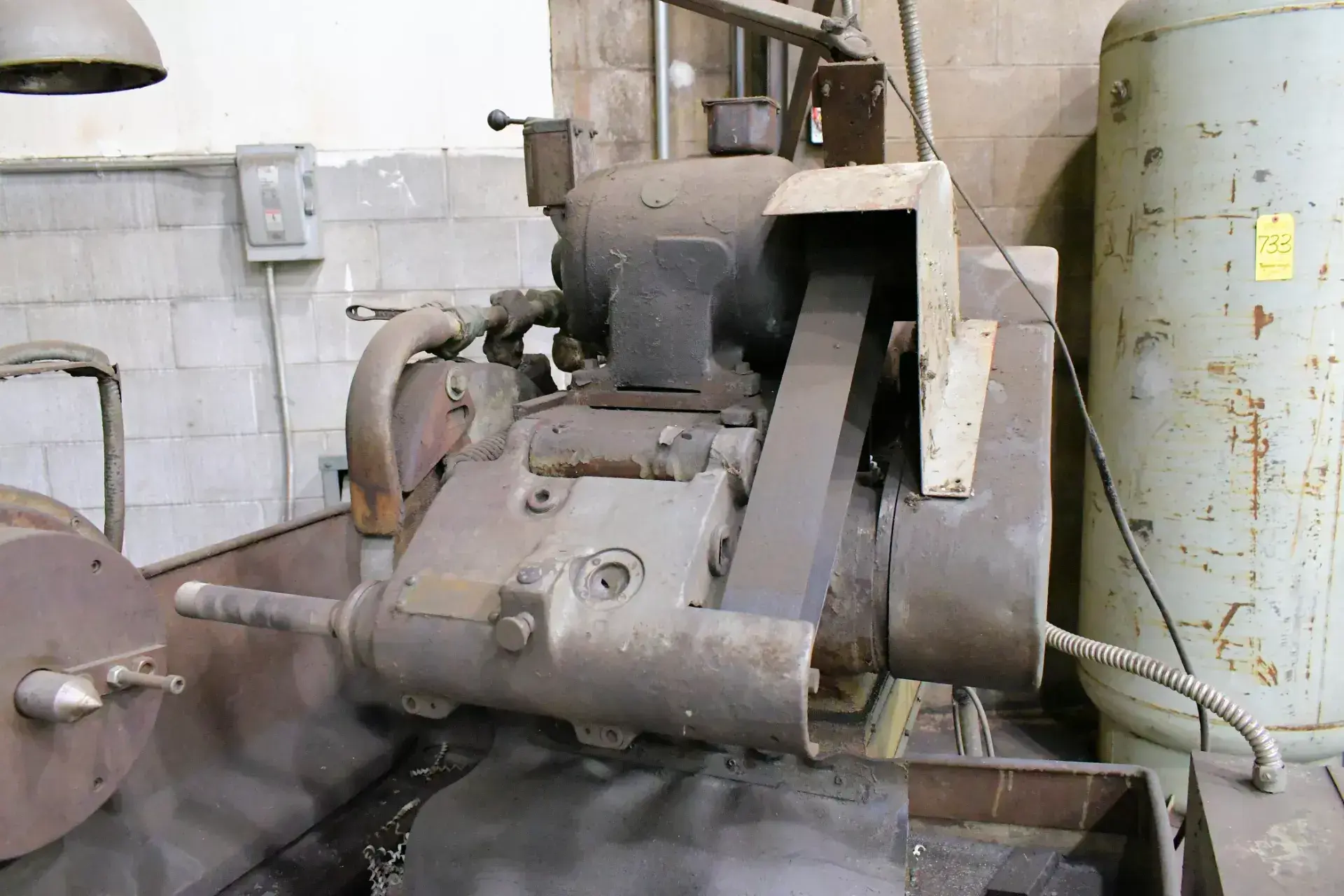

Internal Grinding Spindle Attachment (Swing-Down)
Hydraulic Longitudinal Table Feed

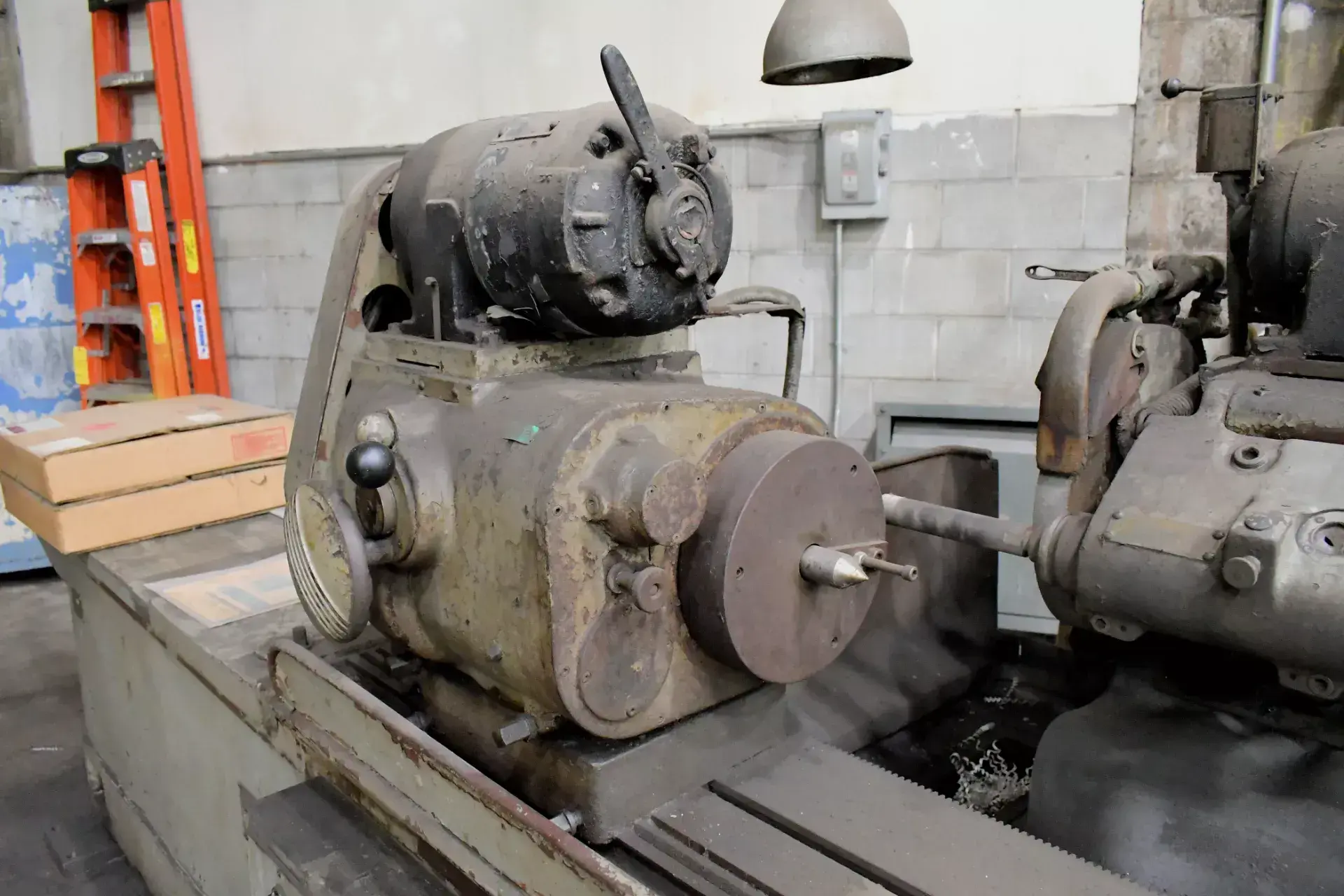

3/4 HP Workhead

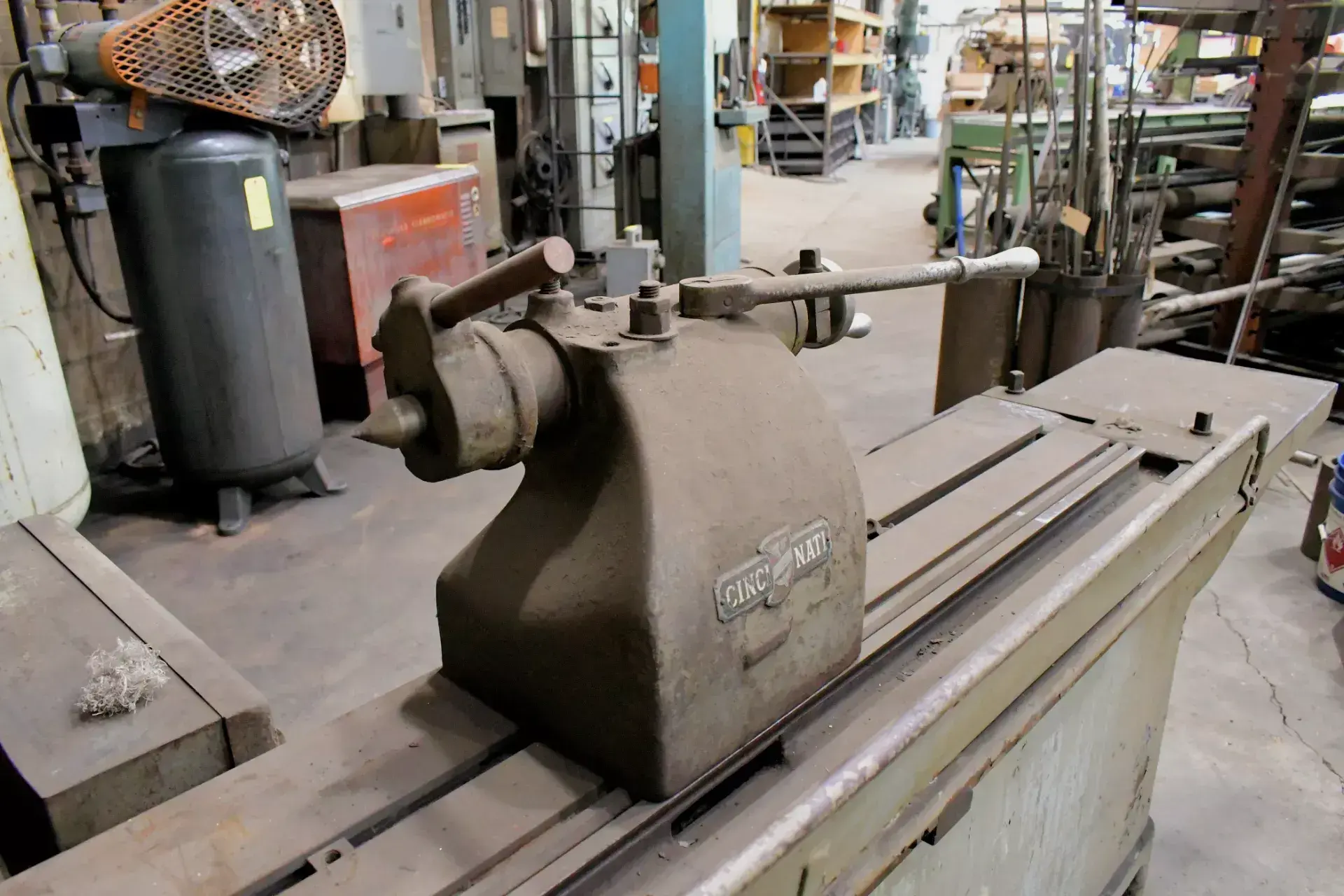

Tailstock Mounted Grinding Wheel Dresser

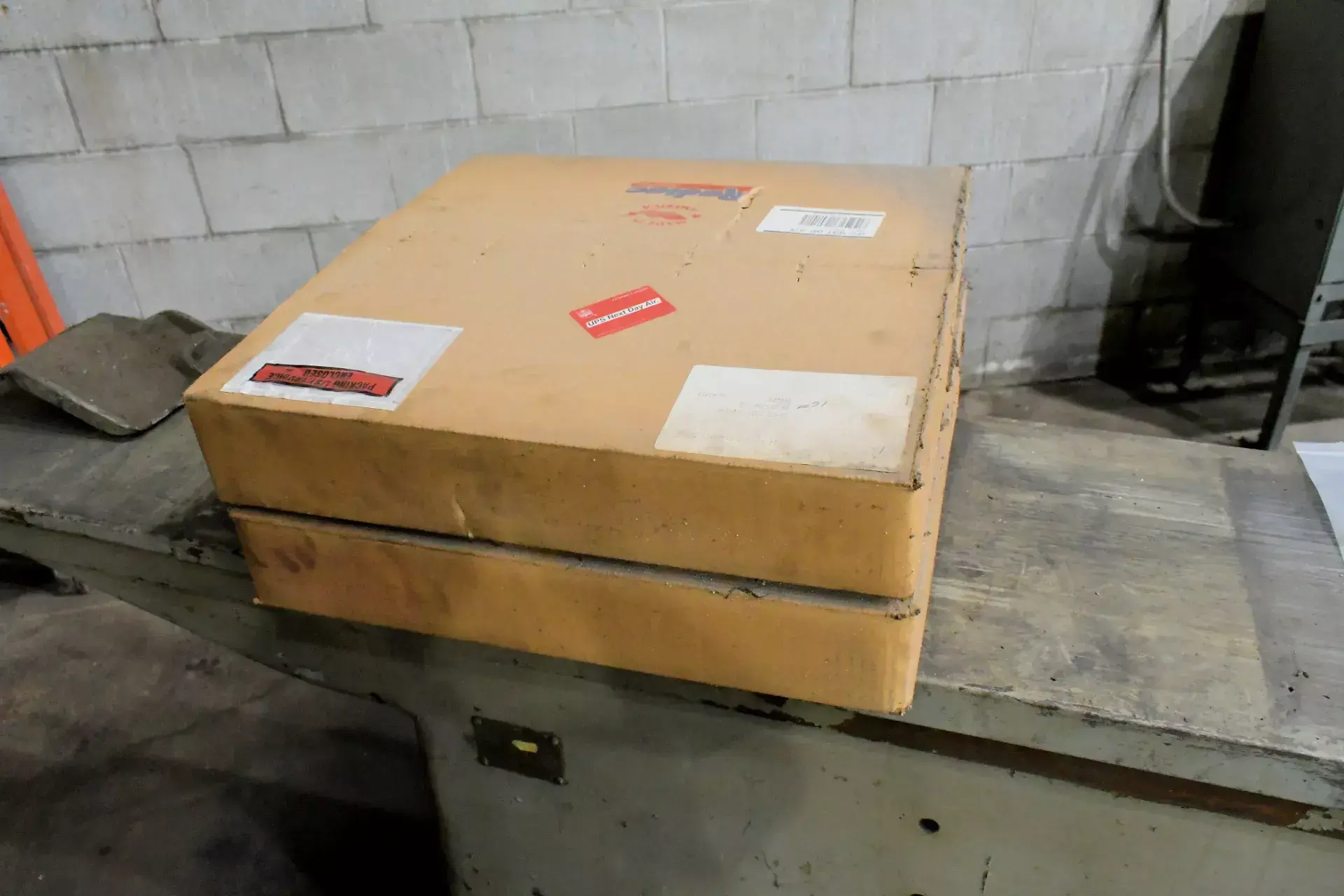

Extra Grinding Wheels
CATALOG SPECIFICATIONS:
Swing Over Table, Maximum 18.9375
Grinding Diameter, Maximum 18
Grinding Diameter, Minimum 0
Distance Between Centers, Nominal 72
Grinding Wheel Diameter, Standard 14
Grinding Wheel Width, Standard 2
Grinding Wheel Hole Diameter 5
Table Swivel Taper, Forward 3 TPF
Table Swivel Taper, Back 1 TPF
Table Swivel Angle, Forward 7-DEGREES
Table Swivel Angle, Back 2-DEGREES
Headstock Swivel, Forward 90-DEGREES
Headstock Swivel, Back 30-DEGREES
Workhead Spindle Speeds, Range 25 to 225 RPM
Table Longitudinal Feeds, Infinite 3 to 220 IPM
Automatic In-Feed At Table Reversal, Range .0004 TO .014 IPR
Grinding Wheelhead Spindle Motor, Horsepower 5 HP
Internal Grinding Spindle Motor, Horsepower 2 HP
Hydraulic Motor, Horsepower 1.5 HP
Floor Space Required, L x D 199 x 59
Weight Approximately 11000 LBS
F.O.B. OUR WAREHOUSE
18 x 72 CINCINNATI UNIVERSAL HYDRAULIC CYLINDRICAL GRINDER
Serial No 3U6F1Z-2, Model ER
EQUIPPED WITH:
Internal Grinding Spindle Attachment (Swing-Down)
Hydraulic Longitudinal Table Feed
3/4 HP Workhead
Tailstock Mounted Grinding Wheel Dresser
Extra Grinding Wheels
CATALOG SPECIFICATIONS:
Swing Over Table, Maximum 18.9375
Grinding Diameter, Maximum 18
Grinding Diameter, Minimum 0
Distance Between Centers, Nominal 72
Grinding Wheel Diameter, Standard 14
Grinding Wheel Width, Standard 2
Grinding Wheel Hole Diameter 5
Table Swivel Taper, Forward 3 TPF
Table Swivel Taper, Back 1 TPF
Table Swivel Angle, Forward 7-DEGREES
Table Swivel Angle, Back 2-DEGREES
Headstock Swivel, Forward 90-DEGREES
Headstock Swivel, Back 30-DEGREES
Workhead Spindle Speeds, Range 25 to 225 RPM
Table Longitudinal Feeds, Infinite 3 to 220 IPM
Automatic In-Feed At Table Reversal, Range .0004 TO .014 IPR
Grinding Wheelhead Spindle Motor, Horsepower 5 HP
Internal Grinding Spindle Motor, Horsepower 2 HP
Hydraulic Motor, Horsepower 1.5 HP
Floor Space Required, L x D 199 x 59
Weight Approximately 11000 LBS
F.O.B. OUR WAREHOUSE
Inquire Further with Mohawk Machinery Inc!
