18" x 48" Landis #3RH, universal cylindrical grinder, 14" x 2" x 5" grinding wheel, 5 HP, 1745 RPM, 1967

LANDIS 3RH 18 X 48 Universal Cylindrical Grinder, 1967 model, used, offers 18" swing, 48" centers, and 5 hp power. Equipped with variable speed work head, coolant in base, and tail stock truing device. Ideal for precision grinding tasks.

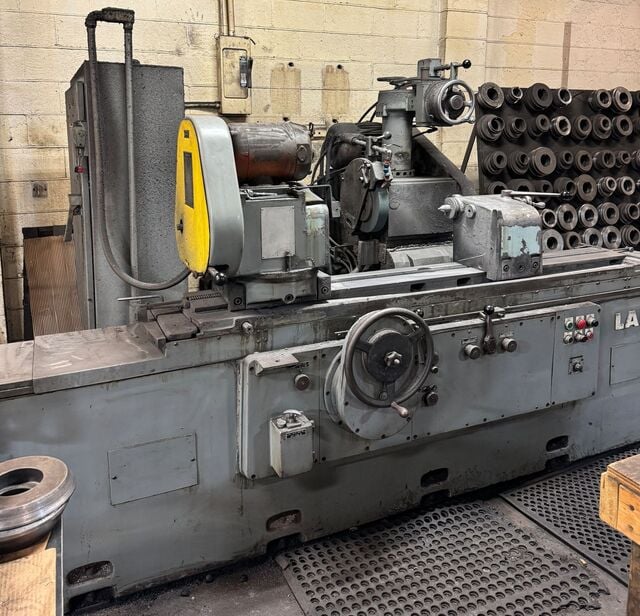

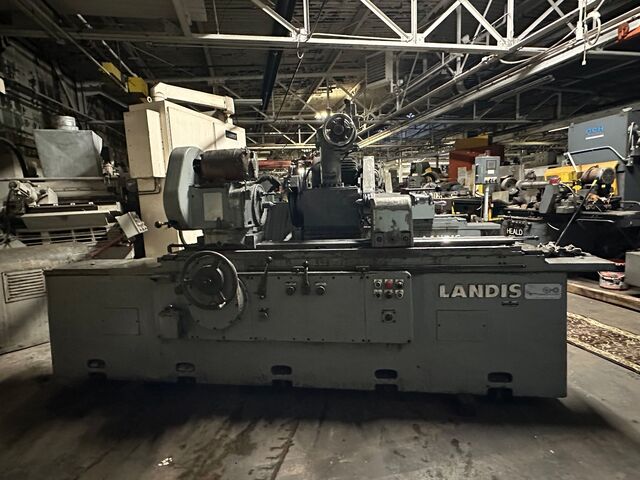

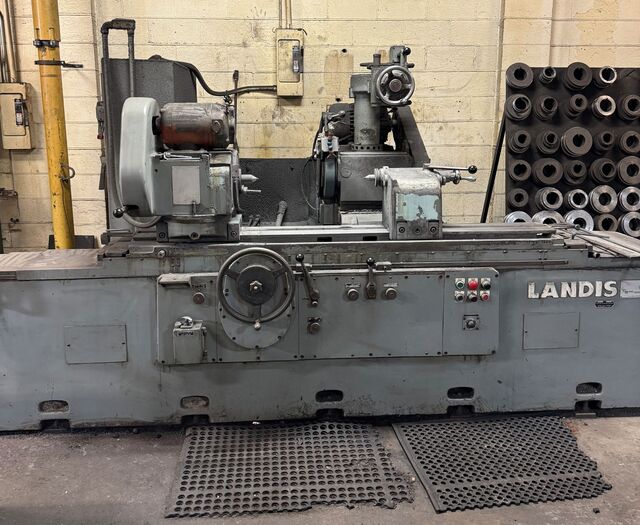

18" x 48" 3RH LANDIS UNIVERSAL CYLINDRICAL GRINDER

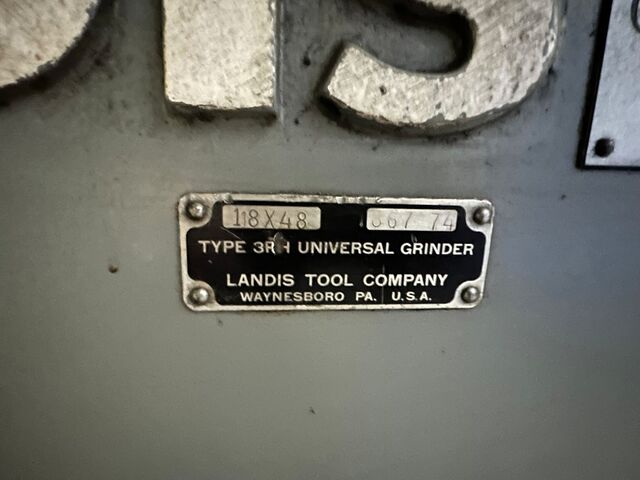

S/N 867-74 Year: 1967
STANDARD CATALOG SPECIFICATIONS
Maximum work swing............................. 14 31/32"
Traverse speed - inches per minute............. 2 - 240
Grinding wheel size - standard................. 14" x 2" x 5"
Grinding wheel head swivel range............... 180 degrees
Grinding wheel spindle speeds.................. 1720 - 2185 RPM
Automatic infeed at table reversal
on diameter - Basic machines................... 0.0003" - 0.004"
Work diameter reduction per revolution
of hand wheel.................................. 0.100"
Internal spindle speed......................... 15,000 RPM
Head stock work center......................... #14 Jarno
Foot stock work center......................... #10 Jarno
Work speeds - infinitely variable.............. 25 to 500 RPM
Hole through headstock spindle................. 1 7/16"
Head stock swivel range........................ 120 degrees
Head stock spindle nose........................ 6A-2
Swivel table graduated......................... 3 1/2" per ft.
(Degrees included angle)....................... 23 degrees
Weight......................................... 9,700 lbs.

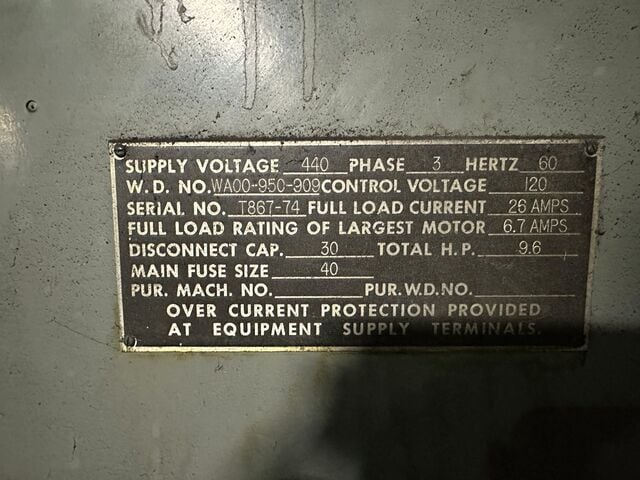

MOTOR SPECIFICATIONS
5 HP Wheel drive motor.
1745 RPM, 220/440 3 Phase, 60 Cycle.
3/4 HP Work drive motor.
2 HP Hydraulic pump and main drive motor.
1/4 HP Coolant pump motor.
1/4 HP Wheel spindle lubrication pump motor.
EQUIPPED WITH
Left and right hand tarry.
Traverse feed rates.
Lever operated tail stock.
Tail stock truing device.
Variable speed work head motor.
1 Shot Bijur lube.
Coolant in base.
