18" x 48" Cincinnati, universal cylindrical grinder w/swing down ID grinding sttachment, 1972

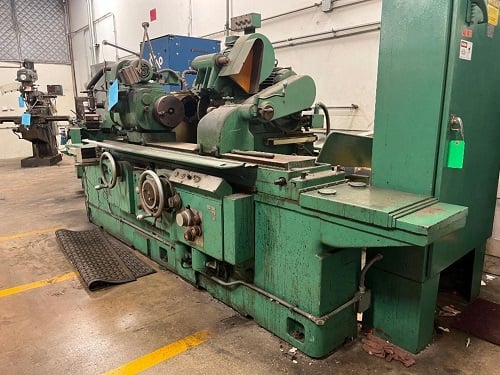

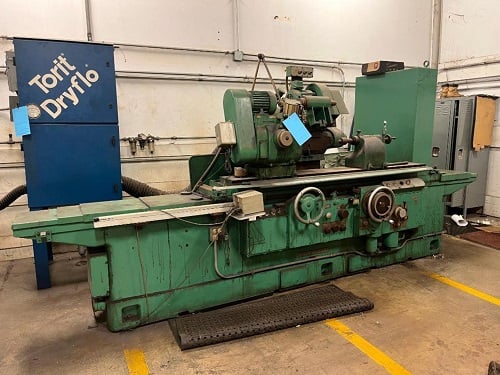

18" X 48" CINCINNATI UNIVERSAL CYLINDRICAL GRINDER
W/ SWING DOWN I.D. GRINDING ATTACHMENT W/ SPINDLE

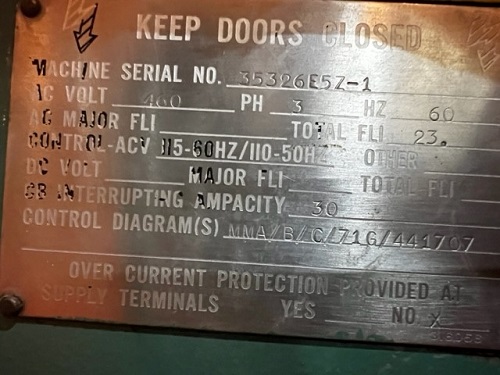

MODEL: DE S/N: 35326E5Z-1 NEW: 1972
SWING OVER TABLE ........................ 18-15/16"
DISTANCE BETWEEN CENTERS .................. 48"
TABLE SWIVEL, TOWARD WHEELHEAD ............ 9 DEGREES
AWAY FROM WHEELHEAD .......... 2 DEGREES
GRINDING WHEELHEAD:
LOWER SWIVEL LEFT & RIGHT OF CENTER ....... 90 DEG.
UPPER SWIVEL, RIGHT & LEFT ................ 30 DEG.
MOTOR ..................................... 15 HP
GRINDING WHEEL SIZE ................... 20" DIA. x 3"WIDE MAX.
TABLE TRAVERSE:
INF. VARIABLE TABLE SPEEDS ............... 3" TO 220" IPM
HAND TABLE TRAVERSE PRE REVOLUTION
OF HANDWHEEL (RAPID/SLOW) ............... 15/16" / 0.2"
CROSS FEED:
AUTOMATIC INFEED AT TABLE REVERSAL:
LOW .................................. 0.0002" TO .0005"
HIGH ................................. 0.0005" TO .0125"
WHEELHEAD MOVEMENT PER TURN OF HANDWHEEL:
LOW ..................................... 0.050"
HIGH .................................... 0.250"
MINIMUM INFEED ON DIAMETER .............. 0.00005"

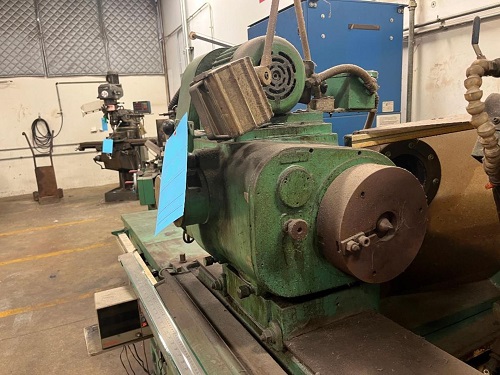

HEADSTOCK:
MOTOR ................................... 1 H.P.
TAPER HOLE IN SPINDLES .................. #9 B&S
INF. VARIABLE WORKHEAD SPEEDS ........... 50 T0 500 RPM
SPINDLE NOSE, AMERICAN STANDARD ......... 5"
HEADSTOCK SWIVEL, TOWARD WHEELHEAD ...... 90
AWAY FROM WHEELHEAD .. 30
FLOOR SPACE FOR OPERATION:............... 72" X 185"
APPROX. DIMENSIONS:................ 166" L-R, 72" F-B, 66" H
APPROX. MACHINE WEIGHT .................. 12,800 LBS
FULL HYDRAULIC OPERATION FEATURING:
-POWER TABLE TRAVERSE
-PICK FEED (AUTO INFEED)
-AUTO DUAL RATE PLUNGE INFEED
-POWER RAPID ADVANCE & RETRACTION OF WHEEL
-SPARKOUT TIMER

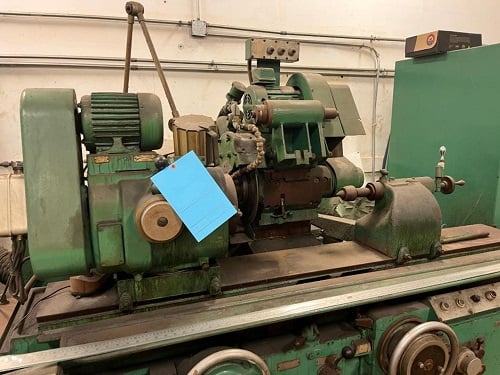

SWING DOWN I.D. ATTACHMENT W/SPINDLE

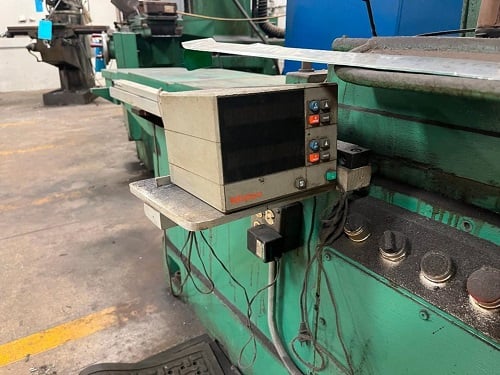

MITUTOYO 2-AXIS DIGITAL READOUT DISPLAY
MACHINE WILL ACCEPT AN 20" WHEEL, UP TO 3" WIDTH
PRESENTLY HAS A SMALLER WHEEL ON IT, FROM THE LAST OWNER
INFINITELY VARIABLE WORKHEAD SPINDLE SPEEDS
WORKHEAD SPINDLE IS BOTH LIVE & DEAD
SEPARATE ELECTRICAL CABINET
SELF-CONTAINED COOLANT SYSTEM
15 H.P./3/60/230-460 VOLT SPINDLE MOTOR
PRESENTLY WIRED FOR 3/60/460 VOLTS, 23 FLA
