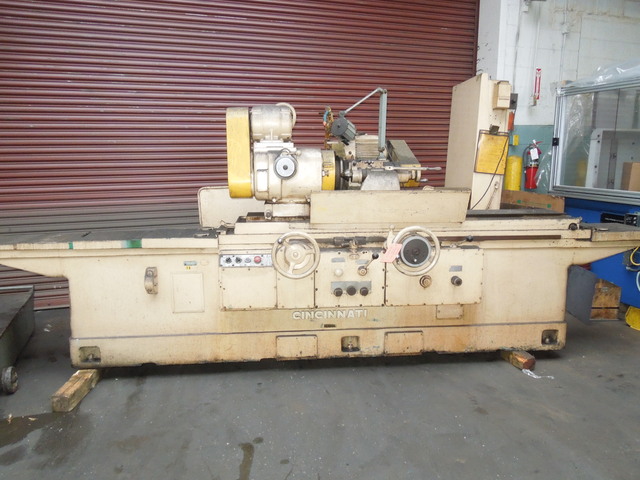

18" x 48" Cincinnati, universal cylindrical grinder, 14" diameter x 1.5" width x 5" hole grinding wheel, 3-220 IPM, 5 HP, 1966

14" x 48" Universal Cylindrical Grinder, No ID Spindle, 18" Swing Tailstock Dresser
18 x 48 CINCINNATI UNIVERSAL GRINDER
S/N 3U6E5S-15 Year: 1966
STANDARD SPECIFICATIONS
Maximum swing over table…………………………………………………… 18 15/16”
Maximum diameter machine will grind with full size wheel… 18 15/16”
Minimum diameter machine will grind with either full size or
worn out wheel………………………………………………………………………….. 0
Nominal distance between centers……………………………………...... 48”
Distance from floor to centers………………………………………….. 44 3/8”
Swivel table graduated to angel of - toward wheel head…………. 9 Degrees
- away from wheel head…………... 2 Degrees
Swivel table graduated to taper per foot of - toward wheel head…….... 3 3/4
- away from wheel head.… 1”
Floor space required…………………………………………………… 72 3/4” x 184 1/4”
GRINDING WHEEL HEAD
Swivel range - (lower swivel), right and left…………………………. 90 Degrees
- (upper swivel), right and left……………………………… 30 Degrees
Grinding wheels regularly supplied (diameter x face x hole)…………14” x 1 1/2 x 5”
CROSS FEED
Automatic in feed at table reversal (diameter reduction)-low……….. .0002” to .005”
- high………. .0005” to.0125”
Wheel head movement per turn of cross feed hand wheel -low……....050”
- high…….. .025”
Minimum in feed increment in terms of diameter reduction…………...00005”
HEAD STOCK AND FOOTSTOCK
Taper hole in head stock and foot stock spindles… No. 10 B S
Number of work rotation speeds…………………………………….. Infinite
Range of work rotation speeds……………………………. 25 to 200 RPM
Head stock spindle nose, American Lathe Standard………………… 6”
Head stock swivel - toward wheel head…………………………………. 90 Degrees
- away from wheel head……………………………..... 30 Degrees
TABLE
Number of table traverse speeds………………………………………… Infinite
Range of table traverse speeds, inches per minute…………. 3 to 220
Minimum movement required to reverse table…………….………. 3/32”
Accuracy of table reversal at all traverse rates……….……………...004”
Independent right hand and left hand tarry, seconds………… 0 to 5
Mechanical hand table traverse per revolution of hand wheel-rapid….. 15/16”
- slow……. 02”
POWER REQUIREMENTS (Electrical equipment included with machine)
Wheel head motor…………………………………………………………. 5 HP
Hydraulic pump motor……………………………………………. 1 1/2 HP
Head stock motor………………………………………………………….. 1 HP
Internal grinding attachment motor……………………………… 2 HP
Cutting fluid pump motor…………………………………………… 1/4 HP
EQUIPPED WITH
Tarry left right.
Pick feed.
Live dead center head stock.
Attached electrical panel.
Coolant in base.
Tail stock dresser.
