Description

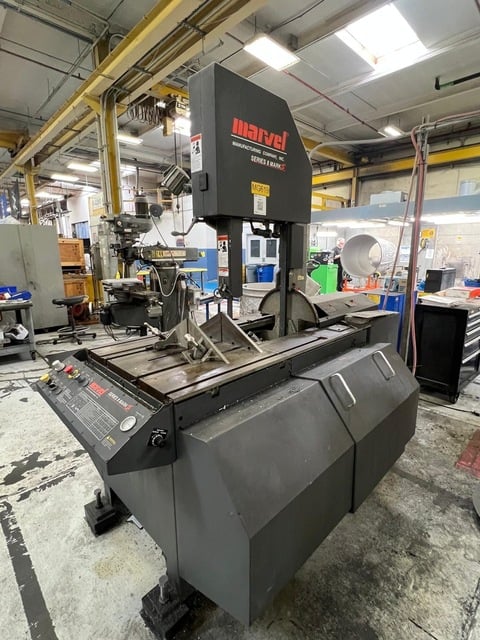

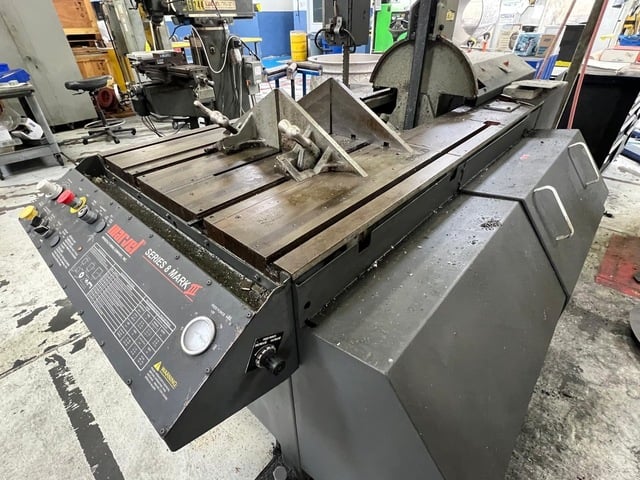

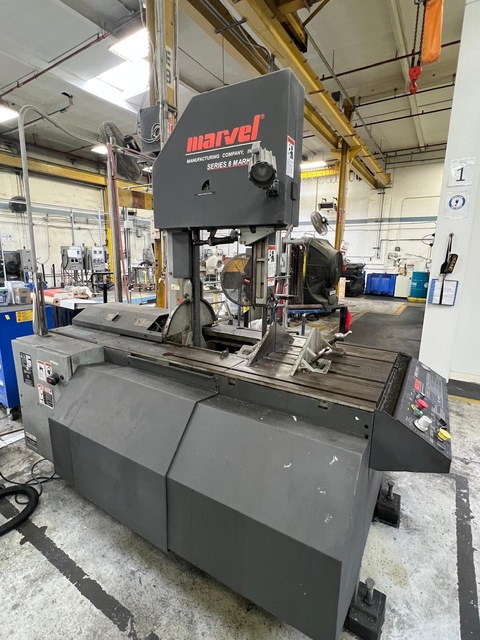

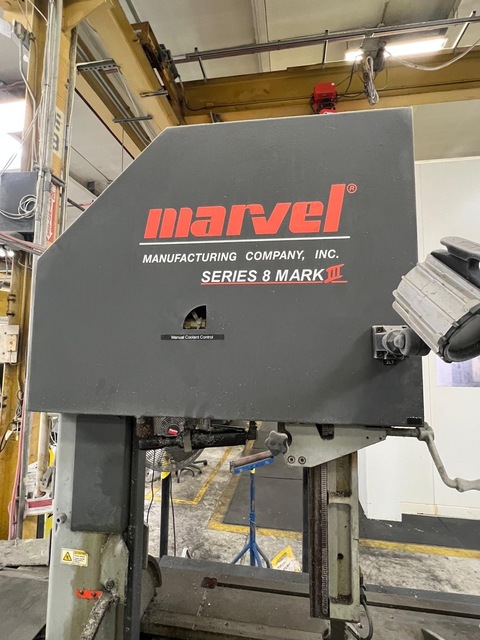

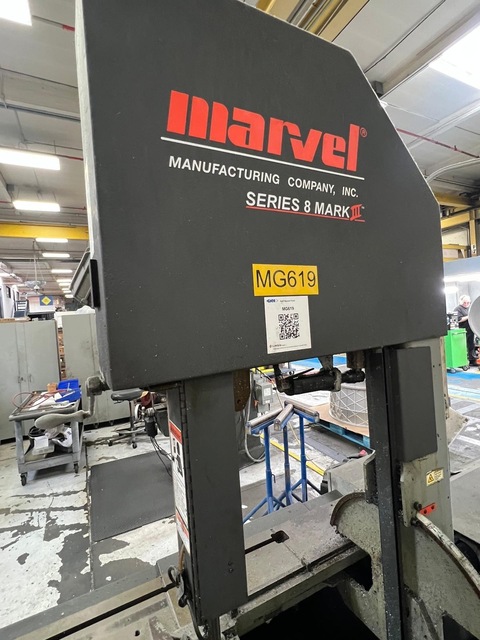

2015 MARVEL SERIES 8 MARK III VERTICAL TILT-FRAME BAND SAW #8362 SPECIFICATIONS: Manufacturer: Marvel Manufacturing / Amada Model: Series 8 Mark III / VT4555M Year: 2015 Type: Vertical Tilt-Frame Metal-Cutting Band Saw CUTTING CAPACITY: 90 Capacity: 18" H x 22" V Round Capacity at 90: 18" 45 Right: 18" H x 14.5" V 45 Left: 18" H x 13" V 60 Right: 18" H x 9.7" V 60 Left: 18" H x 7.3" V Miter/Tilt Range: 060 Left and Right BLADE: Blade Length: 15' 4" (184") Blade Width: 1.25" Blade Thickness: 0.042" Blade Speed: 50450 FPM, Variable MOTOR: Main Motor: 5 HP TABLE: Table Size: 24.25" x 33" Table Height: 34.5" OTHER SPECIFICATIONS: Blade Feed Pressure: 0250 lb, Variable Wheel Diameter: 19" Column: 3 Forward Cant Coolant System: Flood Coolant Automatic Column Return Blade Break/Stall Detection Cast-Iron Construction Mechanical Drive
SERIAL. 840184MODEL. 8 MARK IIICAPACITY. 22" X 18"CAPACITY AT 45 DEGREES. 18" X 14-1/2"AREA OF TABLE. 33" X 24"BLADE SPEEDS (VARIABLE). 50 TO 450 FPMFEEDS. 0 TO 140 LBS.BLADE SIZE. 15'4" X 1.25" X.042"HEAD TILT LEFT & RIGHT. 45 DEGREESTABLE HEIGHT. 34-1/2"COOLANT. YESBLADE GUIDES. UPPER & LOWER ROLLER ...more
(NEW) MARVEL TILT FRAME VERTICAL BAND SAW, MODEL: Series 8 Mark III, FACTORY, *Tilting Column For Straight and Miter Cutting, *Miter Cutting: Column and Blade Tilt Up To 60 Degrees Right and Left of Vertical, *Work Always Stationary. Built-In Protractor., Capacity, Blade At 90 Degrees: 18" Horizontal, 22" Vertical ...more
SERIAL. 840636MODEL. 8 MARK IIINEW. 2006CAPACITY. 22" X 18"CAPACITY RIGHT @ 45 DEGREES. 18" X 14-1/2"CAPACITY LEFT @ 45 DEGREES. 18" X 13"CAPACITY RIGHT @ 60 DEGREES. 18" X 9.7"CAPACITY LEFT @ 60 DEGREES. 18" X 7.3"AREA OF TABLE. 33" X 24"BLADE SPEEDS (VARIABLE). 50 TO 450 FPMFEEDS. 0 TO 250 LBS.BLADE SIZE. 15'6" ...more
MARVEL 8-MARK II-V Vertical Band Saw available in used condition. Known for precision and durability, this machine is ideal for professional workspaces. Perfect addition for those requiring reliable performance in metal cutting tasks., Capacity: 18" x 22", Capacity at 45: 12.75" x 18", Maximum Vise Opening: 21", Blade ...more
