18" x 22" Cosen #V-1822, Vertical Tilt-Frame Band Saw, 15" 4.5" x 1.25" x .042" Blade, 37.4" H Workbed, 11.88 Gal. Coolant Tank, 5 HP, new

Description

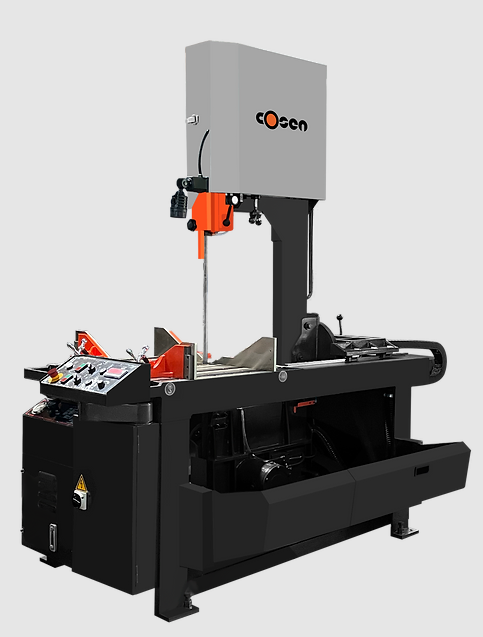

Cosen 18″ x 22″ Vertical Tilt-Frame Band Saw, V-1822

Inventory # 9771

Model: V-1822

Description:

Cosen offers a full line of vertical tilt-frame band saws in both semi-automatic and fully automatic styles, and offer machines in a variety of cutting capacities. All of Cosen’s tilt-frame saws are built on a heavy duty saw frame and are designed to help reduce vibration during the cut and improve cutting performance. Each saw comes with a capability of cutting angles between 90° (straight cut) and 60° in both directions

All saws in the tilt-frame series come standard with an automatic angle adjust built into the HMI to help make the cutting process simpler. Cosen’s vertical tilt-frame saws are excellent options for any fabrication production shop looking to make a transition into the vertical saw market

Specifications:

Capacity:

@ 0°:

0° Blade Cant: 18″ x 22″

5° Blade Cant: 18″ 20.15″

@ 45° Left:

0° Blade Cant: 18″ x 15.15″

5° Blade Cant: 18″ x 13.46″

@ 60° Left:

0° Blade Cant: 18″ x 9.76″

5° Blade Cant: 18″ x 8.66″

@ 45° Right:

0° Blade Cant: 18″ x 14.84″

5° Blade Cant: 18″ x 13.18″

@ 60° Right:

0° Blade Cant: 18″ x 9.21″

5° Blade Cant: 18″ x 8.38″

Blade Speed: Variable

Blade Size: 15′ 4 1/2″ x 1 1/4″ x .042″

Workbed Height: 37.4″

Coolant Tank Capacity: 11.88 Gallons

Coolant Motor: 1/8 HP

Motor: 5 HP

Standard Features:

Structure – Manual adjust tilt-frame head allows miter cutting from 0 to +/- 60°. Adjustable cast iron guide arm. Adjustable head cant from 0 to 5°

Mechanics – Infinitely variable blade speeds. Manual blade tensioning system. Carbide blade guides and bearings

Coolant – Adjustable flood coolant system. Retractable coolant trays. Wash down hose for easy cleaning

Vising – Cast iron hydraulic vises

Interface – 5.7″ HMI touchscreen controls. Hydraulic feed and pressure control valves

Mechanical Specifications:

Dimensions: 109″ x 107″ x 95″ H

Weight: approx. 2,500 lbs.

FOB Factory – Contact us for Availability
