Manufacturer: Marvel
Model: 81A
Max Throat or Width: 18.00
Max Height / Under Guide: 20.00
Stock # 29629
Price: $12,500 USD
1 / 10
Click to zoom in
1 / 10
For Sale by Mohawk Machinery Inc
Surplus Record Dealer Since 1956
Location: Cincinnati, OH
Contact Mr. Secord
Phone Number: 513...> Show Phone Number 513-771-1952
Let the seller know you found their listing on Surplus Record!
$12,500 USD
Finance for as low as $253/mth
Description

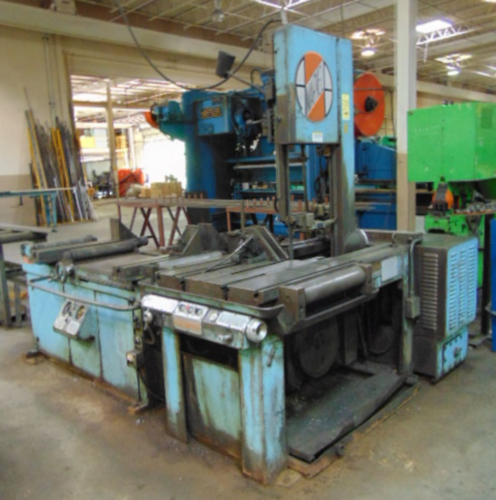

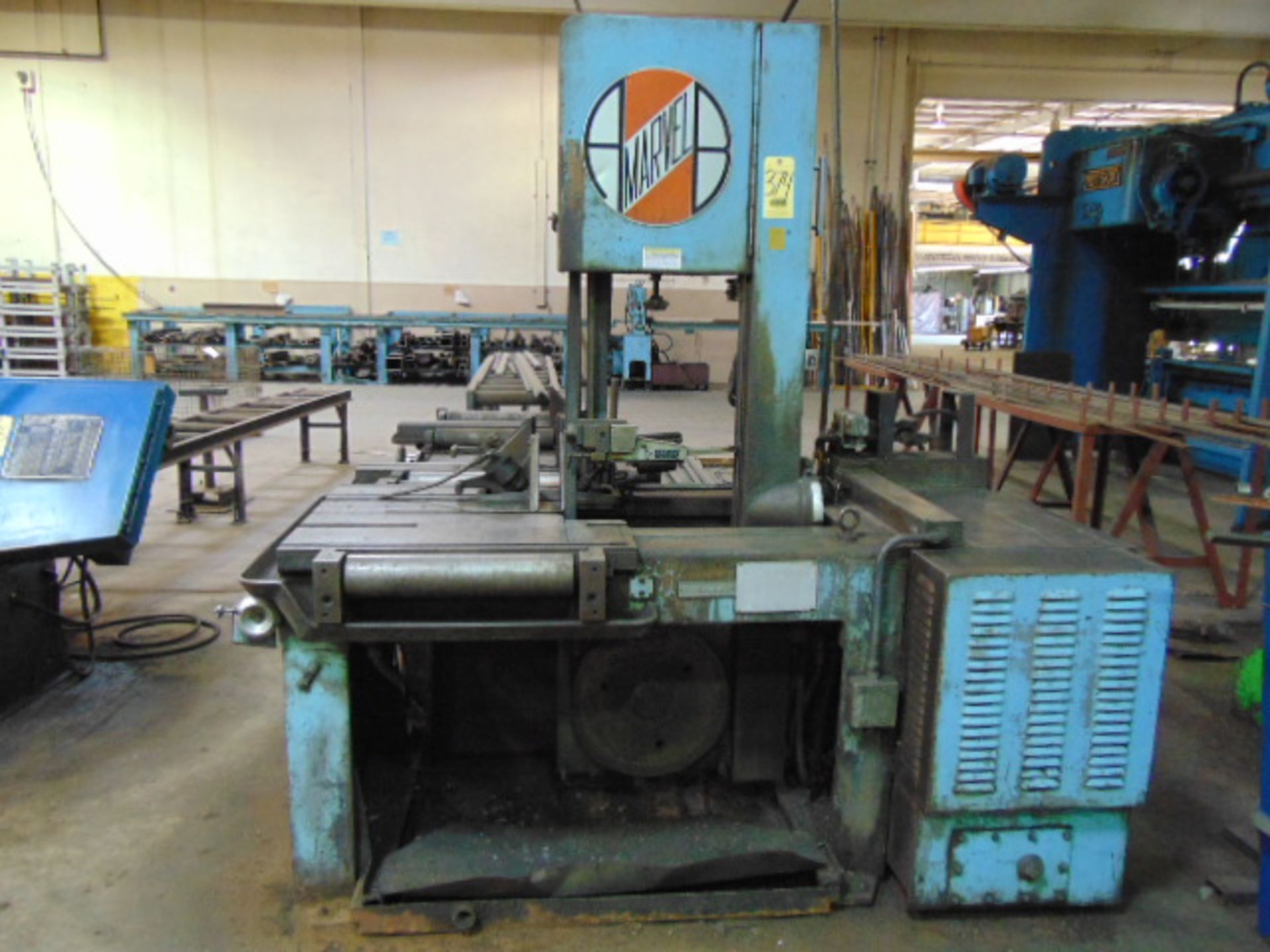

81A MARVEL TILTING HEAD AUTOMATIC
UNIVERSAL VERTICAL BAND SAW
Serial No. D1385, Model 81A
81A MARVEL TILTING HEAD AUTOMATIC
UNIVERSAL VERTICAL BAND SAW
Serial No. D1385, Model 81A
EQUIPPED WITH:

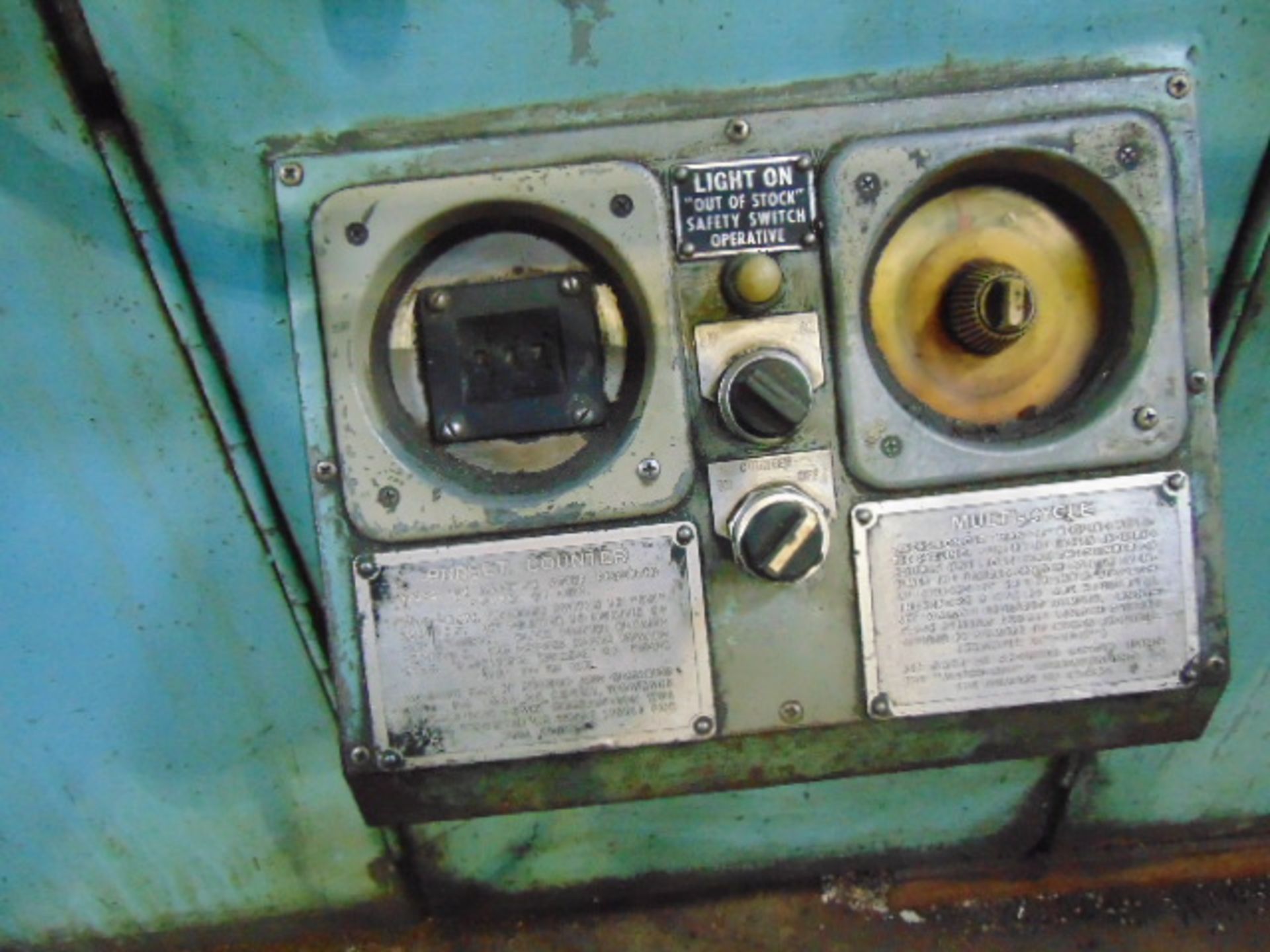

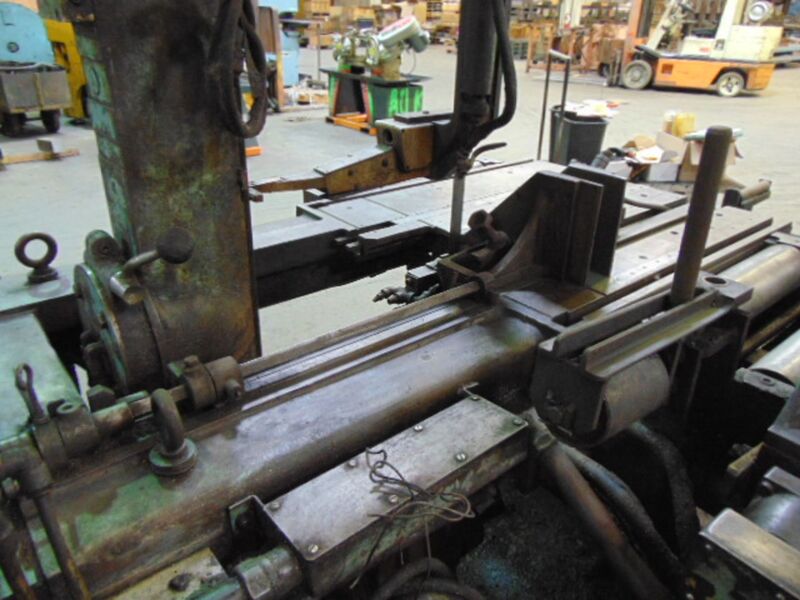

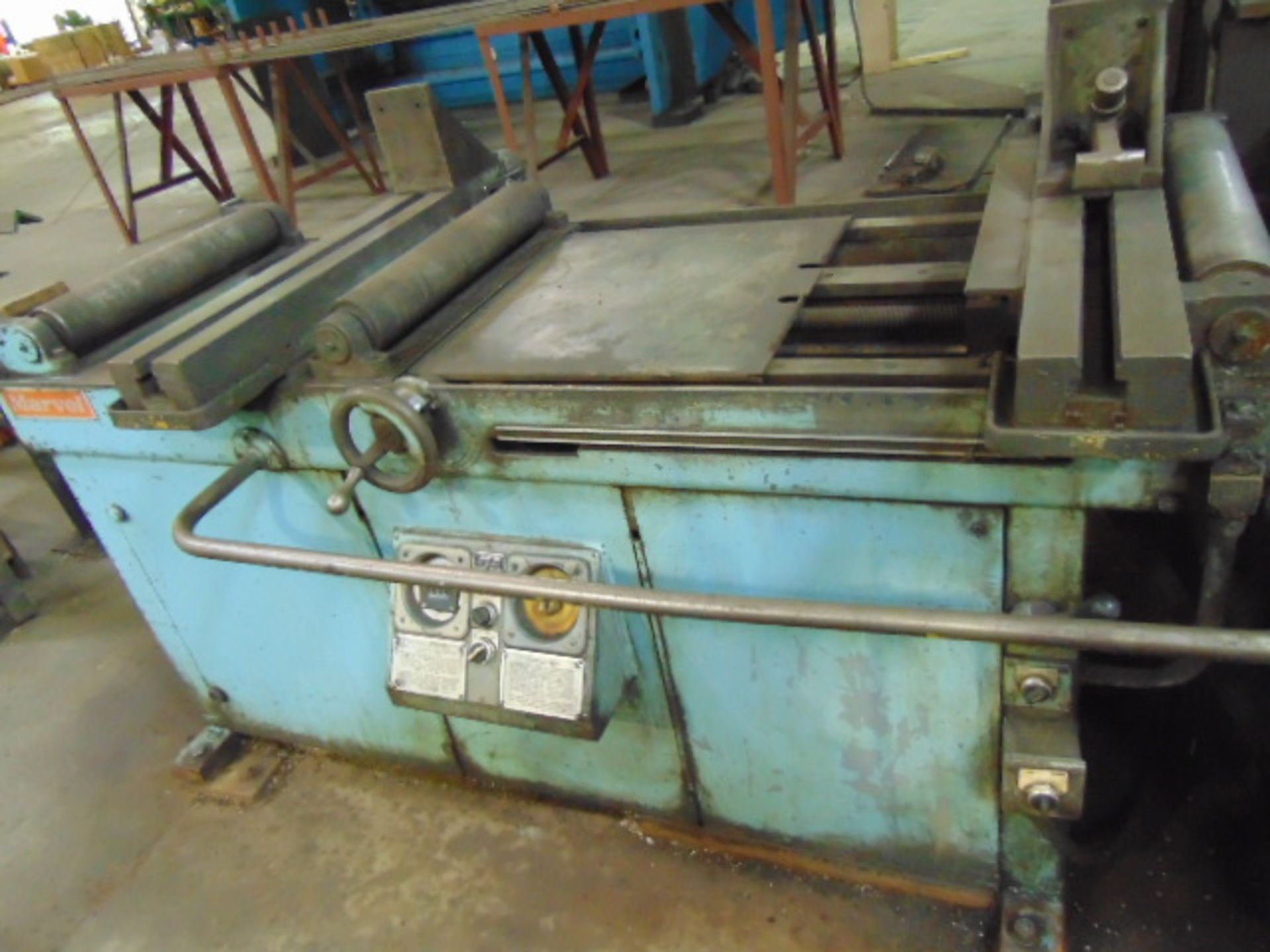

72" Automatic Shuttle Feed Loading Table w/Multi-Cycle & Pre-Set Counter

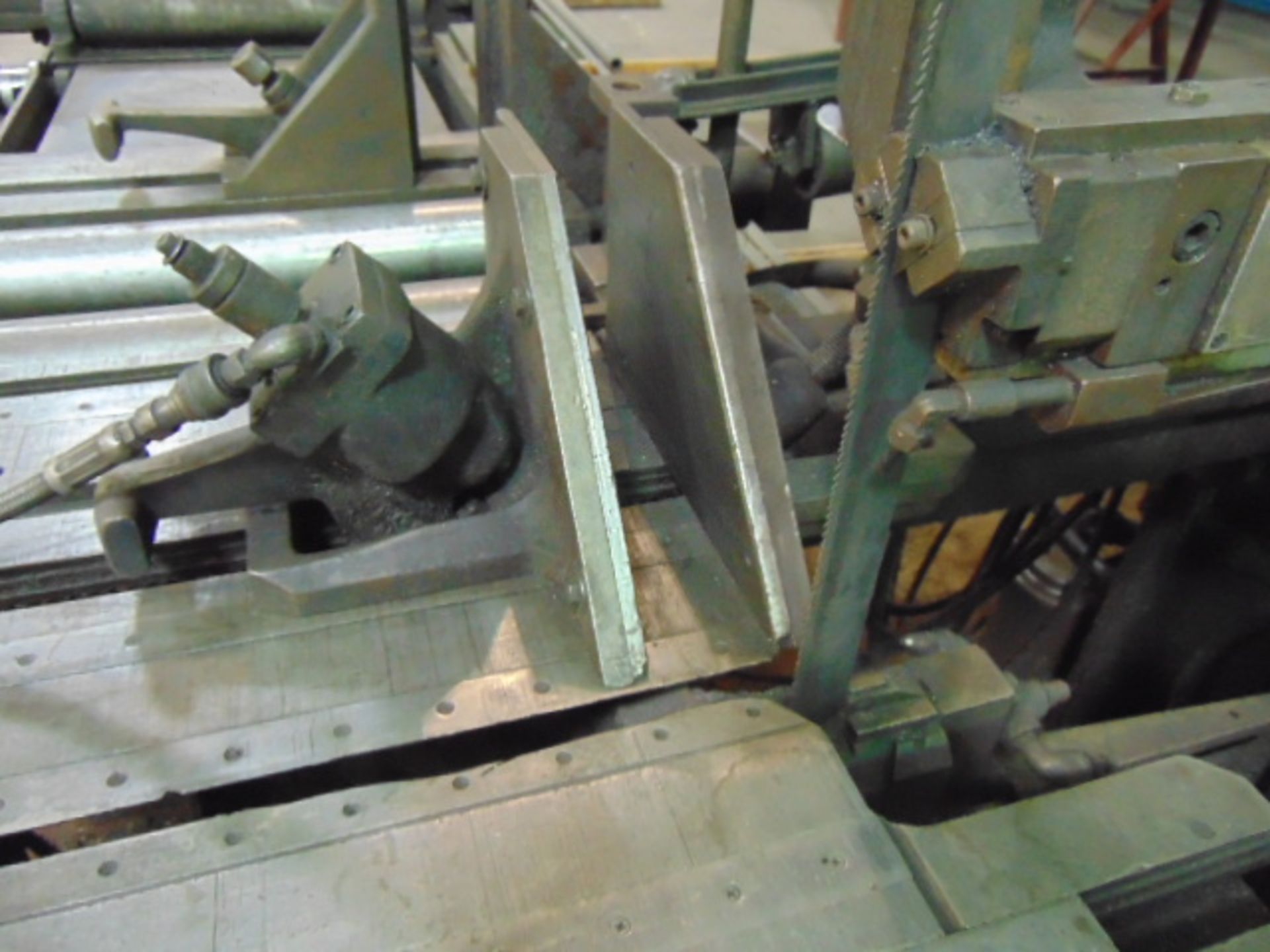

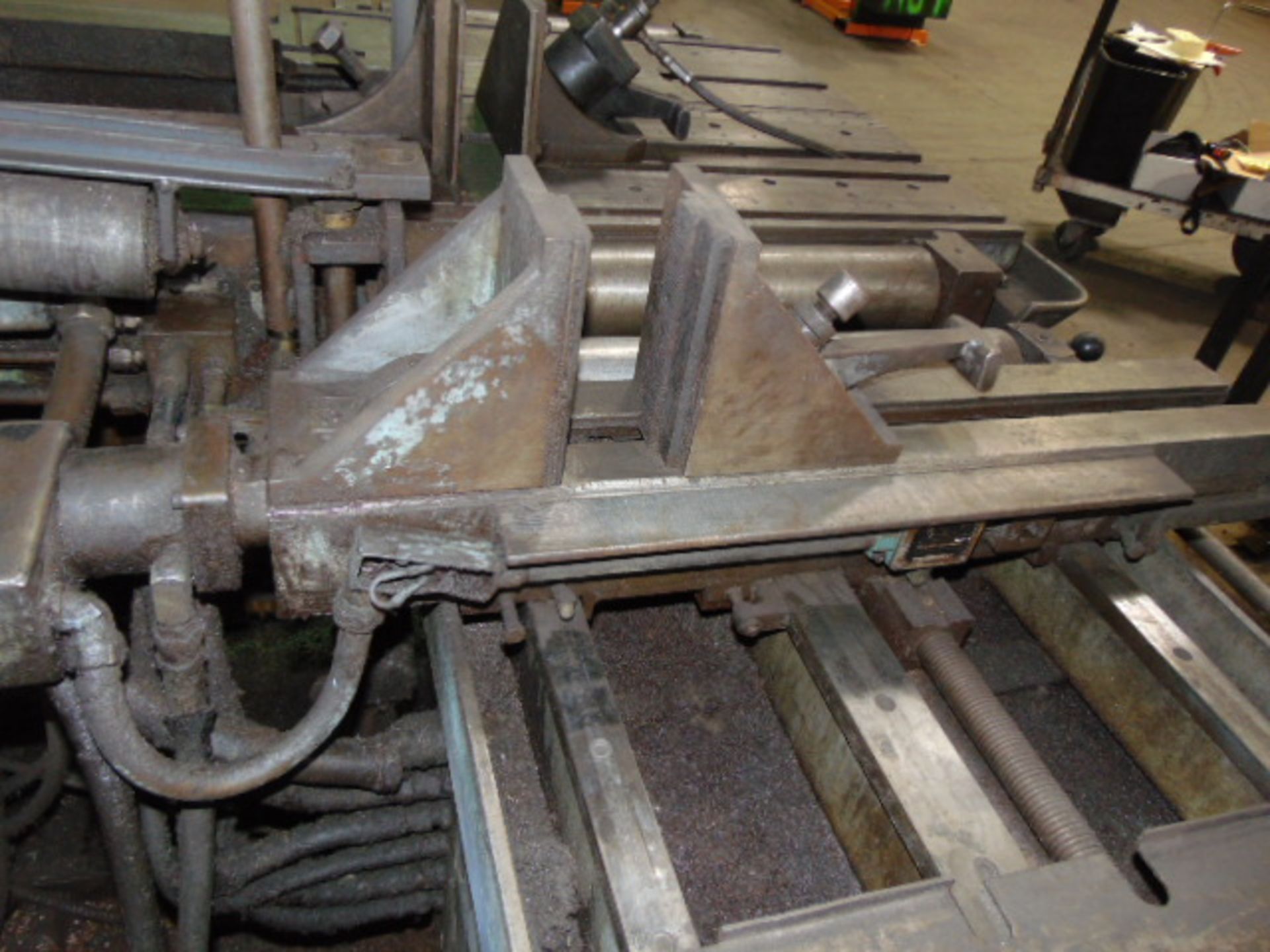

Hydraulically Operated Vises
1-1/4" Blade Width
(2) 10' Sections Of Roller Conveyor
(12) Boxes Of Extra Saw Blades
CATALOG SPECIFICATIONS:
Capacity, Nominal 18" x 20"
Capacity, Maximum 18-1/4" x 20-1/8"
Capacity, 45 Degree Blade Angle 18-1/4" x 12-1/2"
Feed Length, Automatic, Maximum 24"
Feed Length, Manual In 24" Increments Unlimited
Table Sorking Surface, W x L 30" x 33"
Shuttle Load Capacity 7000 LBS
Vise Opening, Maximum 21-1/2"
Blade Length 14'6"
Blade Width 1-1/4"
Blade Speeds, Infinitely Variable 55 to 340 FPM
Feed Range, Infinitely Variable 0 to 200 LBS
Motor, Horsepower/RPM 5 HP/1200 RPM
Weight, Approximately 7330 LBS
F.O.B. OUR WAREHOUSE
UNIVERSAL VERTICAL BAND SAW
Serial No. D1385, Model 81A
81A MARVEL TILTING HEAD AUTOMATIC
UNIVERSAL VERTICAL BAND SAW
Serial No. D1385, Model 81A
EQUIPPED WITH:
72" Automatic Shuttle Feed Loading Table w/Multi-Cycle & Pre-Set Counter
Hydraulically Operated Vises
1-1/4" Blade Width
(2) 10' Sections Of Roller Conveyor
(12) Boxes Of Extra Saw Blades
CATALOG SPECIFICATIONS:
Capacity, Nominal 18" x 20"
Capacity, Maximum 18-1/4" x 20-1/8"
Capacity, 45 Degree Blade Angle 18-1/4" x 12-1/2"
Feed Length, Automatic, Maximum 24"
Feed Length, Manual In 24" Increments Unlimited
Table Sorking Surface, W x L 30" x 33"
Shuttle Load Capacity 7000 LBS
Vise Opening, Maximum 21-1/2"
Blade Length 14'6"
Blade Width 1-1/4"
Blade Speeds, Infinitely Variable 55 to 340 FPM
Feed Range, Infinitely Variable 0 to 200 LBS
Motor, Horsepower/RPM 5 HP/1200 RPM
Weight, Approximately 7330 LBS
F.O.B. OUR WAREHOUSE
Inquire Further with Mohawk Machinery Inc!
