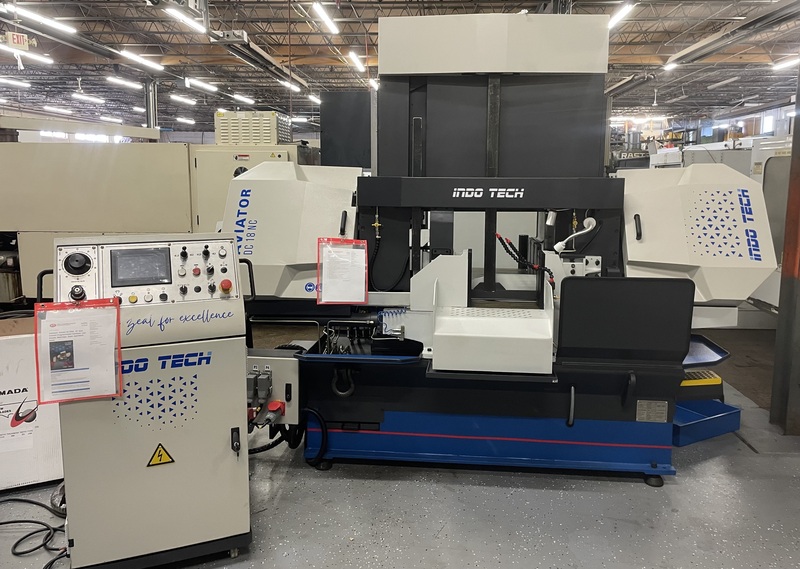

18" x 18" Indotech #CNC-18-DC-Smart-saw, dual column CNC bandsaw, 1.5" x0.05" blade, Omron cnc, coolant, chip conveyor, 1 year warranty, 2025

Indotech model CNC DC18 Smart saw, horizontal dual Column CNC bandsaw, Auto feed and speed files with ballscrew and servo head feed, Auto Lube, variable vise Pressure, 10" HMI Touch screen, Bundling clamps, Rotary encoder for exact downfeed feedback, Cant head, Blade deviation,1.5" Blade, Movable control, 10HP, 10" Touch screen with Diagnostics, Carbide blade ready!, one year Warranty and installation and training included.
Cutting Capacity 16" X 16"
Blade Speed 66 - 330 FPM
Blade tension Hydraulic
Blade Motor 10 HP
Hydraulic motor 1HP
Coolant motor .2 HP
Hydraulic tank Capacity 21 gal.
Blade brush Hydraulic drive
Control Omron
Blade Size 19" x 1.5" x 0.050
Saw head feed Ball Screw, Servo motor

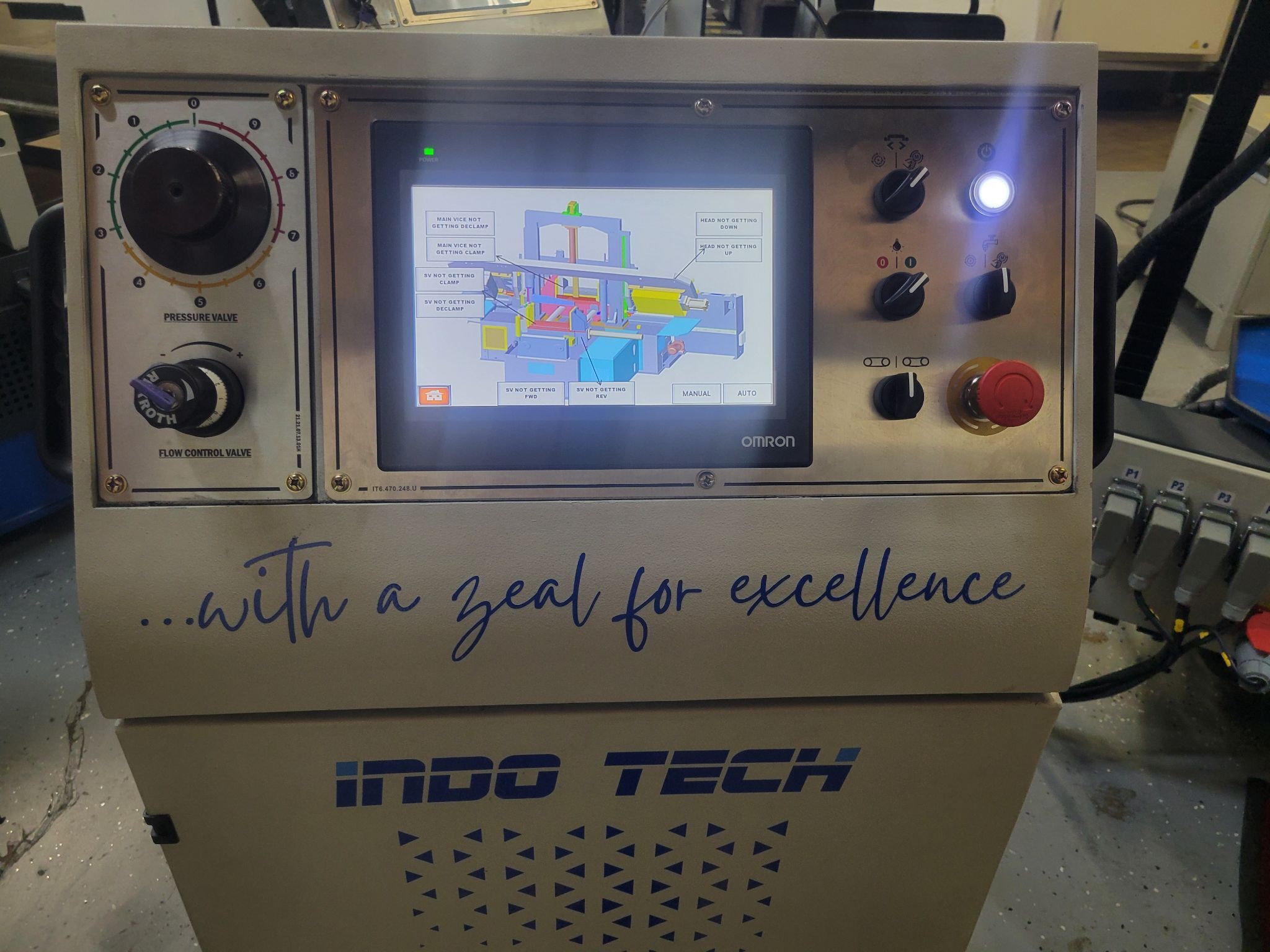

CNC Omron 10' touch screen control with auto Speed and feed select by material
Job memory with feeds, Blade speed, length, Material type stored
Blade deviation detection and shut down
remote Ethernet accessibility
Canted head design
Indotech Unique Features of the Dual Column Saws
1) One piece machining, sub-assemblies are machines as a whole in a single set up on 5 axis machines to ensure Accuracy.
2) Linear ROLLER bearings guides Vs Round Column. The columns are old technology and not as accurate. Linear ROLLER bearings have Zero clearance and greater load bearing capabilities and have full contact in ALL directions with near zero wear and friction.
3) Hardened Vise jaws inserts are replaceable.
4) Auto lube to Linear ways, Vises, and Shuttle feed.
5) Direct drive, (no belts) eliminates side forces for longer life and better power through Helical gears = less loss of power.

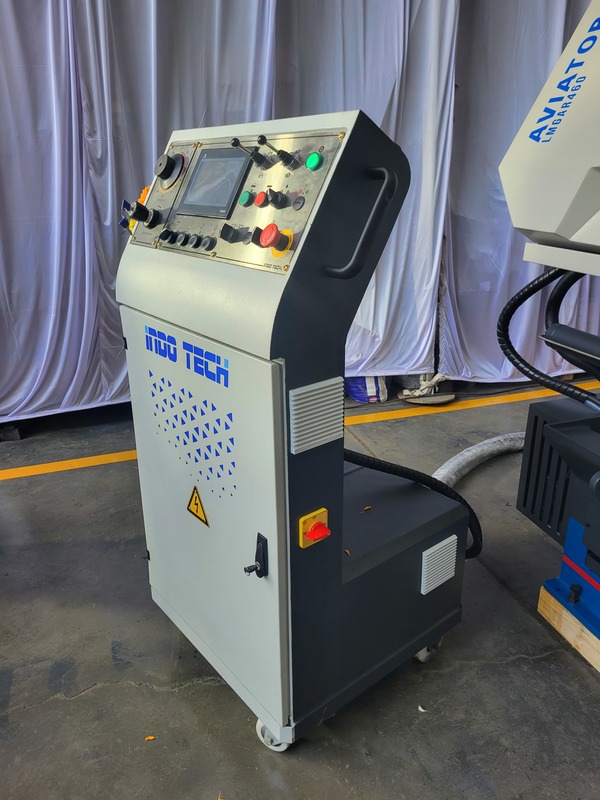

6) Moveable cabinet w/ sensitive controls mounted underneath out of harms way.
7) Variable vise pressure Standard.
8) Hydraulic blade guide adjust is automatic and never needs adjustment.
9) All in house mfg. for Quality control and fitment.
10) Strict adherence to Sound engineering practices, i.e. minimum distance between Bandwheel center and blade guide to minimize blade twist, Minimum diameter of band wheels to blade width standards etc. etc. etc.
11) Oversize Heavy-duty vises.
12) State of the art 4-point blade tension and Bandwheel adjustment in all directions (Not 3)
13) Hydraulic hold downs.
14) Magnetic Scale feedback for vise shuttle, doesnt care about coolant or chips.
15) Shuttle retract .080 after cut to not drag blade.
16) Floating Shuttle feed
17) Automatic blade guide adjustment, better cuts longer blade life.
18) Laser for fast approach = no flag to get damaged or stick
19) All Bearings are SKF, FAG or Timken.
20) Chip conveyor with rear drive floats, to prevent jamming.
21) FULL MACHINE DIAGNOSTICS. With instructions on how to fix
22) 10 Color LCD touch screen (Omron)
23) Encoder for downfeed feedback, lets you know ACTUAL feed vs programmed.
