For Sale by Smith Machinery Co
Description
| Bending length | 121 inches |
| Capacity mild steel, 1-Inch flange (With bending bar and angle in place) | 18ga./1.25mm |
| Capacity mild steel, 1-Inch flange (With bending angle removed) | 22ga./0.76mm |
| Capacity mild steel, 1-Inch flange (With bending bar and angle removed) | 26ga./0.50mm |
| Minimum reverse bend (bar and angle removed) | 1/4in./6.3mm |
| Maximum lift of beam | 2-1/4in./57mm |
| Front to rear adjustment | 1-1/8in./28.5mm |
| Shipping Weight | 2200 pounds |
Equipped With
Equipped With

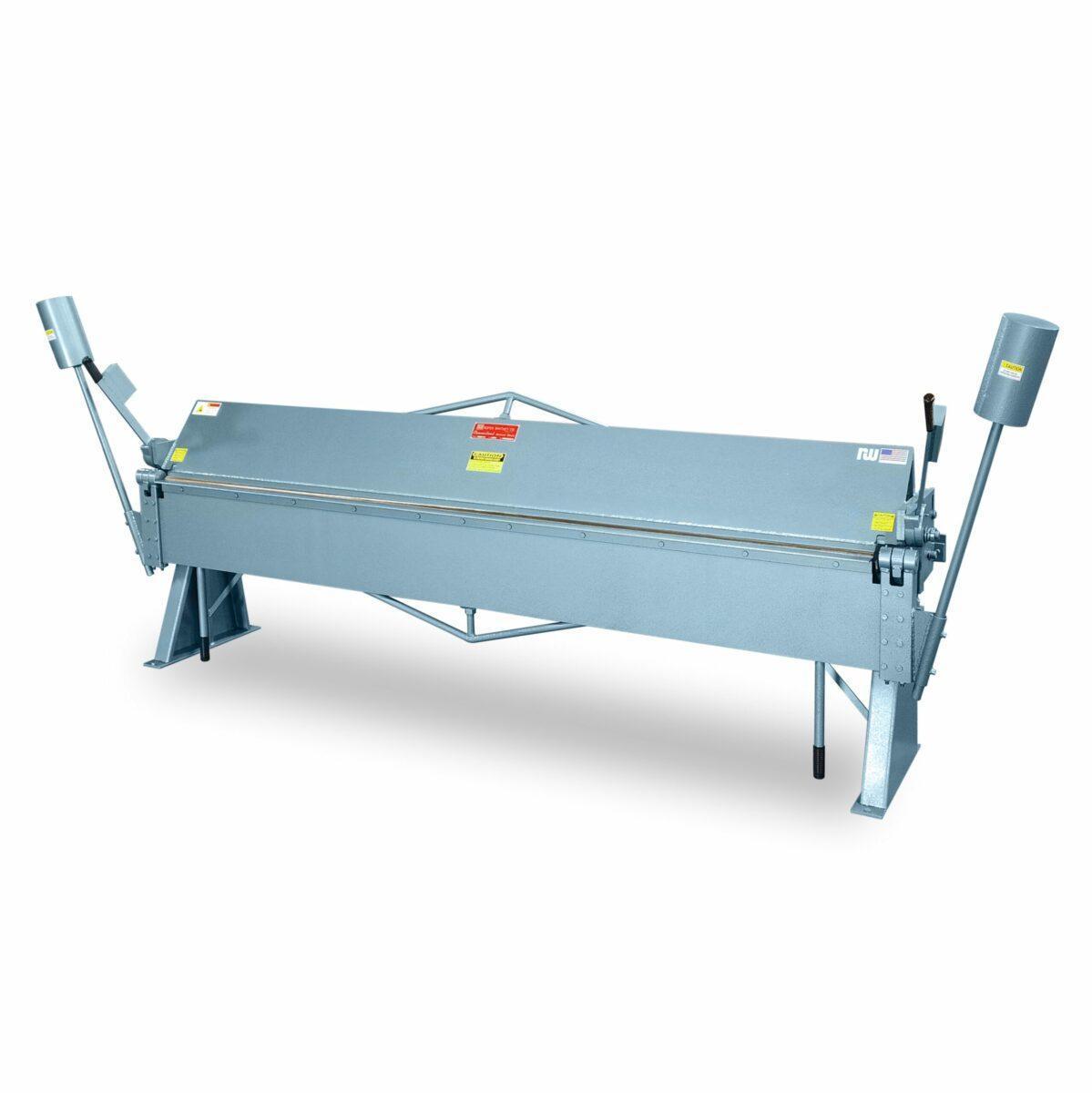

Connecticut floor mounted manual bending brakes are precision machines designed for accurate bending within rated capacites.
Features of the Connecticut Bending Brake:
· Positive clamping pressure adjustment
· Apron stop rod for repeat bends
· Replaceable bushings and hinge pin
· Long handles for extra leverage
· Work support angle bar for full capacity 1-inch minimum flange
· Improved leg design for lighter weight
· All steel construction — no castings
· Heavy tie rods for minimum deflection
· Removable bending bar and angle
· Adjustable apron hinges
· Positive rear material gauge adjustment
NOTES:
SPECIFICATIONS SUBJECT TO VERIFICATION
DELIVERY:
IMMEDIATE, SUBJECT TO PRIOR SALE
