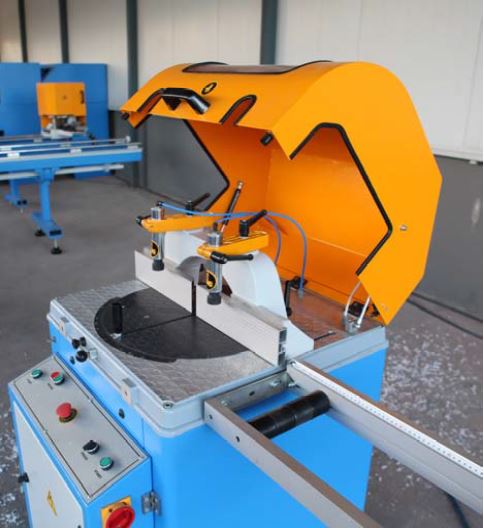

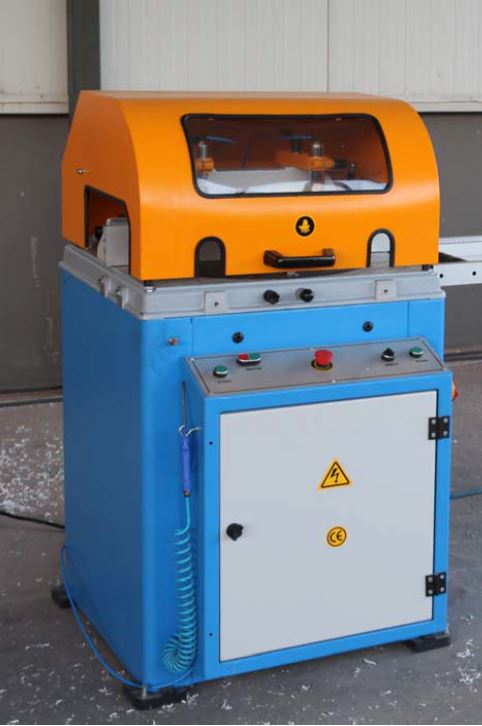

Aslan 18″ Semi-Automatic Non-Ferrous Aluminum Upcut Saw, CMS-504
Inventory # 8220
Model: CMS-504
Specifications:
Max. Profile Height: 6″
Max. Profile Width: 12″
Cutting Angles: All angles from -45° left to +45° right
Saw Blade Diameter: 18″
Saw Blade Bore Diameter: 1.18″ / 1 1/4″
Saw Blade Rotation: 3,445 RPM @ 60 Hz.
Motor: 3 HP / 220v, 460v / 3ph (Optional: 220v, Single Phase Variable Frequency Drive – $795.00)
Standard Features:
For cutting aluminum, vinyl profiles, and wood
Can cut profiles at all angles from -45° to left and +45° to right
Adjustable saw blade rising speed
Multiple profile cutting at one sequence
Safety guard for protection
Standard vertical pneumatic profile clamping system
Easy-to-use control panel
Two-hand operation for working safety
Standard hydro-pneumatic system for smooth cutting
Coolant System
Vertical and Horizontal Clamps
Mechanical Specifications:
Dimensions: 35″ x 33″ x 51″ H
Weight: approx. 475 lbs.
FOB Factory – Contact us for Availability
Optional Equipment:
Right and Left Conveyor System
220v, Single Phase Variable Frequency Drive
Anti-Tie Down, Two-Hand Operation Feature
Dust Collector Ports
Foot Pedal
Extra Pressure Regulator to Fine-Control the Clamping Pressure
Laser Guide for the Blade Location
