For Sale by Southern Fabricating Mchy Sales
Description

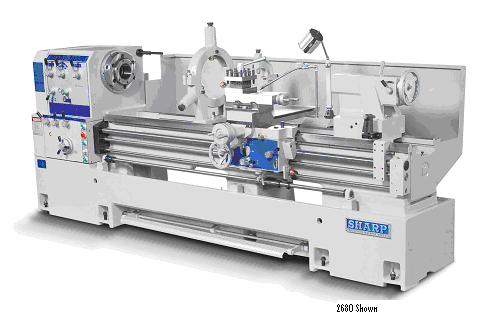

18.5” Swing (27-” with Gap Removed) X 60” Manual Gap-Bed Engine Lathe with 3 1/16” D1-8 Camlock Spindle Bore, 7.5HP Infinitely Variable Speed Drive (20-2000RPM), Tailstock, Follower Rest, 3 Jaw 10” Chuck, Coolant System and Splash Guarding, 16” Faceplate, Steady Rest, 4-Way Tool Post, Halogen Work Light and Tool Kit Included.
STANDARD EQUIPMENT:
- 3-Jaw Chuck 10”
- Face Plate (16”)
- Steady Rest (1/2 – 6”)
- Follower Rest
- Coolant System
- Full Length Splash Guard
- American Tool Post
- Halogen Work Light
- Longitudinal Carriage Stops
- Tailstock
- Tool Kit (includes: Machine Manual, Half Nut Wrench, Wrench 17m, 19m, Set of 6 Allen wrenches, Phillip ScrewDriver, Flat Head Screwdriver, Oil can, Grease Gun, Rear Way Cover Bracket, Pin for Indicator, Can of Paint)
FEATURES:
- D1- 8 Camlock
- 3 - 1/16” Spindle Bore
- Direct Selection For Inch/Metric Threads
- One Piece Cast Meehanite Bed
- Quick Change Gearbox
- 7.5 HP Motor
- Variable Speed Drive (20-2,000 RPM)
SPECIFICATIONS:
Swing Over Bed: 18.5”
Swing Over Cross Slide: 11”
Center Height: 9.25”
Swing Over Gap: 27-1/8”
Distance Between Centers: 60”
Width of Gap: 11.8”
Center height from top of compound: 1.9”
Headstock
Spindle Nose Type D1-8 Camlock
Spindle Bore 3 - 1/16”
Spindle Speeds: Infinitely Variable 20 - 2,000 RPM
Taper of Spindle Bore MT#6
Taper of Center MT#4
Threads and Feeds
- Longitudinal Feeds – in/rev (18) 0.002 - 0.032”
- Cross Feeds – in /rev (12): 0.0001 –0.0094”
- Inch Threads (36): 4-56 tpi
- Metric and Module Threads: 0.5-7mm
- D.P. Threads (36): 4-56 mm
- Leadscrew Pitch, Diameter: 4 tpi, 1-3/8”
Carriage
Cross Slide Travel: 9-7/8”
Compound Rest Travel: 5.3”
Compound Width: 5.0”
Bed
Bed Length: 79”
Bed Width: 11-3/4”
Tailstock
Quill Travel (graduated): 5-1/2”
Quill Diameter: 2-11/16”
Quill Taper: MT#4
GENERAL
Spindle Motor (220V,60, 3) 7.5 HP
Net Weight (approx.) 4,500 LBS
Standard Color Gray
Electrical:
Voltage: 220V
Phase: 3 phase
Note: Machine is set only for 220V. Needs an optional transformer for other applications.
Total Power Consumption
230V: 8KVA/25 amps
***All Price, Location and Specifications Subject to Change without Notice***
MANY OPTIONS AVAILABLE TO CUSTOMIZE YOUR MACHINE - CALL FOR COMPLETE QUOTATION LISTING ALL AVAILABLE OPTIONS.
