For Sale by C.W. Wood Machinery Inc
Surplus Record Dealer Since 1965
Location: Cincinnati, OH
Contact Sales Dept.
Phone Number: 800...> Show Phone Number 800-745-6008
Let the seller know you found their listing on Surplus Record!
$2,950 USD
Description

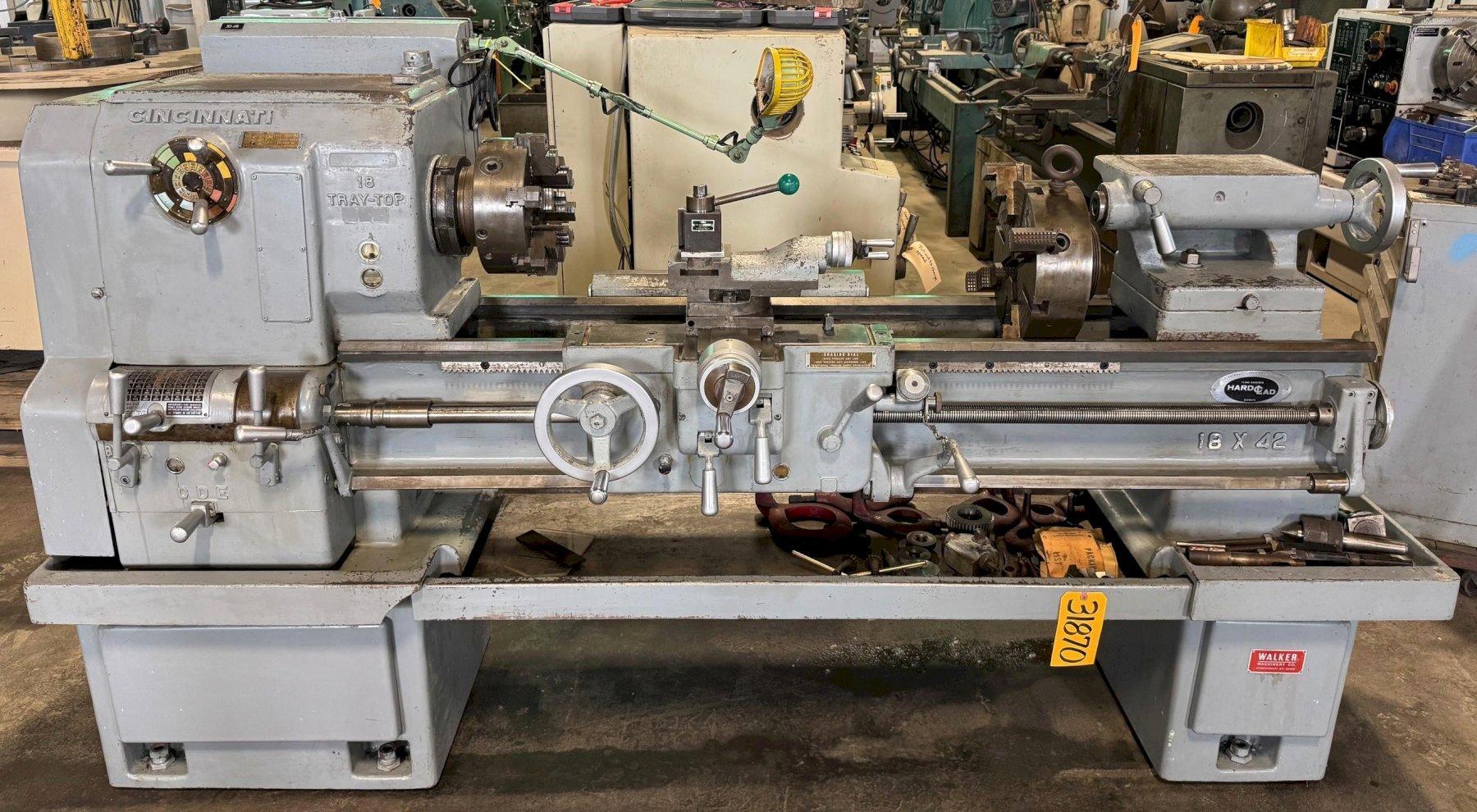

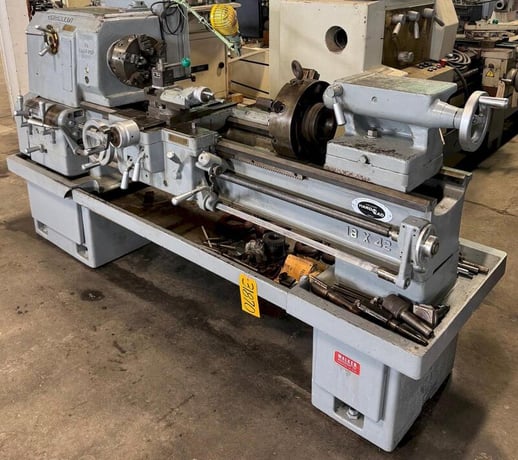

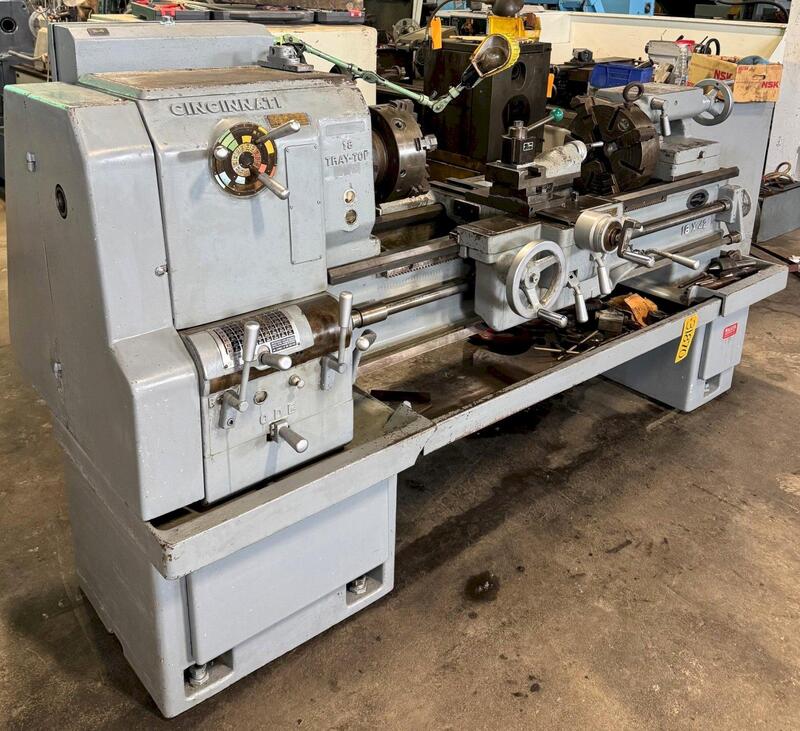

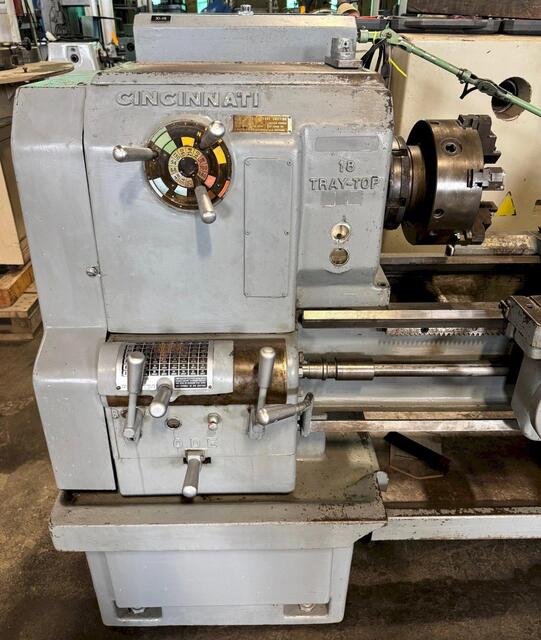

CINCINNATI LATHE
MODEL: 18" Tray-Top
SERIAL NUMBER: 1W4E5D-7
GENERAL SPECIFICATIONS
Swing Over Bed: 18-3/4"
Swing Over Cross Slide: 11-3/4"
Distance Between Centers: 42"
Swing Over Gap: 27"

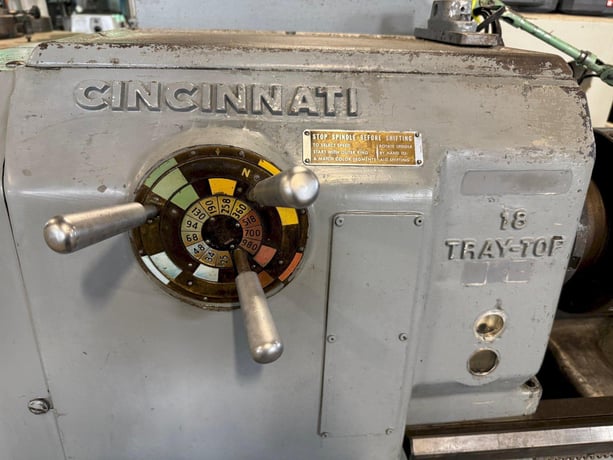

Spindle Speeds: (12) 25 - 980 RPM
Spindle Nose: L-1
Spindle Hole: 1-3/4"
Number Of Thread and Feed Changes: 48"
Thread Range: 1-1/2 to 92 TPI
Feeds, Carriage: .0019" - .1215"
Feeds, Cross Slide: .0009: - .0578"
Leadscrew Diameter: 1-3/8"-6
Cross Slide Travel: 12"
Top Slide Travel: 3-1/4"

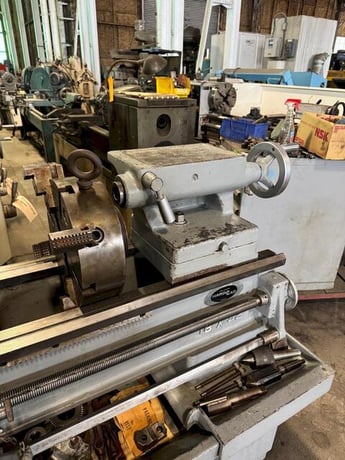

Tailstock Spindle Travel: 6"
Tailstock Spindle Diameter: 2-1/4"
Tailstock Spindle: No. 4 M.T.
EQUIPPED WITH
3 HP Drive Motor

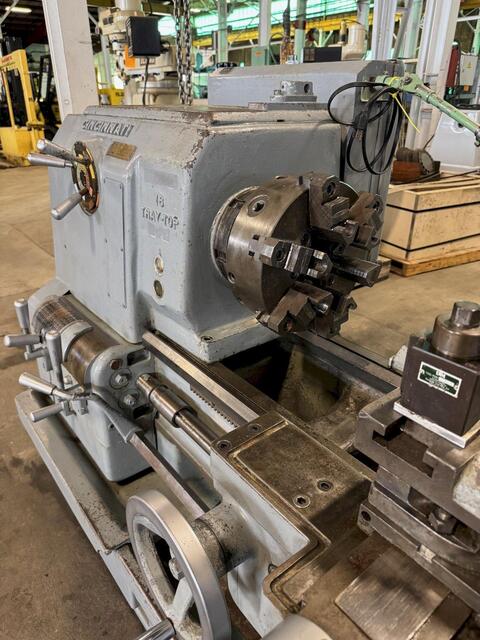

10" 6-Jaw Chuck
12" 4-Jaw Chuck

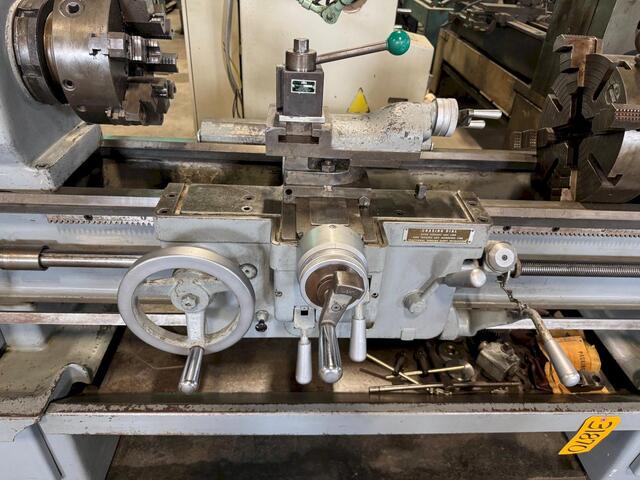

Thread Dial
Approximate Weight: 3000 Lbs.
F.O.B. Cincinnati, Ohio
ALL SPECIFICATIONS SUBJECT TO VERIFICATION BY PURCHASER
MODEL: 18" Tray-Top
SERIAL NUMBER: 1W4E5D-7
GENERAL SPECIFICATIONS
Swing Over Bed: 18-3/4"
Swing Over Cross Slide: 11-3/4"
Distance Between Centers: 42"
Swing Over Gap: 27"
Spindle Speeds: (12) 25 - 980 RPM
Spindle Nose: L-1
Spindle Hole: 1-3/4"
Number Of Thread and Feed Changes: 48"
Thread Range: 1-1/2 to 92 TPI
Feeds, Carriage: .0019" - .1215"
Feeds, Cross Slide: .0009: - .0578"
Leadscrew Diameter: 1-3/8"-6
Cross Slide Travel: 12"
Top Slide Travel: 3-1/4"
Tailstock Spindle Travel: 6"
Tailstock Spindle Diameter: 2-1/4"
Tailstock Spindle: No. 4 M.T.
EQUIPPED WITH
3 HP Drive Motor
10" 6-Jaw Chuck
12" 4-Jaw Chuck
Thread Dial
Approximate Weight: 3000 Lbs.
F.O.B. Cincinnati, Ohio
ALL SPECIFICATIONS SUBJECT TO VERIFICATION BY PURCHASER
Inquire Further with C.W. Wood Machinery Inc!
