For Sale by Southern Fabricating Mchy Sales
Description

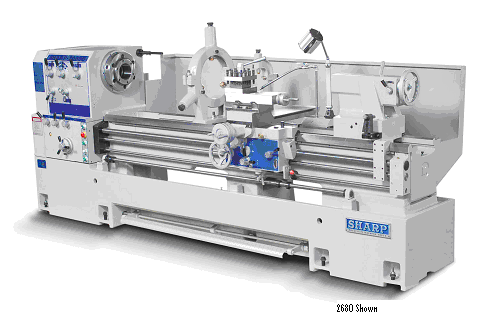

18.5” Swing (27.125 with Gap Removed) X 86” Manual Gap-Bed Engine Lathe with 3” D1-8 Camlock Spindle Bore, 7.5HP Drive Motor, 12 Speed Gear Drive (Digital Variable Speed Drive Available), Tailstock, 11” Swing Over Cross-Slide, 3 Jaw 10” Chuck, Coolant System and Splash Guarding, Face Plate, Steady Rest, American Style Tool Post, and Tool Kit Included.
STANDARD EQUIPMENT:
- 3-Jaw Chuck 10”
- Coolant System
- Halogen Work Light
- Face Plate (16”)
- Steady Rest (1/2” – 6”)
- American Tool Post
- Full Length Splash Guard
- Follow Rest
- Longitudinal Carriage Stops
- Tool Kit - (Includes: Machine Manual, Set of Allen wrenches, Phillip Screwdriver, Flat Head Screwdriver, Oil can, Grease Gun, Can of Paint)
FEATURES:
- D1-8 Camlock
- 3” Spindle Bore
- Direct Selection For Inch/Metric Threads
- One Piece Cast Meehanite Bed
- 7-1/2 Hp Spindle Motor
- 12-Speed Gear Head (40-2,000 RPM)
SPECIFICATIONS:
Swing Over Bed: 18.5”
Swing Over Cross Slide: 11”
Center Height: 9.25”
Swing Over Gap: 27- 1/8”
Width of Gap: 11.75”
Distance Between Centers: 86.6”
Headstock
- Spindle Nose Type D1-8 Camlock
- Spindle Bore 3-1/16”
- Spindle Speeds (12 Speed) 40-2,000 rpm
- Taper of Spindle Bore MT#6
- Taper of Center MT#4
Threads and Feeds
- Longitudinal Feeds – in/rev (18) 0.002 - 0.032”
- Cross Feeds – in /rev: 0.0001 –0.0094”
- Inch Threads (#): 4-56 tpi
- Metric and Module Threads: 0.5-7mm
- D.P. Threads (36): 4-56 mm
- Leadscrew Pitch, Diameter: 4 tpi, 1-3/8”
Carriage
- Cross Slide Travel: 9-7/8”
- Compound Rest Travel: 5.3”
- Compound Width: 5.0”
Bed
- Bed Length: 110”
- Bed Width: 11-3/4”
Tailstock
- Quill Travel (graduated): 5-1/2”
- Quill Diameter: 2-11/16”
- Quill Taper: MT#4
GENERAL
Spindle Motor (220V or 440V, 60, 3) 7-1/2 hp
Net Weight (approx.) 5,425 LBS
Dimensions ( L X W X H) 134.6” X 21” X 48”
Standard Color Gray
Electrical:
Voltage: 230V & 460V
Phase: 3 phase
Total Power Consumptions
230V: 8KVA/25 amps
460V: 8KVA/12.5 amps
***All Price, Location and Specifications Subject to Change without Notice***
MANY OPTIONS AVAILABLE TO CUSTOMIZE YOUR MACHINE - CALL FOR COMPLETE QUOTATION LISTING ALL AVAILABLE OPTIONS.
Get Your Price from Southern Fabricating Mchy Sales!
Buyers Who Viewed This Listing Also Viewed:

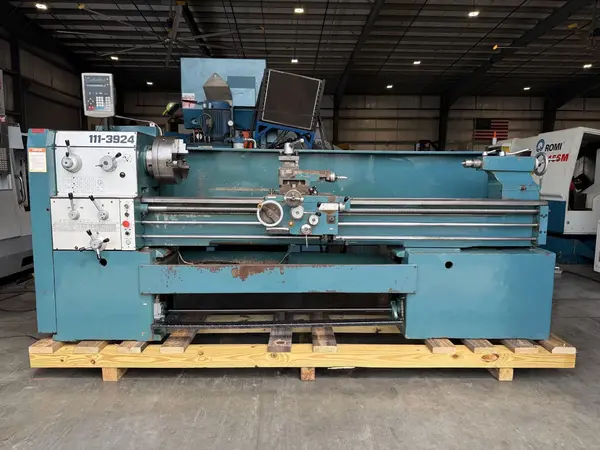

18"/23" x 80" Enco #111-3924, gap bed engine lathe, 12" 3-jaw chuck, 2-1/2" bore, D-16, 22-1800 RPM, digital read out, 220 V., 1995

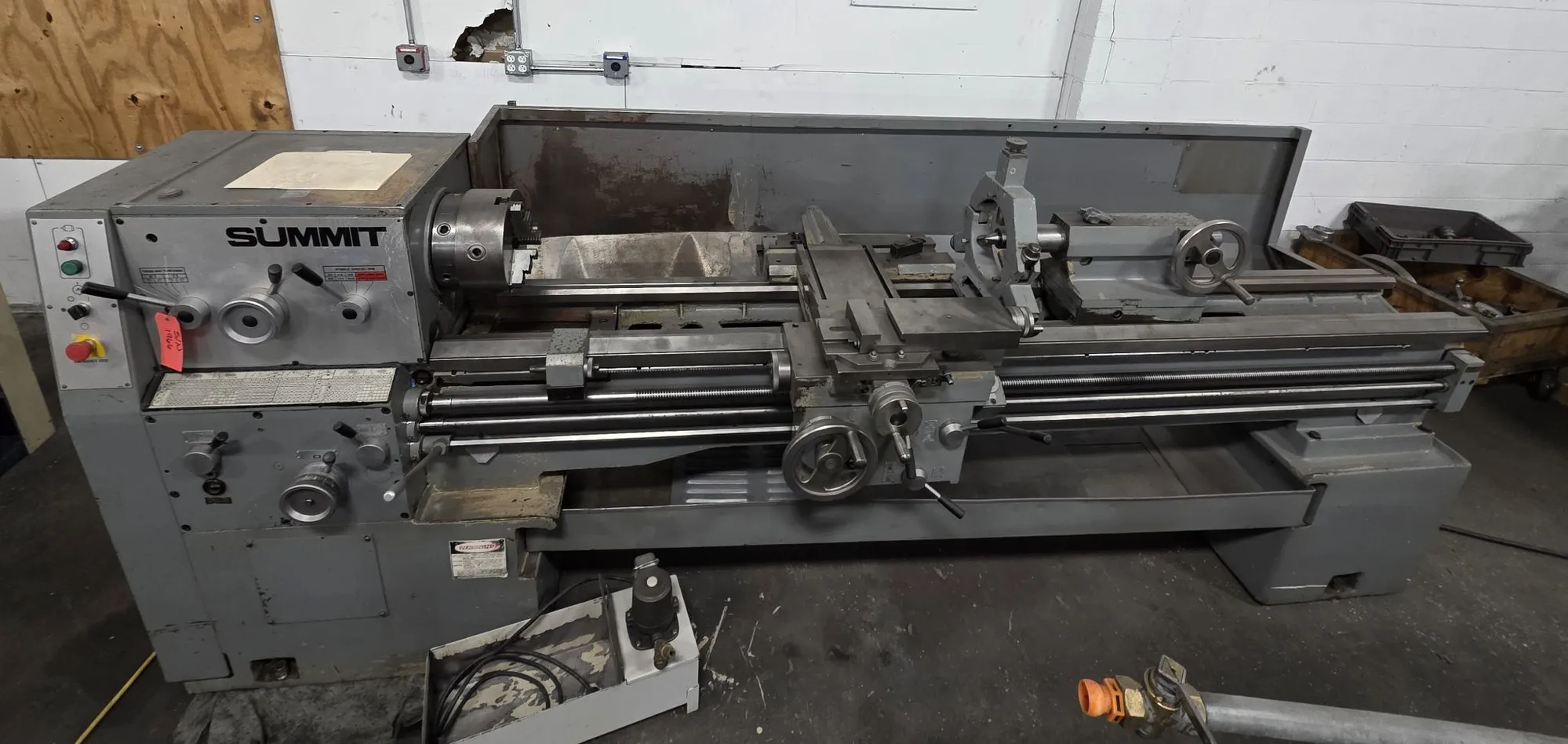

18"/26" x 80" Summit #18-3X80, gap bed engine lathe, 9-1/2" swing over cross slide, 3" bore, D1-8, 30-2000 RPM, 10 HP, 10" 3-jaw chuck, taper
