For Sale by Lion Machinery LLC
Surplus Record Dealer Since 2026
Location: Chicago, IL
Contact Andy Leon
Phone Number: 630...> Show Phone Number 630-349-5153
Let the seller know you found their listing on Surplus Record!
Description

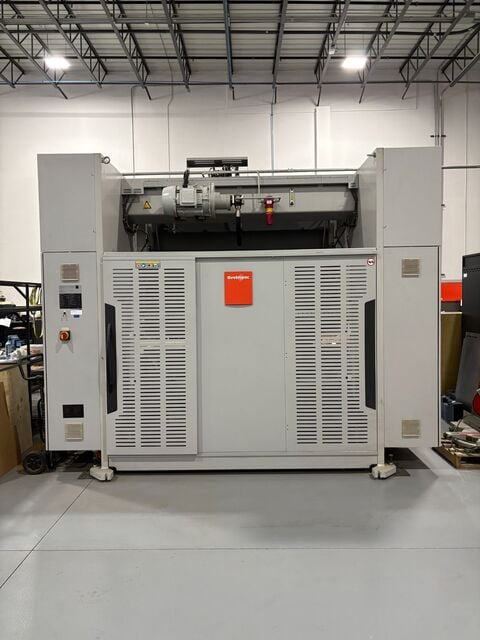

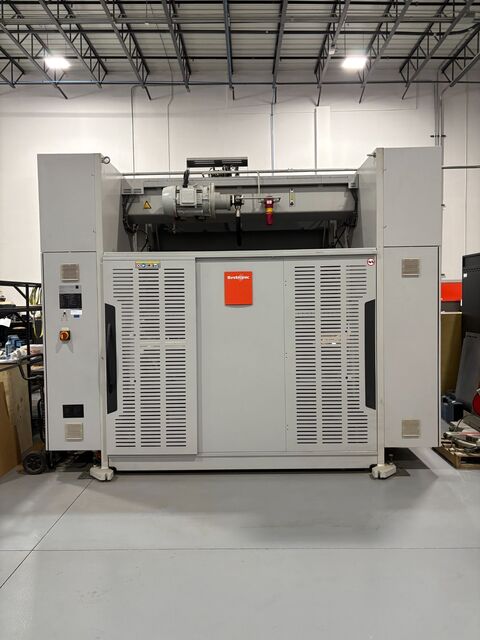

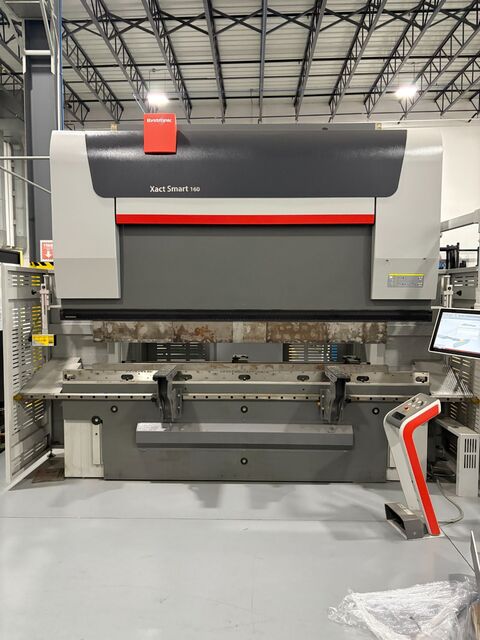

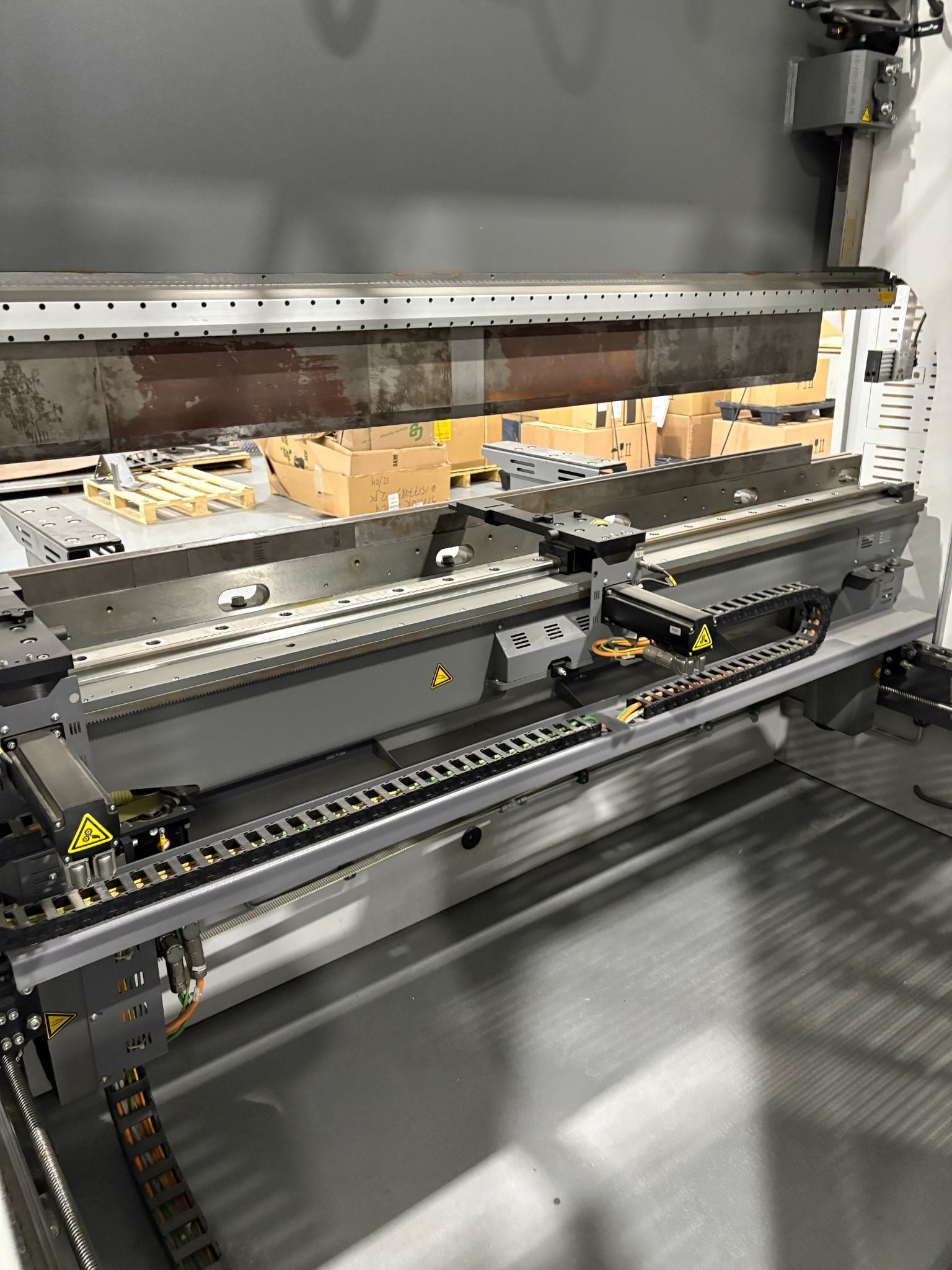

2021 BYSTRONIC XACT SMART 160/3100 used press brake available. Features 160-ton capacity, 3100mm overall length, and 2450mm between housings. Ideal for precision bending needs. Top dies a bit rusty will be wiped down prior to sale.
Working length: 3100 mm
Max. press force: 1600 kN
Max. stroke: 300 mm
Rapid approach: 140 mm/s
Working speed: 110 mm/s
Return speed: 115 mm/s
Weight: 11500 kg
Power of main motor: 11 kW
Total connected load: 23 kW
Operating voltage: 3PH 480 V
Frequency: 60 Hz
Control voltage: 24 V DC
Nominal current fuse: A
Max. operating pressure: Pneumatic / Hydraulic
Pneumatic:
Hydraulic: 305 bar
Max. accumulator pressure: 305 bar
Working length: 3100 mm
Max. press force: 1600 kN
Max. stroke: 300 mm
Rapid approach: 140 mm/s
Working speed: 110 mm/s
Return speed: 115 mm/s
Weight: 11500 kg
Power of main motor: 11 kW
Total connected load: 23 kW
Operating voltage: 3PH 480 V
Frequency: 60 Hz
Control voltage: 24 V DC
Nominal current fuse: A
Max. operating pressure: Pneumatic / Hydraulic
Pneumatic:
Hydraulic: 305 bar
Max. accumulator pressure: 305 bar
Get Your Price from Lion Machinery LLC!
