Manufacturer: Baykal
Model: APHS-3108160
Year: 2013
Tons: 176.0
Overall: 10.0
Between Housings: 100.00
1 / 4
Click to zoom in
1 / 4
For Sale by Westway Machinery Ltd
Surplus Record Dealer Since 1978
Location: Mississauga, ON Canada
Contact Sales Dept.
Phone Number: 905...> Show Phone Number 905-803-9999
Let the seller know you found their listing on Surplus Record!
Description

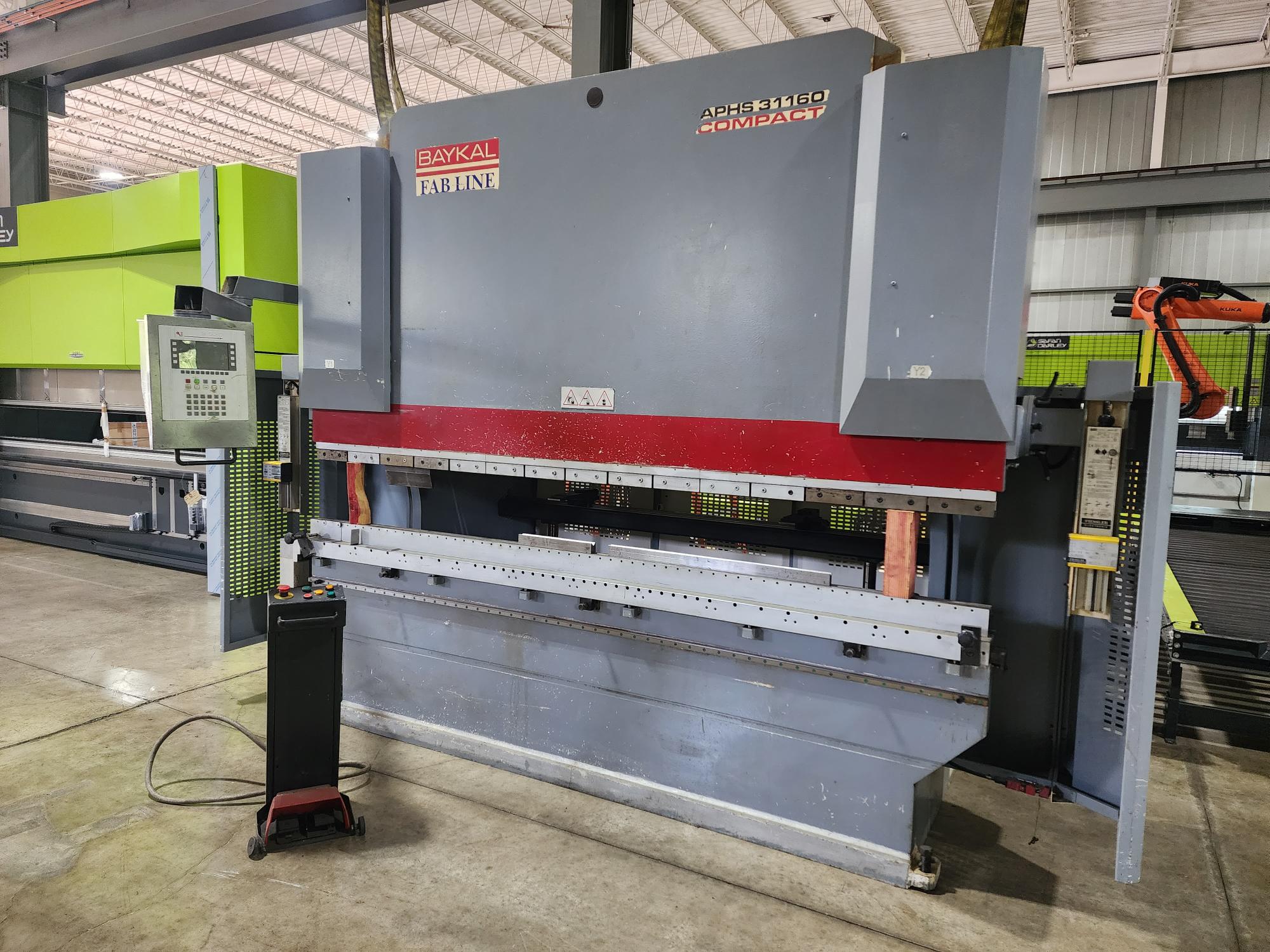

MODEL APHS 3108×160
FEATURES:
- Baykal CNC, Y1, Y2, X, R, CROWNING (5 AXIS)
- Laser Beam Guards, Fiessler Akas
- Physical Rear and Side Guarding Included, Safety Interlocked
- 2 Front Support Arms Included, Sliding
- ESA S530 Control
- Equipped for Northern American Tooling
MODEL: APHS 3108×160
CAPACITY: 10′ X 176 TON
SERIAL NO.: 19805
OVERALL BENDING LENGTH: 10’
DISTANCE BETWEEN HOUSINGS: 8’ 4”
STROKE OF RAM: 10”
OPEN DAYLIGHT: 20.8”
SPEED: ADVANCE: 378 IPM
SPEED: PRESSING: 23 IPM
SPEED: RETURN: 307 IPM

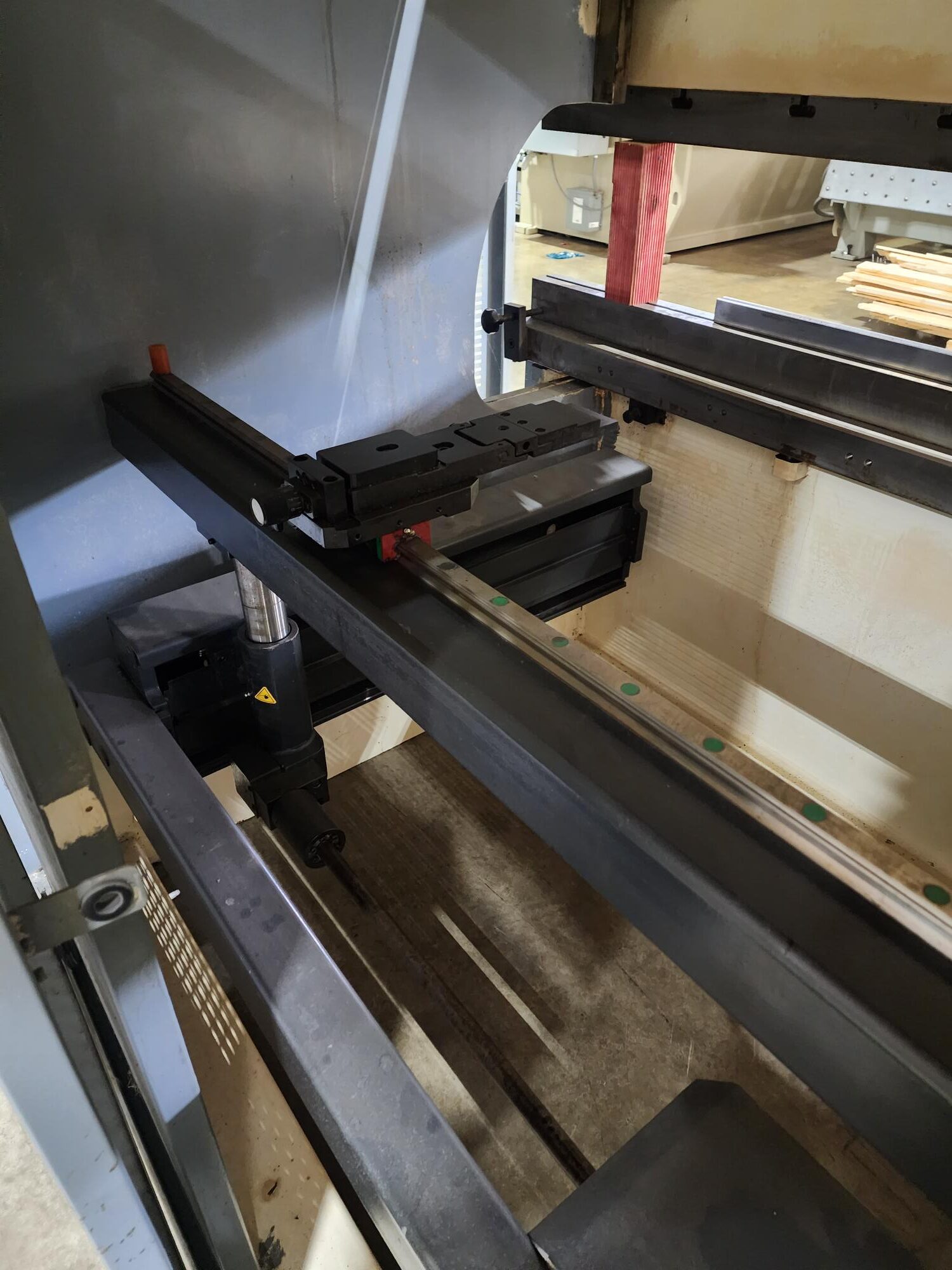

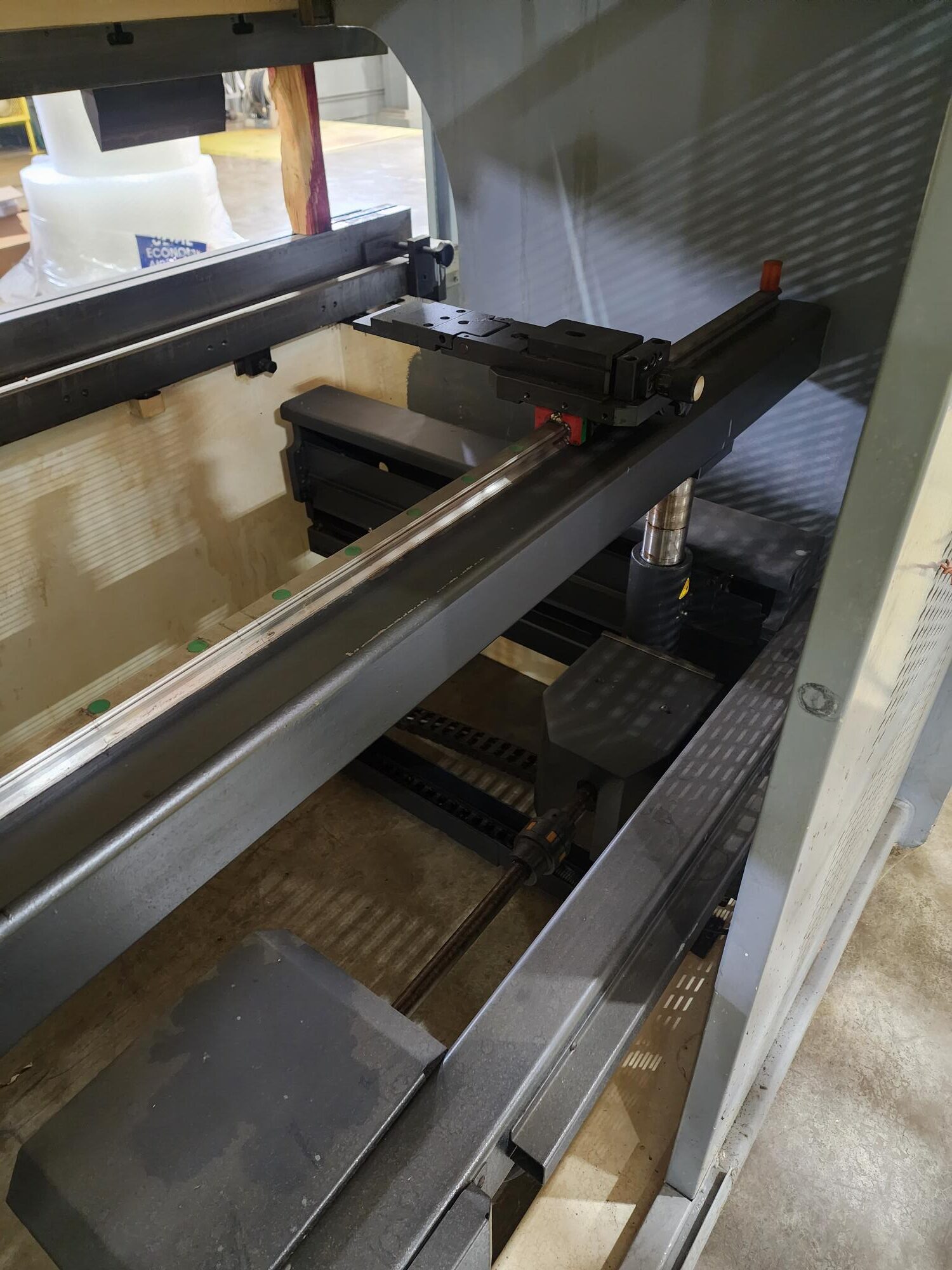

MAXIMUM TRAVEL OF BACK GAUGE: 29.5” + 9.8” (second finger stop)
TABLE WIDTH: 7 ¾”, complete with full length 3” W x 3 ½” H riser block
DISTANCE FLOOR TO TOP OF BED: 35”
THROAT DEPTH: 16”
YEAR: 2013
MOTOR: 20 HP
WEIGHT: 22,000 LBS (approx)
DIMENSIONS (LxWxH): 155” x 90” x 115”
FOB POINT: Mississauga, ON
CONDITION: Pre-Owned
Get Your Price from Westway Machinery Ltd!
