For Sale by Aleco Machinery Sales
Description

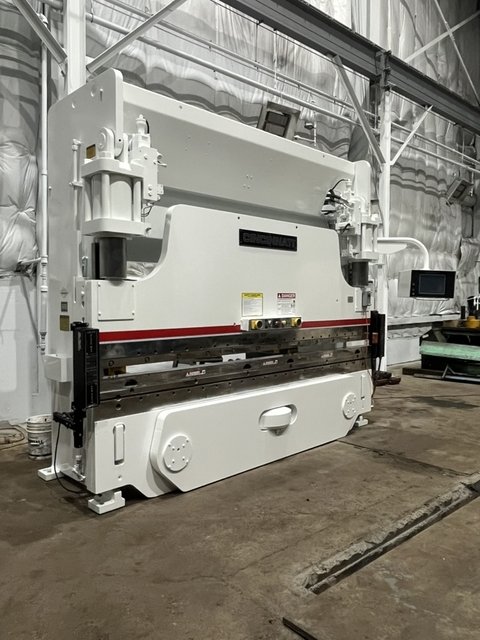

- Pre Owned Cincinnati Model1750AF10 Autoform CNC Hydraulic Press Brake
GENERAL SPECIFICATIONS
Capacity 175 TONS
Overall Length of Bed & Ram 12’
Distance Between Housings 10’ 6 1/2”
Stroke 10”
Open Height 17”
Closed Height 7”
Throat Clearance 12”
Speed
Approach 230 Inch/Minute
Form 1 to 45 Inch/Minute
Return 1 to 250 Inch/Minute
Width At Top Of Bed 5 1/2”
Main Motor Horsepower 25 HP 460/3/60
EQUIPPED WITH
Cincinnati Autoform PC HMI Control
Industrial PC Based Control
15.1” TFT Touchscreen Display
Tool Library
CAD Design Software
Dynamic Thickness Compensation
Adaptive Control Mode
24” Back Gauge ( X1, X2)
Link Black Max Light Curtains
AutoCrown Deflection Compensation
Precision Ram Leveling With Dual Linear Glass Scale Encoders
Off Load Center Compensation
Variable Volume Load Sensing Pump And Servo Hydraulic System
3-Position Electric Foot Switch
Presence Sensing Interface
Control Mounted Palm Button Station
Manuals
Interlocked Construction
Approximate Overall Weight 32510 Lbs
Approximate Overall Dimensions 177” L X 72” W X ’123” H
Get Your Price from Aleco Machinery Sales!
