For Sale by Aleco Machinery Sales
Description

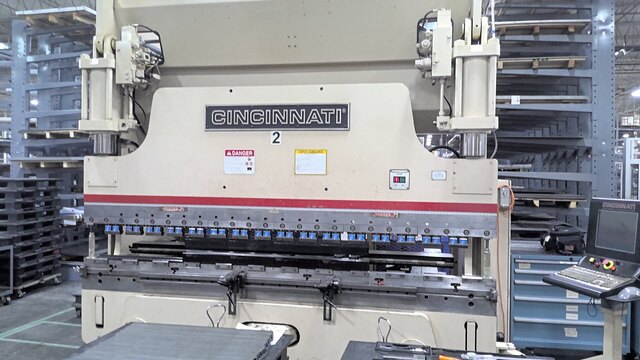

- Pre Owned Cincinnati Model1750AF10+ Autoform Plus CNC Hydraulic Press Brake New 2005
GENERAL SPECIFICATIONS
Capacity 175 TONS
Overall Length of Bed & Ram 12’
Distance Between Housings 10’ 6 1/2”
Stroke 16” (6” Extended)
Open Height 17”
Closed Height 7”
Throat Clearance 12”
Speed
Approach 260 Inch/Minute
Form 1 to 65 Inch/Minute
Return 1 to 290 Inch/Minute
Width At Top Of Bed 5 1/2”
Main Motor Horsepower 25 HP 460/3/60
EQUIPPED WITH

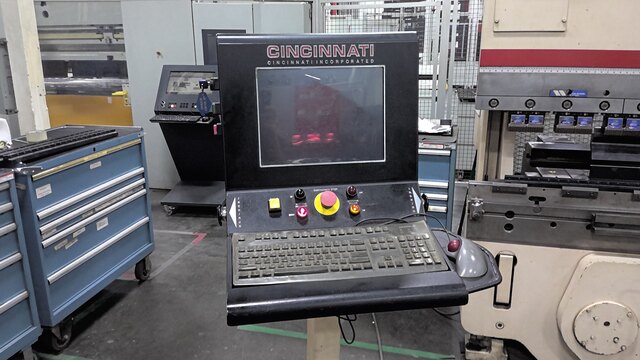

Cincinnati Autoform PC HMI Control
Industrial PC Based Control
15.1” TFT Touchscreen Display
Tool Library
CAD Design Software
Dynamic Thickness Compensation
Adaptive Control Mode
Autocrown

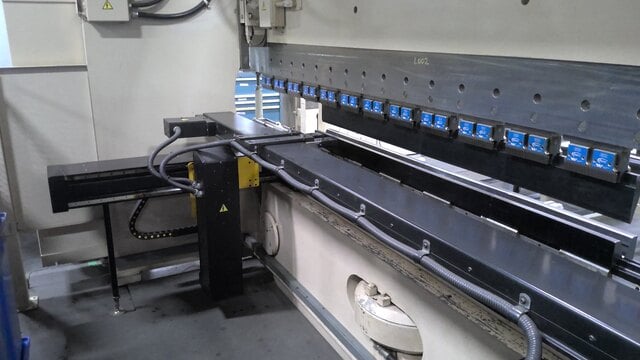

24” 5 Axis Back Gauge ( X1, X2, R, Z1, Z2) Retrofitted by Cincinnati in 2020
Ram Die Clamps on 6” Centers
Two Programmable Footswitches
Precision Ram Leveling With Dual Linear Glass Scale Encoders
Off Load Center Compensation / Variable Displacement Pump
Variable Volume Load Sensing Pump And Servo Hydraulic System
3-Position Electric Foot Switch
Presence Sensing Interface
Palm Button Station
Manuals
Interlocked Construction
Approximate Overall Weight 35000 Lbs
Approximate Overall Dimensions 177” L X 72” W X ’135” H
