17" x 55" Stedman #HD-Disintegrator, 44" Heavy Duty 2-Row Cage Mill Disintegrator Crusher, 100 HP/75 HP, 845 RPM

Estimated monthly payment valid upon approved credit.

Request Formal Quote

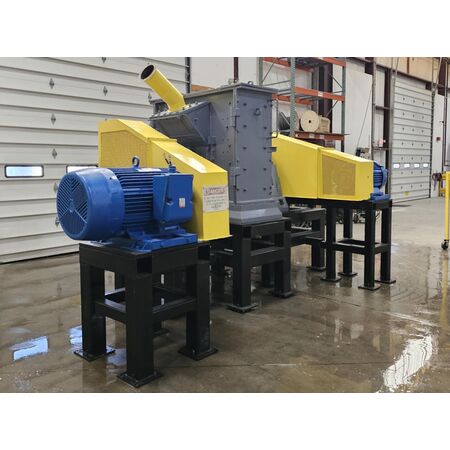

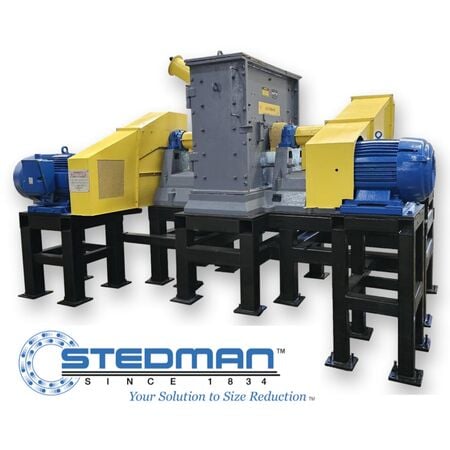

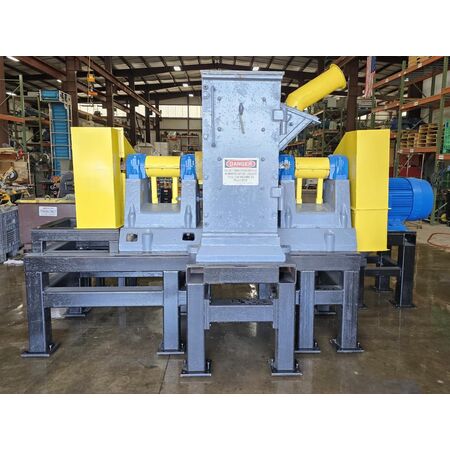

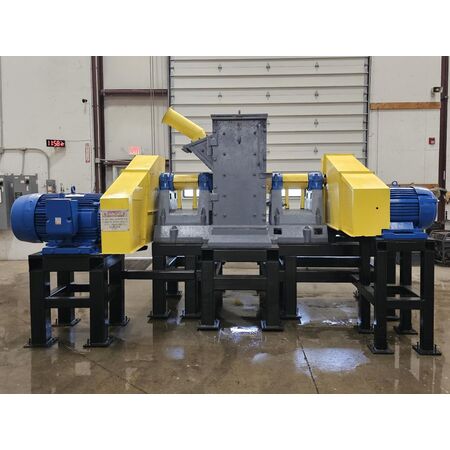

Used Stedman 44 inch Heavy Duty 2-Row Cage Mill Disintegrator Crusher - Model A
Serial Number: D 2857
Material is gravity fed into the center area of the counter-rotating cages thru an 8" flanged chute
Mill housing constructed of heavy plate steel with hinged side doors and internal wear plating
Area of the milling/crushing chamber: 17" X 55"
Cantilevered drive shafts for the cages are twin pillow block supported with packing gland seals on housing
Working speed of the cages is 845RPM (machine is reversible)
Unitary base of the mill is cast iron construction
Elevating base assembly constructed from welded 6" square tube with machined mounting surfaces (36.75" high)
100HP (outside cage) and 75HP (inside cage) V-belt reduction drives
Service Power (X2): 460V, 60Hz, 3ph, 123 Amps (100HP) and 91.6 Amps (75HP)
On File: Operation/Maintenance Manual & Parts Drawings (exploded isometric & details)
Freely hand rotates. The mill will ship in (10) pieces, standard flatbed. Assembling required. The total weight of all pieces = 21,506 LBS.
Previous application details:
Crushing: vinyl floor tile
Input size: 1"
Output size: minus 5/8"
Capacity: 24-26 TPH
