For Sale by T R Wigglesworth Machinery
Description
Specifications
| Table-W | 39.75" | 1,009.6 mm |
| Table-L | 15.75" | 400.05 mm |
| Power | 5 hp | 3.7 kW |
| Grinding Wheel Width | 1.25" | 31.75 mm |
| Grinding Wheel Dia. | 12" | 304.8 mm |
CAPACITY
Table working surface - 41 3/4" x 16"
Longitudinal table travel - 44 1/2"
Crossfeed table travel - 17 11/16"
Maximum distance center of spindle to table - 23"
Maximum table load (including magnetic chuck) - 1320Lbs
TABLE
Tee slot - 9/16" x 3N
Longitudinal table speed - 13~75 feet/min
Automatic crossfeed per stroke - 0~0.47"
GRINDING WHEEL
Wheel dimensions (O.D. x T x I.D.) - 12" x 1 1/4" x 5"
VERTICAL MOVEMENT
Maximum travel - 18 1/8"
Automatic downfeed increment - 0.0002~0.0016 (6 steps)
MOTOR
Spindle motor - 5HP x 4P
Power elevation motor - 1/4HP x 6P

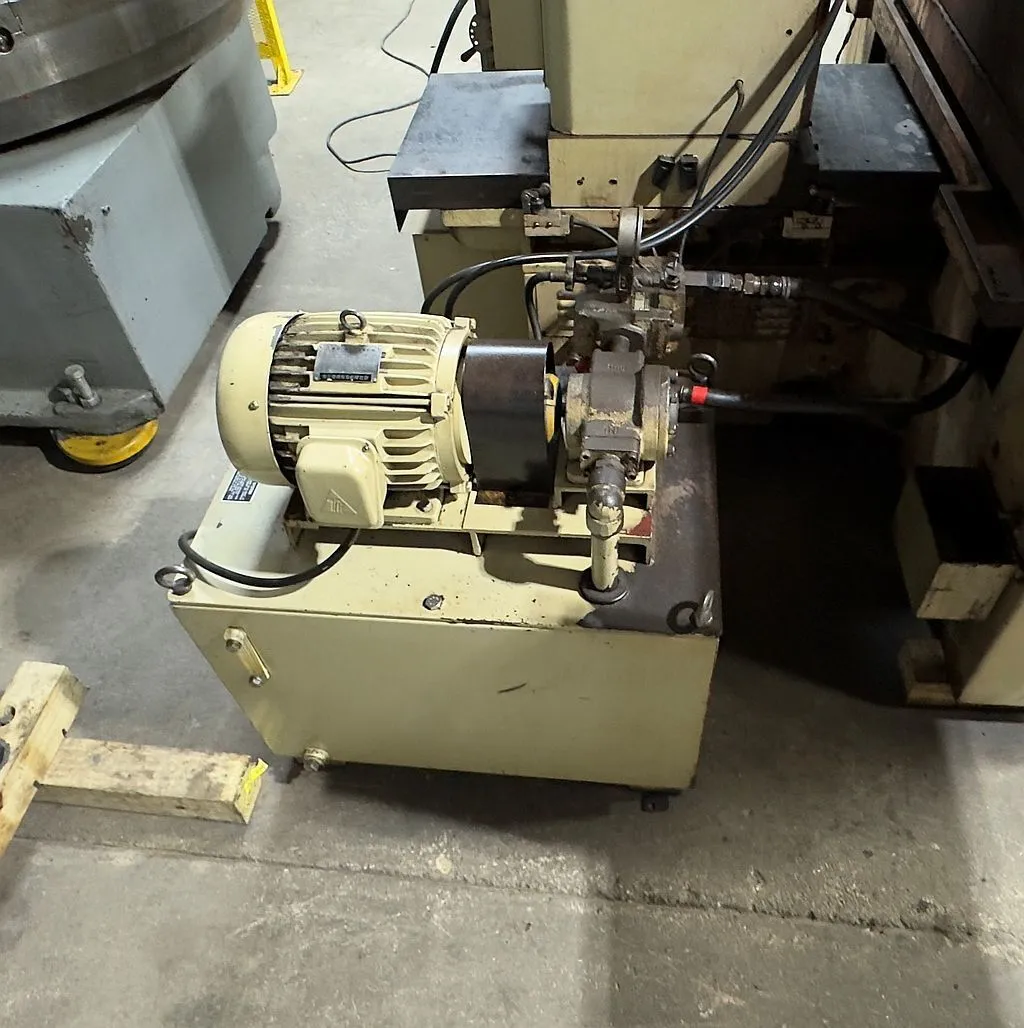

Hydraulic pump motor - 3HP x 6P
Coolant pump - 1/8HP x 2P
Cross feed motor 1/4HP x 6P
SIZE
Machine height - 94 1/2"
Floor space - 125" x 77 1/6"
Net weight - 8250Lbs
Equipped with:

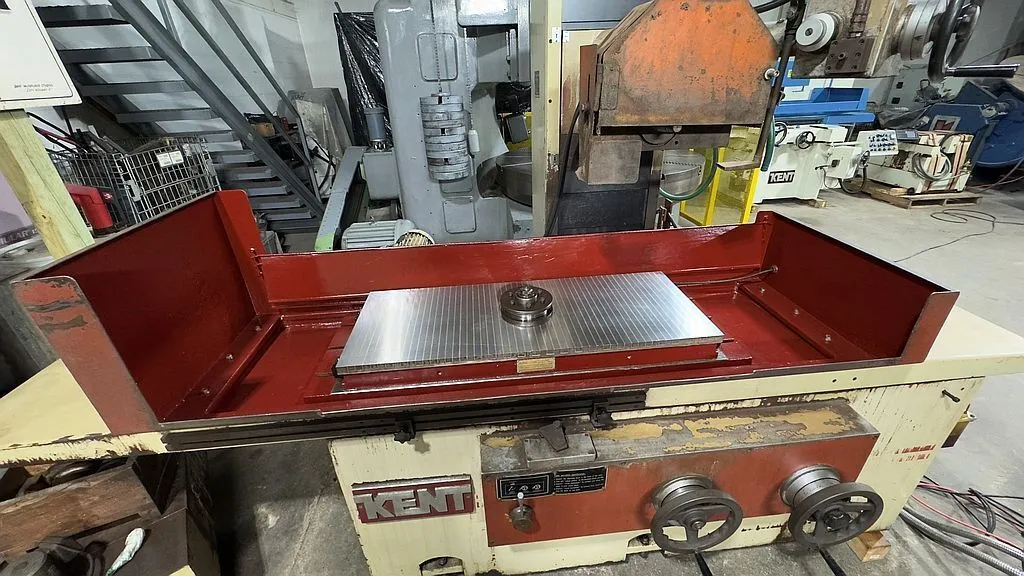

Variable Hold Magnetic Chuck

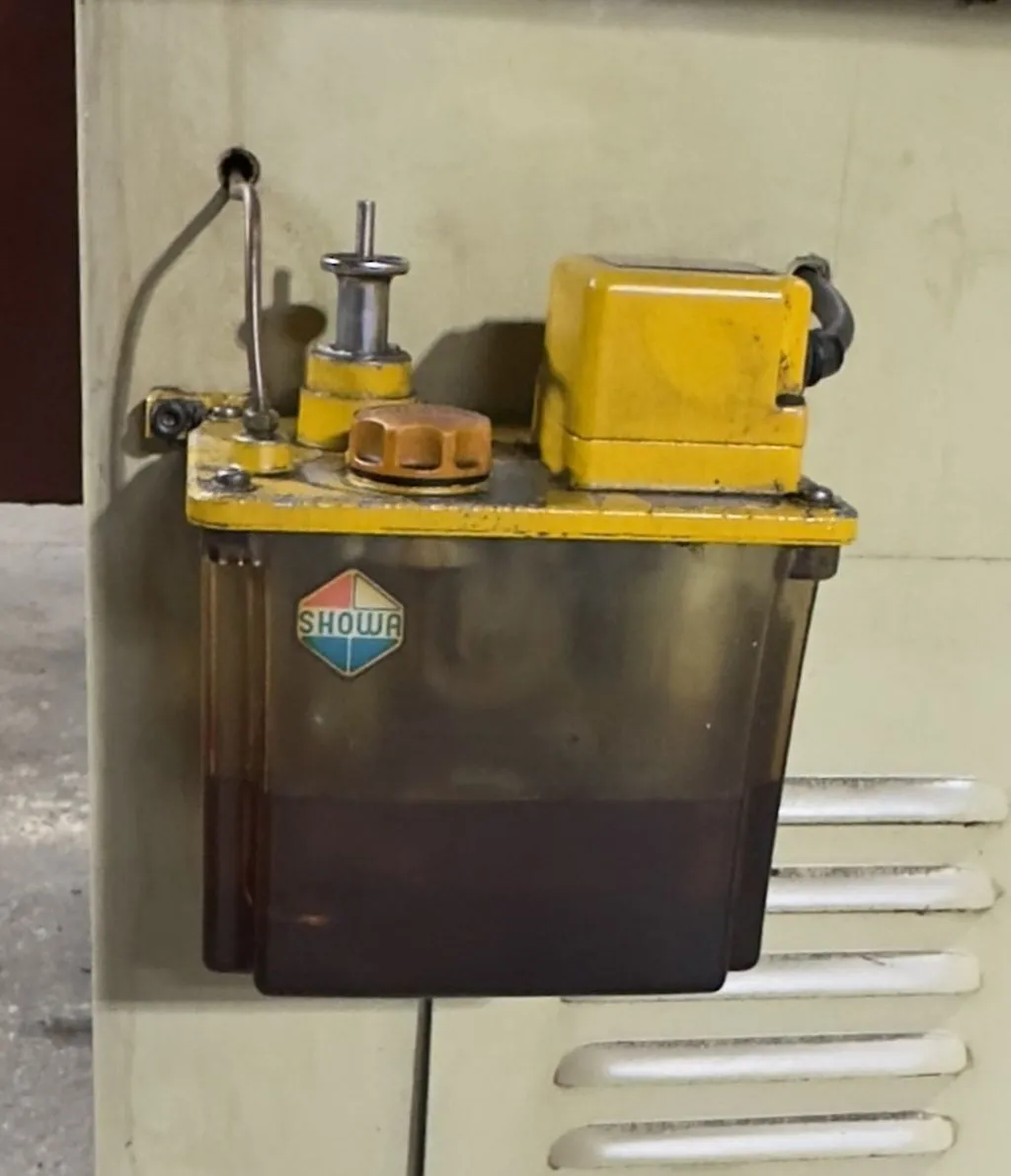

Automatic Lubrication
Over the Wheel Dressing

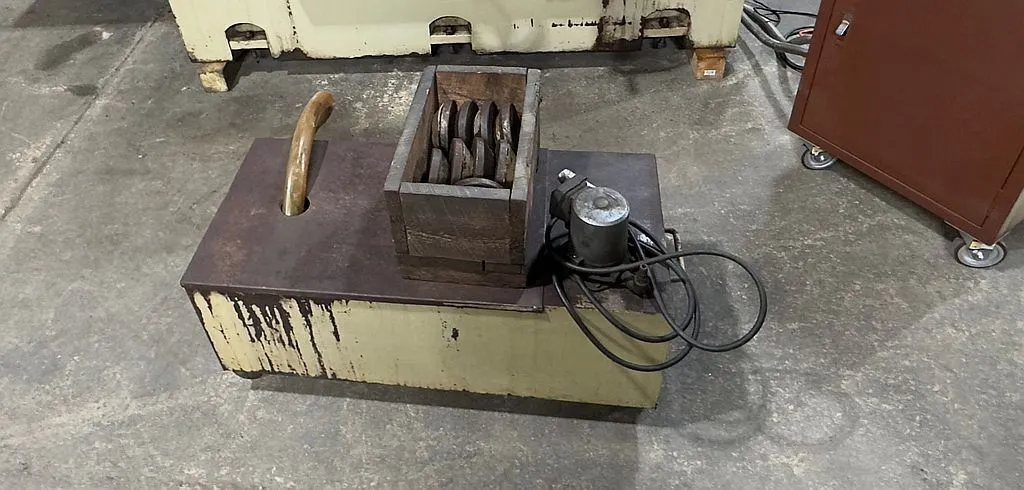

Coolant
Wheel Hub
