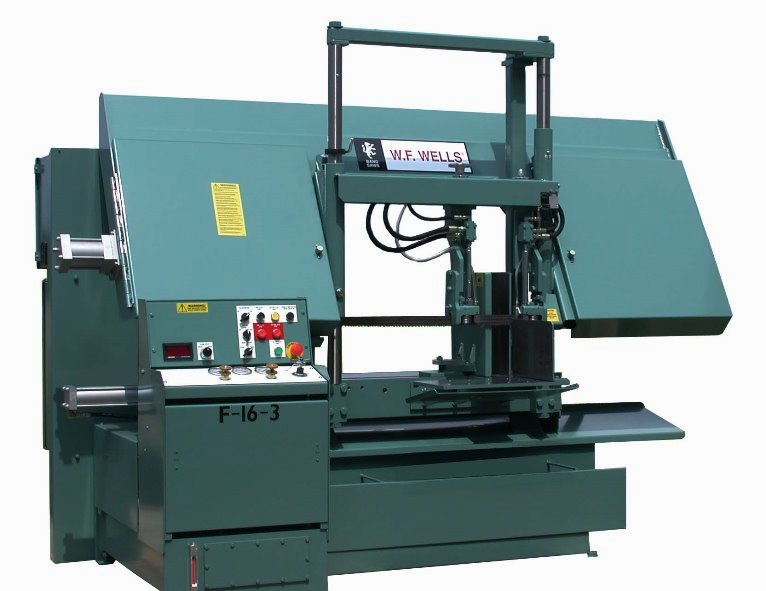

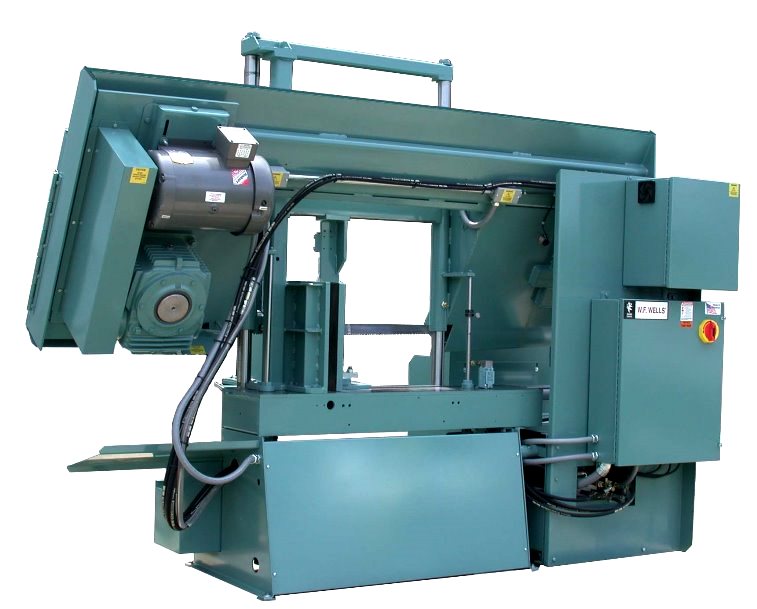

17" x 20" W.F. Wells #F-16-3, Hydraulic Twin-Post Band Saw, 5000 lbs. capacity, 200" x 1.5" Blade, 22" Bandwheel, 60-500 FPM, 10 HP, new

Description

W.F. Wells 17″ x 20″ Hydraulic “Twin-Post” Band Saw, F-16-3

Inventory # 5830

Model: F-16-3

Made in USA

Specifications:

Capacity:

Round:

@ 90°: 17″

Rectangular:

@ 90°: 17″ x 20″

Weight Capacity: 5,000 lbs.

Blade Speed Range: 60 – 500 FPM

Blade Size: 200″ x 1 1/2″ x .050″

Bandwheel Size: 22″

Sawing Pressure: 0 – 500 lbs.

Work Height: 35″

Motor: 10 HP / 208v, 230v, 460v / 3ph

Standard Features:

1 1/2″ Bi-Metal Blade

Carbide Guides with Backup Rollers

Hydraulic Vise with Variable Pressure

Hydraulic Blade Tension

Semi-Automatic Operation

Built-In Coolant System

Console Controlled Blade Speed

Blade Powered Rotary Cleaning Brush

Fused Disconnect with Lockout

Automatic End-of-Cut Shut Down

Quick and Easy Blade Speed Change

Blade Speed and Work Selector Chart

Feed Pressure Monitor/Regulator

All Safety Guards with Door Interlocks

Operator Manual and Parts List

Factory Trained Start-Up Instructions

Mechanical Specifications:

Dimensions: 101″ x 48″ x 88″ H

Shipping Weight: approx. 3,200 lbs.

FOB Factory – Contact us for Pricing and Availability
