Manufacturer: Haas
Model: HRT-450
Diameter: 17.70
Tbl Size/Surface: 17.70
Stock # GMT-8187
Price: $18,500 USD
1 / 10
Click to zoom in
1 / 10
For Sale by Generation Machine Tools
Surplus Record Dealer Since 2018
Location: Sarasota, FL
Contact Matthew Schulman
Phone Number: 800...> Show Phone Number 800-638-8888
Let the seller know you found their listing on Surplus Record!
$18,500 USD
Finance for as low as $375/mth
Description
Description

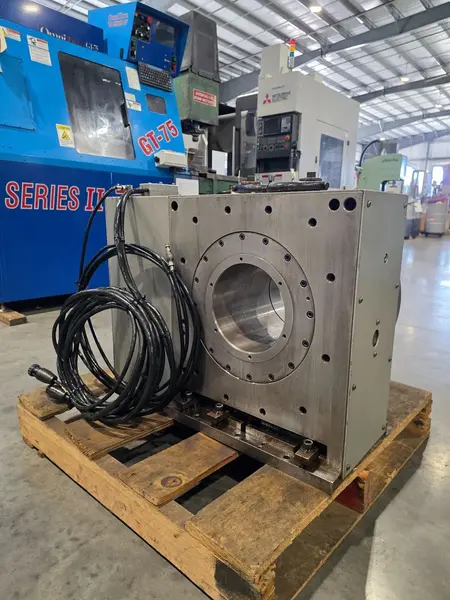

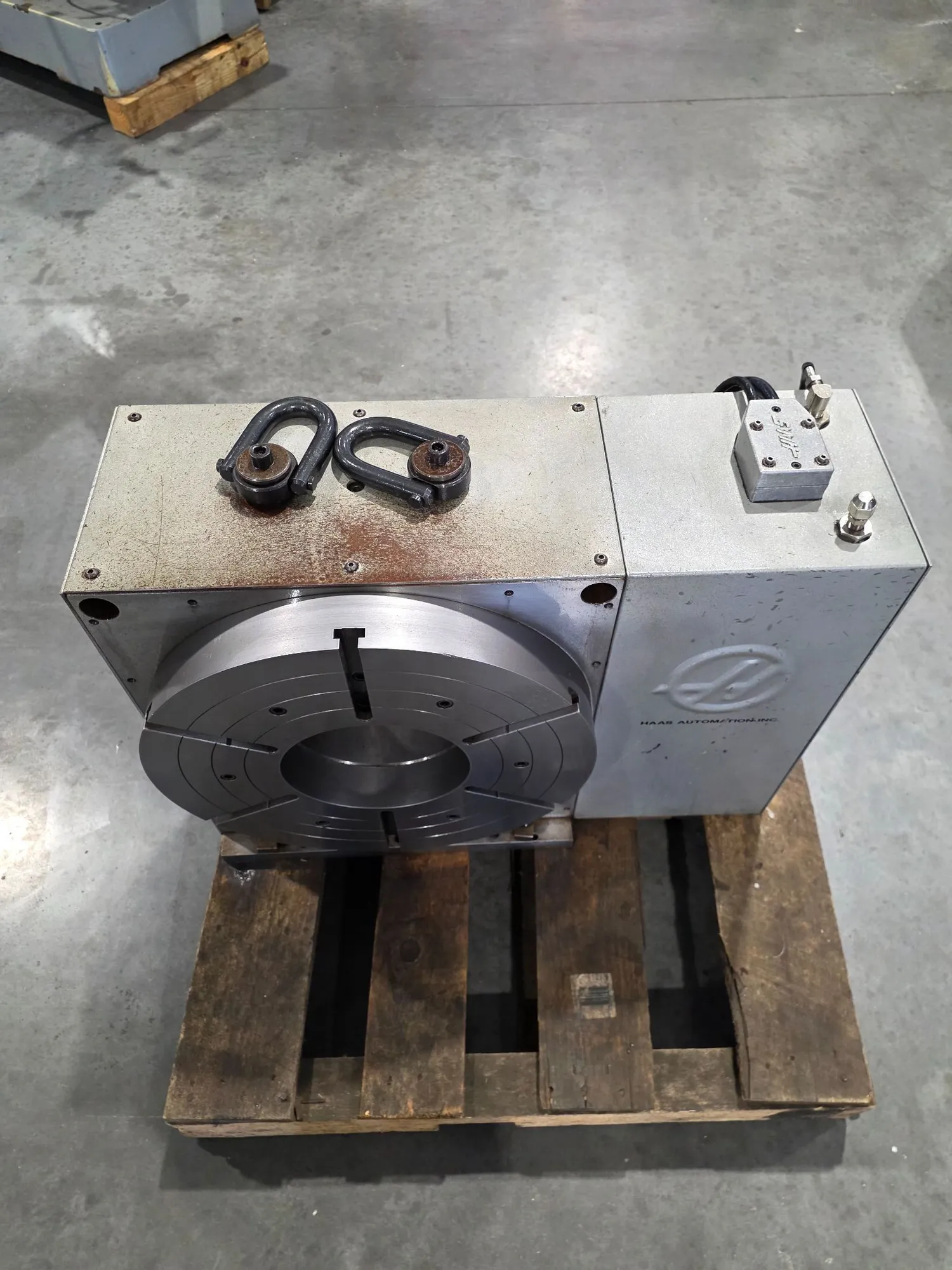

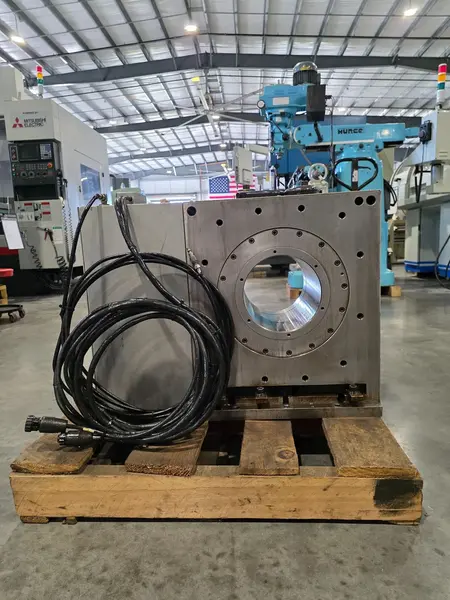

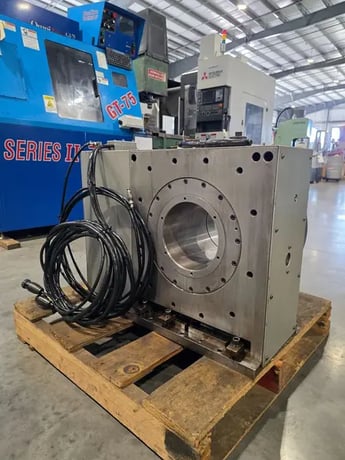

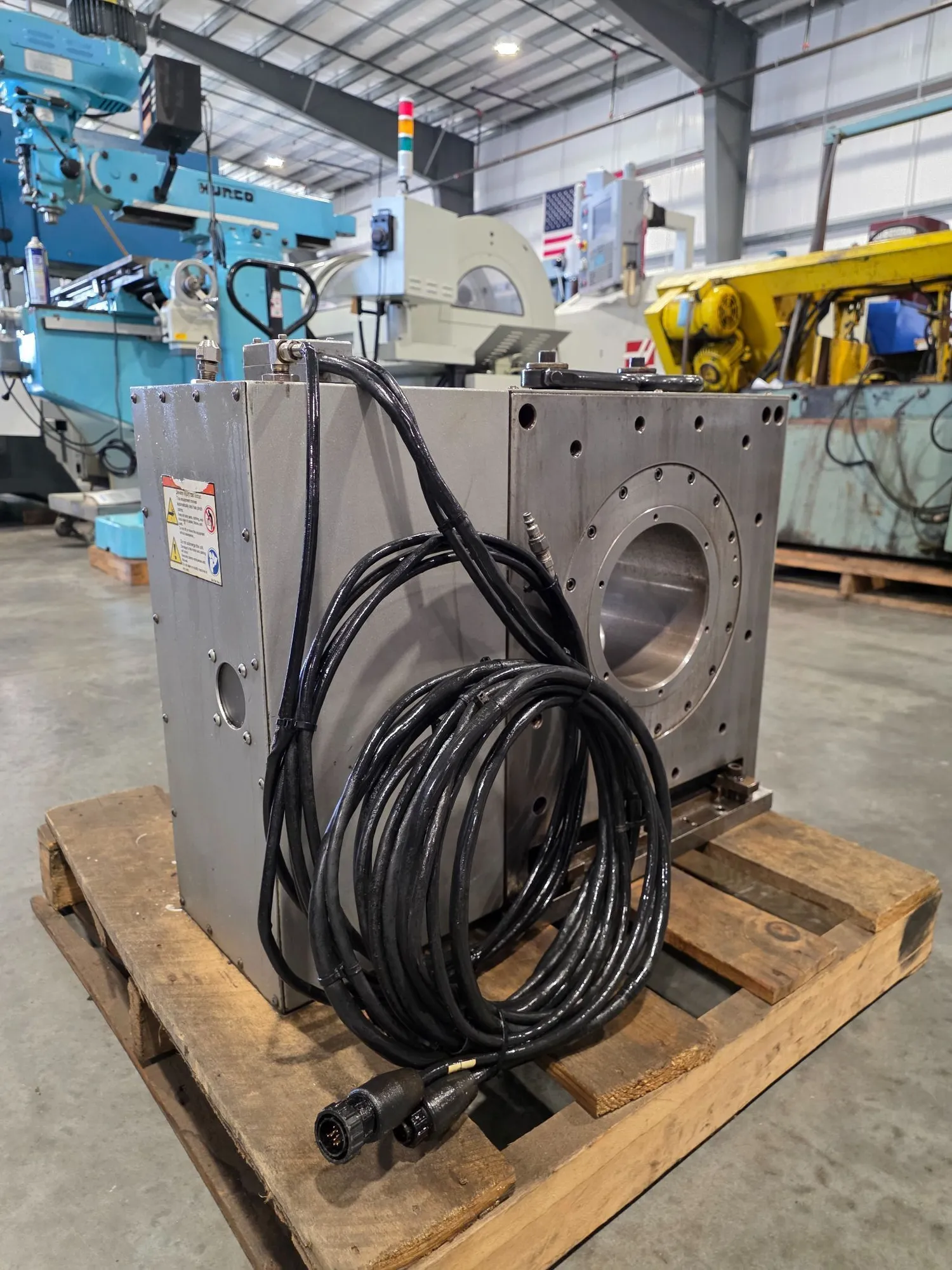

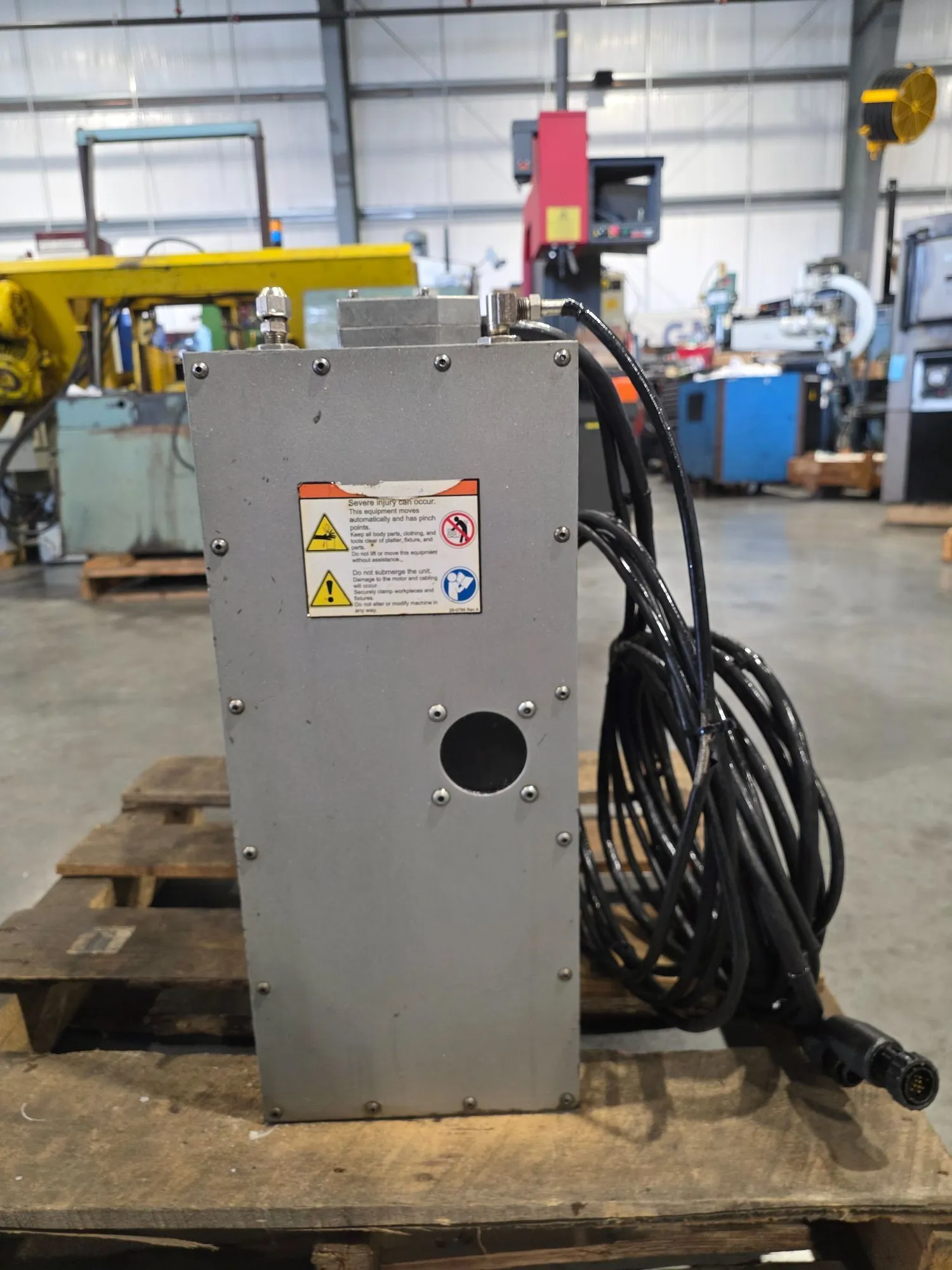

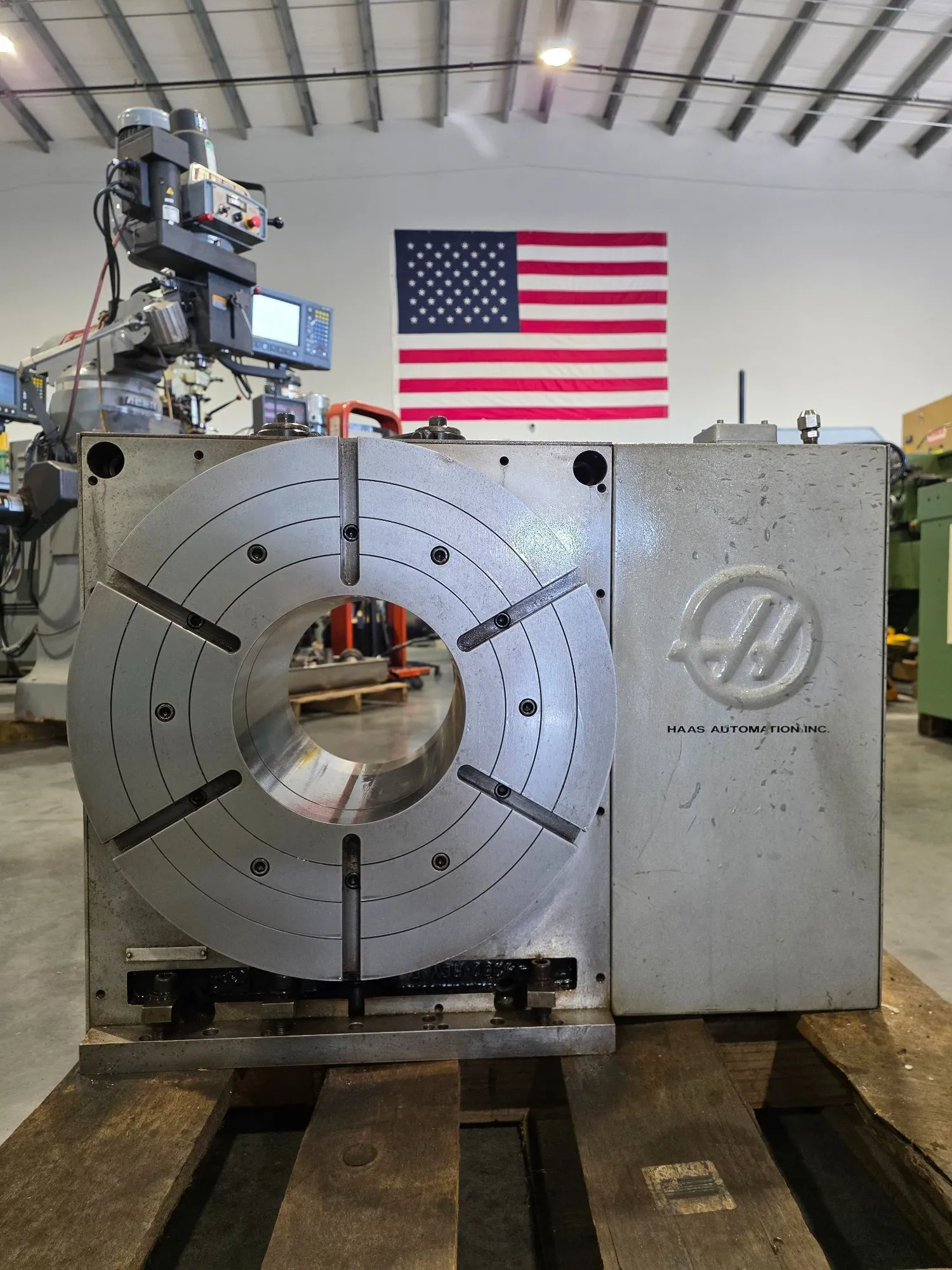

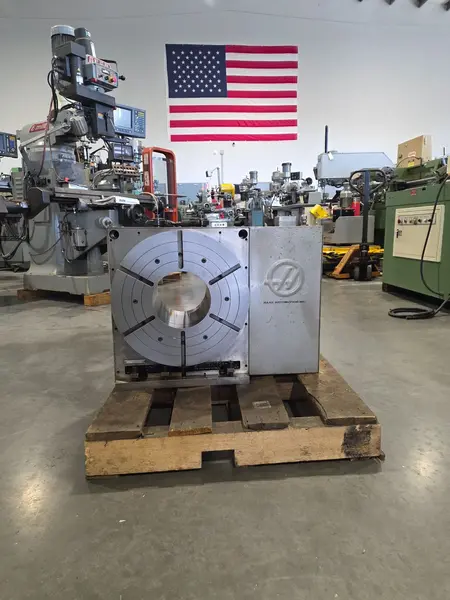

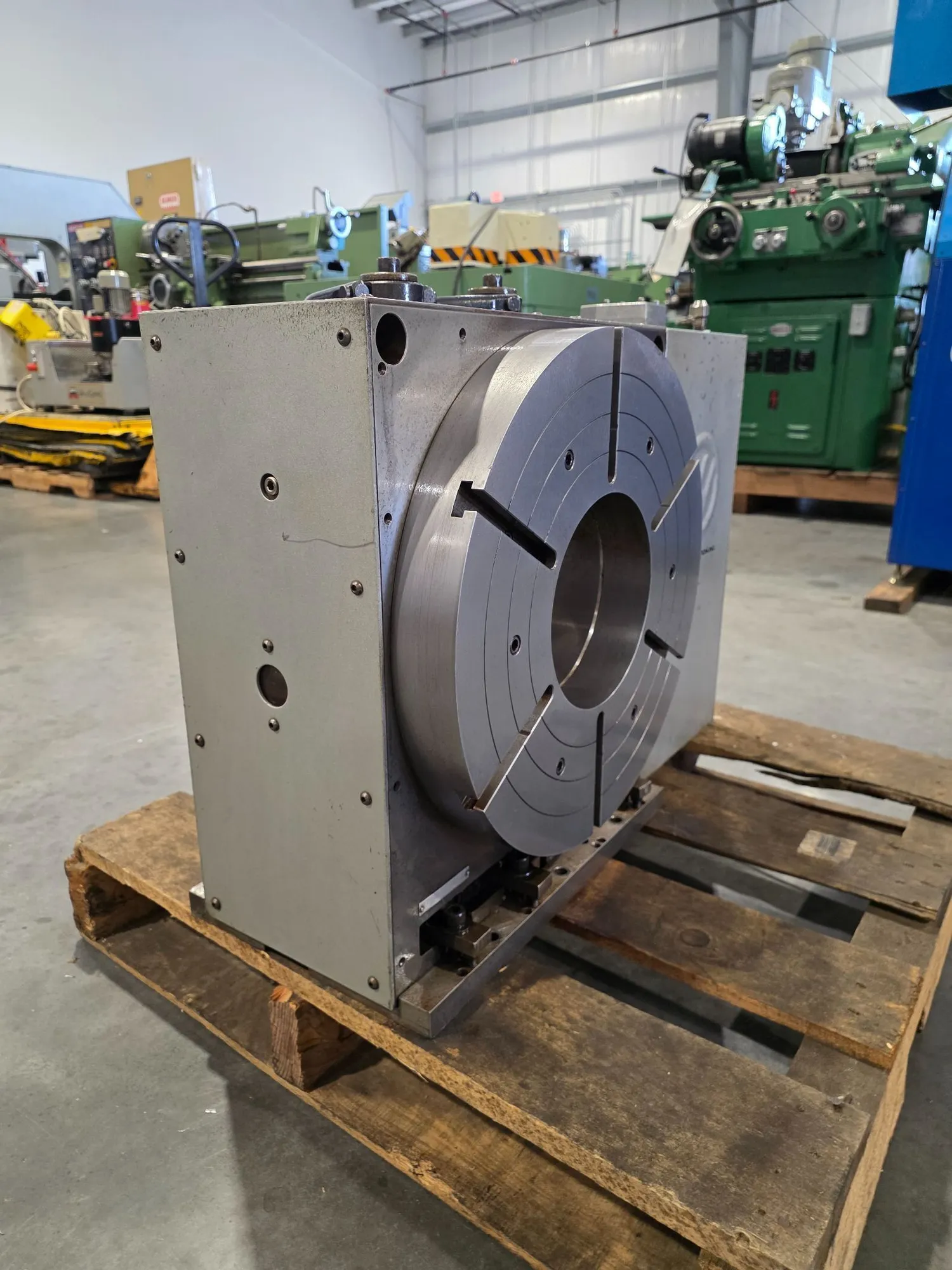

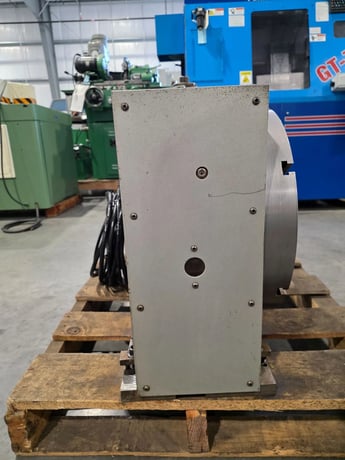

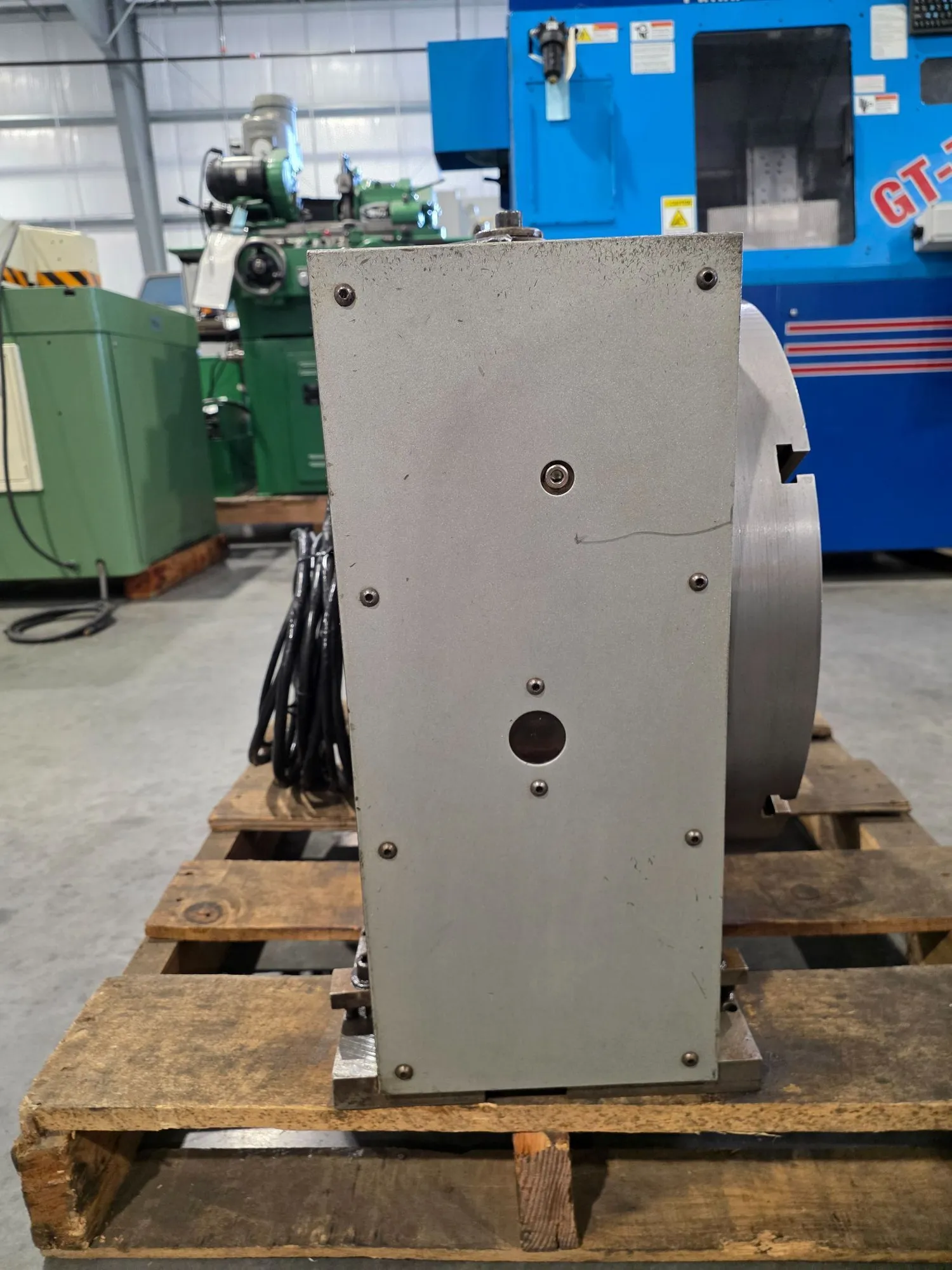

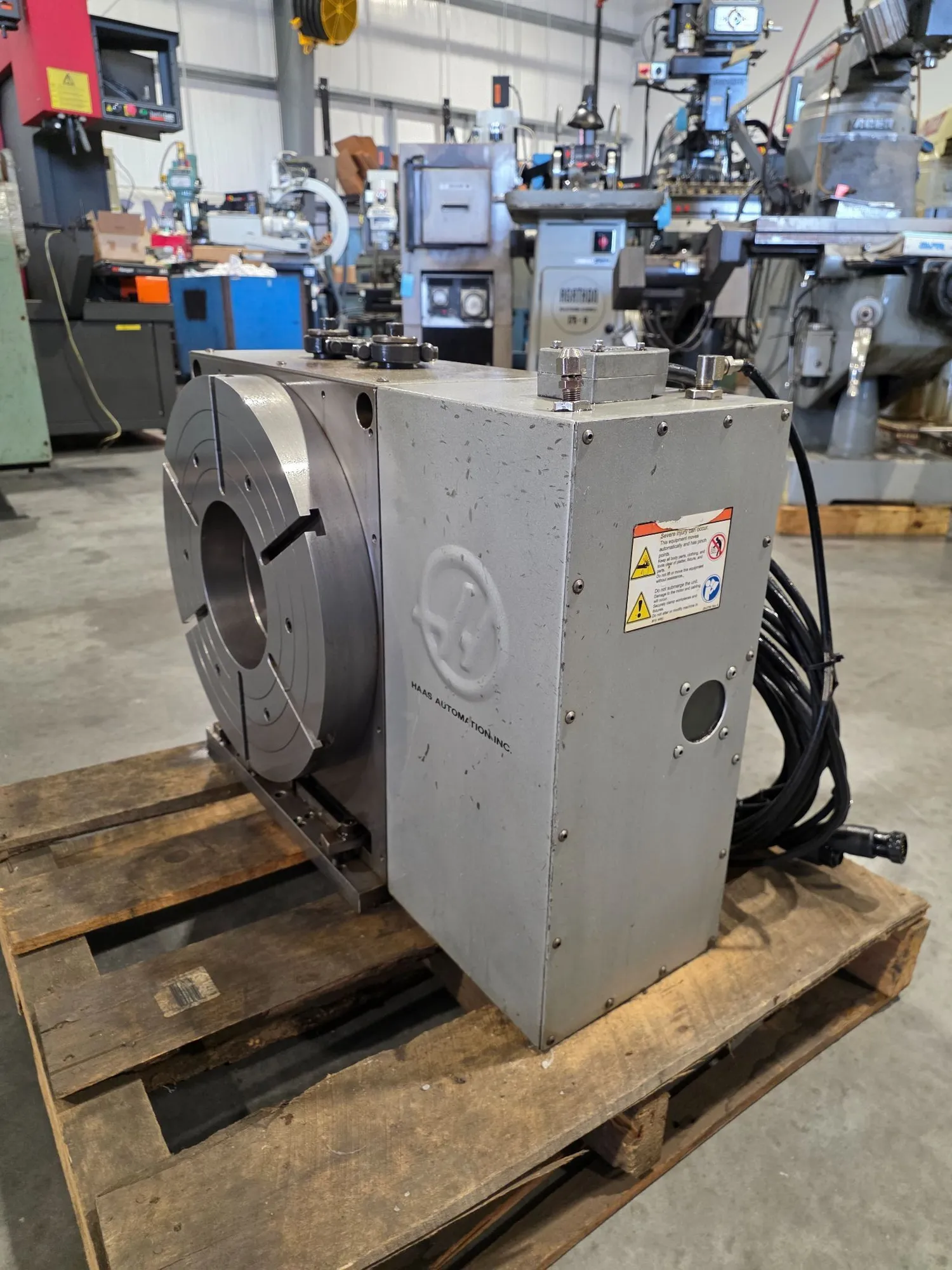

HAAS HRT-450 17.7” CNC Rotary Table 4th Axis Type 7-3/8" Bore USA #8187
Specifications
HAAS HRT-450 17.7” CNC Rotary Table 4th Axis Type 7-3/8" Bore USA #8187
Specifications
| Table Size-X | 17.7" | 449.58 mm |
| Table Size-Y | 17.7" | 449.58 mm |
| Dimensions | 29" x 13" x 23" H | 29" x 13" x 23" H |
| Weight | 930lbs | 930lbs |
HAAS HRT-450 17.7” CNC Rotary Table 4th Axis Type 7-3/8" Bore USA #8187
Reference #8187
Model # HRT-450
Serial # 450709
Table diameter- 17.70”
Max weight on platter supported- 850 Lbs.
Max weight on platter unsupported- 425 Lbs.
Max spindle speed- 50° /sec
Torque- 400 Ft-Lbf
Runout max- 0.0015"
Center height- 11.5"
Backlash- 30 arc/sec
Brake torque @ 100 P.S.I.- 1350Fl-Lbf
Gear ratio- 72:1
Timing- 3:1
Accuracy- +/- 15 arc-sec
Repeatability- 10 arc-sec
Resolution- 0.001°
Worm gear diameter- 13.5”
Max rotation / step- 999.999°
Inquire Further with Generation Machine Tools!
