Description

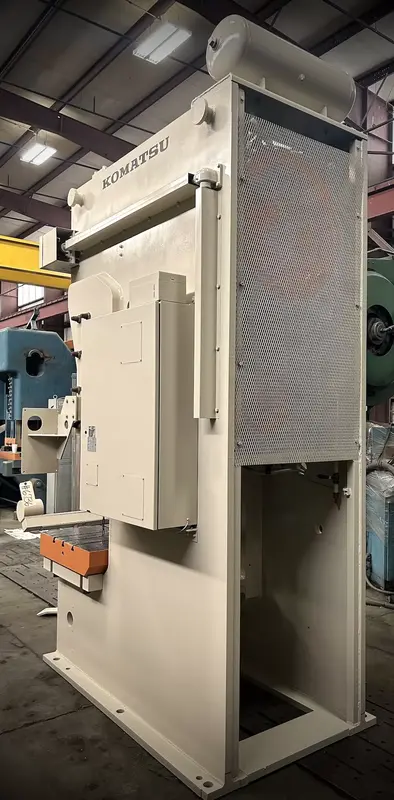

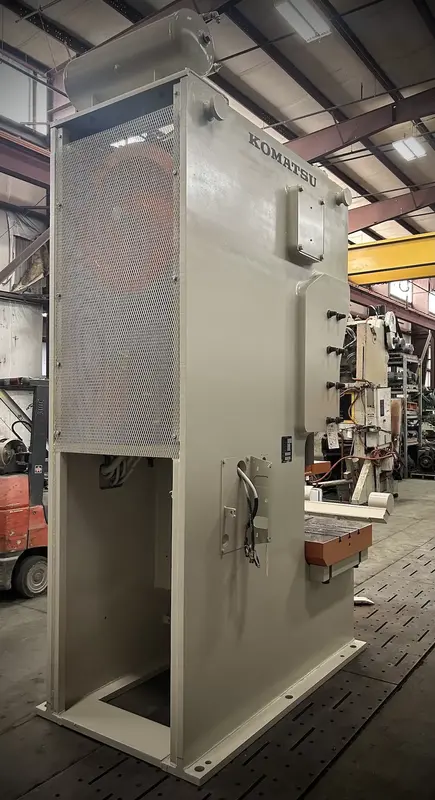

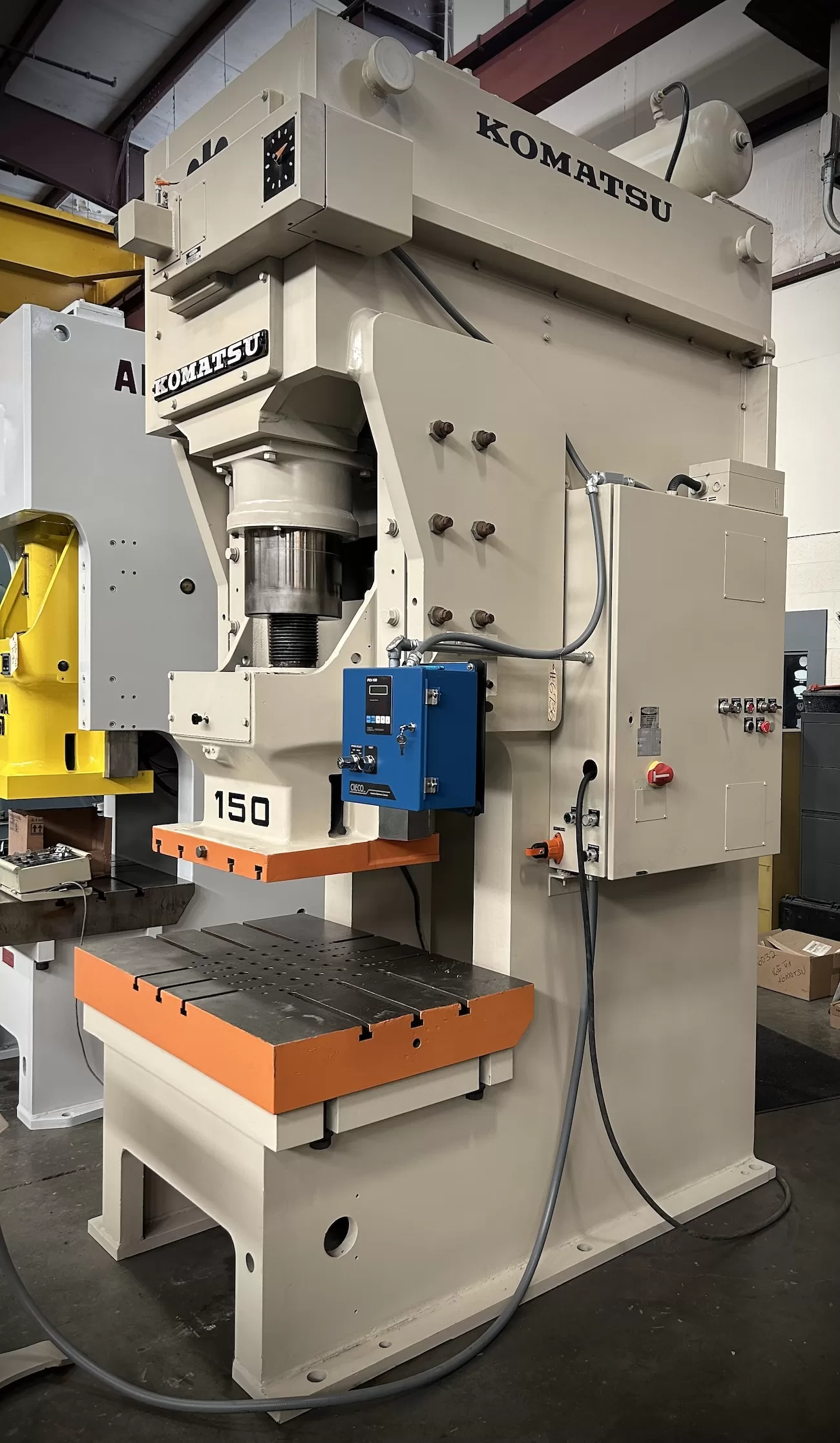

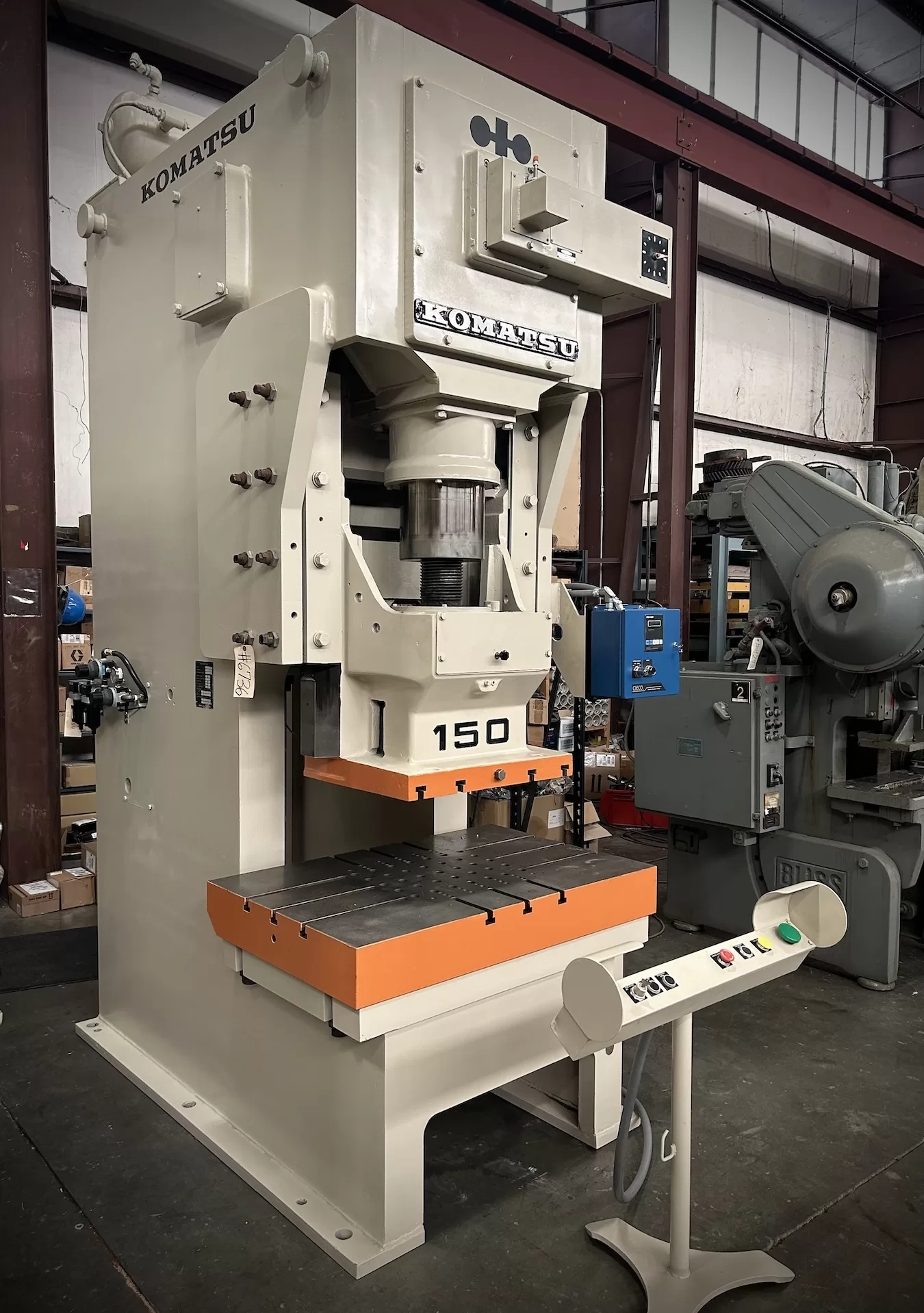

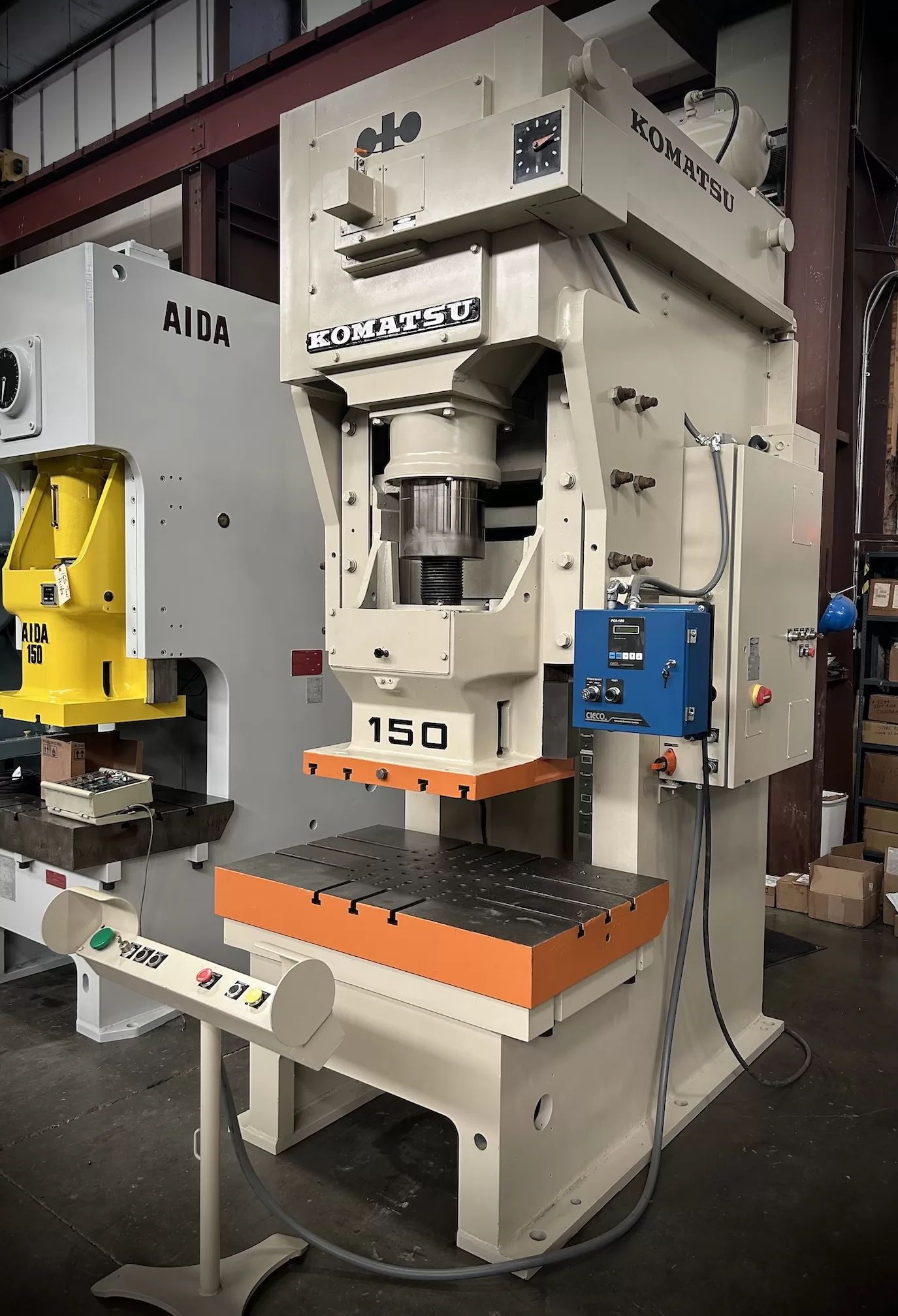

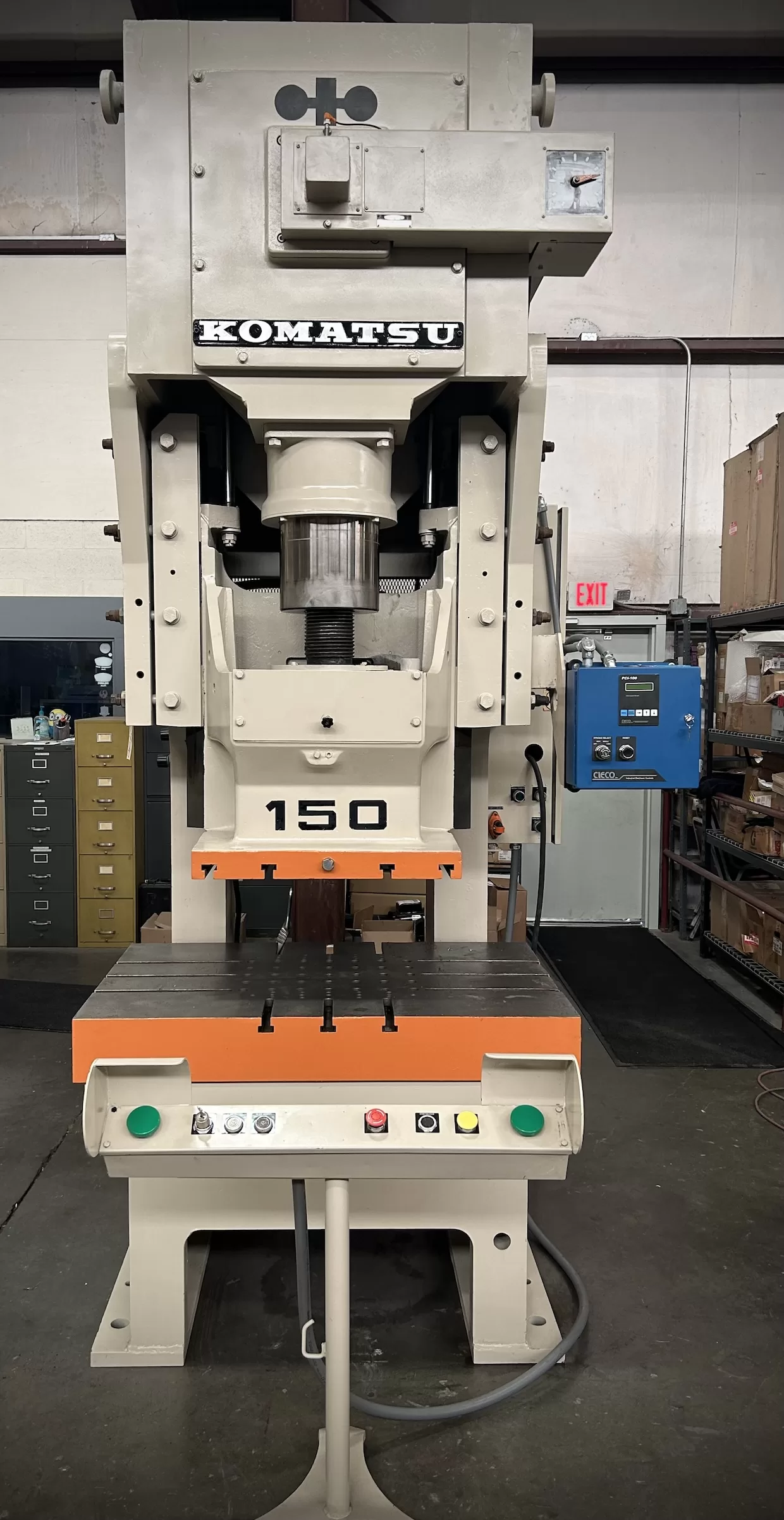

165 Ton Komatsu Gap Frame Press for Sale
Manufacturer: Komatsu
Model: Komatsu OBS150-2 Press
Condition: Very Good
Location: Columbia, TN Warehouse
Year: 1984
Machine #: 6736
| CAPACITY | 165 US TON |
|---|---|
| STROKE | 7.9″ |
| MAX DIE HEIGHT | 17.8″ SDAU OVER 6.3″ H BOLSTER |
| BED AREA | 49.2″ X 31.5″ (RL X FB) |
| SPEED | 27 – 55 SPM |
| SLIDE ADJUSTMENT | 3.9″ MOTORIZED |
| SLIDE AREA | 27.6″ RL X 21.7″ FB |
| BOLSTER PLATE | 6.3″ H X 49.2″ RL X 31.5″ FB |
| DISTANCE BETWEEN UPRIGHTS | 26″ |
| DISTANCE FLOOR TO BED | 29.5″ |
| CLUTCH | KOMATSU AIR CLUTCH / BRAKE COMBINATION |

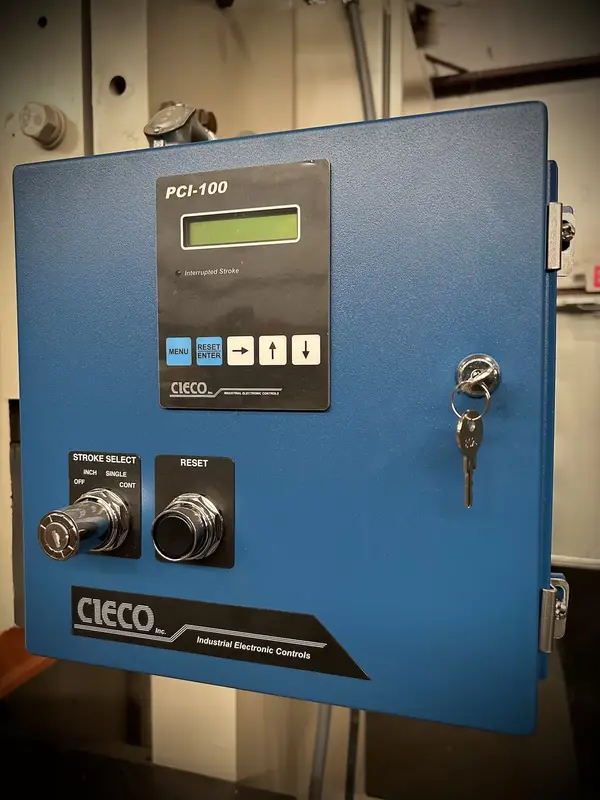

| ELECTRICS | 15 HP 1750 RPM 240/480V-3-60 EDDY CURRENT DRIVE & NEW CIECO 1100R CONTROL FOR RECONDITIONED PRICE |
| APPROX DIMENSIONS | 153″ H (INCLUDING TANK) X 54″ RL X 84″ FB |
| APPROX WEIGHT | 33,000 LBS |

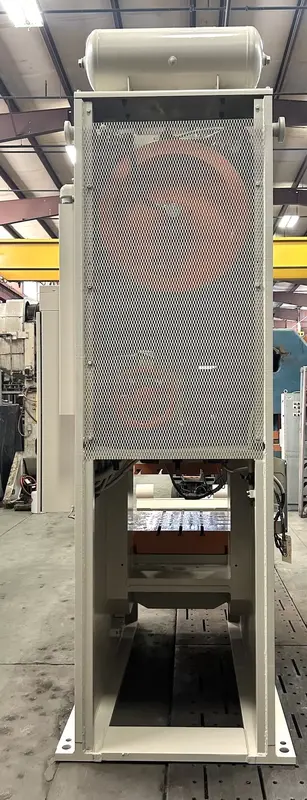

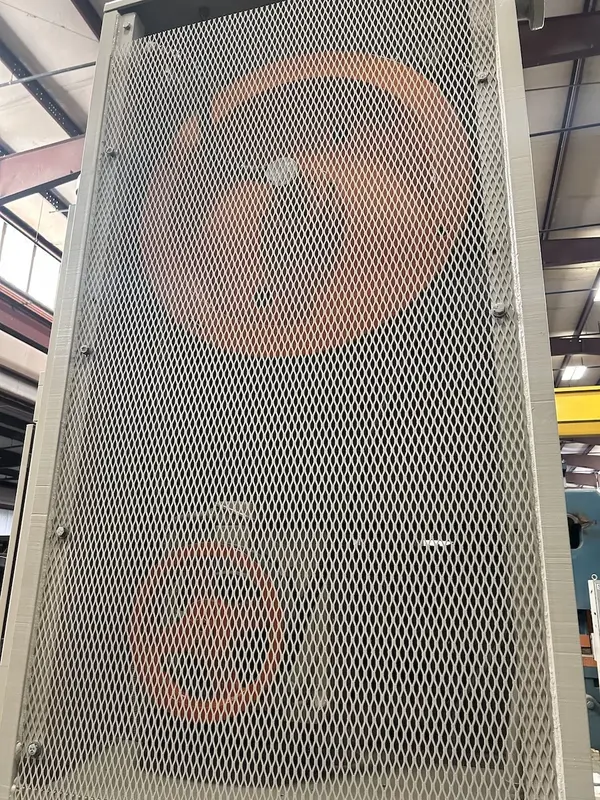

| EQUIPPED WITH | AIR COUNTERBALANCES, FLOOR STANDING, & BACK GEARED DESIGN |
| NOTE | __ |
| LOCATION | THIS USED PRESS IS LOCATED IN OUR COLUMBIA, TN WAREHOUSE |
Get Your Price from Alma Machinery Co-Columbia TN!
