Manufacturer: Haco
Model: 165-10-8XR
Tons: 165.0
Overall: 10.0
Between Housings: 102.00
Stock # 3046
1 / 6
Click to zoom in
1 / 6
For Sale by Southern Fabricating Mchy Sales
Surplus Record Dealer Since 2015
Location: Lithia, FL
Contact Dan McCurdy
Phone Number: 813...> Show Phone Number 813-444-4555
Let the seller know you found their listing on Surplus Record!
Description

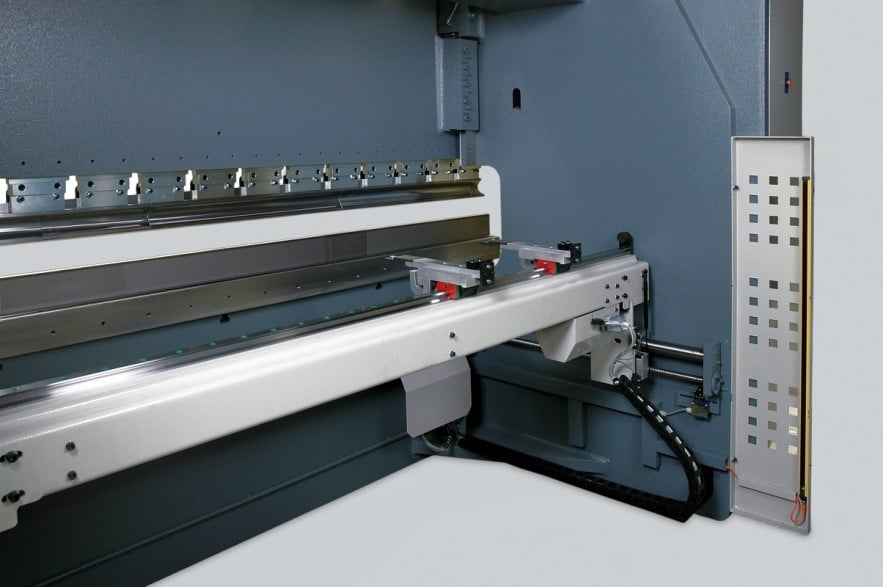

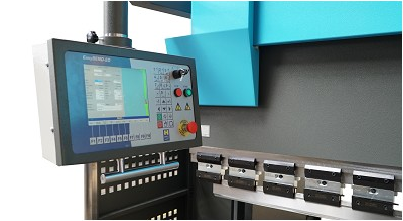

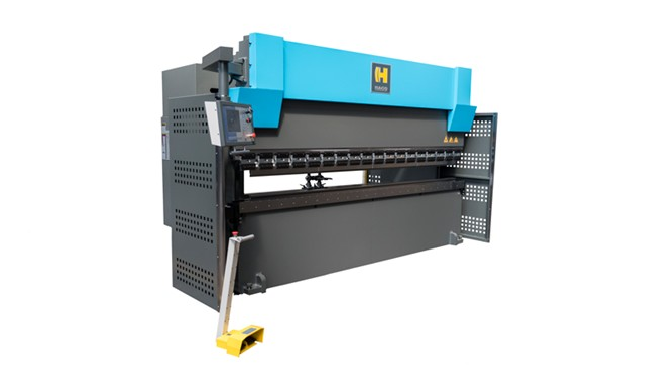

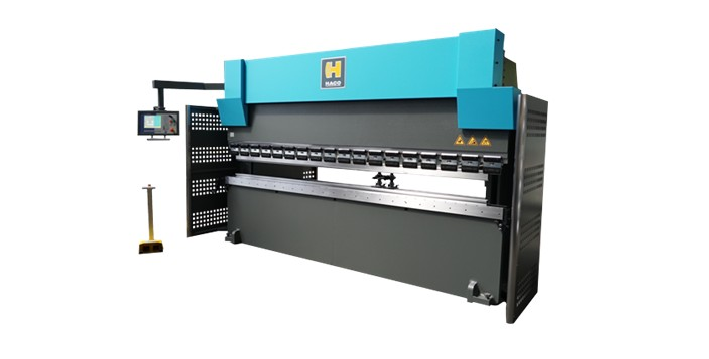

165 Ton X 10’ Hydraulic Press Brake with EasyBEND 2D Control, 2 Movable Front Supports, Optical Safety Guard, 40” X Back Gauge with R Axis, Quick Manual Clamping for European Standard Style Tooling and CNC Crowning.
GENERAL SPECIFICATIONS
- Working Length: 122
- Capacity: 165 US Short Tons
- Distance Between Side Frames: 102
- Standard Gap: 9.8
- Daylight Opening (Open Height): 15.7
- Stroke: 7.8
- Table Height: 36
- Fast Approach Speed: 236/min
- Max. Working Speed: 24/min
- Fast Return Speed: 188/min
- Motor Power: 22 HP
- Total Length: 138
- Total Width: 67
- Total Height: 98.43
- Approx. Weight: 18,000 Lb.
- Voltage and Area setting:
- Voltage: 220V/480V
- Frequency: 60 Hz
INCLUDES: EasyBEND 2D Control, 2 Movable Front Supports, Optical Safety Guard, 40” X Back Gauge with R Axis, Quick Manual Clamping for European Standard Style Tooling, CNC Crowning, Service Tools Included, Hydraulic Oil, Operator and Service Manual Included, One Year Warranty on Parts and Labor Including Start-up and Operation Instructions.
***All Price, Location and Specifications Subject to Change without Notice***
