Description

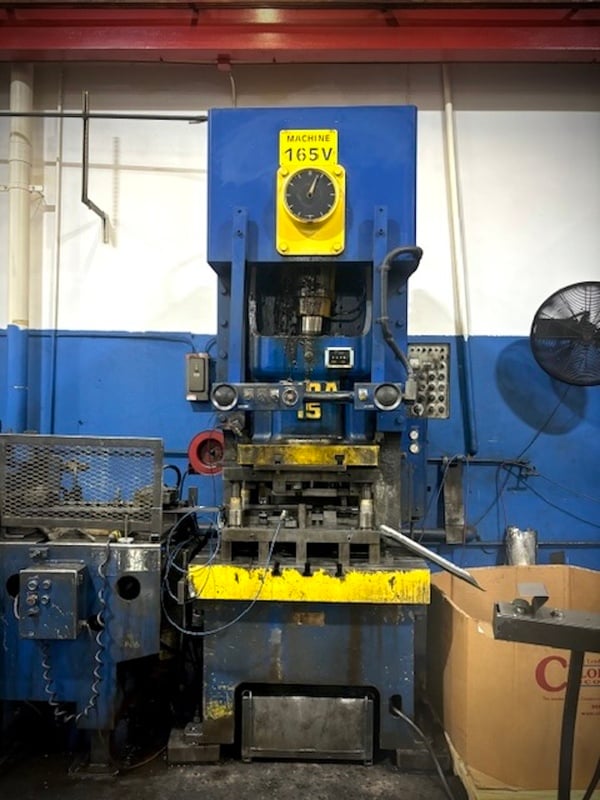

Machine #: 8025
| CAPACITY | 165 US TONS |
|---|---|
| BLANKING CAPACITY | 132 US TONS |
| STROKE | 5.1″ |
| MAX DIE HEIGHT | 17.7″ SDAU |
| BED AREA | 46″ X 23.6″ (RL X FB) |
| SPEED | 40 – 85 SPM |
| SLIDE ADJUSTMENT | 3.9″ MOTORIZED |
| SLIDE AREA | 46″ RL X 23.5″ FB (T-SLOT) |
| BOLSTER PLATE | APPROX 6.5″ H X 46″ RL X 23.5″ FB |
| DISTANCE BETWEEN UPRIGHTS | 28.5″ |
| DISTANCE FLOOR TO BED | 29″ |
| CLUTCH | AIDA AIR CLUTCH / BRAKE COMBINATION |
| ELECTRICS | 15 HP 1750 RPM 480V-3-60 MOTOR & NEW CIECO 1100R PRESS CONTROL FOR RECONDITIONED PRICE |
| APPROX DIMENSIONS | 124″ H X 72″ RL X 84″ FB |
| APPROX WEIGHT | 35,000 LBS |
| EQUIPPED WITH | HYDRAULIC OVERLOAD, FLOOR STANDING, SINGLE BACK GEARED DESIGN, CAST IRON FRAME |
| NOTE | __ |
| LOCATION | THIS USED PRESS IS LOCATED IN OUR COLUMBIA, TN WAREHOUSE |
