1600 Amps, Square D, QED-Power, (7) Switchboards w/ #5 Motor Control Center, 480 Volts & 480Y/277 Volts, type 1 enclosures

Package of seven Square D QED Power Style electrical-distribution switchboards and one three-section Square D Model 5 motor control center.
Manufacturer: Square D
Equipment Type: Switchboards and Motor Control Center
Total Quantity: (8) Units
Power Switchboards: (7)
Motor Control Center: (1) Three-Section Assembly
Switchboard Series: QED / QED Series 2 Power Style
MCC Model: Model 5
Switchboard Voltages: 480 V and 480Y/277 V
MCC Maximum Voltage: 600 V AC
Frequency: 60 Hz
Electrical Service: Three-Phase
Wiring Configurations: Three-Wire and Four-Wire
Switchboard Ratings: 800–1,600 A Maximum Supply
Enclosure Type: Type 1 Indoor
Condition: Used
Unit 1 — Panel HM
Series: QED Power Style, Type S
Voltage: 480 V
Frequency: 60 Hz
Maximum Supply Rating: 800 A
Maximum Section Rating: 800 A
System: 3-Phase, 3-Wire
Enclosure: Type 1

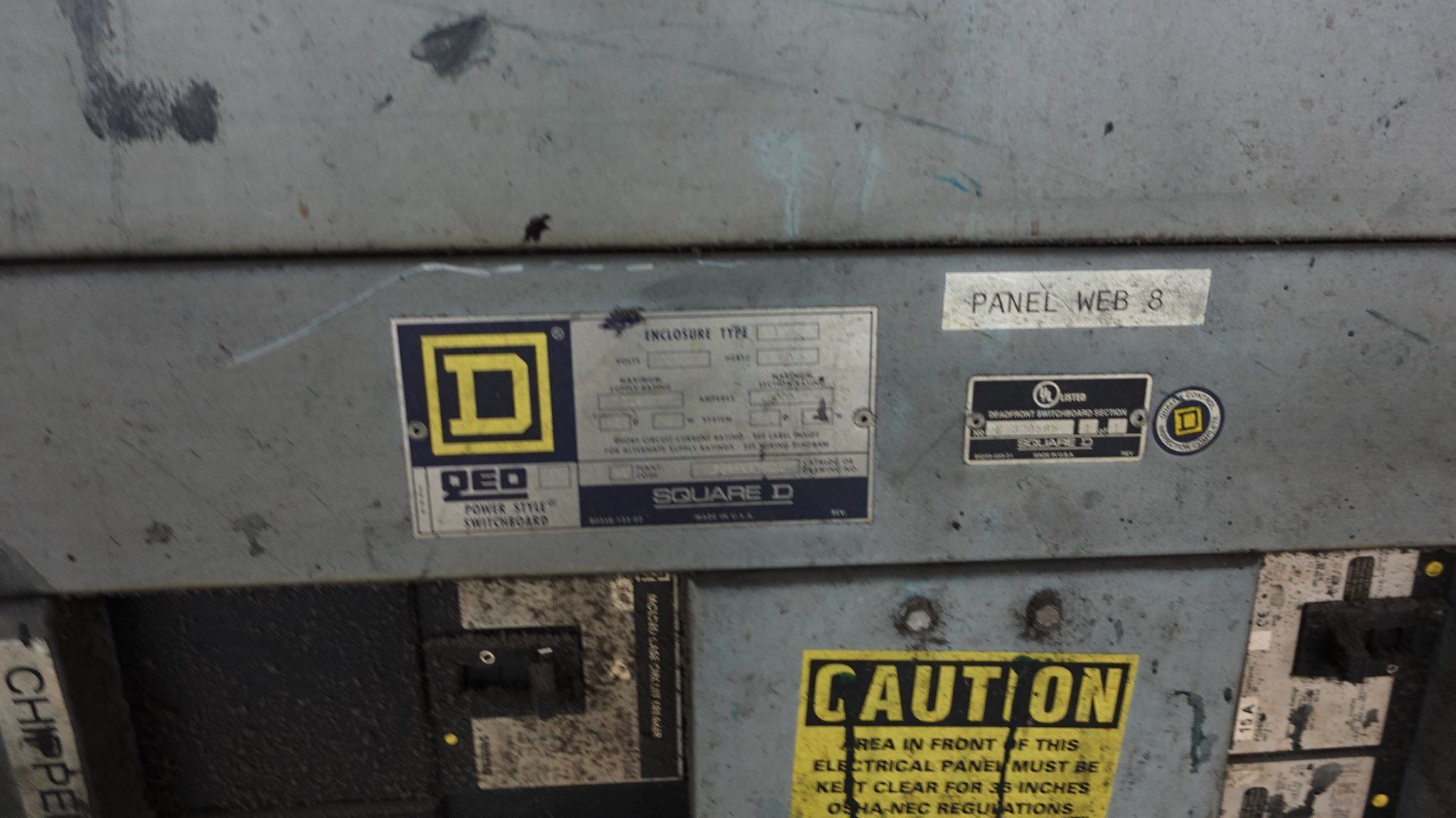

Unit 2 — Panel Web 8
Series: QED Power Style
Voltage: 480Y/277 V
Frequency: 60 Hz
Maximum Supply Rating: 1,600 A
Maximum Section Rating: 800 A
System: 3-Phase, 4-Wire
Enclosure: Type 1
Unit 3 — Panel M600
Series: QED Power Style, Type 2
Voltage: 480Y/277 V
Frequency: 60 Hz
Maximum Supply Rating: 1,600 A
Maximum Section Rating: 1,600 A
System: 3-Phase, 4-Wire
Enclosure: Type 1
Catalog/Drawing Number: 14177190-003

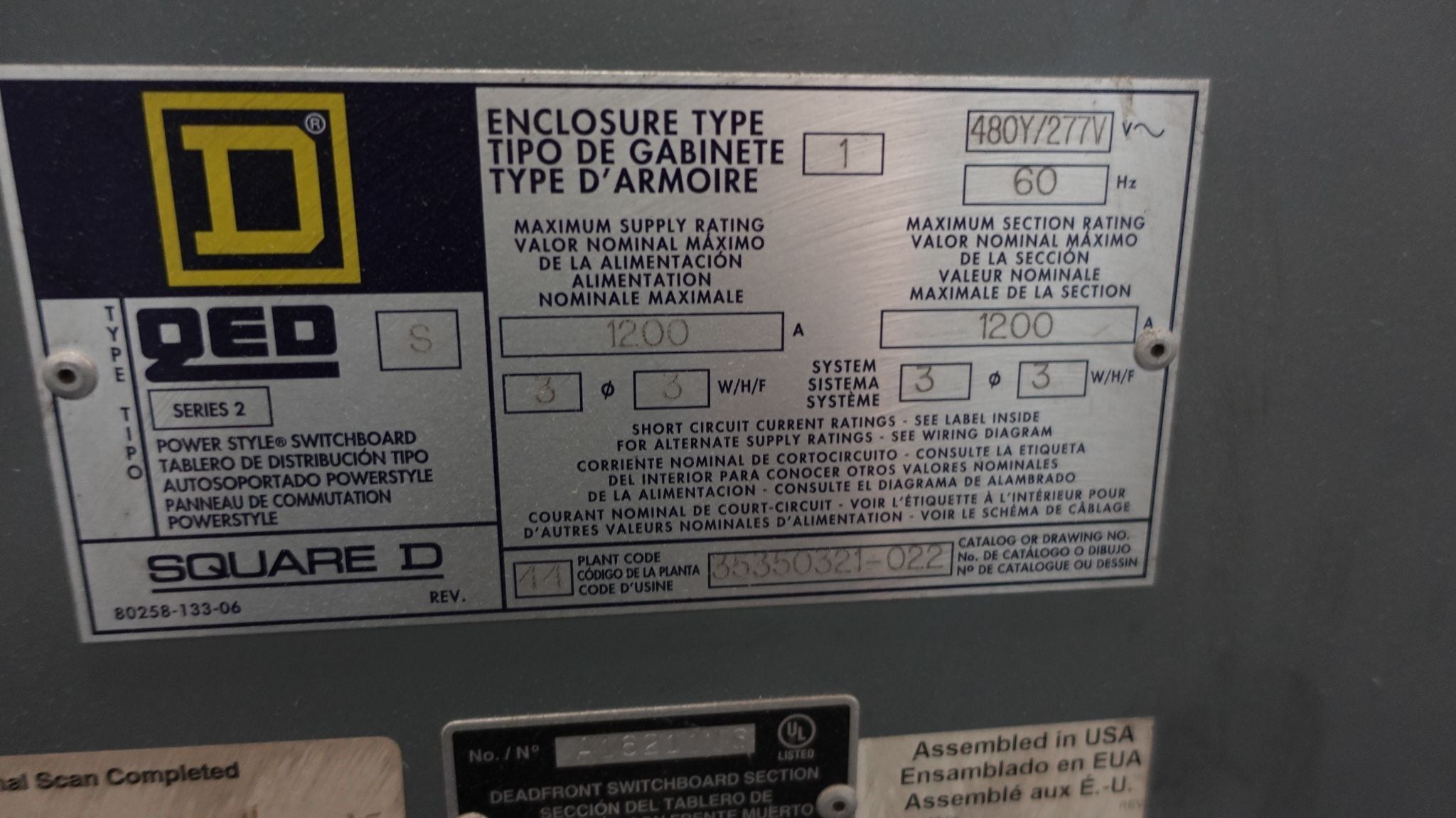

Unit 4
Series: QED Series 2 Power Style, Type S
Voltage: 480Y/277 V
Frequency: 60 Hz
Maximum Supply Rating: 1,200 A
Maximum Section Rating: 1,200 A
System: 3-Phase, 3-Wire
Enclosure: Type 1
Catalog/Drawing Number: 36350321-022
Unit 5 — Panel HL
Series: QED Power Style, Type S
Voltage: 480 V
Frequency: 60 Hz
Maximum Supply Rating: 1,200 A
Maximum Section Rating: 1,200 A
System: 3-Phase, 3-Wire
Catalog/Drawing Number: 2379-516-002
Unit 6
Series: QED Power Style
Voltage: 480Y/277 V
Frequency: 60 Hz
Maximum Supply Rating: 1,200 A
Maximum Section Rating: 1,200 A
System: 3-Phase, 4-Wire
Enclosure: Type 1
Unit 7
Series: QED Power Style, Type 2
Voltage: 480Y/277 V
Frequency: 60 Hz
Maximum Supply Rating: 1,000 A
Maximum Section Rating: 1,000 A
System: 3-Phase, 4-Wire
Enclosure: Type 1
Catalog/Drawing Number: 14177190-002
Unit 8 — Motor Control Center
Model: Square D Model 5
Configuration: Three-Section MCC
Maximum Voltage: 600 V AC
Horizontal Bus Rating: 600 A
Vertical Bus Rating: 300 A
Certification: UL Listed
