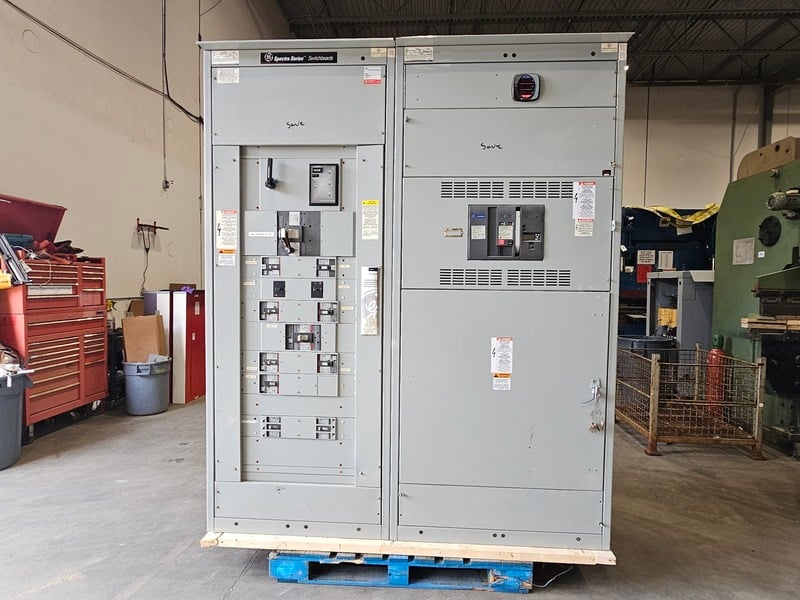

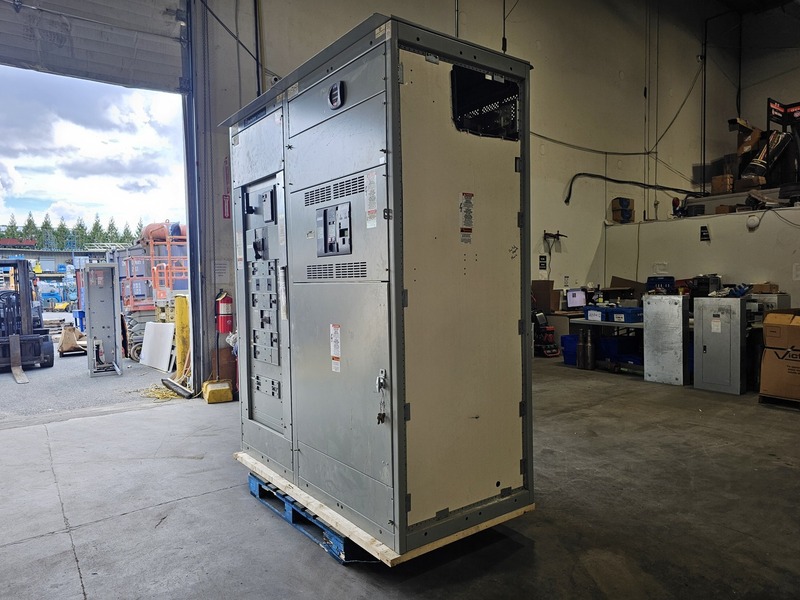

1600 Amp. General Electric, Spectra Series Switchboard, Power Break II 1200 amp main breaker, 208Y/120 Volts, 3PH

Estimated monthly payment valid upon approved credit.

Request Formal Quote

SKU: 154437
Condition: Used
Electrical Specifications:
Amps: 1600 amps
Voltage: 120/208 volts
Phase: 3-phase
Made In: UNITED STATES
Dimensions: 35.00 (H) x 75.00 (W) x 97.00 (L) inches
Additional Description:
Power Break II 1200A Main Breaker
Model: SSF168216
Frame: 1600 Amp max.
Rated Plug Installed: 1200 Amp, TR16B1200
Voltage: 600 V
Pole: 3
Interrupting Rating:
- 85 kA @ 240 V
- 65 kA @ 480 V
- 50 kA @ 600 V
Spectra RMS Hi-Break 800A Breaker
Model: SKHA36AT0800
Frame: 800 Amp max.
Rated Plug Installed: 800 Amp, SRPK800A800
Voltage: 600 V
Pole: 3
Interrupting Rating:
- 65 kA @ 240 V
- 50 kA @ 480 V
- 25 kA @ 600 V
(7) Spectra RMS 200A Breaker
Model: SFLA36AT0250
Frame: 250 Amp max.
Rated Plug Installed: 200 Amp, SRPF250A200
Voltage: 600 V
Pole: 3
Interrupting Rating:
- 100 kA @ 240 V
- 65 kA @ 480 V
- 25 kA @ 600 V
Spectra RMS 400A Breaker
Model: SGLA36AT0400
Frame: 400 Amp max
Rated Plug Installed: 400 Amp, SRPG400A400
Voltage: 600 V
Pole: 3
Interrupting Rating:
- 100 kA @ 240 V
- 65 kA @ 480 V
- 25 kA @ 600 V
Spectra RMS 60A Breaker
Model: SELA36AT0060
Frame: 60 Amp max.
Rated Plug Installed: 60 Amp, SRPE60A60
Voltage: 600 V
Pole: 3
Interrupting Rating:
- 100 kA @ 240 V
- 65 kA @ 480 V
- 25 kA @ 600 V
60A Industrial Circuit Breaker
Model: TED136060
Current: 60 Amp
Voltage: 600 VAC, 250 VDC
Pole: 3
Interrupting Rating:
- 18 kA @ 240 V / 480 V
- 14 kA @ 600 V
- 10 kA @ 250 VDC
(2) Hi-Break 30A Breaker
Model: THEd136030
Current: 30 Amp
Voltage: 600 VAC, 250 VDC
Pole: 3
Interrupting Rating:
- 65 kA @ 240 V
- 25 kA @ 480 V
- 18 kA @ 600 V
- 10 kA @ 250 VDC
(2) 100A Trip Units
