For Sale by Equipment Hub
Surplus Record Dealer Since 2014
Drake Denham
770-62...> Show Seller's Phone Number 770-621-0495 Let the seller know you found their listing on Surplus Record!
Description
General Info
- Stock #: Sharp-1660LV
- Brand: Sharp
- Model: 1660LV
- Approx. Shipping Weight: 4100 lbs / 1859.7 Kg
- Approx. Shipping Dimensions: 8.7′ L x 2.6′ W x 3.9′ H / 2.65m x 0.8m x 1.2m
Specifications
- Swing Over Bed: 16 in. / 406 mm
- Swing Over Cross Slide: 8.75 in. / 222.25 mm
- Swing Over Gap: 24.38 in. / 619.2 mm
- Gap Width (In Front Of Face Plate): 9.75 in. / 247.6 mm
- Distance Between Centers: 60 in. / 1524 mm

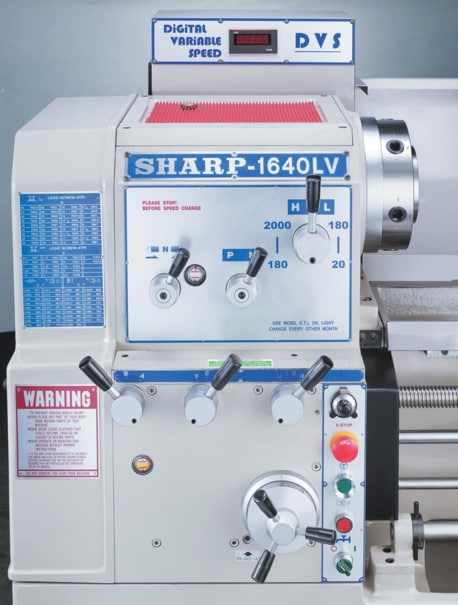

- Spindle Speed: 20 – 2000 RPM (variable, high: 235-2000 rpm, low: 20-170 rpm, 12 speeds)

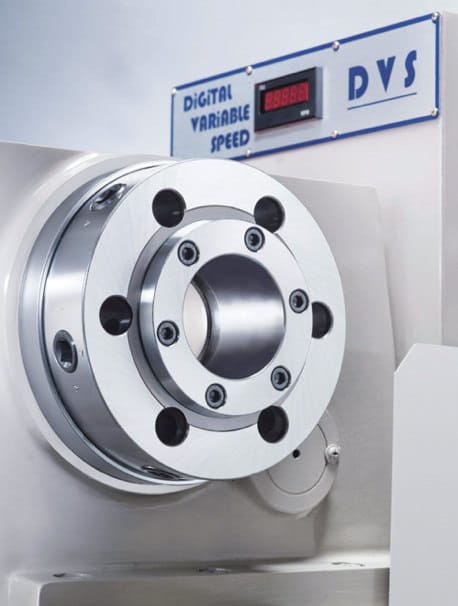

- Spindle Nose: D1-8 Camlock
- Spindle Bore: 3.06 in. / 77.72 mm
- Threads (Inch/Metric): 4 – 56 tpi / 0.5 – 7 mm (40 / 17)
- Diametral Pitch Threads: 0.157 – 2.20 in. / 4 – 56 mm (36)
- Longitudinal Feeds: 0.002 – 0.032 in./rev / 0.05 – 0.82 mm/rev
- Cross Feeds: 0.0001 – 0.0094 in./rev / 0.02 – 0.4 mm/rev
- Leadscrew Pitch, Diameter: 4 tpi / 1.37 in.
- Cross Slide Travel: 9.8 in. / 250 mm
- Compound Travel: 4.9 in. / 124.4 mm
- Compound Width: 4.5 in. / 114.3 mm
- Bed Length: 77 in. / 1955.8 mm
- Bed Width: 11.75 in. / 298.4 mm
- Quill Diameter: 2.25 in. / 57.15 mm
- Quill Travel: 5 in. / 127 mm
- Quill Center Taper: MT #4
- Spindle Motor: 7.5 HP / 5.59 KW
- Voltage: 230V/460V
- Phase: 3 phase
- Power Consumption (220V): 8 KVA / 25 amps
- Power Consumption (440V): 8 KVA / 12.5 amps
