For Sale by Southern Fabricating Mchy Sales
Description

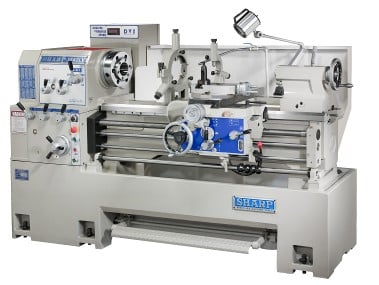

16" X 40" Capacity Manual Engine Lathe with 2,000 RPM 7.5HP, DIGITAL VARIABLE SPEED DRIVE, D1-8 Camlock Spindle, 3-1/16" Spindle Bore, 10" 3 Jaw Chuck, Gap Bed Frame,Coolant System, Full Length Splash/Chip Guard, Foot Brake, Halogen Work Light and Tailstock.
STANDARD EQUIPMENT:
- 3-Jaw 10” Chuck
- Coolant System
- Halogen Work Light
- 16” Face Plate
- Steady Rest (½” - 6” Capacity)
- American Tool Post
- Full Length Splash Guard
- Follower Rest
- Longitudinal Carriage Stops
- Tool Kit (includes: Machine Manual, Half Nut Wrench, Wrench 17m, 19m, Set of 6 Allen wrenches, Phillip Screwdriver, Flat Head Screwdriver, Oil can, Grease Gun, Rear Way Cover Bracket, Pin for Indicator, Can of Paint)
FEATURES:
- D1-8 Camlock
- 3 1/16” Spindle Bore
- Direct Selection for Inch/Metric Threads
- Single Piece Meehanite Cats Bed
- 7.5 HP Spindle Drive
- Digital Variable Speed Drive (40-2,000 RPM)
SPECIFICATIONS:
Capacity
Swing Over Bed: 16”
Swing Over Cross Slide: 8-3/4”
Swing Over Gap: 24-3/8”
Width Of Bed: 8-1/2”
Width of Gap: 9.75”
Center Height from Top of Compound: 1.9”
Distance Between Centers: 40”
Headstock
Spindle Nose Type: D1-8 camlock
Spindle Bore: 3-1/16”
Spindle Speeds: 20-2,000 RPM
Taper of Spindle Bore: MT#6
Taper of Center: MT#4
Threads and Feeds
Longitudinal Feeds – in/rev (18): 0.002 - 0.032”
Cross Feeds – in / rev (12): 0.0001 –0.0094”
Inch Threads (36): 4-56 tpi
Metric Threads (17): 0.5 – 7mm
Leadscrew Pitch, Diameter: 4 tpi, 1-”
Carriage
Cross Slide Travel: 8.7”
Compound Rest Travel: 4.9”
Compound Width: 4.5”
Bed
Bed Length: 59”
Bed Width: 11-3/4”
Tailstock
Quill Travel (graduated): 5”
Quill Diameter: 2-1/4”
Quill Taper: MT#4
General
Spindle Motor: 7.5 HP
Net Weight (approx.): 3,600 LBS
Standard Color: Gray
Electrical:
Voltage 230 3PH (460 volts optional)
Total Power Consumption 230V 3KVA/25 amps, 460V 3KVA/12.5 amps
***All Price, Location and Specifications Subject to Change without Notice***
MANY OPTIONS AVAILABLE TO CUSTOMIZE YOUR MACHINE - CALL FOR COMPLETE QUOTATION LISTING ALL AVAILABLE OPTIONS.
