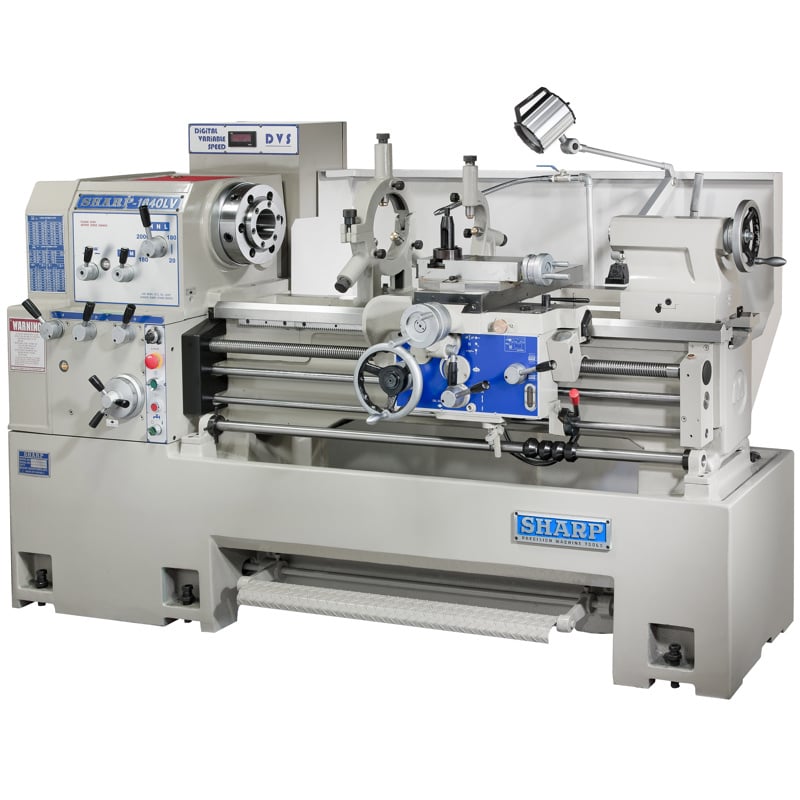

16" x 40" Sharp #1640LV, precision lathe, 8.75" swing over cross slide, 3-haw 10" chuck, 12" face plate, coolant system

General Info

• Stock #: Sharp-1640LV
• Brand: Sharp
• Model: 1640LV
• Approx. Shipping Weight: 3,600 lbs. / 1,632.9 Kg
• Approx. Shipping Dimensions: 7.05′ L x 2.66′ W x 3.91′ H / 2.15m x 0.81m x 1.19m

Specifications

• Swing Over Bed: 16 in. / 406 mm
• Swing Over Cross Slide: 8.75 in. / 222.25 mm
• Swing Over Gap: 24.37 in. / 618.9 mm
• Gap Width (In Front Of Face Plate): 9.75 in. / 247.6 mm
• Distance Between Centers: 40 in. / 1,016 mm
• Spindle Speed: Hi: 235-2,000 rpm, Low: 20-170 rpm
• No. of Spindle Speeds: 12

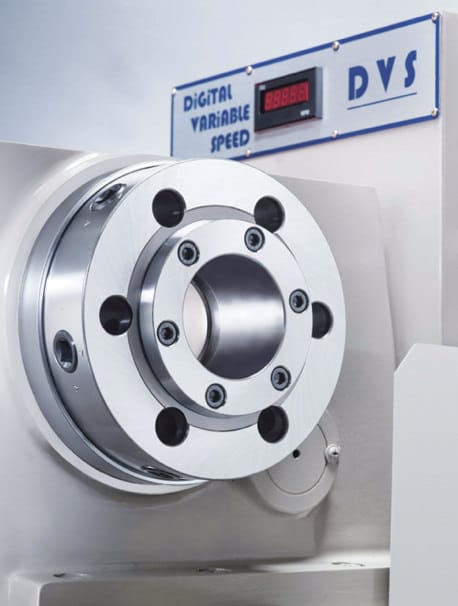

• Spindle Nose: D1-8 camlock
• Spindle Bore: 3.06 in. / 77.72 mm
• Inch Threads, Number: 4-56 tpi (36)
• Diametral Pitch Threads: 0.157-2.20 in. / 4-56 mm (36)
• Longitudinal Feeds: 0.002-0.032 in./rev / 0.05-0.82 mm/rev
• Cross Feeds: 0.0001-0.0094 in./rev / 0.02-0.4 mm/rev
• Leadscrew Pitch, Diameter: 4 tpi, 1.37 in.
• Cross Slide Travel: 9.8 in. / 250 mm
• Compound Travel: 4.9 in. / 124.4 mm
• Compound Width: 4.5 in. / 114.3 mm
• Bed Length: 59 in. / 1,498.6 mm
• Bed Width: 11.75 in. / 298.4 mm
• Quill Diameter: 2.25 in. / 57.15 mm
• Quill Travel: 5 in. / 127 mm
• Quill Center Taper: MT #4
• Spindle Motor: 7.5 HP / 5.59 KW
• Voltage: 230V/460V
• Phase: 3 phase
• Power Consumption (230V): 8 KVA / 25 amps
• Power Consumption (460V): 8 KVA / 12.5 amps
