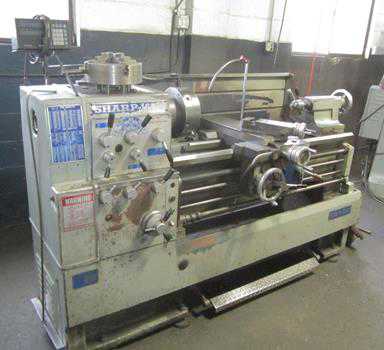

For Sale by Yoder Machinery Sales
Description
SERIAL ................................. 984020
MODEL .................................. 1560S
YEAR NEW ............................... 1998
SWING OVER WAYS ........................ 16"
SWING OVER CROSS SLIDE ................. 8.75"
SWING IN GAP ........................... 24.38"
DISTANCE BETWEEN CENTERS ............... 40"
SPINDLE SPEEDS ......................... 20 TO 2000 RPM
DIAMETER OF SPINDLE HOLE ............... 2.30"
THREADS (ENGLISH) ...................... 4 TO 56 TPI
THREADS (METRIC) ....................... 0.5 - 7 MM
FEEDS LONGITUDINAL ..................... 0.002 TO 0.03 IPR
CROSS FEEDS ............................ 0.002. TO 0.011"
CHUCK .................................. 3 & 4 JAWS
THREAD DIAL ............................ YES
QUILL TAPER ............................ #4 MT
2 AXIS DIGITAL READOUTS ................ SONU
FOOT BRAKE ............................. YES
STEADY REST ............................ YES
COOLANT WITH CHIP PANS ................. YES
MOTOR .................................. 5 HORSEPOWER
